RN90L-CRSSEA3 (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 1 OF 2(8808- )22R#..RN120,8#,90..JPP..USA
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
22R#..RN12#,8#,90 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-35020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA 12V 1.4KW,IRELAND SPEC |
1 | ||
| 28100-34080 |
22R#..RN120,8#,90..USA 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-35020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28110-34080 |
22R#..RN120,8#,90..USA |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC |
1 | ||
| 28120-26071 |
22R#..RN120,8#,90..USA |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-35020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28130-34060 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
22R#..RN8#,90..USA;3VZE..VZN85,9#..R..USA |
1 | ||
| 28140-15090 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-72020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28150-34080 |
22R#..RN120,8#,90..USA |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC |
1 | ||
| 28160-26070 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10113 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.2 |
1 | ||
| 90099-10143 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10113 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.2 |
1 | ||
| 90099-10143 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28254-45020 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.1 |
1 | ||
| 28254-45020 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.1 |
1 | ||
| 28251-15090 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.2 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

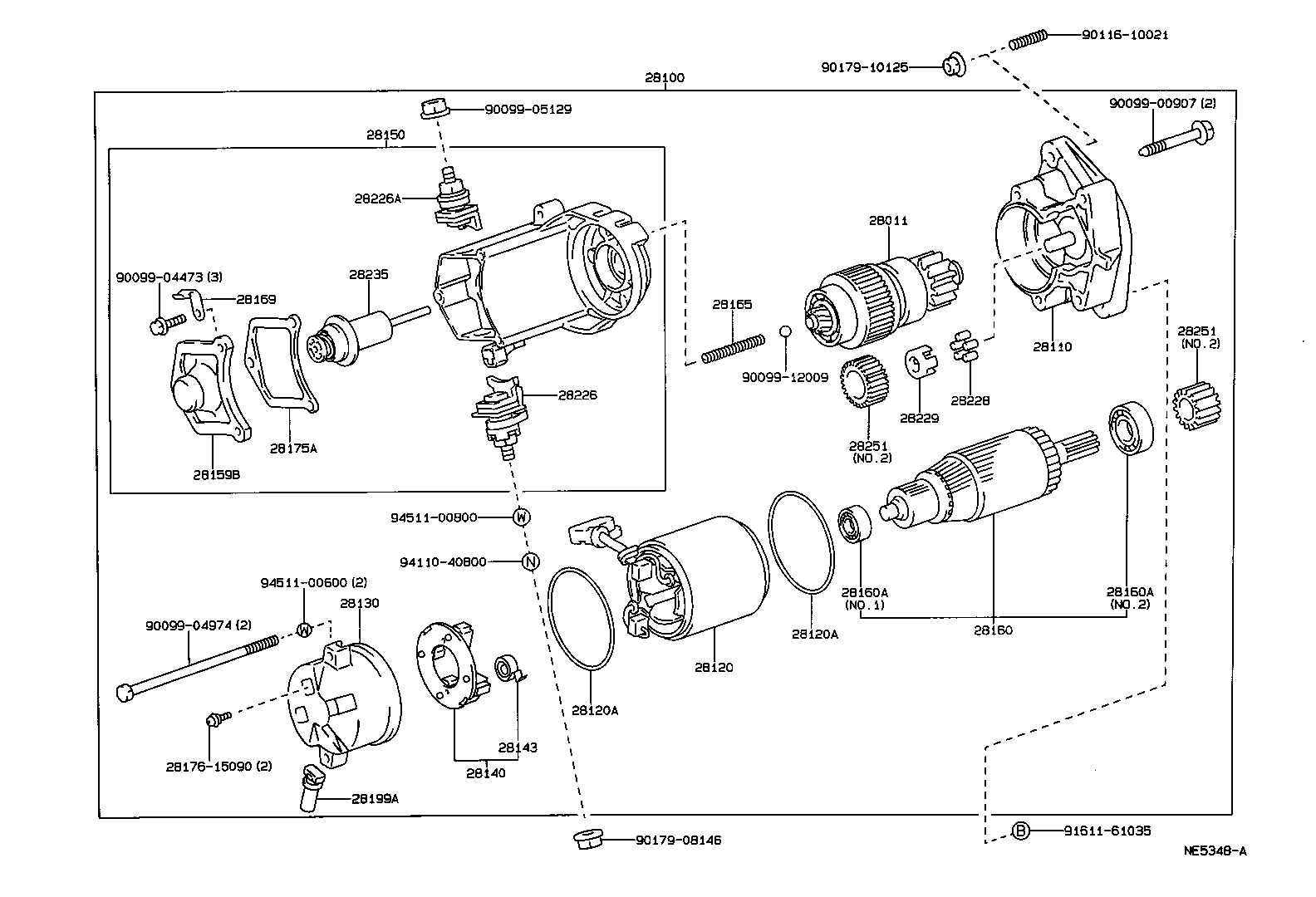

ILLUST NO. 1 OF 2(8808-9108)22RE..JPP ; (8808-9108)22R..JPP..G
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
22R#..RN12#,8#,90 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-35020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA 12V 1.4KW,IRELAND SPEC |
1 | ||
| 28100-34080 |
22R#..RN120,8#,90..USA 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-35020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28110-34080 |
22R#..RN120,8#,90..USA |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC |
1 | ||
| 28120-26071 |
22R#..RN120,8#,90..USA |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-35020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28130-34060 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
22R#..RN8#,90..USA;3VZE..VZN85,9#..R..USA |
1 | ||
| 28140-15090 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-72020 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28150-34080 |
22R#..RN120,8#,90..USA |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC |
1 | ||
| 28160-26070 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10113 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.2 |
1 | ||
| 90099-10143 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10113 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.2 |
1 | ||
| 90099-10143 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-15090 |
22R..RN8#,90..G..USA;22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3VZE..VZN85,9#..USA;3VZE..VZN85,90..R..CND;22R#,3VZE..RN12#,8#,90,VZN120 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28254-45020 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.1 |
1 | ||
| 28254-45020 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.1 |
1 | ||
| 28251-15090 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.2 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28254-45020 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.1 |
1 | ||
| 28254-45020 |
22R#..RN120,8#,90..USA;3VZE..VZN85,9#..R..USA NO.1 |
1 | ||
| 28251-15090 |
22RE..RN120,8#,90..USA;22R,3VZE..RN8#,90,VZN85,9#..(G,R)..USA COLD SPEC,NO.2 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
