RN90L-CRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )VZN120,85,9#..JPP..ATM

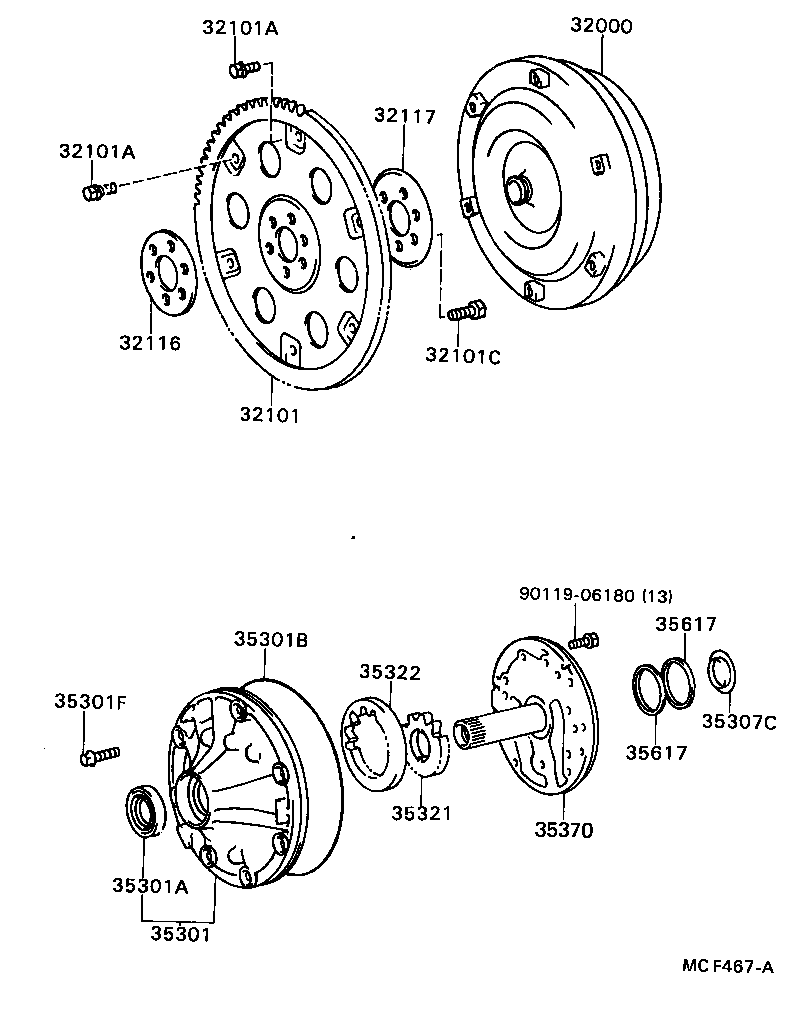

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307C 35321 35322 35370 35617 35617 9011906180
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-30101

RN12#,8#,90..ATM

 1
32000-35080

VZN120,85,9#..ATM

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-35010

VZN120,85,9#..ATM

 1
32101-20050

RN12#,8#,90..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

RN12#,8#,90..ATM

*8-1.25PX12-8.4

 1
90119-09010

VZN120,85,9#..ATM

*9-1.25PX12.8-9

 1
90119-09009

VZN120,85,9#..ATM

*9-1.25PX12.8-8.8

 5
90119-08498

RN12#,8#,90..ATM

*8-1.25PX12-8

 5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

RN12#,8#,90..ATM

*8-1.25PX12-8.4

 1
90119-09010

VZN120,85,9#..ATM

*9-1.25PX12.8-9

 1
90119-09009

VZN120,85,9#..ATM

*9-1.25PX12.8-8.8

 5
90119-08498

RN12#,8#,90..ATM

*8-1.25PX12-8

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90913-01011

RN12#,8#,90..ATM

*17-1.25PX26-18

 6
90105-10048

VZN85..JPP..WT..4HC;VZN85..JPP..10T..4HC..CBU;VZN120,9#..JPP..ATM..(CBU,IV6)

*10-1.25PX18-13

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-32020

VZN120,85,9#..ATM

 1
32116-20011

RN12#,8#,90..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-32020

VZN120,85,9#..ATM

 1
32117-20021

RN12#,8#,90..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30040

VZN120,85,9#..ATM

 1
35301-30030

RN12#,8#,90..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

RN12#,8#,90..ATM

 1
90311-38029

VZN120,85,9#..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

RN12#,8#,90..ATM

 1
90301-99033

VZN120,85,9#..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137

RN12#,8#,90..ATM

 7
90105-08091

VZN120,85,9#..ATM

*8-1.25PX35-35

 7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30020

VZN120,85,9#..ATM

T=3.7

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22080

RN8#,90..4HC

T=15.254-15.245

 1
35321-22010

RN12#,8#,90..ATM

T=15.286-15.235

 1
35321-32050

VZN120,85,9#..ATM

T=9.456-9.474

 1
35321-22070

RN8#,90..4HC

T=15.244-15.235

 1
35321-22100

RN8#,90..4HC

T=15.275-15.266

 1
35321-22110

RN8#,90..4HC

T=15.285-15.276

 1
35321-22090

RN8#,90..4HC

T=15.265-15.255

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

RN12#,8#,90..ATM

T=15.286-15.235

 1
35322-22070

RN8#,90..4HC

T=15.244-15.235

 1
35322-32050

VZN120,85,9#..ATM

T=9.456-9.474

 1
35322-22080

RN8#,90..4HC

T=15.254-15.245

 1
35322-22110

RN8#,90..4HC

T=15.285-15.276

 1
35322-22090

RN8#,90..4HC

T=15.265-15.255

 1
35322-22100

RN8#,90..4HC

T=15.275-15.266

 1
35370 - SHAFT ASSY, STATOR
35370-30031

VZN120,85,9#..ATM

 1
35370-30023

RN12#,8#,90..ATM

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

RN12#,8#,90..ATM

 2
35617-30020

VZN120,85,9#..ATM

 2
35617-32010

RN8#,90..4HC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

RN12#,8#,90..ATM

 2
35617-30020

VZN120,85,9#..ATM

 2
35617-32010

RN8#,90..4HC

 2
Common parts
90119-06180

(8808- )RN12#,8#,90..JPP..ATM

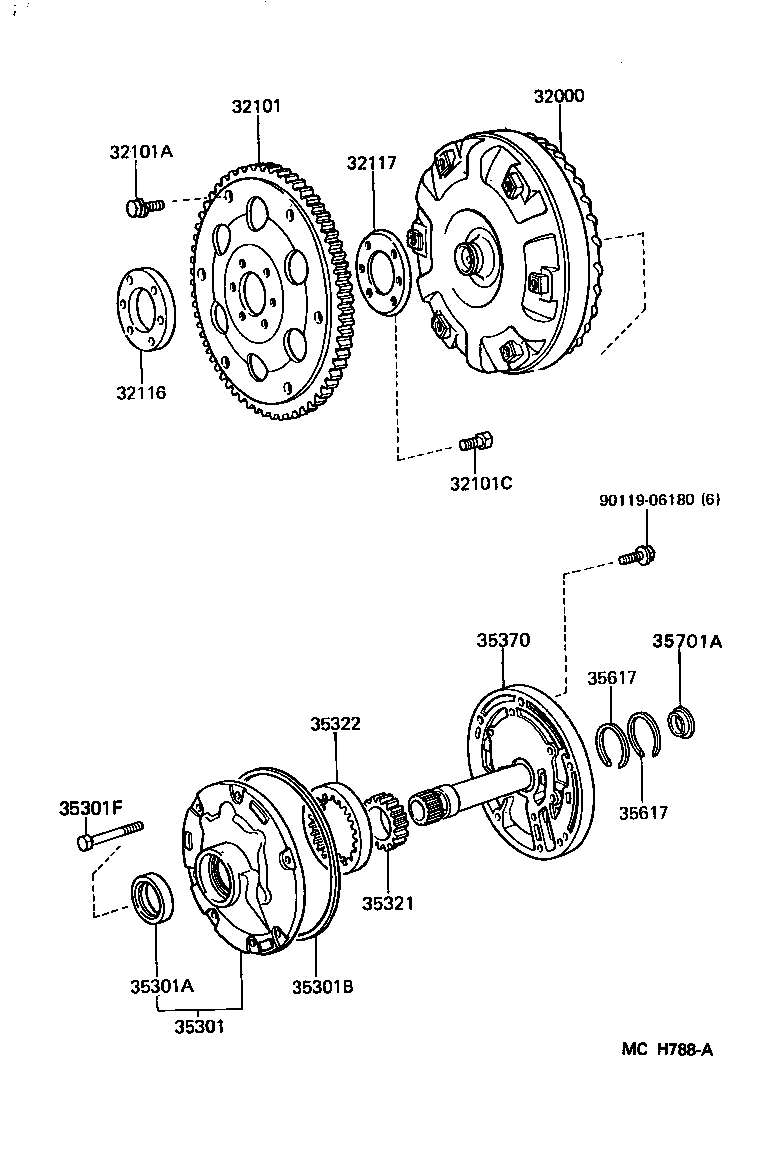

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35321 35322 35370 35617 35617 35701A 9011906180
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-30101

RN12#,8#,90..ATM

 1
32000-35080

VZN120,85,9#..ATM

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-35010

VZN120,85,9#..ATM

 1
32101-20050

RN12#,8#,90..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08113

RN12#,8#,90..ATM

*8-1.25PX12-8.4

 1
90119-09010

VZN120,85,9#..ATM

*9-1.25PX12.8-9

 1
90119-09009

VZN120,85,9#..ATM

*9-1.25PX12.8-8.8

 5
90119-08498

RN12#,8#,90..ATM

*8-1.25PX12-8

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90913-01011

RN12#,8#,90..ATM

*17-1.25PX26-18

 6
90105-10048

VZN85..JPP..WT..4HC;VZN85..JPP..10T..4HC..CBU;VZN120,9#..JPP..ATM..(CBU,IV6)

*10-1.25PX18-13

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-32020

VZN120,85,9#..ATM

 1
32116-20011

RN12#,8#,90..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-32020

VZN120,85,9#..ATM

 1
32117-20021

RN12#,8#,90..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30040

VZN120,85,9#..ATM

 1
35301-30030

RN12#,8#,90..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

RN12#,8#,90..ATM

 1
90311-38029

VZN120,85,9#..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

RN12#,8#,90..ATM

 1
90301-99033

VZN120,85,9#..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137

RN12#,8#,90..ATM

 7
90105-08091

VZN120,85,9#..ATM

*8-1.25PX35-35

 7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22080

RN8#,90..4HC

T=15.254-15.245

 1
35321-22010

RN12#,8#,90..ATM

T=15.286-15.235

 1
35321-32050

VZN120,85,9#..ATM

T=9.456-9.474

 1
35321-22070

RN8#,90..4HC

T=15.244-15.235

 1
35321-22100

RN8#,90..4HC

T=15.275-15.266

 1
35321-22110

RN8#,90..4HC

T=15.285-15.276

 1
35321-22090

RN8#,90..4HC

T=15.265-15.255

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

RN12#,8#,90..ATM

T=15.286-15.235

 1
35322-22070

RN8#,90..4HC

T=15.244-15.235

 1
35322-32050

VZN120,85,9#..ATM

T=9.456-9.474

 1
35322-22080

RN8#,90..4HC

T=15.254-15.245

 1
35322-22110

RN8#,90..4HC

T=15.285-15.276

 1
35322-22090

RN8#,90..4HC

T=15.265-15.255

 1
35322-22100

RN8#,90..4HC

T=15.275-15.266

 1
35370 - SHAFT ASSY, STATOR
35370-30031

VZN120,85,9#..ATM

 1
35370-30023

RN12#,8#,90..ATM

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

RN12#,8#,90..ATM

 2
35617-30020

VZN120,85,9#..ATM

 2
35617-32010

RN8#,90..4HC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

RN12#,8#,90..ATM

 2
35617-30020

VZN120,85,9#..ATM

 2
35617-32010

RN8#,90..4HC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

RN12#,8#,90..ATM

 1
Common parts
90119-06180
