Toyota 4-runner truck (jpp) RN90 VENTILATION HOSE

RN90L-CRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995

Engine 22RE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

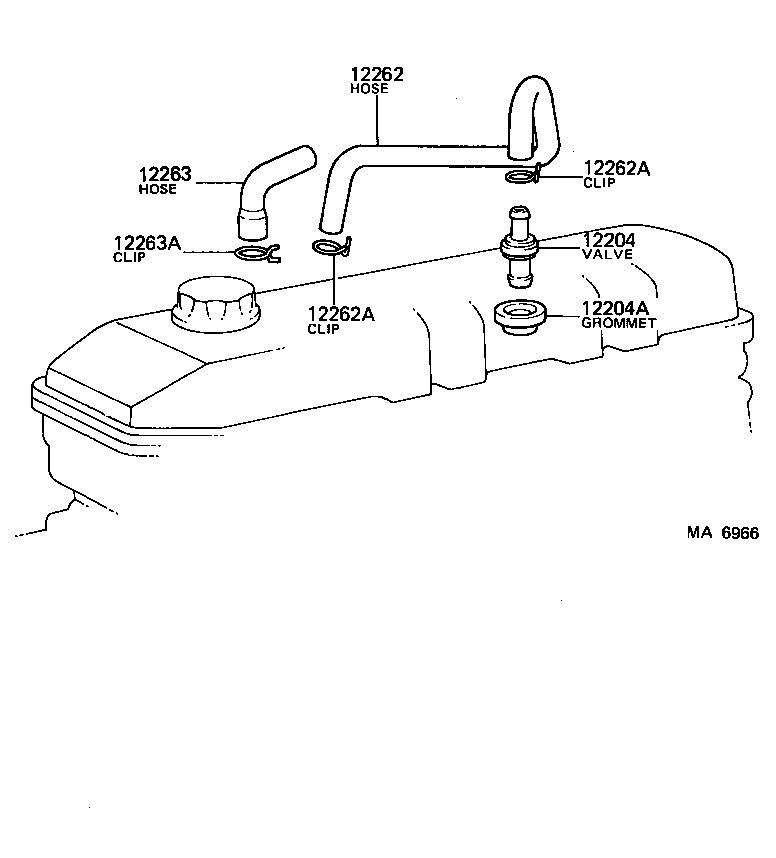

Click highlighted areas on diagram

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-35030	22R..RN8#,90	08/1988 - 08/1990	1
12204-35040	22RE..RN12#,8#,90	12/1989 - 01/1995	1
12204-35040	22RE..RN12#,8#,90	08/1988 - 12/1989	1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180	22R#..RN12#,8#,90	08/1988 - 08/1989	1
90480-18180	22RE..RN12#,8#,90	08/1989 - 01/1995	1
12262 - HOSE, VENTILATION, NO.2
12261-35011	22RE..RN12#,8#,90	08/1988 - 01/1995	1
12261-38011	22R..RN8#,90	08/1988 - 08/1990	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006	22R#..RN12#,8#,90	08/1988 - 01/1995	2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006	22R#..RN12#,8#,90	08/1988 - 01/1995	2
12263 - HOSE, VENTILATION, NO.3
12262-35040	22R..RN8#,90	08/1988 - 08/1990	1
12262-35060	22RE..RN12#,8#,90	08/1988 - 01/1995	1
12263A - CLIP(FOR VENTILATION HOSE)
90467-19003	22R..RN8#,90	08/1988 - 01/1995	1
90467-15006	22RE..RN12#,8#,90 SURGE TANK SIDE	08/1988 - 01/1995	1
90467-19003	22RE..RN12#,8#,90 HEAD COVER SIDE	08/1988 - 01/1995	1

Click highlighted areas on diagram

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-35030	22R..RN8#,90	08/1988 - 08/1990	1
12204-35040	22RE..RN12#,8#,90	12/1989 - 01/1995	1
12204-35040	22RE..RN12#,8#,90	08/1988 - 12/1989	1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180	22R#..RN12#,8#,90	08/1988 - 08/1989	1
90480-18180	22RE..RN12#,8#,90	08/1989 - 01/1995	1
12262 - HOSE, VENTILATION, NO.2
12261-35011	22RE..RN12#,8#,90	08/1988 - 01/1995	1
12261-38011	22R..RN8#,90	08/1988 - 08/1990	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006	22R#..RN12#,8#,90	08/1988 - 01/1995	2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006	22R#..RN12#,8#,90	08/1988 - 01/1995	2
12263 - HOSE, VENTILATION, NO.3
12262-35040	22R..RN8#,90	08/1988 - 08/1990	1
12262-35060	22RE..RN12#,8#,90	08/1988 - 01/1995	1
12263A - CLIP(FOR VENTILATION HOSE)
90467-19003	22R..RN8#,90	08/1988 - 01/1995	1
90467-15006	22RE..RN12#,8#,90 SURGE TANK SIDE	08/1988 - 01/1995	1
90467-19003	22RE..RN12#,8#,90 HEAD COVER SIDE	08/1988 - 01/1995	1
12263A - CLIP(FOR VENTILATION HOSE)
90467-19003	22R..RN8#,90	08/1988 - 01/1995	1
90467-15006	22RE..RN12#,8#,90 SURGE TANK SIDE	08/1988 - 01/1995	1
90467-19003	22RE..RN12#,8#,90 HEAD COVER SIDE	08/1988 - 01/1995	1
