RN90L-CRMSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP

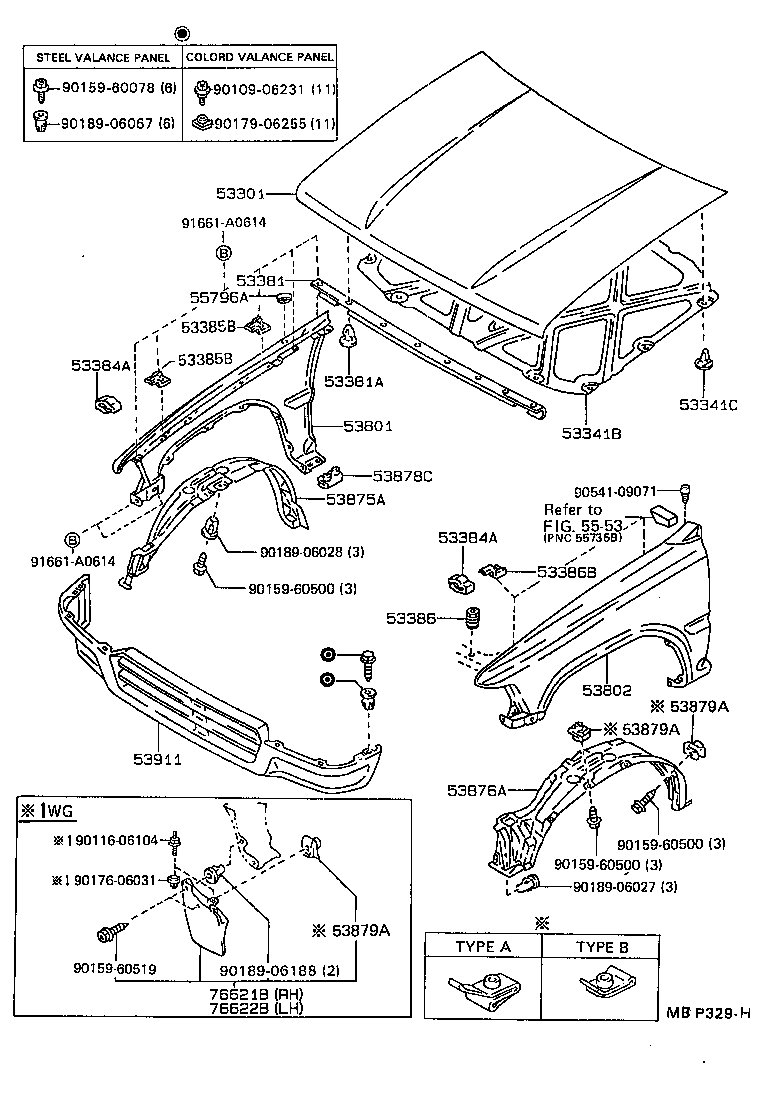

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53384A 53384A 53385B 53385B 53386 53386B 53801 53802 53875A 53876A 53878C 53879A 53879A 53879A 53911 5553 55796A 76621B 76622B 9010906231 9011606104 9015960078 9015960500 9015960500 9015960500 9015960519 9017606031 9017906255 9018906027 9018906028 9018906067 9018906188 9054109071 91661A0614 91661A0614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-89124

RN12#,8#,90,VZN120,85,9#

 1
53341B - INSULATOR, HOOD
53341-89106

VZN120,85,9#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-89104

RN80..EFI;RN80..G..USA;RN85,90,VZN85,9#..USA

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

 8
53384A - BUMPER, FENDER TO HOOD
53384-89102

RN8#,90,VZN85,9#

 4
53384A - BUMPER, FENDER TO HOOD
53384-89102

RN8#,90,VZN85,9#

 4
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53386-20020

RN12#,8#,90,VZN120,85,9#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53386-20020

RN12#,8#,90,VZN120,85,9#

 2
53386 - BUMPER, HOOD, REAR
53382-89102

RN12#,8#,90,VZN120,85,9#

 2
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53385-20020

RN12#,8#,90,VZN120,85,9#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-89202

RN8#,90,VZN85,9#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-89193

RN8#,90,VZN85,9#

 1
53875A - LINER, FRONT FENDER, RH
53875-89105

RN8#,90,VZN85,9#

 1
53876A - LINER, FRONT FENDER, LH
53876-89105

RN8#,90,VZN85,9#

 1
53878C - SPACER, FRONT FENDER
53878-89102

RN12#,8#,90,VZN120,85,9#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14020

RN12#,8#,90,VZN120,85,9#

TYPE A

 6
53879-22010

RN12#,8#,90,VZN120,85,9#

TYPE B,BLACK

 4
53879A - RETAINER, FRONT FENDER LINER
53879-14020

RN12#,8#,90,VZN120,85,9#

TYPE A

 6
53879-22010

RN12#,8#,90,VZN120,85,9#

TYPE B,BLACK

 4
53879A - RETAINER, FRONT FENDER LINER
53879-14020

RN12#,8#,90,VZN120,85,9#

TYPE A

 6
53879-22010

RN12#,8#,90,VZN120,85,9#

TYPE B,BLACK

 4
53911 - PANEL, FRONT VALANCE
53911-89114

RN8#,90,VZN85,9#

NO PAINT REQ.

 1
55796A - COVER, RADIO ANTENNA HOLE
55796-89102

VZN90..DLX;RN12#,8#,90,VZN120,85,95

 1
76621B - MUDGUARD, FRONT BODY, RH
76621-39145

RN80..G..IV3;RN80..EFI..IV3;RN85,90,VZN85,90..IV3

COLD SPEC

 1
76622B - MUDGUARD, FRONT BODY, LH
76622-39145

RN80..G..IV3;RN80..EFI..IV3;RN85,90,VZN85,90..IV3

COLD SPEC

 1
Common parts
90109-06231
90116-06104
90159-60078
90159-60500
90159-60519
90176-06031
90179-06255
90189-06027
90189-06028
90189-06067
90189-06188
90541-09071
91661-A0614
Linked diagrams
5553
