RN90L-CRMDEA3 (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Aug 1989
Engine
22RE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9208)22R#..JPP

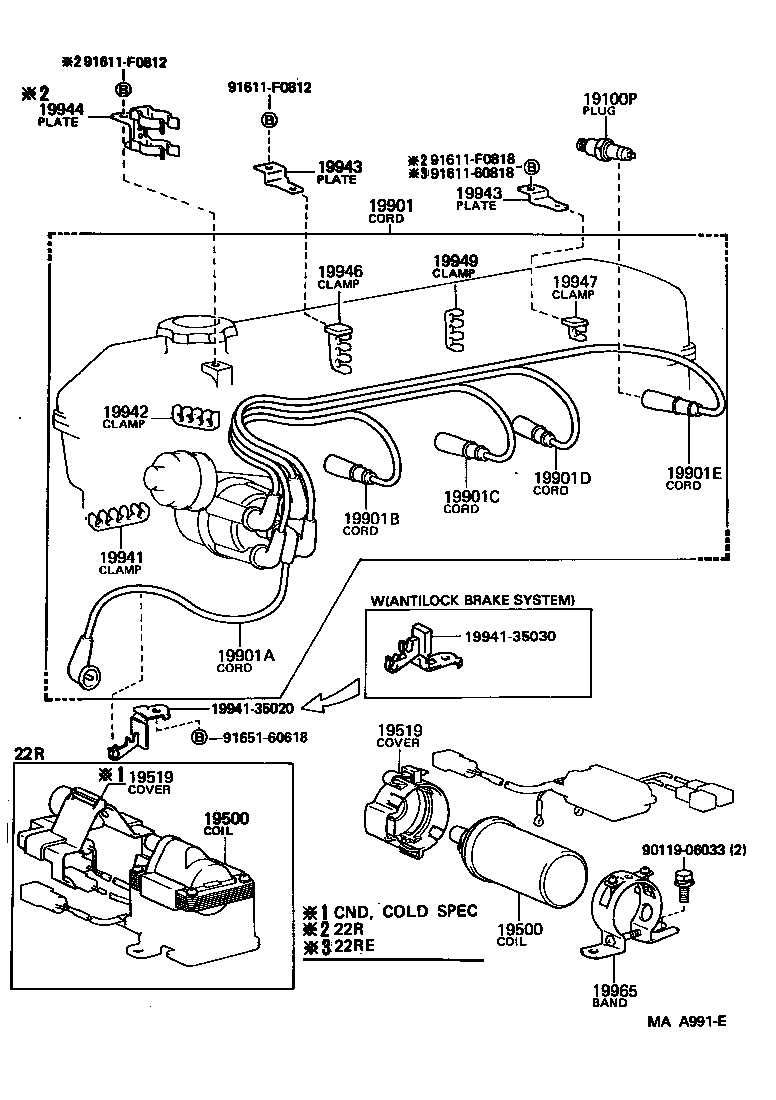

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01064 |
22R#..RN12#,8#,90 W16EXR-U |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02190 |
22RE..RN12#,8#,90 |
1 | ||
| 90919-02106 |
22R..RN8#,90 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02190 |
22RE..RN12#,8#,90 |
1 | ||
| 90919-02106 |
22R..RN8#,90 |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-28020 |
22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-28020 |
22RE..RN120,8#,90..USA COLD SPEC |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21431 |
22RE..RN12#,8#,90 |
1 | ||
| 90919-21450 |
22R..RN8#,90 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13293 |
22RE..RN12#,8#,90 |
1 | ||
| 90919-13329 |
22R..RN8#,90 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12457 |
22R#..RN12#,8#,90 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12458 |
22R#..RN12#,8#,90 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12459 |
22R#..RN12#,8#,90 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12460 |
22R#..RN12#,8#,90 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00214 |
22R#..RN12#,8#,90 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00061 |
22R#..RN12#,8#,90 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-35010 |
22RE..RN12#,8#,90 |
1 | ||
| 19943-35010 |
22R..RN8#,90 |
2 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-35010 |
22RE..RN12#,8#,90 |
1 | ||
| 19943-35010 |
22R..RN8#,90 |
2 | ||
| 19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2 | ||||
| 19944-35010 |
22R..RN8#,90 |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00303 |
22R#..RN12#,8#,90 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00059 |
22R#..RN12#,8#,90 |
1 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90464-00144 |
22R#..RN12#,8#,90 |
1 | ||
| Common parts | ||||
| 19941-35020 | ||||
| 19941-35030 | ||||
| 90119-06033 | ||||
| 91611-60818 | ||||
| 91611-F0812 | ||||
| 91611-F0818 | ||||
| 91651-60618 | ||||
