RN90L-CRMDEA (1988)
Toyota 4-Runner Truck (Jpp)
(8808-9511)RN12#,8#,90..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-20030 |
VZN120,85,9# |
1 | ||
| 04446-30030 |
RN12#,8#,90 |
1 | ||
| 04446-20030 |
VZN85,9# |
1 | ||
| 04446-30030 |
RN8#,90 |
1 | ||
| 04446-20030 |
RN12#,VZN120,85,9# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12010 |
RN12#,8#,90 |
1 | ||
| 44302-35010 |
VZN120,85,9# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
RN12#,8#,90 |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
RN12#,8#,90 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
VZN120,90 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
VZN120,85,9# |
1 | ||
| 90311-24001 |
RN12#,8#,90 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
RN12#,8#,90 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-35031 |
RN12#,8#,90..EFI |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-35010 |
RN8#,90 |
1 | ||
| 44305-22040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-35060 |
RN12#,8#,90 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-35020 |
VZN120,85,9# |
1 | ||
| 44311-20010 |
RN12#,8#,90 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
RN12#,8#,90 |
1 | ||
| 44312-12030 |
VZN120,85,9# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
RN12#,8#,90 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
VZN120,85,9# |
1 | ||
| 90520-15001 |
RN12#,8#,90 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
RN8#,90 NO MARK |
1 | ||
| 44313-22070 |
VZN85,9# MARK 3 |
1 | ||
| 44313-22050 |
VZN85,9# MARK 1 |
1 | ||
| 44313-12020 |
RN8#,90 MARK 1 |
1 | ||
| 44313-22080 |
VZN85,9# MARK 4 |
1 | ||
| 44313-12030 |
RN8#,90 MARK 2 |
1 | ||
| 44313-12040 |
RN8#,90 MARK 3 |
1 | ||
| 44313-22040 |
VZN85,9# NO MARK |
1 | ||
| 44313-12050 |
RN8#,90 MARK 4 |
1 | ||
| 44313-22060 |
VZN85,9# MARK 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-35370 |
VZN85,9#..(DLX,STD)..USA COLD SPEC |
1 | ||
| 44320-35270 |
VZN85,9#..(DLX,STD)..USA |
1 | ||
| 44320-35240 |
RN8#,90..EFI |
1 | ||
| 44320-35240 |
RN12#,8#,90..EFI |
1 | ||
| 44320-35411 |
VZN85,9#..DLX,STD |
1 | ||
| 44320-35241 |
RN12#,8#,90 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30130 |
VZN120,85,9# MARK 3 |
1 | ||
| 44325-30120 |
VZN120,85,9# MARK 2 |
1 | ||
| 44325-12040 |
RN12#,8#,90 MARK 3 |
1 | ||
| 44325-30140 |
VZN120,85,9# MARK 4 |
1 | ||
| 44325-12030 |
RN12#,8#,90 MARK 2 |
1 | ||
| 44325-30100 |
VZN120,85,9# NO MARK |
1 | ||
| 44325-30110 |
VZN120,85,9# MARK 1 |
1 | ||
| 44325-12020 |
RN12#,8#,90 MARK 1 |
1 | ||
| 44325-30120 |
VZN85,9#..(DLX,STD)..USA MARK 2,COLD SPEC |
1 | ||
| 44325-30140 |
VZN85,9#..(DLX,STD)..USA MARK 4,COLD SPEC |
1 | ||
| 44325-12010 |
RN12#,8#,90 NO MARK |
1 | ||
| 44325-30110 |
VZN85,9#..(DLX,STD)..USA MARK 1,COLD SPEC |
1 | ||
| 44325-12050 |
RN12#,8#,90 MARK 4 |
1 | ||
| 44325-22090 |
RN12#,8#,90..EFI MARK 2 |
1 | ||
| 44325-22100 |
RN12#,8#,90..EFI MARK 3 |
1 | ||
| 44325-22110 |
RN12#,8#,90..EFI MARK 4 |
1 | ||
| 44325-22080 |
RN12#,8#,90..EFI MARK 1 |
1 | ||
| 44325-30130 |
VZN85,9#..(DLX,STD)..USA MARK 3,COLD SPEC |
1 | ||
| 44325-30100 |
VZN85,9#..(DLX,STD)..USA NO MARK,COLD SPEC |
1 | ||
| 44325-22070 |
RN12#,8#,90..EFI NO MARK |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
VZN120,85,9# L=43,OD=4.0 |
1 | ||
| 90250-04047 |
VZN120,85,9# L=28,OD=4.0 |
1 | ||
| 90250-05008 |
RN12#,8#,90 L=25,OD=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12131 |
RN8#,90 MARK A |
1 | ||
| 44330-12140 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK B |
1 | ||
| 44330-12150 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK C |
1 | ||
| 44330-12170 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK E |
1 | ||
| 44330-12130 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK A |
1 | ||
| 44330-12130 |
VZN85,9#..(DLX,STD)..USA MARK A |
1 | ||
| 44330-12160 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK D |
1 | ||
| 44330-12180 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK F |
1 | ||
| 44330-12140 |
VZN85,9#..(DLX,STD)..USA MARK B |
1 | ||
| 44330-12151 |
RN8#,90 MARK C |
1 | ||
| 44330-12141 |
RN8#,90 MARK B |
1 | ||
| 44330-12181 |
RN8#,90 MARK F |
1 | ||
| 44330-12170 |
VZN85,9#..(DLX,STD)..USA MARK E |
1 | ||
| 44330-12171 |
RN8#,90 MARK E |
1 | ||
| 44330-12150 |
VZN85,9#..(DLX,STD)..USA MARK C |
1 | ||
| 44330-12161 |
RN8#,90 MARK D |
1 | ||
| 44330-12160 |
VZN85,9#..(DLX,STD)..USA MARK D |
1 | ||
| 44330-12180 |
VZN85,9#..(DLX,STD)..USA MARK F |
1 | ||
| 44330-12181 |
RN12#,8#,90 MARK F |
1 | ||
| 44330-12161 |
RN12#,8#,90 MARK D |
1 | ||
| 44330-12171 |
RN12#,8#,90 MARK E |
1 | ||
| 44330-35141 |
VZN85,9# MARK B |
1 | ||
| 44330-12151 |
RN12#,8#,90 MARK C |
1 | ||
| 44330-12131 |
RN12#,8#,90 MARK A |
1 | ||
| 44330-35151 |
VZN85,9# MARK C |
1 | ||
| 44330-35171 |
VZN85,9# MARK E |
1 | ||
| 44330-35181 |
VZN85,9# MARK F |
1 | ||
| 44330-35131 |
VZN85,9# MARK A |
1 | ||
| 44330-12141 |
RN12#,8#,90 MARK B |
1 | ||
| 44330-35161 |
VZN85,9# MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
RN12#,8#,90 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90404-16016 |
RN12#,8#,90 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
RN12#,8#,90 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
RN12#,8#,90 OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN12#,8#,90 OD=25.5,ID=22.5 |
1 | ||
| 90301-19003 |
VZN120,85,9# ID=19.5,OD=22.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
RN12#,8#,90 OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN12#,8#,90 OD=25.5,ID=22.5 |
1 | ||
| 90301-19003 |
VZN120,85,9# ID=19.5,OD=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
RN12#,8#,90 |
1 | ||
| 44342-32010 |
VZN120,85,9# |
1 | ||
| 44342-32010 |
VZN85,9# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
VZN120,85,9# |
1 | ||
| 90301-53002 |
RN12#,8#,90 |
1 | ||
| 90301-52001 |
VZN85,9# |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
RN12#,8#,90 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
RN12#,8#,90 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
RN12#,8#,90 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12040 |
RN12#,8#,90,VZN120,85,9# L=14.991 |
10 | ||
| 44345-12050 |
RN12#,8#,90,VZN120,85,9# L=14.989 |
10 | ||
| 44345-12010 |
RN12#,8#,90,VZN120,85,9# L=14.997 |
10 | ||
| 44345-12030 |
RN12#,8#,90,VZN120,85,9# L=14.993 |
10 | ||
| 44345-12020 |
RN12#,8#,90,VZN120,85,9# L=14.995 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-35100 |
VZN120,85,9# |
1 | ||
| 44360-35060 |
RN12#,8#,90 |
1 | ||
| 44306-35150 |
VZN120,85,9# |
1 | ||
| 44306-35100 |
VZN85,9#..(DLX,STD)..USA COLD SPEC |
1 | ||
| 44360-35101 |
RN8#,90 W(*66) |
1 | ||
| 44360-35060 |
RN8#,90..DLX,STD |
1 | ||
| 44360-35061 |
RN8#,90 |
1 | ||
| 44360-35060 |
RN12#,8#,90 |
1 | ||
| 44360-35100 |
RN12#,8#,90 W(*66) |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09020 |
RN12#,8#,90 |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
RN12#,8#,90 |
3 | ||
| 44392 - LABEL, OIL RESERVOIR CAUTION | ||||
| 44392-35010 |
RN12#,8#,90 |
1 | ||
| Common parts | ||||
| 90119-06256 | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-60814 | ||||
| 94511-01200 | ||||

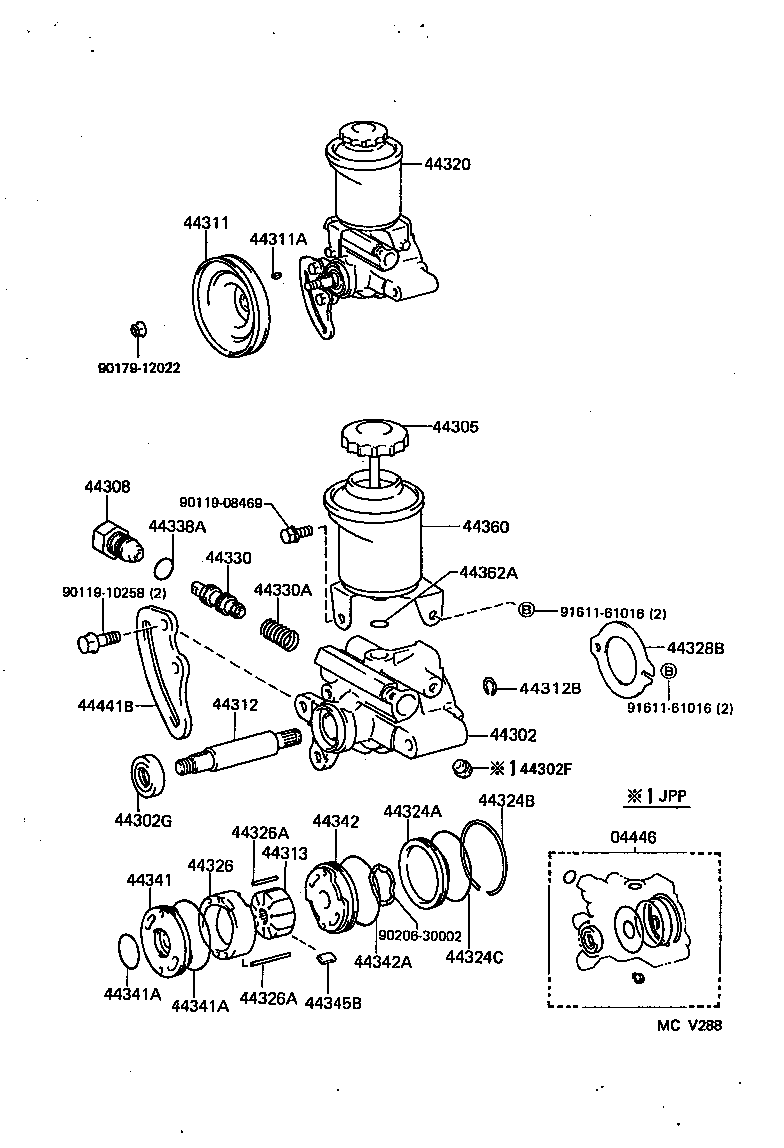

(8808-9511)VZN120,85,9#..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-20030 |
VZN120,85,9# |
1 | ||
| 04446-30030 |
RN12#,8#,90 |
1 | ||
| 04446-20030 |
VZN85,9# |
1 | ||
| 04446-30030 |
RN8#,90 |
1 | ||
| 04446-20030 |
RN12#,VZN120,85,9# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12010 |
RN12#,8#,90 |
1 | ||
| 44302-35010 |
VZN120,85,9# |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
VZN120,90 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
VZN120,85,9# |
1 | ||
| 90311-24001 |
RN12#,8#,90 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-35010 |
RN8#,90 |
1 | ||
| 44305-22040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-35060 |
RN12#,8#,90 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-35020 |
VZN120,85,9# |
1 | ||
| 44311-20010 |
RN12#,8#,90 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
RN12#,8#,90 |
1 | ||
| 44312-12030 |
VZN120,85,9# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
VZN120,85,9# |
1 | ||
| 90520-15001 |
RN12#,8#,90 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
RN8#,90 NO MARK |
1 | ||
| 44313-22070 |
VZN85,9# MARK 3 |
1 | ||
| 44313-22050 |
VZN85,9# MARK 1 |
1 | ||
| 44313-12020 |
RN8#,90 MARK 1 |
1 | ||
| 44313-22080 |
VZN85,9# MARK 4 |
1 | ||
| 44313-12030 |
RN8#,90 MARK 2 |
1 | ||
| 44313-12040 |
RN8#,90 MARK 3 |
1 | ||
| 44313-22040 |
VZN85,9# NO MARK |
1 | ||
| 44313-12050 |
RN8#,90 MARK 4 |
1 | ||
| 44313-22060 |
VZN85,9# MARK 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-35370 |
VZN85,9#..(DLX,STD)..USA COLD SPEC |
1 | ||
| 44320-35270 |
VZN85,9#..(DLX,STD)..USA |
1 | ||
| 44320-35240 |
RN8#,90..EFI |
1 | ||
| 44320-35240 |
RN12#,8#,90..EFI |
1 | ||
| 44320-35411 |
VZN85,9#..DLX,STD |
1 | ||
| 44320-35241 |
RN12#,8#,90 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
VZN120,85,9# |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
VZN120,85,9# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
VZN85,9# |
1 | ||
| 90301-52001 |
VZN120,85,9# |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30130 |
VZN120,85,9# MARK 3 |
1 | ||
| 44325-30120 |
VZN120,85,9# MARK 2 |
1 | ||
| 44325-12040 |
RN12#,8#,90 MARK 3 |
1 | ||
| 44325-30140 |
VZN120,85,9# MARK 4 |
1 | ||
| 44325-12030 |
RN12#,8#,90 MARK 2 |
1 | ||
| 44325-30100 |
VZN120,85,9# NO MARK |
1 | ||
| 44325-30110 |
VZN120,85,9# MARK 1 |
1 | ||
| 44325-12020 |
RN12#,8#,90 MARK 1 |
1 | ||
| 44325-30120 |
VZN85,9#..(DLX,STD)..USA MARK 2,COLD SPEC |
1 | ||
| 44325-30140 |
VZN85,9#..(DLX,STD)..USA MARK 4,COLD SPEC |
1 | ||
| 44325-12010 |
RN12#,8#,90 NO MARK |
1 | ||
| 44325-30110 |
VZN85,9#..(DLX,STD)..USA MARK 1,COLD SPEC |
1 | ||
| 44325-12050 |
RN12#,8#,90 MARK 4 |
1 | ||
| 44325-22090 |
RN12#,8#,90..EFI MARK 2 |
1 | ||
| 44325-22100 |
RN12#,8#,90..EFI MARK 3 |
1 | ||
| 44325-22110 |
RN12#,8#,90..EFI MARK 4 |
1 | ||
| 44325-22080 |
RN12#,8#,90..EFI MARK 1 |
1 | ||
| 44325-30130 |
VZN85,9#..(DLX,STD)..USA MARK 3,COLD SPEC |
1 | ||
| 44325-30100 |
VZN85,9#..(DLX,STD)..USA NO MARK,COLD SPEC |
1 | ||
| 44325-22070 |
RN12#,8#,90..EFI NO MARK |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
VZN120,85,9# L=43,OD=4.0 |
1 | ||
| 90250-04047 |
VZN120,85,9# L=28,OD=4.0 |
1 | ||
| 90250-05008 |
RN12#,8#,90 L=25,OD=5.0 |
2 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
VZN120,85,9# L=43,OD=4.0 |
1 | ||
| 90250-04047 |
VZN120,85,9# L=28,OD=4.0 |
1 | ||
| 90250-05008 |
RN12#,8#,90 L=25,OD=5.0 |
2 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-35010 |
VZN85,9#..(DLX,STD)..USA |
1 | ||
| 44328-35010 |
VZN120,85,9# |
1 | ||
| 44328-35010 |
VZN85,9#..(DLX,STD)..USA |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12131 |
RN8#,90 MARK A |
1 | ||
| 44330-12140 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK B |
1 | ||
| 44330-12150 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK C |
1 | ||
| 44330-12170 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK E |
1 | ||
| 44330-12130 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK A |
1 | ||
| 44330-12130 |
VZN85,9#..(DLX,STD)..USA MARK A |
1 | ||
| 44330-12160 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK D |
1 | ||
| 44330-12180 |
RN8#,90;VZN85,9#..(DLX,STD)..USA MARK F |
1 | ||
| 44330-12140 |
VZN85,9#..(DLX,STD)..USA MARK B |
1 | ||
| 44330-12151 |
RN8#,90 MARK C |
1 | ||
| 44330-12141 |
RN8#,90 MARK B |
1 | ||
| 44330-12181 |
RN8#,90 MARK F |
1 | ||
| 44330-12170 |
VZN85,9#..(DLX,STD)..USA MARK E |
1 | ||
| 44330-12171 |
RN8#,90 MARK E |
1 | ||
| 44330-12150 |
VZN85,9#..(DLX,STD)..USA MARK C |
1 | ||
| 44330-12161 |
RN8#,90 MARK D |
1 | ||
| 44330-12160 |
VZN85,9#..(DLX,STD)..USA MARK D |
1 | ||
| 44330-12180 |
VZN85,9#..(DLX,STD)..USA MARK F |
1 | ||
| 44330-12181 |
RN12#,8#,90 MARK F |
1 | ||
| 44330-12161 |
RN12#,8#,90 MARK D |
1 | ||
| 44330-12171 |
RN12#,8#,90 MARK E |
1 | ||
| 44330-35141 |
VZN85,9# MARK B |
1 | ||
| 44330-12151 |
RN12#,8#,90 MARK C |
1 | ||
| 44330-12131 |
RN12#,8#,90 MARK A |
1 | ||
| 44330-35151 |
VZN85,9# MARK C |
1 | ||
| 44330-35171 |
VZN85,9# MARK E |
1 | ||
| 44330-35181 |
VZN85,9# MARK F |
1 | ||
| 44330-35131 |
VZN85,9# MARK A |
1 | ||
| 44330-12141 |
RN12#,8#,90 MARK B |
1 | ||
| 44330-35161 |
VZN85,9# MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
RN12#,8#,90 OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN12#,8#,90 OD=25.5,ID=22.5 |
1 | ||
| 90301-19003 |
VZN120,85,9# ID=19.5,OD=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
VZN85,9# |
1 | ||
| 44341-32010 |
VZN120,85,9# |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
VZN120,85,9# OUTER |
1 | ||
| 90301-25001 |
VZN120,85,9# INNER |
1 | ||
| 90301-52001 |
VZN85,9# OUTER |
1 | ||
| 90301-25001 |
VZN85,9# INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
VZN120,85,9# OUTER |
1 | ||
| 90301-25001 |
VZN120,85,9# INNER |
1 | ||
| 90301-52001 |
VZN85,9# OUTER |
1 | ||
| 90301-25001 |
VZN85,9# INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
RN12#,8#,90 |
1 | ||
| 44342-32010 |
VZN120,85,9# |
1 | ||
| 44342-32010 |
VZN85,9# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
VZN120,85,9# |
1 | ||
| 90301-53002 |
RN12#,8#,90 |
1 | ||
| 90301-52001 |
VZN85,9# |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12040 |
RN12#,8#,90,VZN120,85,9# L=14.991 |
10 | ||
| 44345-12050 |
RN12#,8#,90,VZN120,85,9# L=14.989 |
10 | ||
| 44345-12010 |
RN12#,8#,90,VZN120,85,9# L=14.997 |
10 | ||
| 44345-12030 |
RN12#,8#,90,VZN120,85,9# L=14.993 |
10 | ||
| 44345-12020 |
RN12#,8#,90,VZN120,85,9# L=14.995 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-35100 |
VZN120,85,9# |
1 | ||
| 44360-35060 |
RN12#,8#,90 |
1 | ||
| 44306-35150 |
VZN120,85,9# |
1 | ||
| 44306-35100 |
VZN85,9#..(DLX,STD)..USA COLD SPEC |
1 | ||
| 44360-35101 |
RN8#,90 W(*66) |
1 | ||
| 44360-35060 |
RN8#,90..DLX,STD |
1 | ||
| 44360-35061 |
RN8#,90 |
1 | ||
| 44360-35060 |
RN12#,8#,90 |
1 | ||
| 44360-35100 |
RN12#,8#,90 W(*66) |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-12003 |
VZN120,85,9# |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-35030 |
VZN120,85,9# |
1 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 90119-10258 | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 91611-61016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
