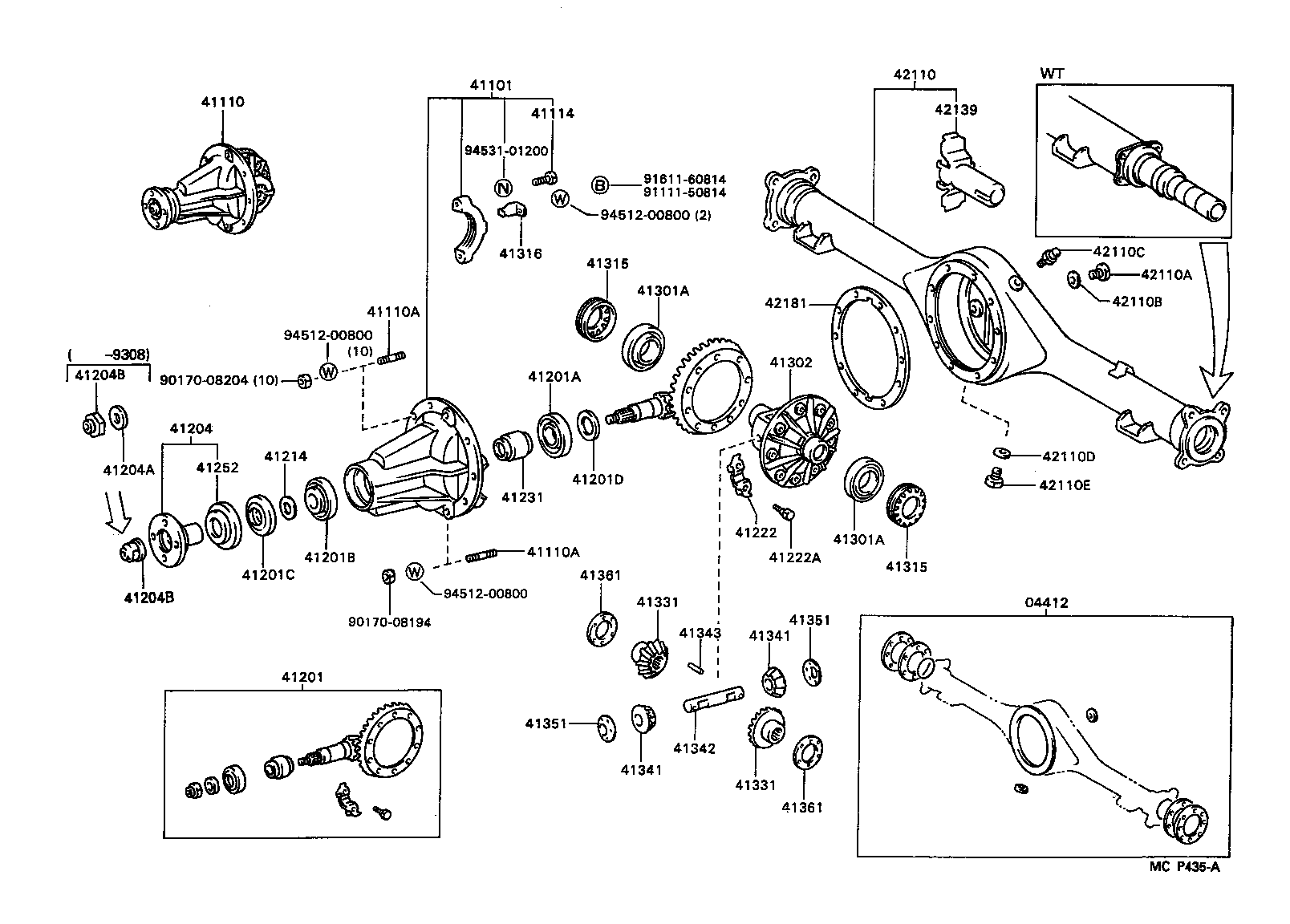

RN90L-CRMDEA (1988)
Toyota 4-Runner Truck (Jpp)
(8808-9511)RN12#,8#,90,VZN120,90..JPP ; (8808-9511)RN12#,8#,90,VZN120,90..JPP ; (88
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-35130 |
RN8#,90 |
1 | ||
| 04412-35080 |
RN8#,90..4HC,5F |
1 | ||
| 04412-35081 |
RN8#,90..4HC,5F |
1 | ||
| 04412-35140 |
VZN85,90..CBU |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-40020 |
RN80..STD..USA;VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 41101-40021 |
RN80..STD..USA;VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 41101-35110 |
RN8#,90 W(2 WHEEL *66) |
1 | ||
| 41101-40021 |
RN80..4F;VZN85,90..HLF..DLX |
1 | ||
| 41101-30031 |
RN8#,90..4HC,5F |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35400 |
VZN85,90..HLF..(CBU,IV3) *FGR=41:12=3.417 |
1 | ||
| 41110-35401 |
VZN85,90..HLF..(CBU,IV3) *FGR=41:12=3.416 |
1 | ||
| 41110-35270 |
RN8#,90..5F..EFI *FGR=43:12=3.583 |
1 | ||
| 41110-35401 |
VZN85,90..HLF..DLX *FGR=41:12=3.416 |
1 | ||
| 41110-35620 |
RN8#,90..W *FGR=43:12=3.583,W(2 WHEEL *66) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08329 |
RN8#,90..4HC,5F S=17 & 12,L=37 |
10 | ||
| 90116-08329 |
RN80..4F;VZN85,90..HLF..(CBU,IV3) S=17 & 12,L=37 |
7 | ||
| 90116-08235 |
RN8#,90..4HC,5F S=12 & 15,L=34 |
10 | ||
| 90116-08235 |
RN80..STD..USA;VZN85,90..HLF..(CBU,IV3) S=12 & 15,L=34 |
7 | ||
| 90116-08332 |
RN80..4F;VZN85,90..HLF..(CBU,IV3) S=16 & 14,L=96 |
1 | ||
| 90116-08233 |
RN80..4F;VZN85..ST;RN12#,VZN120,90 S=14 & 14,L=42 |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08329 |
RN8#,90..4HC,5F S=17 & 12,L=37 |
10 | ||
| 90116-08329 |
RN80..4F;VZN85,90..HLF..(CBU,IV3) S=17 & 12,L=37 |
7 | ||
| 90116-08235 |
RN8#,90..4HC,5F S=12 & 15,L=34 |
10 | ||
| 90116-08235 |
RN80..STD..USA;VZN85,90..HLF..(CBU,IV3) S=12 & 15,L=34 |
7 | ||
| 90116-08332 |
RN80..4F;VZN85,90..HLF..(CBU,IV3) S=16 & 14,L=96 |
1 | ||
| 90116-08233 |
RN80..4F;VZN85..ST;RN12#,VZN120,90 S=14 & 14,L=42 |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12376 |
RN8#,90..4HC,5F |
4 | ||
| 90105-12053 |
RN80..4F;RN12#,VZN120,85,9# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29546 |
VZN85,90..HLF..(CBU,IV3) *FGR=41:12=3.417 |
1 | ||
| 41201-80013 |
RN8#,90..5F..EFI *FGR=43:12=3.583 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
RN8#,90..4HC,5F |
1 | ||
| 90366-35073 |
RN8#,90 |
1 | ||
| 90366-35023 |
RN8#,90 |
1 | ||
| 90366-35044 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
RN12#,8#,90,VZN120,85,90..CBU,IV3 |
1 | ||
| 90366-30055 |
RN8#,90 |
1 | ||
| 90366-30022 |
VZN120,85,90..CBU |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
1 | ||
| 90311-38133 |
VZN85..IV6;RN8#,90,VZN95..4HC,5F |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35517 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35436 |
RN8#,90..4HC,5F T=2.30,MARK 03 |
1 | ||
| 90201-35434 |
RN8#,90..4HC,5F T=2.24,MARK 01 |
1 | ||
| 90201-35396 |
RN8#,90..4HC,5F T=2.36,MARK 05 |
1 | ||
| 90201-35437 |
RN8#,90..4HC,5F T=2.33,MARK 04 |
1 | ||
| 90201-35516 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35435 |
RN8#,90..4HC,5F T=2.27,MARK 02 |
1 | ||
| 90201-35515 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35400 |
RN8#,90..4HC,5F T=2.48,MARK 09 |
1 | ||
| 90201-35439 |
RN8#,90..4HC,5F T=2.66,MARK 15 |
1 | ||
| 90201-35397 |
RN8#,90..4HC,5F T=2.39,MARK 06 |
1 | ||
| 90201-35440 |
RN8#,90..4HC,5F T=2.69,MARK 16 |
1 | ||
| 90201-35518 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35398 |
RN8#,90..4HC,5F T=2.42,MARK 07 |
1 | ||
| 90201-35402 |
RN8#,90..4HC,5F T=2.54,MARK 11 |
1 | ||
| 90201-35404 |
RN8#,90..4HC,5F T=2.60,MARK 13 |
1 | ||
| 90201-35399 |
RN8#,90..4HC,5F T=2.43,MARK 08 |
1 | ||
| 90201-35403 |
RN8#,90..4HC,5F T=2.57,MARK 12 |
1 | ||
| 90201-35401 |
RN8#,90..4HC,5F T=2.51,MARK 10 |
1 | ||
| 90201-35438 |
RN8#,90..4HC,5F T=2.63,MARK 14 |
1 | ||
| 90201-35441 |
RN8#,90..4HC,5F T=2.72,MARK 17 |
1 | ||
| 90201-35497 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.70 |
1 | ||
| 90201-35503 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.88 |
1 | ||
| 90201-35501 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.82 |
1 | ||
| 90201-35498 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.73 |
1 | ||
| 90201-35502 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.85 |
1 | ||
| 90201-35506 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.97 |
1 | ||
| 90201-35500 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.76 |
1 | ||
| 90201-35510 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.09 |
1 | ||
| 90201-35505 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.94 |
1 | ||
| 90201-35513 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.18 |
1 | ||
| 90201-35504 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=1.91 |
1 | ||
| 90201-35507 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.00 |
1 | ||
| 90201-35511 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.12 |
1 | ||
| 90201-35508 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.03 |
1 | ||
| 90201-35509 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.06 |
1 | ||
| 90201-35512 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.15 |
1 | ||
| 90201-35514 |
RN80..4F;RN12#,VZN120,85,9# OD=47,T=2.21 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35050 |
RN8#,90..4HC,5F |
1 | ||
| 41204-35040 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 90201-18485 |
RN8#,90..4HC,5F |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 90179-18001 |
RN8#,90..4HC,5F |
1 | ||
| 90179-18020 |
RN8#,90 OD=33.5 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 90179-18001 |
RN8#,90..4HC,5F |
1 | ||
| 90179-18020 |
RN8#,90 OD=33.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41214-30021 |
RN8#,90..4HC,5F |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
RN80..4F;RN12#,VZN120,85,9# |
5 | ||
| 41222-35030 |
RN8#,90..4HC,5F |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RN12#,8#,90,VZN120,85,9# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
1 | ||
| 41231-22010 |
RN8#,90..4HC,5F |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 41252-30010 |
RN8#,90..4HC,5F |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
RN12#,8#,90,VZN120,85,90..CBU,IV3 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
RN12#,8#,90,VZN120,85,90..CBU,IV3 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-40020 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
1 | ||
| 41311-30050 |
RN8#,90..4HC,5F |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
RN12#,8#,90,VZN120,85,90..CBU,IV3 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
RN12#,8#,90,VZN120,85,90..CBU,IV3 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
RN8#,90..4HC,5F SINGLE TYPE |
2 | ||
| 41317-30010 |
RN8#,90..4HC,5F DOUBLE TYPE |
2 | ||
| 41316-30010 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
RN8#,90..4HC,5F |
2 | ||
| 41331-35011 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-30030 |
RN8#,90..4HC,5F |
2 | ||
| 41331-35011 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
2 | ||
| 41341-30020 |
RN8#,90..4HC,5F |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
2 | ||
| 41341-30020 |
RN8#,90..4HC,5F |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
RN8#,90..4HC,5F |
1 | ||
| 41342-39610 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
RN8#,90..4HC,5F |
1 | ||
| 90250-06085 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN8#,90..4HC,5F |
2 | ||
| 41351-30052 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RN8#,90..4HC,5F |
2 | ||
| 41351-30052 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
RN8#,90..4HC,5F T=1.1 |
2 | ||
| 41362-40021 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 T=1.7 |
2 | ||
| 41363-40021 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 T=1.8 |
2 | ||
| 41361-30040 |
RN8#,90..4HC,5F T=1.0 |
2 | ||
| 41361-30060 |
RN8#,90..4HC,5F T=1.2 |
2 | ||
| 41361-40021 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 T=1.6 |
2 | ||
| 41361-30070 |
RN8#,90..4HC,5F T=1.3 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
RN8#,90..4HC,5F T=1.1 |
2 | ||
| 41362-40021 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 T=1.7 |
2 | ||
| 41363-40021 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 T=1.8 |
2 | ||
| 41361-30040 |
RN8#,90..4HC,5F T=1.0 |
2 | ||
| 41361-30060 |
RN8#,90..4HC,5F T=1.2 |
2 | ||
| 41361-40021 |
RN80..4F;RN12#,VZN120,85,90..CBU,IV3 T=1.6 |
2 | ||
| 41361-30070 |
RN8#,90..4HC,5F T=1.3 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-35380 |
RN80..STD..USA;VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 42110-35470 |
RN8#,90..4HC,5F |
1 | ||
| 42110-35370 |
RN8#,90..4HC,5F |
1 | ||
| 42110-35480 |
RN80..4F;VZN85,90..HLF..CBU |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
RN8#,90,VZN85,9# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42139-35020 |
RN80..4F;VZN85,90..ST |
2 | ||
| 42108-30010 |
RN8#,90..4HC,5F |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
RN80..4F;RN12#,VZN120,85,9# |
1 | ||
| 42181-30020 |
RN8#,90..4HC,5F |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-08204 | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
