RN90L-CRLDSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)22R..JPP..G

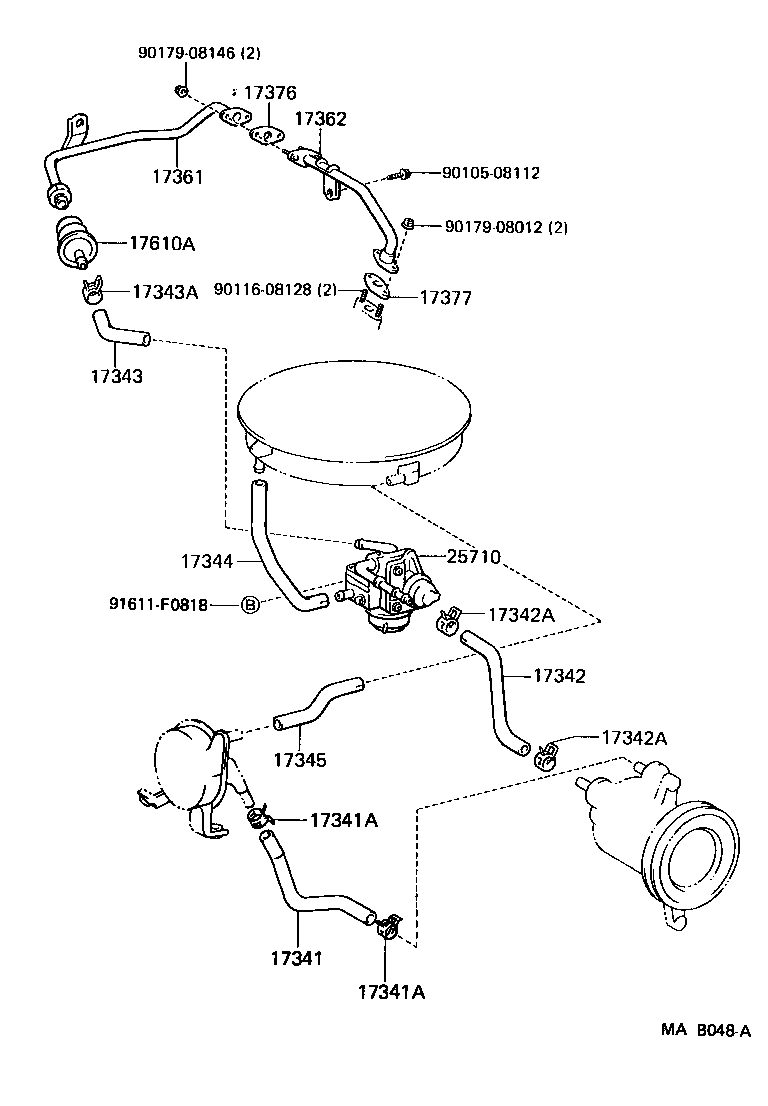

Click highlighted areas on diagram

diagram 17341 17341A 17341A 17342 17342A 17342A 17343 17343A 17344 17345 17361 17362 17376 17377 17610A 25710 9010508112 9011608128 9017908012 9017908146 91611F0818
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35160

22R..RN8#,90..G

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22R#..RN12#,8#,90

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22R#..RN12#,8#,90

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35110

22R..RN8#,90..G

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26005

22R..RN8#,90..G;22RE..RN12#,8#,90

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26005

22R..RN8#,90..G;22RE..RN12#,8#,90

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35060

22R..RN8#,90..G

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26005

22R..RN8#,90..G

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-35040

22R..RN8#,90..G

 1
17345 - HOSE, NO.5(FOR AIR INJECTION SYSTEM)
17345-35020

22R..RN8#,90..G

 1
17361 - TUBE, AIR
17361-35020

22R..RN8#,90..G

 1
17362 - TUBE, AIR, NO.2
17362-35011

22R..RN8#,90..G

 1
17376 - GASKET, AIR TUBE, NO.1
17376-35030

22R..RN8#,90..G

 1
17377 - GASKET, AIR TUBE, NO.2
17377-35030

22R..RN8#,90..G

 1
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10077

22R..RN8#,90..G

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-35030

22R..RN8#,90..G

 1
Common parts
90105-08112
90116-08128
90179-08012
90179-08146
91611-F0818
