RN90L-CRLDSA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

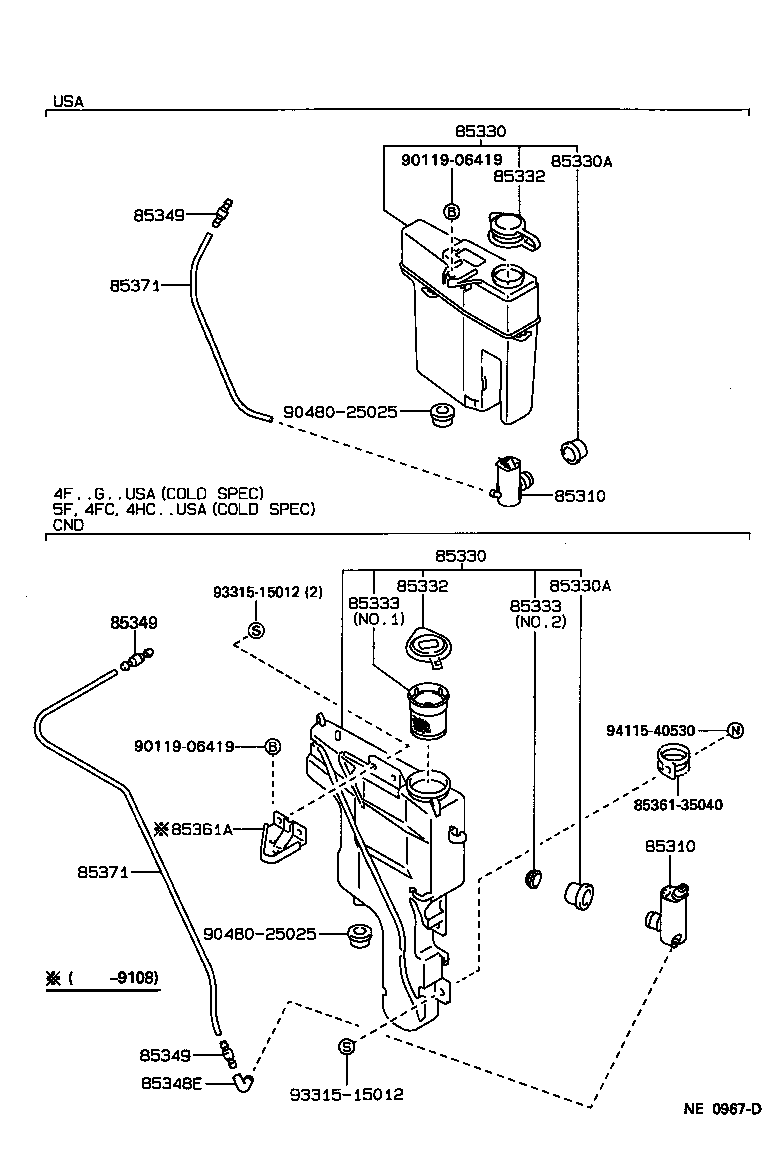

ILLUST NO. 1 OF 2(8808- )JPP

Click highlighted areas on diagram

diagram 85310 85310 85330 85330 85330A 85330A 85332 85332 85333 85333 85348E 85349 85349 85349 8536135040 85361A 85371 85371 9011906419 9011906419 9048025025 9048025025 9331515012 9331515012 9411540530
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-14080

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85310-16050

RN120,8#,90,VZN120,85,9#..USA

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-14080

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85310-16050

RN120,8#,90,VZN120,85,9#..USA

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-89137

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85331-89136

RN120,8#,90,VZN120,85,9#..USA

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-89137

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85331-89136

RN120,8#,90,VZN120,85,9#..USA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN120,8#,90,VZN120,85,9#..USA

 1
90099-32103

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN120,8#,90,VZN120,85,9#..USA

 1
90099-32103

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-22470

RN80..EFI;RN80..G..USA;RN85,90,VZN85,9#..USA

COLD SPEC (USA)

 1
85332-89133

RN120,8#,90,VZN120,85,9#..USA

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-22470

RN80..EFI;RN80..G..USA;RN85,90,VZN85,9#..USA

COLD SPEC (USA)

 1
85332-89133

RN120,8#,90,VZN120,85,9#..USA

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20020

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA),NO.2

 1
85333-20010

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA),NO.1

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20020

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA),NO.2

 1
85333-20010

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA),NO.1

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-16192

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

RN120,8#,90,VZN120,85,9#..USA

 1
85349-89122

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

 2
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

RN120,8#,90,VZN120,85,9#..USA

 1
85349-89122

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

 2
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

RN120,8#,90,VZN120,85,9#..USA

 1
85349-89122

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

 2
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-89135

RN80..EFI;RN80..G..USA;RN85,90,VZN85,9#..USA

COLD SPEC (USA)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

RN120,8#,90,VZN120,85,9#..USA

L=450

 1
90099-33080

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

L=1450,COLD SPEC (USA)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

RN120,8#,90,VZN120,85,9#..USA

L=450

 1
90099-33080

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

L=1450,COLD SPEC (USA)

 1
Common parts
85361-35040
90119-06419
90480-25025
93315-15012
94115-40530

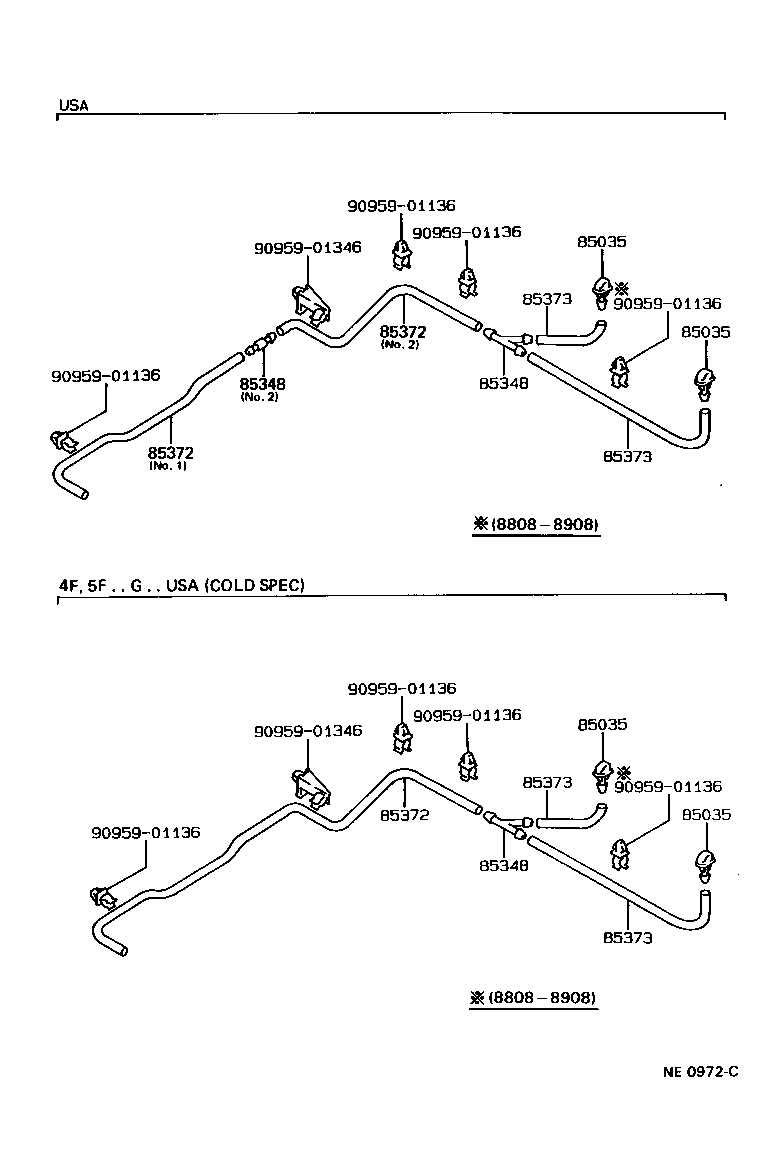

ILLUST NO. 2 OF 2(8808- )JPP..CBR

Click highlighted areas on diagram

diagram 85035 85035 85035 85035 85348 85348 85348 85372 85372 85372 85373 85373 85373 85373 9095901136 9095901136 9095901136 9095901136 9095901136 9095901136 9095901136 9095901136 9095901346 9095901346
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85035-89115

RN12#,8#,90,VZN120,85,9#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-89115

RN12#,8#,90,VZN120,85,9#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-89115

RN12#,8#,90,VZN120,85,9#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-89115

RN12#,8#,90,VZN120,85,9#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

RN8#,90..G..USA

3-WAY,COLD SPEC (USA)

 1
85349-89122

RN120,8#,90,VZN120,85,9#..USA

2-WAY,NO.2

 1
85348-12250

RN8#,90..CBR..USA

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

RN8#,90..G..USA

3-WAY,COLD SPEC (USA)

 1
85349-89122

RN120,8#,90,VZN120,85,9#..USA

2-WAY,NO.2

 1
85348-12250

RN8#,90..CBR..USA

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

RN8#,90..G..USA

3-WAY,COLD SPEC (USA)

 1
85349-89122

RN120,8#,90,VZN120,85,9#..USA

2-WAY,NO.2

 1
85348-12250

RN8#,90..CBR..USA

3-WAY

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

RN8#,90..CBR..USA

L=1000,NO.1

 1
90099-33080

RN8#,90..G..USA

L=1450,COLD SPEC (USA)

 1
90446-06013

RN120,8#,90,VZN120,85,9#..USA

L=450,NO.2

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

RN8#,90..CBR..USA

L=1000,NO.1

 1
90099-33080

RN8#,90..G..USA

L=1450,COLD SPEC (USA)

 1
90446-06013

RN120,8#,90,VZN120,85,9#..USA

L=450,NO.2

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

RN8#,90..CBR..USA

L=1000,NO.1

 1
90099-33080

RN8#,90..G..USA

L=1450,COLD SPEC (USA)

 1
90446-06013

RN120,8#,90,VZN120,85,9#..USA

L=450,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

RN8#,90..G..USA

L=1450,COLD SPEC (USA)

 1
90099-33299

RN8#,90..CBR..USA

L=1000

 1
90099-33354

RN8#,90..CBR..USA

*H,L=80

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

RN8#,90..G..USA

L=1450,COLD SPEC (USA)

 1
90099-33299

RN8#,90..CBR..USA

L=1000

 1
90099-33354

RN8#,90..CBR..USA

*H,L=80

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

RN8#,90..G..USA

L=1450,COLD SPEC (USA)

 1
90099-33299

RN8#,90..CBR..USA

L=1000

 1
90099-33354

RN8#,90..CBR..USA

*H,L=80

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

RN8#,90..G..USA

L=1450,COLD SPEC (USA)

 1
90099-33299

RN8#,90..CBR..USA

L=1000

 1
90099-33354

RN8#,90..CBR..USA

*H,L=80

 1
Common parts
90959-01136
90959-01346
