RN85L-TRSSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)JPP ; (9108- )RN8#,90,VZN85,9#..JPP

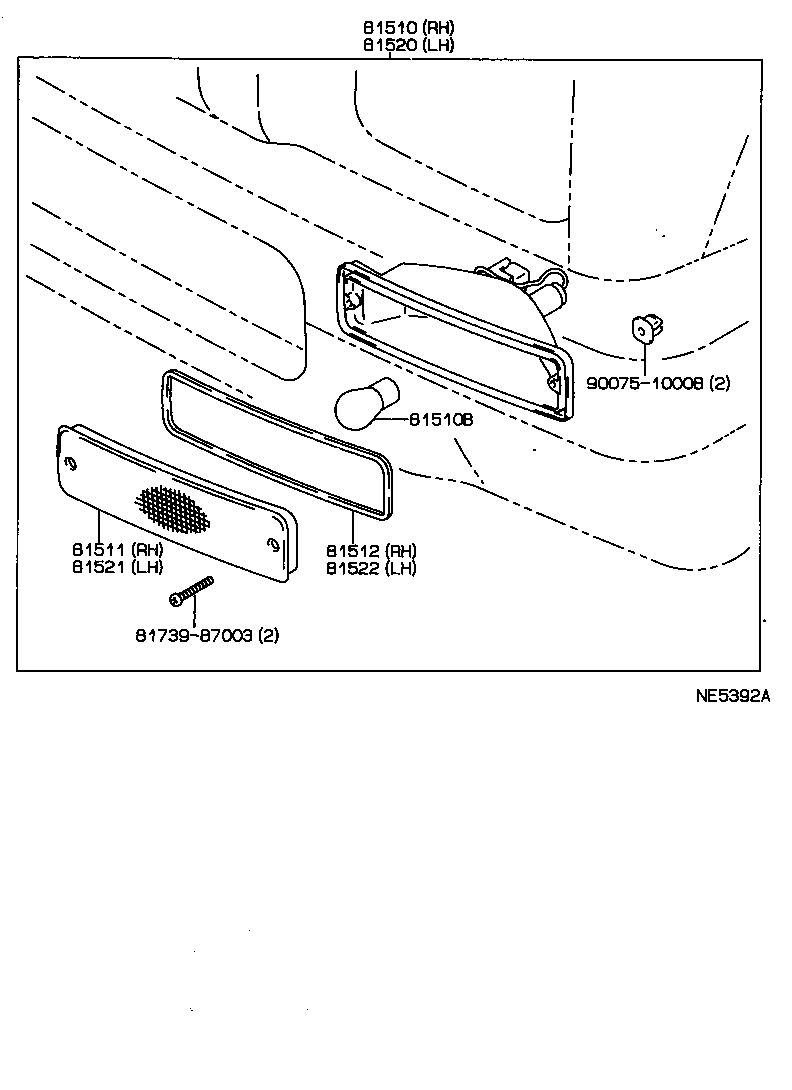

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81520 81521 81522 8173987003 9007510008
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-89134

RN12#,8#,90,VZN120,85,9#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

RN12#,8#,90,VZN120,85,9#

12V 27W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-89133

RN12#,8#,90,VZN120,85,9#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-89133

RN12#,8#,90,VZN120,85,9#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-89134

RN12#,8#,90,VZN120,85,9#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-89133

RN12#,8#,90,VZN120,85,9#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-89133

RN12#,8#,90,VZN120,85,9#

 1
Common parts
81739-87003
90075-10008
