RN85L-TRSSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN8#,90,VZN85,9#..JPP

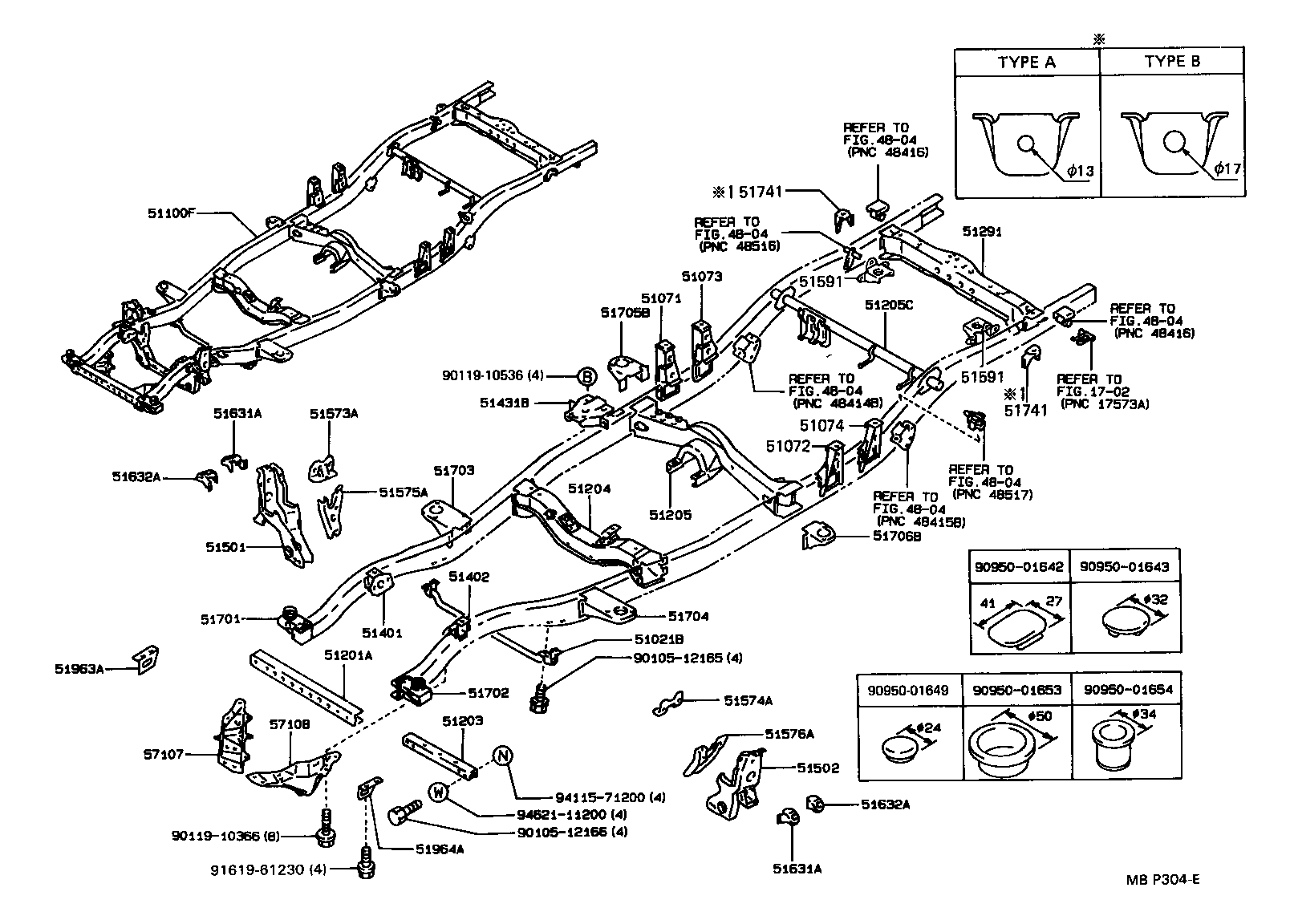

Click highlighted areas on diagram

diagram 1702 4804 4804 4804 4804 4804 4804 51021B 51071 51072 51073 51074 51100F 51201A 51203 51204 51205 51205C 51291 51401 51402 51431B 51501 51502 51573A 51574A 51575A 51576A 51591 51591 51631A 51631A 51632A 51632A 51701 51702 51703 51704 51705B 51706B 51741 51741 51963A 51964A 57107 57108 9010512165 9010512166 9011910366 9011910536 9095001642 9095001643 9095001649 9095001653 9095001654 9161961230 9411571200 9462111200
Part # Description Qty Price
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-35010

RN8#,90,VZN85,9#

 1
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-35050

RN85,VZN85

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51071-35050

RN85,VZN85

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-35020

RN8#,90,VZN85,9#

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-35020

RN8#,90,VZN85,9#

 1
51100F - FRAME SUB-ASSY
51003-35830

RN85

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-35160

RN8#,90,VZN85,9#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-35220

RN8#,90

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-35250

RN8#,90,VZN85,9#

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35360

RN85,VZN85

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35140

RN8#,90,VZN85,9#

 1
51291 - CROSSMEMBER, FRAME, REAR
51291-35100

RN8#,90,VZN85,90..ST

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-35170

RN8#,90

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-35170

RN8#,90

 1
51431B - BRACKET, ENGINE REAR MOUNTING
51431-35050

RN8#,90..4HC

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35060

RN8#,90,VZN85,9#

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35060

RN8#,90,VZN85,9#

 1
51573A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 RH
51573-35010

RN8#,90,VZN85,9#

 1
51574A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1 LH
51573-35010

RN8#,90,VZN85,9#

 1
51575A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 RH
51575-35040

RN8#,90

 1
51576A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 LH
51575-35040

RN8#,90

 1
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-35050

RN8#,90,VZN85,9#

 2
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-35050

RN8#,90,VZN85,9#

 2
51632A - STOPPER, FRONT SUSPENSION REBOUND, NO.2
51632-35040

RN8#,90,VZN85,9#

 2
51632A - STOPPER, FRONT SUSPENSION REBOUND, NO.2
51632-35040

RN8#,90,VZN85,9#

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35110

RN8#,90,VZN85,9#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35090

RN8#,90,VZN85,9#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35070

RN8#,90,VZN85,9#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35090

RN8#,90,VZN85,9#

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-35100

RN12#,8#,90,VZN120,85,9#

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51706-35020

RN12#,8#,90,VZN120,85,9#

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51715-35020

RN8#,90,VZN85,90

TYPE A

 1
51741-35050

RN8#,90,VZN85,90

TYPE B

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51715-35020

RN8#,90,VZN85,90

TYPE A

 1
51741-35050

RN8#,90,VZN85,90

TYPE B

 2
51963A - HOOK, TRANSPORT, FRONT RH
51963-35070

RN8#,90,VZN85,9#

 1
51964A - HOOK, TRANSPORT, FRONT LH
51964-35050

RN8#,90,VZN85,9#

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-35050

RN8#,90,VZN85,9#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-35050

RN8#,90,VZN85,9#

 1
Common parts
90105-12165
90105-12166
90119-10366
90119-10536
90950-01642
90950-01643
90950-01649
90950-01653
90950-01654
91619-61230
94115-71200
94621-11200
Linked diagrams
1702
4804
