RN85L-TRSSEA3 (1988)
Toyota 4-Runner Truck (Jpp)
(8808-9511)JPP

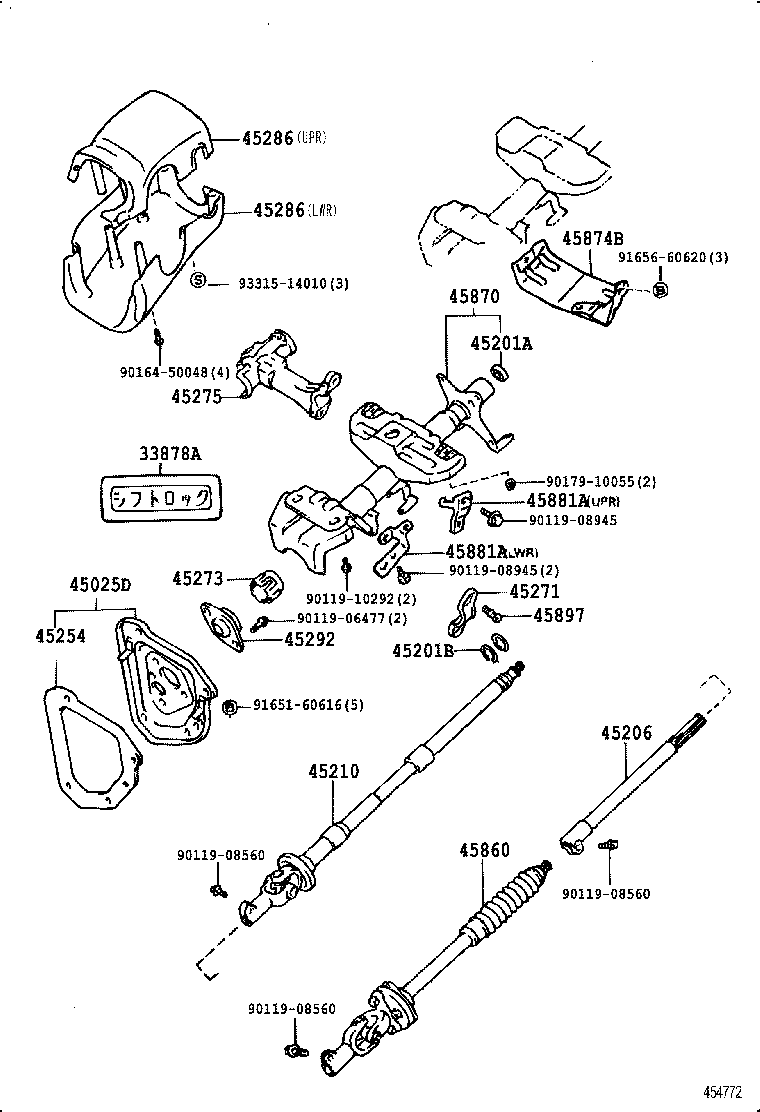

TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33878A - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-35020 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35240 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18004 |
RN8#,90,VZN85,9#..EFI |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18004 |
RN8#,90,VZN85,9#..EFI |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
VZN90..DLX;RN8#,90,VZN85,95 T=1.20,LWR |
2 | ||
| 90520-17196 |
VZN90..DLX;RN8#,90,VZN85,95 T=1.35-1.45,UPR |
2 | ||
| 90520-17042 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI T=1.20,W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 90520-39003 |
RN8#,90 T=1.5 |
3 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-35240 |
RN8#,90,VZN85,9#..EFI |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-35020 |
VZN85,9#;RN8#,90,VZN120..ATM |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-35020 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35170 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45210-35160 |
VZN90..DLX;RN12#,8#,90,VZN85,95 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-01005 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35110 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12050 |
VZN90..DLX;RN12#,8#,90,VZN85,95 |
1 | ||
| 45271-12060 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35260 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45280-35270 |
RN8#,90,VZN85,9#..4HC W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3526003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,UPR |
1 | ||
| 45286-3526006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,UPR |
1 | ||
| 45286-3526004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,UPR |
1 | ||
| 45287-3520003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,LWR |
1 | ||
| 45287-3520004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,LWR |
1 | ||
| 45287-3520006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,LWR |
1 | ||
| 45287-3521002 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,LWR |
1 | ||
| 45287-3521003 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR |
1 | ||
| 45287-3521004 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR |
1 | ||
| 45287-3521006 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,LWR |
1 | ||
| 45286-3528003 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR |
1 | ||
| 45286-3528004 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR |
1 | ||
| 45286-3526002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,UPR |
1 | ||
| 45286-3528002 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,UPR |
1 | ||
| 45286-3528006 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3520002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,LWR |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3526003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,UPR |
1 | ||
| 45286-3526006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,UPR |
1 | ||
| 45286-3526004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,UPR |
1 | ||
| 45287-3520003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,LWR |
1 | ||
| 45287-3520004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,LWR |
1 | ||
| 45287-3520006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,LWR |
1 | ||
| 45287-3521002 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,LWR |
1 | ||
| 45287-3521003 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR |
1 | ||
| 45287-3521004 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR |
1 | ||
| 45287-3521006 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,LWR |
1 | ||
| 45286-3528003 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR |
1 | ||
| 45286-3528004 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR |
1 | ||
| 45286-3526002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,UPR |
1 | ||
| 45286-3528002 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,UPR |
1 | ||
| 45286-3528006 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3520002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,LWR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35050 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12035 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI NO.1 |
1 | ||
| 90507-08010 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI NO.2 |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12035 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI NO.1 |
1 | ||
| 90507-08010 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI NO.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-07003 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
RN12#,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
RN12#,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-22020 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22020 |
RN12#,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI OD=9.998-10.007 |
2 | ||
| 45856-22010 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI OD=9.989-9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22020 |
RN12#,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI OD=9.998-10.007 |
2 | ||
| 45856-22010 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI OD=9.989-9.998 |
2 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35080 |
RN8#,90..4HC |
1 | ||
| 45860-35070 |
RN8#,90..4HC W(POWER STEERING) |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-12010 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-35170 |
RN8#,90,VZN85,9#..4HC W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45870-35160 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-35010 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI NO.2 |
1 | ||
| 45890-22080 |
RN12#,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI NO.1 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22090 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI NO.2 |
1 | ||
| 45890-22080 |
RN12#,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI NO.1 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-35040 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI |
1 | ||
| 45893C - STOPPER, STEERING PAWL, RH | ||||
| 45893-22050 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI MARK 3 |
1 | ||
| 45893D - STOPPER, STEERING PAWL, LH | ||||
| 45893-22100 |
RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#..EFI MARK C |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| Common parts | ||||
| 90109-06162 | ||||
| 90119-06477 | ||||
| 90119-08560 | ||||
| 90119-08945 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 90463-13003 | ||||
| 90504-25002 | ||||
| 91651-60616 | ||||
| 91656-60620 | ||||
| 93315-14010 | ||||
| 93381-16010 | ||||
| 93385-15010 | ||||
| 94110-70600 | ||||
| 94512-00600 | ||||
| 94614-10600 | ||||
| 96160-00800 | ||||
(8808-9511)JPP
RIDID STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33878A - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-35020 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35240 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18004 |
RN8#,90,VZN85,9#..EFI |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
VZN90..DLX;RN8#,90,VZN85,95 T=1.20,LWR |
2 | ||
| 90520-17196 |
VZN90..DLX;RN8#,90,VZN85,95 T=1.35-1.45,UPR |
2 | ||
| 90520-17042 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI T=1.20,W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 90520-39003 |
RN8#,90 T=1.5 |
3 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-35020 |
VZN85,9#;RN8#,90,VZN120..ATM |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35170 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45210-35160 |
VZN90..DLX;RN12#,8#,90,VZN85,95 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35110 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12050 |
VZN90..DLX;RN12#,8#,90,VZN85,95 |
1 | ||
| 45271-12060 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-35260 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45280-35270 |
RN8#,90,VZN85,9#..4HC W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3526003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,UPR |
1 | ||
| 45286-3526006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,UPR |
1 | ||
| 45286-3526004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,UPR |
1 | ||
| 45287-3520003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,LWR |
1 | ||
| 45287-3520004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,LWR |
1 | ||
| 45287-3520006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,LWR |
1 | ||
| 45287-3521002 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,LWR |
1 | ||
| 45287-3521003 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR |
1 | ||
| 45287-3521004 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR |
1 | ||
| 45287-3521006 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,LWR |
1 | ||
| 45286-3528003 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR |
1 | ||
| 45286-3528004 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR |
1 | ||
| 45286-3526002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,UPR |
1 | ||
| 45286-3528002 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,UPR |
1 | ||
| 45286-3528006 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3520002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,LWR |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3526003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,UPR |
1 | ||
| 45286-3526006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,UPR |
1 | ||
| 45286-3526004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,UPR |
1 | ||
| 45287-3520003 |
VZN90..DLX;RN8#,90,VZN85,95 GRAY,TRIM1#,LWR |
1 | ||
| 45287-3520004 |
VZN90..DLX;RN8#,90,VZN85,95 BLUE,TRIM8#,LWR |
1 | ||
| 45287-3520006 |
VZN90..DLX;RN8#,90,VZN85,95 BROWN,TRIM4#,LWR |
1 | ||
| 45287-3521002 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,LWR |
1 | ||
| 45287-3521003 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR |
1 | ||
| 45287-3521004 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR |
1 | ||
| 45287-3521006 |
RN85,90..4HC;RN85,90..W..DLX;RN80,VZN85,9#..(DLX,STD)..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,LWR |
1 | ||
| 45286-3528003 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR |
1 | ||
| 45286-3528004 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR |
1 | ||
| 45286-3526002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,UPR |
1 | ||
| 45286-3528002 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,UPR |
1 | ||
| 45286-3528006 |
RN80,VZN90..DLX..EFI;RN12#,85,90,VZN85,95..EFI W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3520002 |
RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN85,95;RN80,VZN90..DLX..EFI RED,TRIM3#,LWR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35050 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35080 |
RN8#,90..4HC |
1 | ||
| 45860-35070 |
RN8#,90..4HC W(POWER STEERING) |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-35170 |
RN8#,90,VZN85,9#..4HC W(COLLAPSIBLE TILT STEERING) |
1 | ||
| 45870-35160 |
RN8#,90,VZN85,9#..4HC |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| Common parts | ||||
| 90119-06477 | ||||
| 90119-08560 | ||||
| 90119-08945 | ||||
| 90119-10292 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 91651-60616 | ||||
| 91656-60620 | ||||
| 93315-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
