RN85L-TRSSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9511)JPP

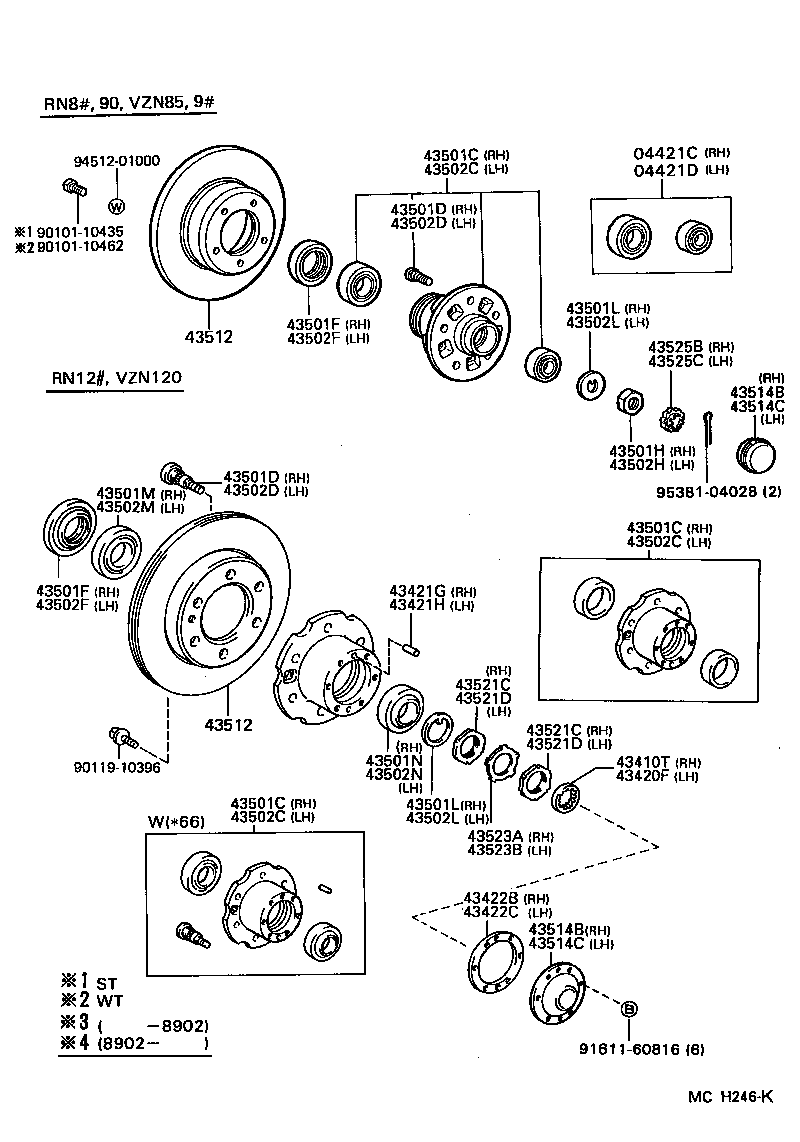

Click highlighted areas on diagram

diagram 04421C 04421D 43410T 43420F 43421G 43421H 43422B 43422C 43501C 43501C 43501C 43501D 43501D 43501F 43501F 43501H 43501L 43501L 43501M 43501N 43502C 43502C 43502C 43502D 43502D 43502F 43502F 43502H 43502L 43502L 43502M 43502N 43512 43512 43514B 43514B 43514C 43514C 43521C 43521C 43521D 43521D 43523A 43523B 43525B 43525C 9010110435 9010110462 9011910396 9161160816 9451201000 9538104028
Part # Description Qty Price
04421C - BEARING KIT, FRONT AXLE SHAFT, RH
04421-35010

RN8#,90,VZN85,9#

 1
04421D - BEARING KIT, FRONT AXLE SHAFT, LH
04421-35010

RN8#,90,VZN85,9#

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-39015

RN8#,90,VZN85,90..ST

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-39015

RN8#,90,VZN85,90..ST

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-39015

RN8#,90,VZN85,90..ST

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02047

RN8#,90,VZN85,90..ST

 5
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02047

RN8#,90,VZN85,90..ST

 5
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-50005

RN8#,90,VZN85,9#

 1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-50005

RN8#,90,VZN85,9#

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90170-19185

RN8#,90,VZN85,9#

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-20007

RN8#,90,VZN85,9#

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-20007

RN8#,90,VZN85,9#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-39015

RN8#,90,VZN85,90..ST

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-39015

RN8#,90,VZN85,90..ST

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-39015

RN8#,90,VZN85,90..ST

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02047

RN8#,90,VZN85,90..ST

 5
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02047

RN8#,90,VZN85,90..ST

 5
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-50005

RN8#,90,VZN85,9#

 1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-50005

RN8#,90,VZN85,9#

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90170-19185

RN8#,90,VZN85,9#

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-20007

RN8#,90,VZN85,9#

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-20007

RN8#,90,VZN85,9#

 1
43512 - DISC, FRONT
43512-35140

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 2
43512 - DISC, FRONT
43512-35140

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-35010

RN8#,90,VZN85,9#

 1
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-35010

RN8#,90,VZN85,9#

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-35010

RN8#,90,VZN85,9#

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-35010

RN8#,90,VZN85,9#

 1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-22010

RN8#,90,VZN85,9#

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-22010

RN8#,90,VZN85,9#

 1
Common parts
90101-10435
90101-10462
90119-10396
91611-60816
94512-01000
95381-04028
