RN85L-TRSSEA3 (1988)
Toyota 4-Runner Truck (Jpp)
(8808- )22R#..JPP
12V 55A,60A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

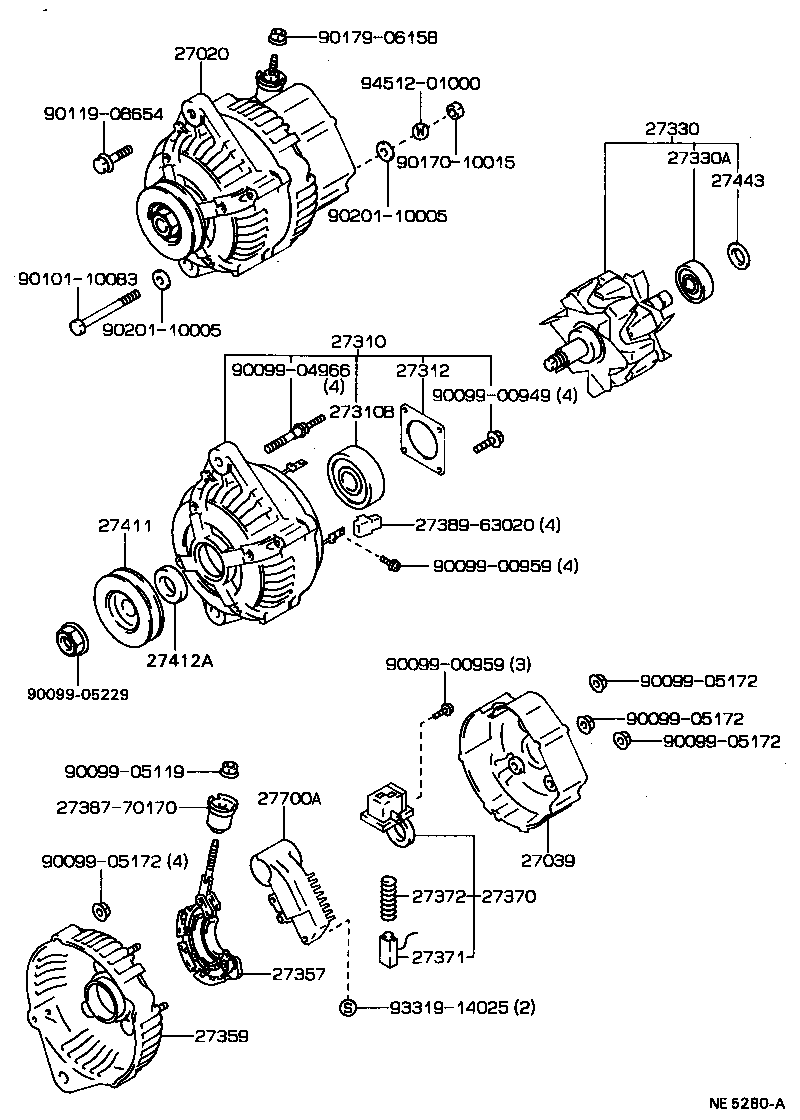

| 27020 - ALTERNATOR ASSY | ||||
| 27060-35061 |
22RE..RN8#,90;22R#..RN121,8#,90..5F..CND 12V 60A |
1 | ||
| 27060-35071 |
22R..RN8#,90..USA 12V 55A |
1 | ||
| 27060-35061 |
22R..RN8#,90..USA 12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
22R..RN8#,90..USA 12V 60A |
1 | ||
| 27039-72110 |
22R..RN8#,90..USA |
1 | ||
| 27039-72010 |
22R..RN85,90..CND;22RE,3VZE..RN8#,90,VZN85,90;22R#,3VZE..RN12#,80,VZN120,95..(4FC,4HC,5F)..(SR5,STD) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-35110 |
22R..RN8#,90..USA |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10159 |
22R#..RN12#,8#,90 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
22R#..RN12#,8#,90 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
22R..RN85,90..CND;22RE,3VZE..RN8#,90,VZN85,90;22R#,3VZE..RN12#,80,VZN120,95..(4FC,4HC,5F)..(SR5,STD) |
1 | ||
| 27330-10021 |
22R..RN8#,90..USA |
1 | ||
| 27330-72101 |
22R..RN8#,90..USA W(12V 60A ALTERNATOR) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
22R..RN8#,90..USA |
1 | ||
| 27357-63020 |
22R..RN8#,90..USA 12V 60A |
1 | ||
| 27357-63020 |
22R..RN85,90..CND;22RE,3VZE..RN8#,90,VZN85,90;22R#,3VZE..RN12#,80,VZN120,95..(4FC,4HC,5F)..(SR5,STD) |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16081 |
22R..RN8#,90..USA |
1 | ||
| 27359-16011 |
22R..RN8#,90..USA 12V 60A |
1 | ||
| 27359-16011 |
22RE..RN8#,90;22R..RN85,90..CND;22R#..RN12#,80..(4FC,5F)..(SR5,STD) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-35062 |
22R#..RN12#,8#,90 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-35100 |
22R#..RN12#,8#,90 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
22R#,3VZE..RN12#,8#,90,VZN120,85,9# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63021 |
22R#..RN8#,90 |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90099-05229 | ||||
| 90101-10083 | ||||
| 90119-08654 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 93319-14025 | ||||
| 94512-01000 | ||||
