RN85L-TRSSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

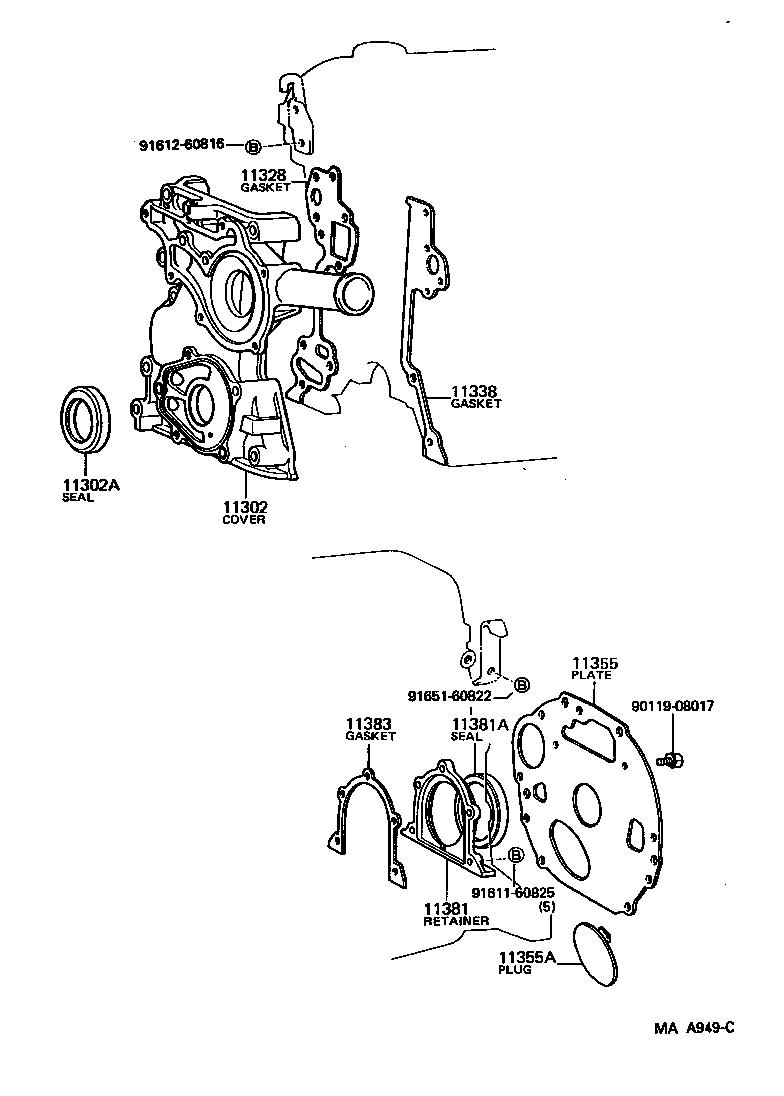

ILLUST NO. 1 OF 2(8808- )22R#..JPP

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11355A 11381 11381A 11383 9011908017 9161160825 9161260816 9165160822
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-35010

22R#..RN12#,8#,90

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45006

22R#..RN12#,8#,90

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-35020

22R#..RN12#,8#,90

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11329-35020

22R#..RN12#,8#,90

 1
11355 - PLATE, REAR END
11355-35030

22RE..RN12#,8#,90..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01458

22RE..RN12#,8#,90..ATM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

22R#..RN12#,8#,90

 1
11381A - SEAL, ENGINE REAR OIL
90311-80004

22R#..RN12#,8#,90

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-35020

22R#..RN12#,8#,90

 1
Common parts
90119-08017
91611-60825
91612-60816
91651-60822

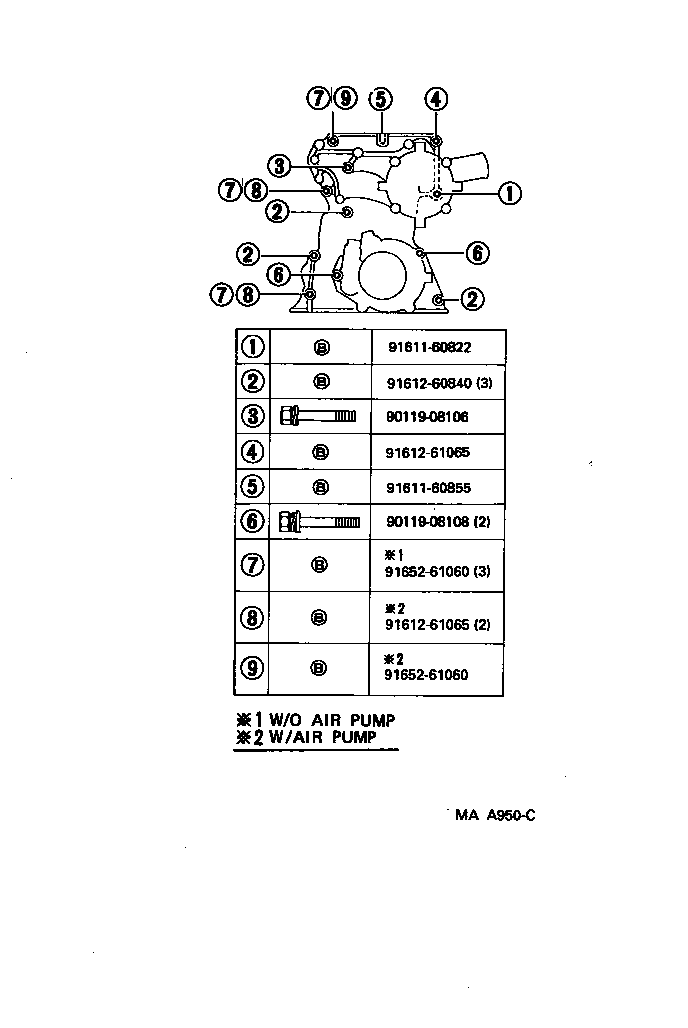

ILLUST NO. 2 OF 2(8808- )22R#..JPP

Click highlighted areas on diagram

diagram 9011908106 9011908108 9161160822 9161160855 9161260840 9161261065 9161261065 9165261060 9165261060
Part # Description Qty Price
Common parts
90119-08106
90119-08108
91611-60822
91611-60855
91612-60840
91612-61065
91652-61060
