RN85L-TRSDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Oct 1994
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R#..JPP

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8808- )22RE..RN121,8#,90..JPP..4HC,5F

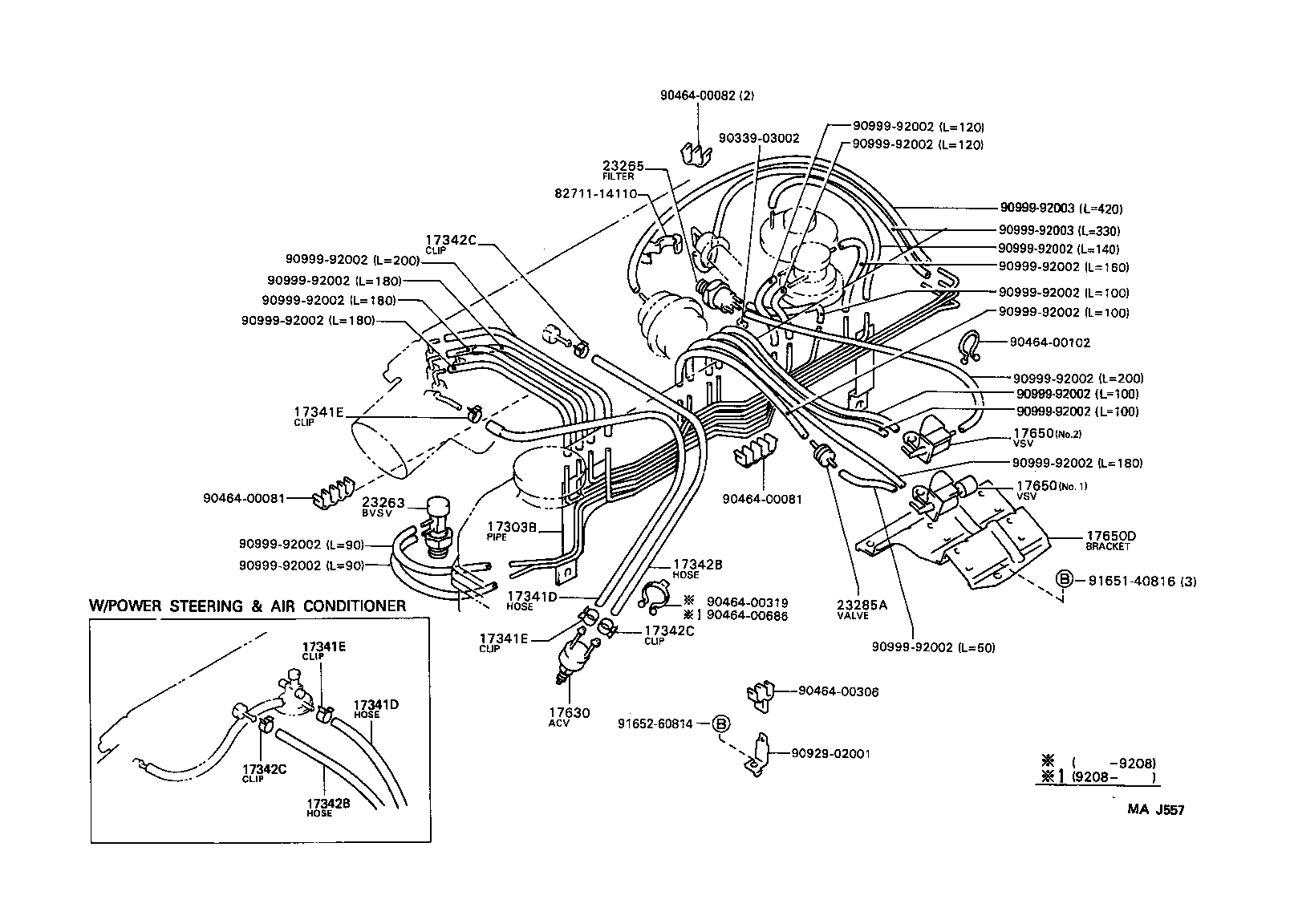

Click highlighted areas on diagram

diagram 17303B 17341D 17341D 17341E 17341E 17341E 17342B 17342B 17342C 17342C 17342C 17630 17650 17650 17650D 23263 23265 23285A 8271114110 9033903002 9046400081 9046400081 9046400082 9046400102 9046400306 9046400319 9046400686 9092902001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9165140816 9165260814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35250

22RE..RN12#,8#,90..4FC,4HC,5F

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17342-35050

22RE..RN12#,8#,90

W(POWER STEERING & AIR CONDITIONER)

 1
17341-35180

22RE..RN12#,8#,90

W(POWER STEERING)

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17342-35050

22RE..RN12#,8#,90

W(POWER STEERING & AIR CONDITIONER)

 1
17341-35180

22RE..RN12#,8#,90

W(POWER STEERING)

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-41000

22RE..RN12#,8#,90

W(POWER STEERING),VALVE SIDE

 1
96132-41000

22RE..RN12#,8#,90

W(POWER STEERING & *AIC)

 2
96132-41100

22RE..RN12#,8#,90

W(POWER STEERING),THROTTLE BODY SIDE

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-41000

22RE..RN12#,8#,90

W(POWER STEERING),VALVE SIDE

 1
96132-41000

22RE..RN12#,8#,90

W(POWER STEERING & *AIC)

 2
96132-41100

22RE..RN12#,8#,90

W(POWER STEERING),THROTTLE BODY SIDE

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-41000

22RE..RN12#,8#,90

W(POWER STEERING),VALVE SIDE

 1
96132-41000

22RE..RN12#,8#,90

W(POWER STEERING & *AIC)

 2
96132-41100

22RE..RN12#,8#,90

W(POWER STEERING),THROTTLE BODY SIDE

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22RE..RN12#,8#,90

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-35050

22RE..RN12#,8#,90

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-41000

22RE..RN12#,8#,90

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-41000

22RE..RN12#,8#,90

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-41000

22RE..RN12#,8#,90

 2
17630 - VALVE ASSY, AIR CONTROL
17630-28010

22RE..RN12#,8#,90

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12085

22RE..RN12#,8#,90

NO.2

 1
90910-12084

22RE..RN12#,8#,90

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12085

22RE..RN12#,8#,90

NO.2

 1
90910-12084

22RE..RN12#,8#,90

NO.1

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
25861-35020

22RE..RN12#,8#,90

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13010

22RE..RN12#,8#,90..4FC,4HC,5F

 1
23265 - FILTER, GAS, NO.1
90917-11024

22R#..RN12#,8#,90

 1
23285A - VALVE, CHECK, NO.1
90917-10049

22RE..RN12#,8#,90

 1
Common parts
82711-14110
90339-03002
90464-00081
90464-00082
90464-00102
90464-00306
90464-00319
90464-00686
90929-02001
90999-92002
90999-92003
91651-40816
91652-60814
