RN85L-TRMSEA3 (1988)
Toyota 4-Runner Truck (Jpp)

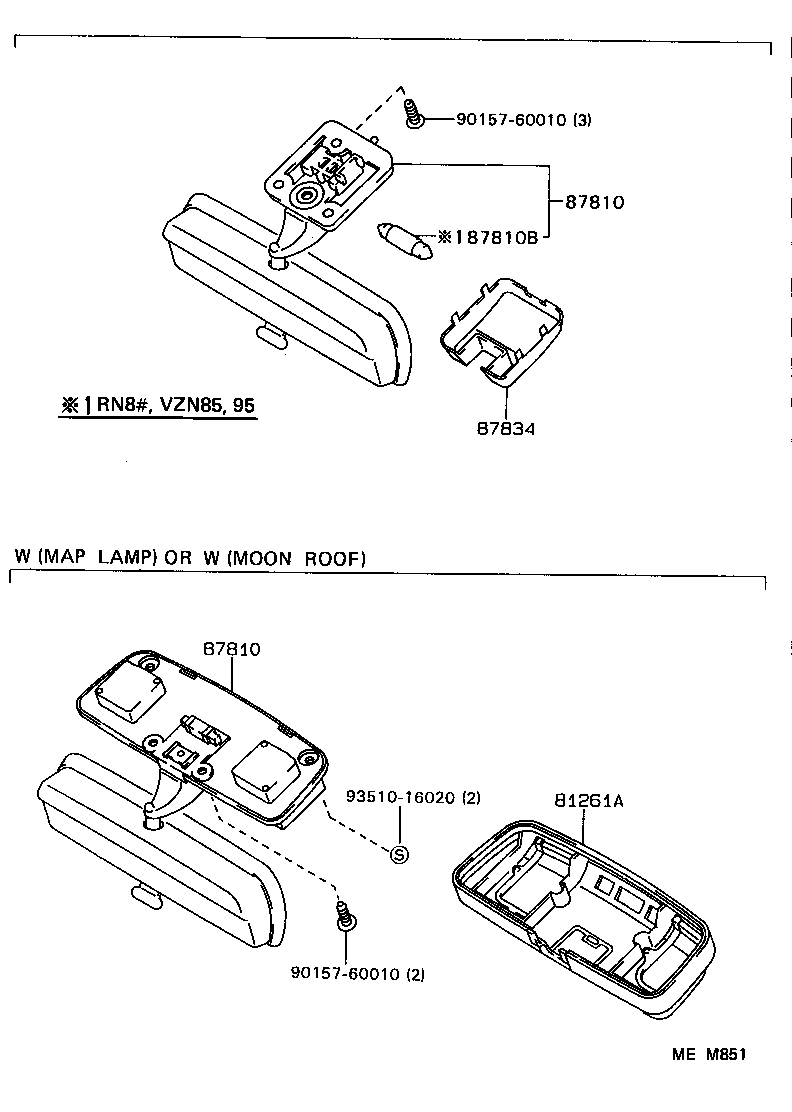

ILLUST NO. 1 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81261A - LENS AND COVER, MAP LAMP | ||||
| 81261-8910406 |
RN12#,85,90,VZN120,90..SR5 BROWN,TRIM4# |
1 | ||
| 81261-8910404 |
RN12#,85,90,VZN120,90..SR5 BLUE,TRIM8# |
1 | ||
| 81261-8910402 |
RN12#,85,90,VZN120,90..SR5 RED,TRIM3# |
1 | ||
| 81261-8910403 |
RN12#,85,90,VZN120,90..SR5 GRAY,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-8914002 |
RN85..SR5 RED,TRIM3# |
1 | ||
| 87810-8914006 |
RN85..SR5 BROWN,TRIM4# |
1 | ||
| 87810-8914204 |
RN12#,85,90..SR5 W(MAP LAMP),BLUE,TRIM8# |
1 | ||
| 87810-8914004 |
RN85..SR5 BLUE,TRIM8# |
1 | ||
| 87810-8914206 |
RN12#,85,90..SR5 W(MAP LAMP),BROWN,TRIM4# |
1 | ||
| 87810-8914202 |
RN12#,85,90..SR5 W(MAP LAMP),RED,TRIM3# |
1 | ||
| 87810-8914203 |
RN12#,85,90..SR5 W(MAP LAMP),GRAY,TRIM1# |
1 | ||
| 87810-8914003 |
RN85..SR5 GRAY,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-8914002 |
RN85..SR5 RED,TRIM3# |
1 | ||
| 87810-8914006 |
RN85..SR5 BROWN,TRIM4# |
1 | ||
| 87810-8914204 |
RN12#,85,90..SR5 W(MAP LAMP),BLUE,TRIM8# |
1 | ||
| 87810-8914004 |
RN85..SR5 BLUE,TRIM8# |
1 | ||
| 87810-8914206 |
RN12#,85,90..SR5 W(MAP LAMP),BROWN,TRIM4# |
1 | ||
| 87810-8914202 |
RN12#,85,90..SR5 W(MAP LAMP),RED,TRIM3# |
1 | ||
| 87810-8914203 |
RN12#,85,90..SR5 W(MAP LAMP),GRAY,TRIM1# |
1 | ||
| 87810-8914003 |
RN85..SR5 GRAY,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 99132-13050 |
RN8#,VZN85,95 12V 5W |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-89104 |
RN8#,VZN85,95 |
1 | ||
| Common parts | ||||
| 90157-60010 | ||||
| 93510-16020 | ||||

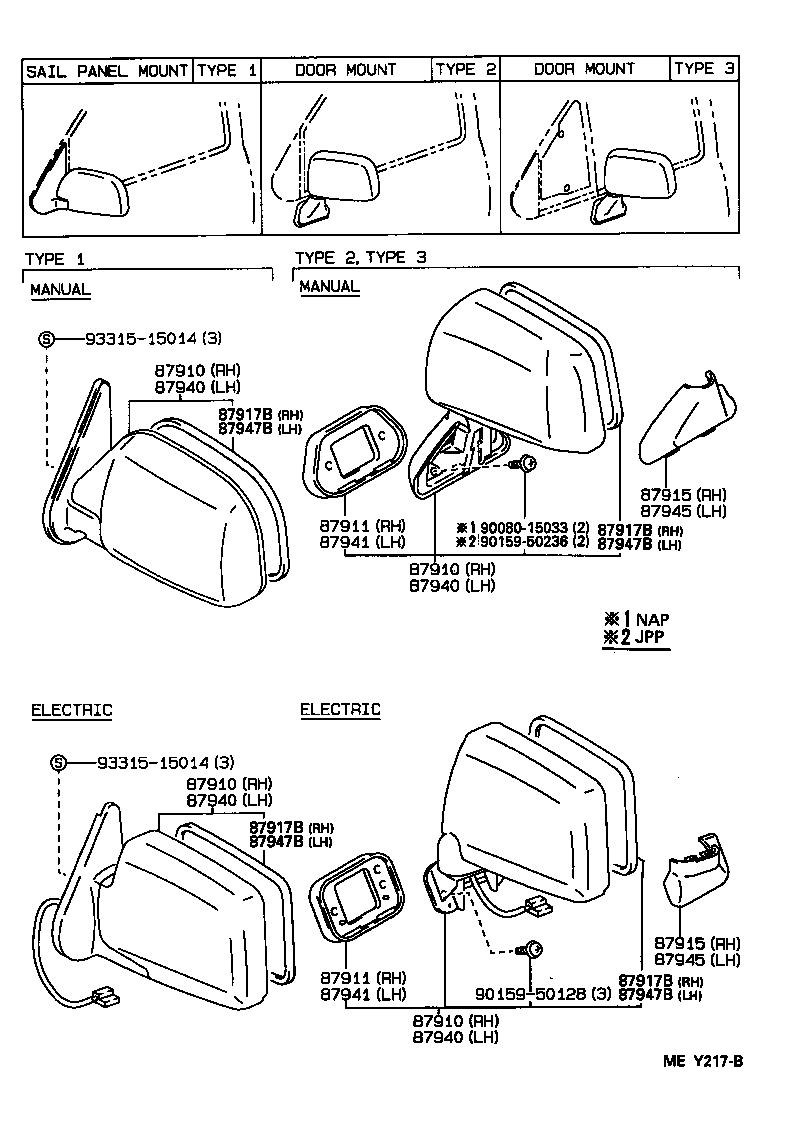

ILLUST NO. 2 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-89144 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC |
1 | ||
| 87910-89143 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87910-89148 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87910-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87910-89149 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87910-89153 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-89144 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC |
1 | ||
| 87910-89143 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87910-89148 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87910-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87910-89149 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87910-89153 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-89144 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC |
1 | ||
| 87910-89143 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87910-89148 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87910-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87910-89149 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87910-89153 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-89144 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC |
1 | ||
| 87910-89143 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87910-89148 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87910-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87910-89149 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87910-89153 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-89114 |
RN85,90..SR5 W(FRONT DOOR *VW) OR W(FRONT DOOR *VW) & CHROME PLATED |
1 | ||
| 87911-89115 |
RN85,90,VZN90..SR5..USA W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED;W(FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-89114 |
RN85,90..SR5 W(FRONT DOOR *VW) OR W(FRONT DOOR *VW) & CHROME PLATED |
1 | ||
| 87911-89115 |
RN85,90,VZN90..SR5..USA W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED;W(FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-89108 |
RN85,90,VZN90..SR5..USA PLATED,W(FRONT DOOR *VW) & ELECTRIC *RCM;W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM |
1 | ||
| 87915-89106 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA NO PAINT REQ.,W(FRONT DOOR *VW) |
1 | ||
| 87915-89107 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,W(FRONT DOOR *VW) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-89108 |
RN85,90,VZN90..SR5..USA PLATED,W(FRONT DOOR *VW) & ELECTRIC *RCM;W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM |
1 | ||
| 87915-89106 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA NO PAINT REQ.,W(FRONT DOOR *VW) |
1 | ||
| 87915-89107 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,W(FRONT DOOR *VW) |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-89148 |
RN85,90,VZN90..SR5 |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-89148 |
RN85,90,VZN90..SR5 |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-89148 |
RN85,90,VZN90..SR5 |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-89148 |
RN85,90,VZN90..SR5 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-89146 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87940-89142 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC,TYPE 3 |
1 | ||
| 87940-89149 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87940-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87940-89141 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87940-89147 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-89146 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87940-89142 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC,TYPE 3 |
1 | ||
| 87940-89149 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87940-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87940-89141 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87940-89147 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-89146 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87940-89142 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC,TYPE 3 |
1 | ||
| 87940-89149 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87940-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87940-89141 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87940-89147 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-89146 |
RN85,90,VZN90..SR5 PLATED,ELECTRIC,TYPE 1 |
1 | ||
| 87940-89142 |
RN85,90,VZN90..SR5..USA PLATED,ELECTRIC,TYPE 3 |
1 | ||
| 87940-89149 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 1 |
1 | ||
| 87940-89140 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ.,TYPE 3 |
1 | ||
| 87940-89141 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,TYPE 2,3 |
1 | ||
| 87940-89147 |
RN8#,90,VZN85,90..DLX,SR5 PLATED,TYPE 1 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-89112 |
RN85,90,VZN90..SR5..USA W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED;W(FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED |
1 | ||
| 87941-89111 |
RN8#,90,VZN85,90..USA..(CBU,IV3) W(FRONT DOOR *VW) |
1 | ||
| 87941-89110 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-89112 |
RN85,90,VZN90..SR5..USA W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED;W(FRONT DOOR *VW) & ELECTRIC *RCM & CHROME PLATED |
1 | ||
| 87941-89111 |
RN8#,90,VZN85,90..USA..(CBU,IV3) W(FRONT DOOR *VW) |
1 | ||
| 87941-89110 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-89108 |
RN85,90,VZN90..SR5..USA PLATED,W(FRONT DOOR *VW) & ELECTRIC *RCM;W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM |
1 | ||
| 87945-89106 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA NO PAINT REQ.,W(FRONT DOOR *VW) |
1 | ||
| 87945-89107 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,W(FRONT DOOR *VW) |
1 | ||
| 87945-89106 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-89108 |
RN85,90,VZN90..SR5..USA PLATED,W(FRONT DOOR *VW) & ELECTRIC *RCM;W(POWER WINDOW & FRONT DOOR *VW) & ELECTRIC *RCM |
1 | ||
| 87945-89106 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA NO PAINT REQ.,W(FRONT DOOR *VW) |
1 | ||
| 87945-89107 |
RN8#,90,VZN85,90..(DLX,SR5)..USA PLATED,W(FRONT DOOR *VW) |
1 | ||
| 87945-89106 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) NO PAINT REQ. |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-89146 |
RN85,90,VZN90..SR5 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-89146 |
RN85,90,VZN90..SR5 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-89146 |
RN85,90,VZN90..SR5 |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-89146 |
RN85,90,VZN90..SR5 |
1 | ||
| Common parts | ||||
| 90080-15033 | ||||
| 90159-50128 | ||||
| 90159-50236 | ||||
| 93315-15014 | ||||
