RN85L-TRMSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

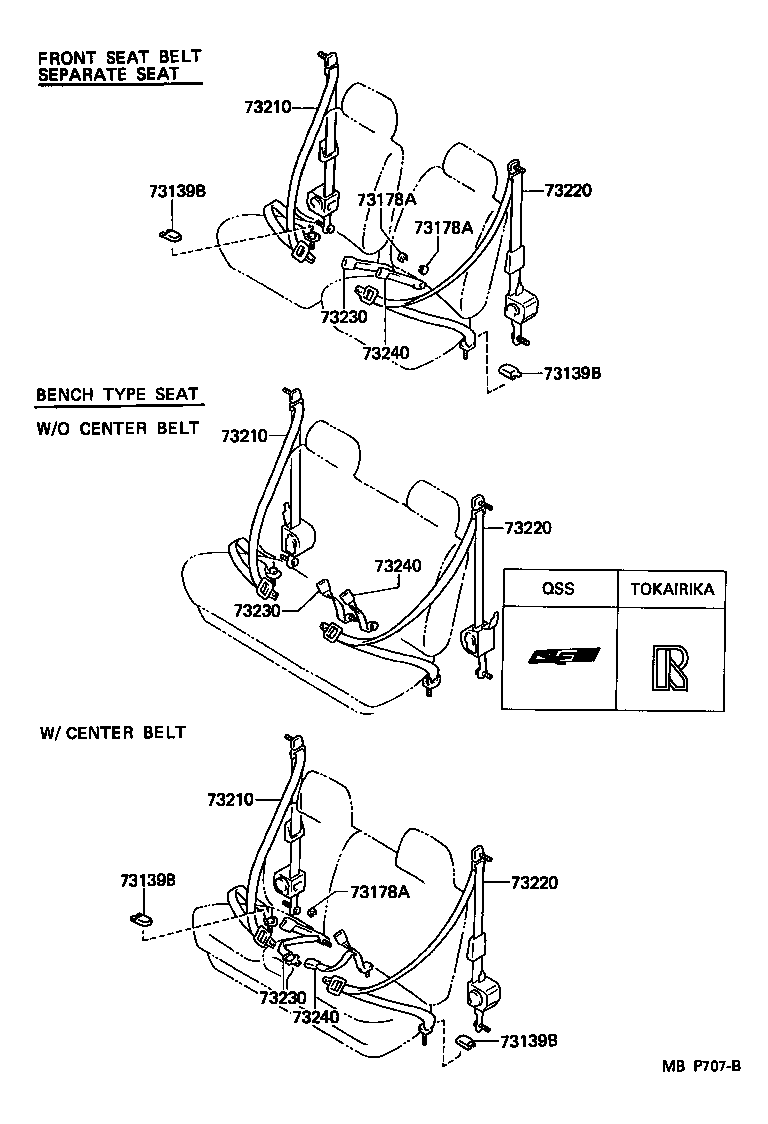

ILLUST NO. 1 OF 2(8808- )JPP

Click highlighted areas on diagram

diagram 73139B 73139B 73139B 73139B 73178A 73178A 73178A 73210 73210 73210 73220 73220 73220 73230 73230 73230 73240 73240 73240
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8919504

RN8#,VZN85,95

BLUE,TRIM8#

 1
73210-8919503

RN8#,VZN85,95

GRAY,TRIM1#

 1
73210-8919502

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73210-8919506

RN8#,VZN85,95

BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8919504

RN8#,VZN85,95

BLUE,TRIM8#

 1
73210-8919503

RN8#,VZN85,95

GRAY,TRIM1#

 1
73210-8919502

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73210-8919506

RN8#,VZN85,95

BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8919504

RN8#,VZN85,95

BLUE,TRIM8#

 1
73210-8919503

RN8#,VZN85,95

GRAY,TRIM1#

 1
73210-8919502

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73210-8919506

RN8#,VZN85,95

BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-8914402

RN8#,VZN85,95..4HC,5F

RED,TRIM3#

 1
73220-8914403

RN8#,VZN85,95

GRAY,TRIM1#

 1
73220-8914404

RN8#,VZN85,95

BLUE,TRIM8#

 1
73220-8914406

RN8#,VZN85,95

BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-8914402

RN8#,VZN85,95..4HC,5F

RED,TRIM3#

 1
73220-8914403

RN8#,VZN85,95

GRAY,TRIM1#

 1
73220-8914404

RN8#,VZN85,95

BLUE,TRIM8#

 1
73220-8914406

RN8#,VZN85,95

BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-8914402

RN8#,VZN85,95..4HC,5F

RED,TRIM3#

 1
73220-8914403

RN8#,VZN85,95

GRAY,TRIM1#

 1
73220-8914404

RN8#,VZN85,95

BLUE,TRIM8#

 1
73220-8914406

RN8#,VZN85,95

BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8916802

RN85..SR5;VZN85..10T

W(CENTER BELT),RED,TRIM3#

 1
73230-8916806

RN85..SR5;VZN85..10T

W(CENTER BELT),BROWN,TRIM4#

 1
73230-8916803

RN85..SR5;VZN85..10T

W(CENTER BELT),GRAY,TRIM1#

 1
73230-8917002

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73230-8917006

RN8#,VZN85,95

BROWN,TRIM4#

 1
73230-8917003

RN8#,VZN85,95

GRAY,TRIM1#

 1
73230-8917004

RN8#,VZN85,95

BLUE,TRIM8#

 1
73230-8916804

RN85..SR5;VZN85..10T

W(CENTER BELT),BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8916802

RN85..SR5;VZN85..10T

W(CENTER BELT),RED,TRIM3#

 1
73230-8916806

RN85..SR5;VZN85..10T

W(CENTER BELT),BROWN,TRIM4#

 1
73230-8916803

RN85..SR5;VZN85..10T

W(CENTER BELT),GRAY,TRIM1#

 1
73230-8917002

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73230-8917006

RN8#,VZN85,95

BROWN,TRIM4#

 1
73230-8917003

RN8#,VZN85,95

GRAY,TRIM1#

 1
73230-8917004

RN8#,VZN85,95

BLUE,TRIM8#

 1
73230-8916804

RN85..SR5;VZN85..10T

W(CENTER BELT),BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8916802

RN85..SR5;VZN85..10T

W(CENTER BELT),RED,TRIM3#

 1
73230-8916806

RN85..SR5;VZN85..10T

W(CENTER BELT),BROWN,TRIM4#

 1
73230-8916803

RN85..SR5;VZN85..10T

W(CENTER BELT),GRAY,TRIM1#

 1
73230-8917002

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73230-8917006

RN8#,VZN85,95

BROWN,TRIM4#

 1
73230-8917003

RN8#,VZN85,95

GRAY,TRIM1#

 1
73230-8917004

RN8#,VZN85,95

BLUE,TRIM8#

 1
73230-8916804

RN85..SR5;VZN85..10T

W(CENTER BELT),BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-8915503

RN8#,VZN85,95

GRAY,TRIM1#

 1
73240-8915502

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73240-8915506

RN8#,VZN85,95

BROWN,TRIM4#

 1
73240-8915504

RN8#,VZN85,95

BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-8915503

RN8#,VZN85,95

GRAY,TRIM1#

 1
73240-8915502

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73240-8915506

RN8#,VZN85,95

BROWN,TRIM4#

 1
73240-8915504

RN8#,VZN85,95

BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-8915503

RN8#,VZN85,95

GRAY,TRIM1#

 1
73240-8915502

RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND

RED,TRIM3#

 1
73240-8915506

RN8#,VZN85,95

BROWN,TRIM4#

 1
73240-8915504

RN8#,VZN85,95

BLUE,TRIM8#

 1

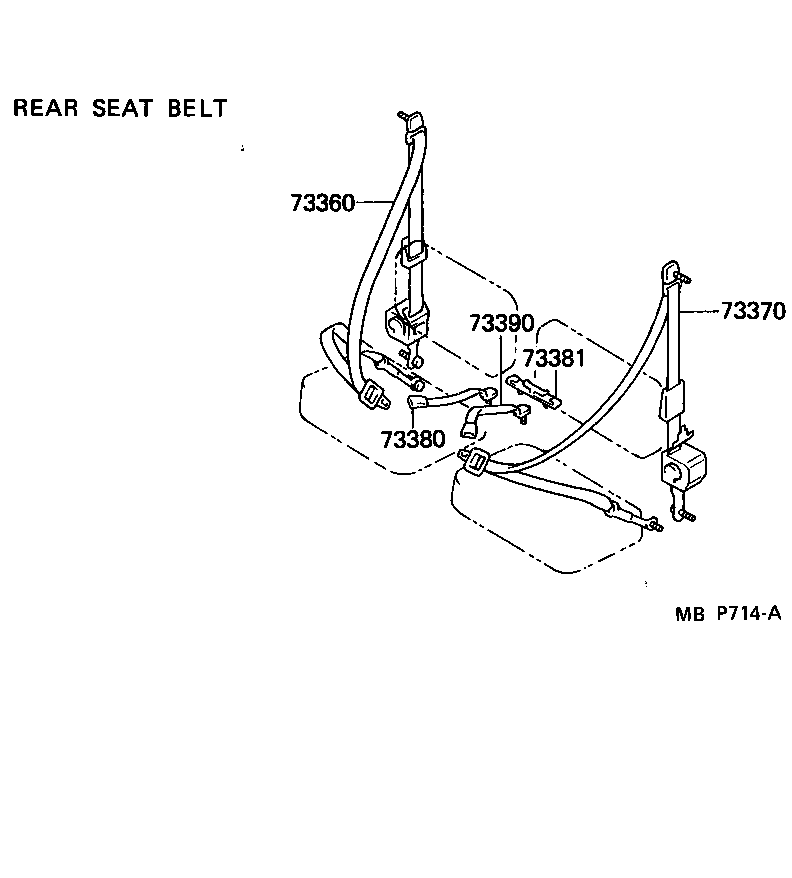

ILLUST NO. 2 OF 2(8808- )JPP

Click highlighted areas on diagram

diagram 73360 73370 73380 73381 73390
Part # Description Qty Price
