RN85L-TRMSEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9405)JPP..R

Click highlighted areas on diagram

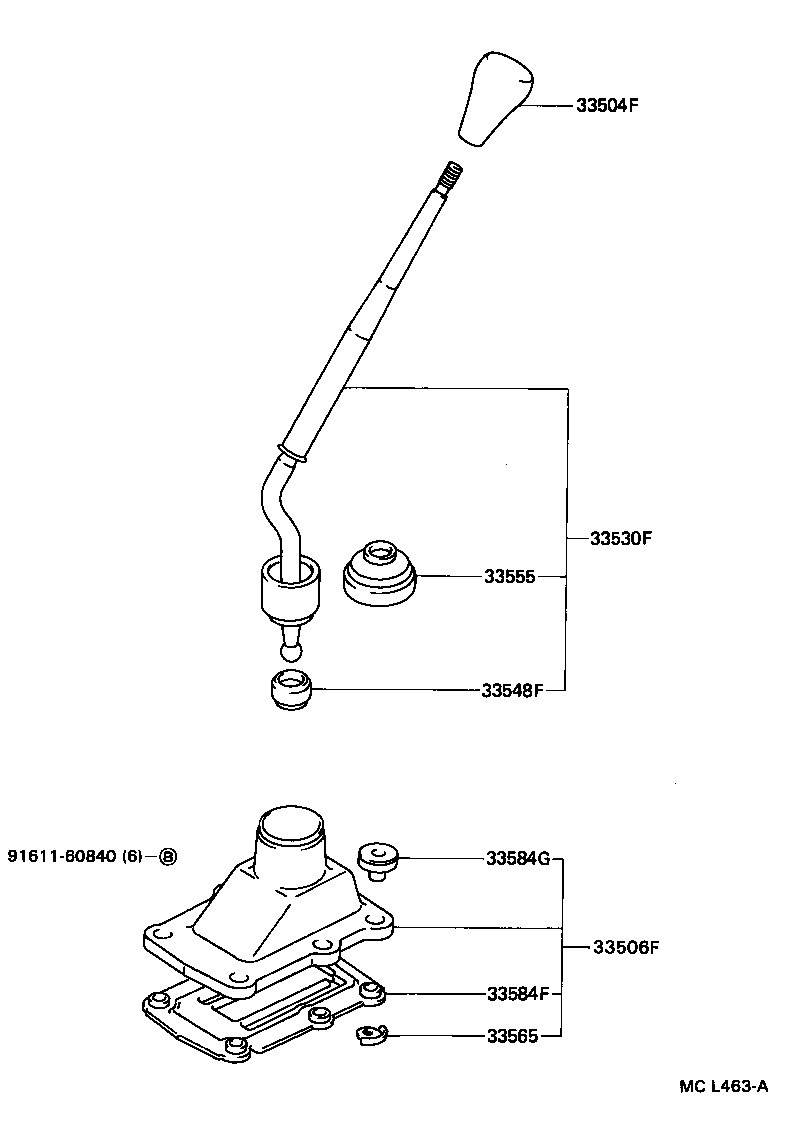

diagram 33504F 33506F 33530F 33548F 33555 33565 33584F 33584G 9161160840
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-3503003

RN85,90,VZN90..5F..SR5

GRAY,TRIM1#

 1
33504-3503004

RN85,90,VZN90..5F..SR5

BLUE,TRIM8#

 1
33504-35030J0

RN121,85,90,VZN90..5F..SR5

MEDIUM BLUE,TRIM8#

 1
33504-35030B0

RN121,85,90,VZN90..5F..SR5

MEDIUM GRAY,TRIM1#

 1
33504-3503006

RN121,85,90,VZN90..5F..SR5

BROWN,TRIM4#

 1
33504-3503002

RN121,85,90,VZN90..5F..SR5

RED,TRIM3#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-35030

RN121,8#,90..W

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35140

RN121,8#,90..W

 1
33530-35170

RN8#,90,VZN85,9#..G,R

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

RN121,8#,90,VZN85,9#..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-35040

RN121,8#,90,VZN85,9#..MTM

 1
Common parts
91611-60840

(8808- )JPP..W

Click highlighted areas on diagram

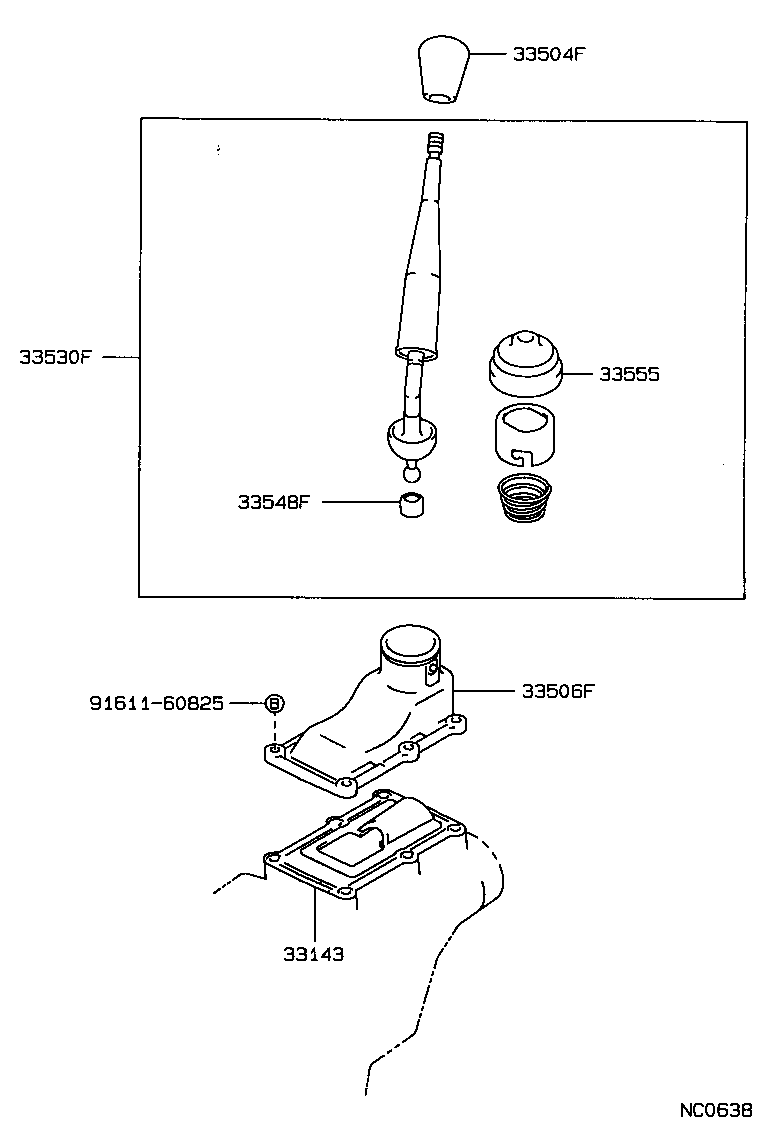

diagram 33143 33504F 33506F 33530F 33548F 33555 9161160825
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-35030

RN121,8#,90..W

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-3503003

RN85,90,VZN90..5F..SR5

GRAY,TRIM1#

 1
33504-3503004

RN85,90,VZN90..5F..SR5

BLUE,TRIM8#

 1
33504-35030J0

RN121,85,90,VZN90..5F..SR5

MEDIUM BLUE,TRIM8#

 1
33504-35030B0

RN121,85,90,VZN90..5F..SR5

MEDIUM GRAY,TRIM1#

 1
33504-3503006

RN121,85,90,VZN90..5F..SR5

BROWN,TRIM4#

 1
33504-3503002

RN121,85,90,VZN90..5F..SR5

RED,TRIM3#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-35030

RN121,8#,90..W

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35140

RN121,8#,90..W

 1
33530-35170

RN8#,90,VZN85,9#..G,R

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

RN121,8#,90,VZN85,9#..MTM

 1
33555 - BOOT, SHIFT LEVER
33555-35040

RN121,8#,90,VZN85,9#..MTM

 1
Common parts
91611-60825
