RN85L-TRMDEK (1990)

Toyota 4-Runner Truck (Jpp)

Production Aug 1990 - Oct 1994
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

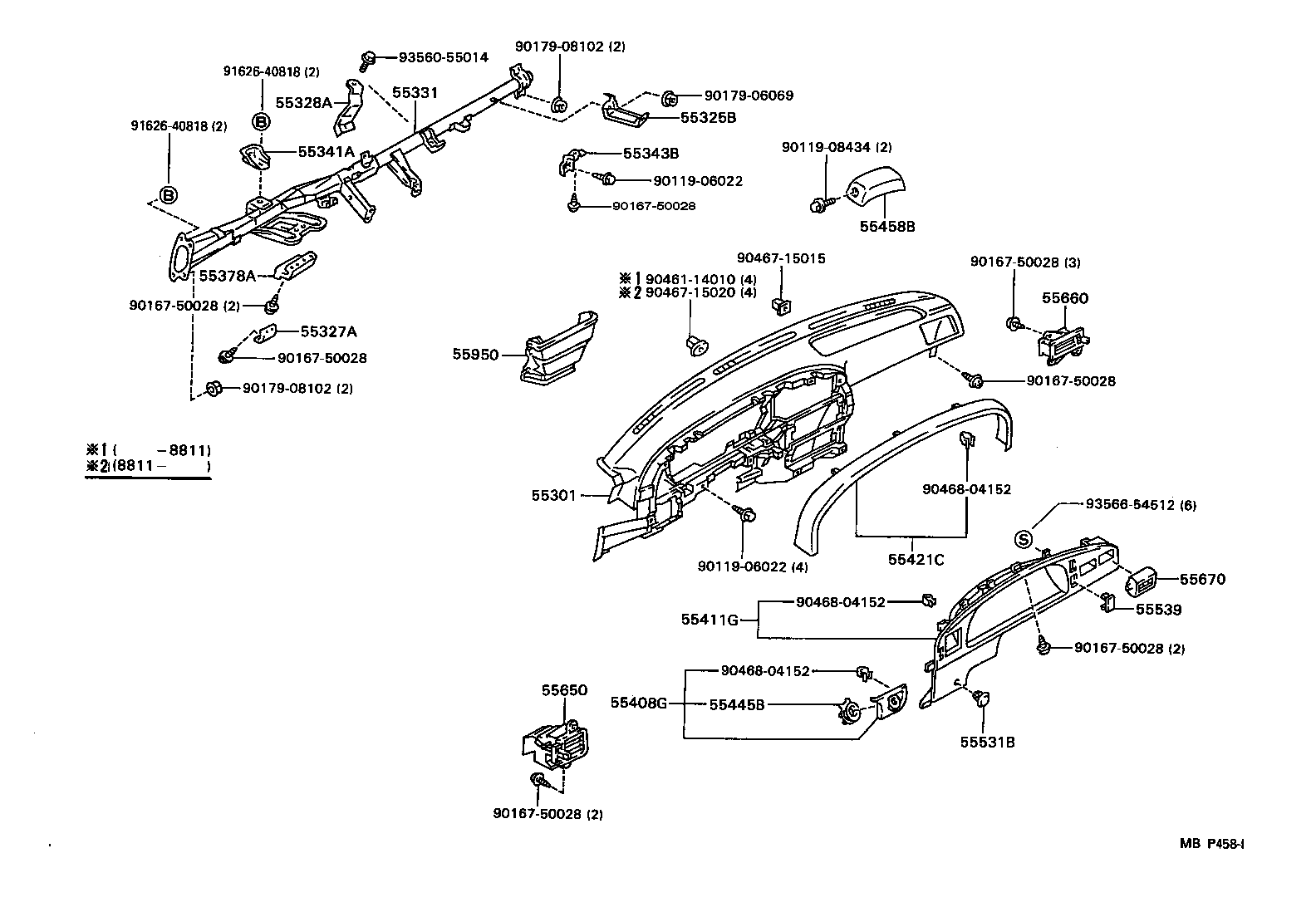

ILLUST NO. 1 OF 2(8808-9108)RN80..JPP..STD..USA ; (9108- )RN8#,VZN85,95..JPP

Click highlighted areas on diagram

diagram 55301 55325B 55327A 55328A 55331 55341A 55343B 55378A 55408G 55411G 55421C 55445B 55458B 55531B 55539 55650 55660 55670 55950 9011906022 9011906022 9011908434 9016750028 9016750028 9016750028 9016750028 9016750028 9016750028 9016750028 9017906069 9017908102 9017908102 9046114010 9046715015 9046715020 9046804152 9046804152 9046804152 9162640818 9162640818 9356055014 9356654512
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-8912002

RN12#,8#,90,VZN120,85,9#..4FC,4HC,5F

RED,TRIM3#

 1
55301-8912006

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

BROWN,TRIM4#

 1
55301-35010B0

RN8#,VZN85,95

GRAY,TRIM1#

 1
55301-8912004

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

BLUE,TRIM8#

 1
55301-8912003

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

GRAY,TRIM1#

 1
55301-35010J0

RN8#,VZN85,95

BLUE,TRIM8#

 1
55325B - BRACKET, INSTRUMENT PANEL, NO.5
55325-35020

RN8#,VZN85,95

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-89104

RN8#,VZN85,95

 1
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-35020

RN8#,VZN85,95

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-89117

RN12#,8#,90,VZN120,85,9#..4FC,4HC,5F

 1
55330-35020

RN8#,90,VZN120,85,9#

 1
55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER
55341-89103

RN12#,8#,90,VZN120,85,9#

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-89101

RN12#,8#,90,VZN120,85,9#

 1
55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55378-89102

RN8#,VZN85,95

 1
55408G - BEZEL SUB-ASSY, STARTER SWITCH
55408-89101

RN121,8#,90,VZN85,9#..MTM

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-89109

RN80..W..DLX;RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..4FC,5F

 1
55411-35040

RN8#,VZN85,95..5F

 1
55421C - HOOD, METER
55421-89108J0

RN8#,VZN85,95

MEDIUM BLUE,TRIM8#

 1
55421-89108B0

RN8#,VZN85,95

MEDIUM GRAY,TRIM1#

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-89103

RN121,8#,90,VZN85,9#..MTM

 1
55531B - COVER, CHOKE KNOB HOLE
55531-8910503

RN8#,90,VZN85,9#

GRAY,TRIM1#

 1
55531-8910504

RN8#,90,VZN85,9#

BLUE,TRIM8#

 1
55531-8910502

RN80..5F..CBR;RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55531-8910506

RN8#,90,VZN85,9#

BROWN,TRIM4#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-89105

RN12#,8#,90,VZN120,85,9#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-89112

RN12#,8#,90,VZN120,85,9#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-8910706

RN12#,8#,90,VZN120,85,9#

BROWN,TRIM4#

 1
55660-8910703

RN12#,8#,90,VZN120,85,9#

GRAY,TRIM1#

 1
55660-8910704

RN12#,8#,90,VZN120,85,9#

BLUE,TRIM8#

 1
55660-8910702

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-89115

RN12#,8#,90,VZN120,85,9#

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-89108

RN12#,8#,90,VZN120,85,9#

 1
Common parts
90119-06022
90119-08434
90167-50028
90179-06069
90179-08102
90461-14010
90467-15015
90467-15020
90468-04152
91626-40818
93560-55014
93566-54512

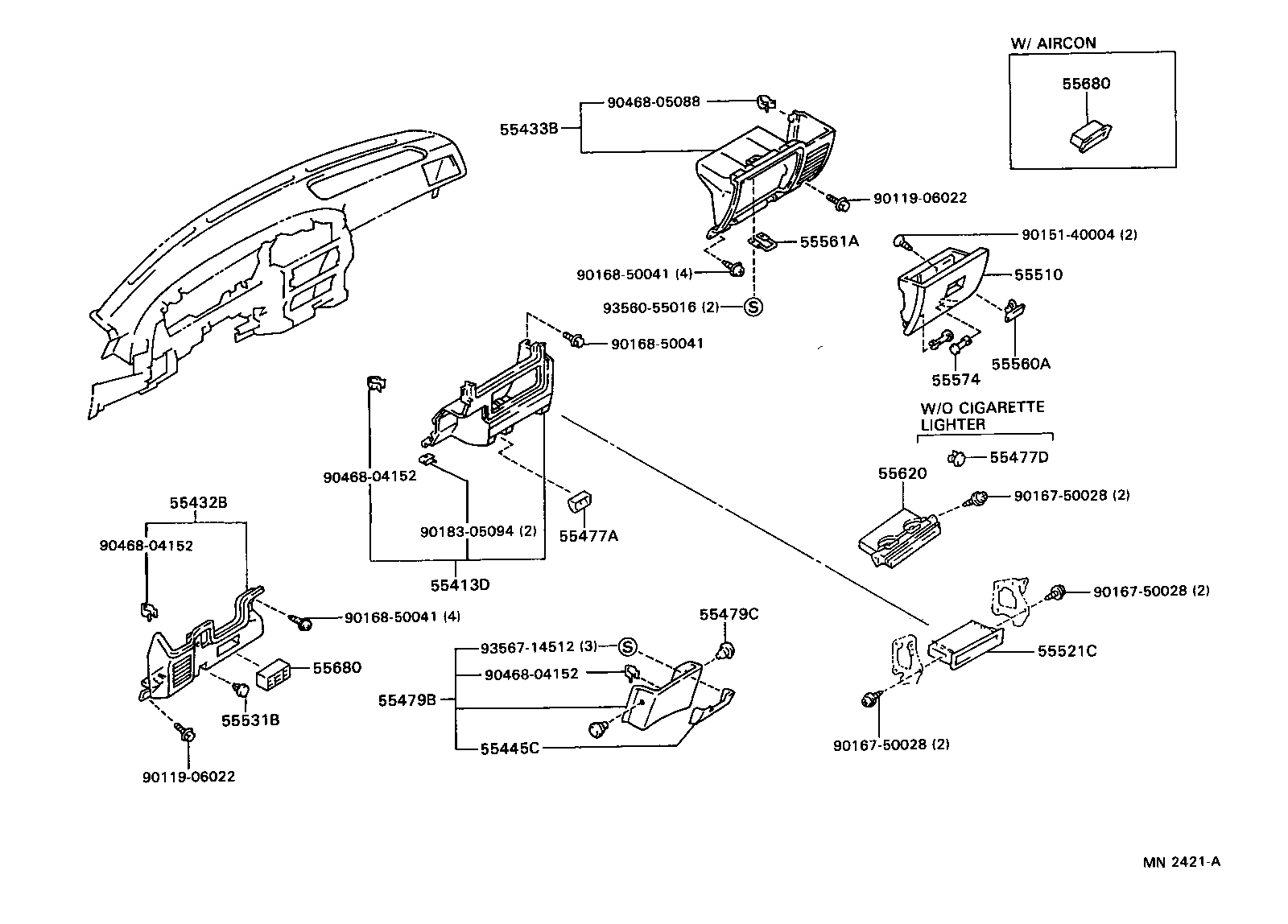

ILLUST NO. 2 OF 2(8808-9108)RN80..JPP..STD..USA ; (9108- )RN8#,VZN85,95..JPP

Click highlighted areas on diagram

diagram 55413D 55432B 55433B 55445C 55477A 55477D 55479B 55479C 55510 55521C 55531B 55560A 55561A 55574 55620 55680 55680 9011906022 9011906022 9015140004 9016750028 9016750028 9016750028 9016850041 9016850041 9016850041 9018305094 9046804152 9046804152 9046804152 9046805088 9356055016 9356714512
Part # Description Qty Price
55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
55413-8910202

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55413-8910206

RN8#,90,VZN85,9#..4FC,4HC,5F

BROWN,TRIM4#

 1
55413-8910204

RN8#,90,VZN85,9#..4FC,4HC,5F

BLUE,TRIM8#

 1
55413-8910203

RN8#,90,VZN85,9#..4FC,4HC,5F

GRAY,TRIM1#

 1
55413-35010E0

RN80..DLX;RN80..CND;RN12#,85,90,VZN120,85,9#

BROWN,TRIM4#

 1
55413-35010J0

RN80..DLX;RN80..CND;RN12#,85,90,VZN120,85,9#

MEDIUM BLUE,TRIM8#

 1
55413-3501002

RN80..DLX;RN80..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55413-35010B0

RN80..DLX;RN80..CND;RN12#,85,90,VZN120,85,9#

MEDIUM GRAY,TRIM1#

 1
55413-35070B0

RN8#,VZN85,95

GRAY,TRIM1#

 1
55413-35070J0

RN8#,VZN85,95

BLUE,TRIM8#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-8911206

RN8#,90,VZN85,9#..4F,4FC,5F

BROWN,TRIM4#

 1
55432-8911203

RN8#,90,VZN85,9#..4F,4FC,5F

GRAY,TRIM1#

 1
55432-8911202

RN80..W..DLX;RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..4FC,5F

RED,TRIM3#

 1
55432-8911204

RN8#,90,VZN85,9#..4F,4FC,5F

BLUE,TRIM8#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-8910804

RN8#,90,VZN85,9#

BLUE,TRIM8#

 1
55433-8910806

RN8#,90,VZN85,9#

BROWN,TRIM4#

 1
55433-8910803

RN8#,90,VZN85,9#

GRAY,TRIM1#

 1
55433-8910802

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-89105

RN12#,8#,90,VZN120,85,9#

 1
55477D - COVER, CIGARETTE LIGHTER HOLE
55477-1005043

RN8#,90,VZN85,9#..DLX,STD

BROWN,TRIM4#

 1
55477-10050B0

RN8#,90,VZN85,9#..DLX,STD

GRAY,TRIM1#

 1
55477-10050J0

RN8#,90,VZN85,9#..DLX,STD

BLUE,TRIM8#

 1
55477-10050D0

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,9#..DLX,STD

RED,TRIM1#

 1
55479B - COVER, INSTRUMENT, LOWER CENTER
55479-8910206

RN8#,90,VZN85,9#..4FC,4HC,5F

BROWN,TRIM4#

 1
55479-8910202

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55479-8910203

RN8#,90,VZN85,9#..4FC,4HC,5F

GRAY,TRIM1#

 1
55479-8910204

RN8#,90,VZN85,9#..4FC,4HC,5F

BLUE,TRIM8#

 1
55479C - CLIP(FOR INSTRUMENT LOWER COVER)
90467-0704110

RN8#,90,VZN85,9#..4FC,4HC,5F

MEDIUM GRAY,TRIM1#

 2
90467-0704120

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 2
90467-0704156

RN8#,90,VZN85,9#..4FC,4HC,5F

BROWN,TRIM4#

 2
90467-0704144

RN8#,90,VZN85,9#..4FC,4HC,5F

BLUE,TRIM8#

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-8910103

RN8#,90,VZN85,9#

GRAY,TRIM1#

 1
55550-8910102

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55550-8910104

RN8#,90,VZN85,9#

BLUE,TRIM8#

 1
55550-8910106

RN8#,90,VZN85,9#

BROWN,TRIM4#

 1
55521C - COVER, STEREO OPENING
55521-89103

VZN90..DLX;RN12#,8#,90,VZN85,95..4FC,4HC,5F

 1
55521-89102

RN8#,VZN85,95..(4HC,5F)..(DLX,STD)

W(RADIO)

 1
55531B - COVER, CHOKE KNOB HOLE
55531-8910503

RN8#,90,VZN85,9#

GRAY,TRIM1#

 1
55531-8910504

RN8#,90,VZN85,9#

BLUE,TRIM8#

 1
55531-8910502

RN80..5F..CBR;RN80..DLX..EFI;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55531-8910506

RN8#,90,VZN85,9#

BROWN,TRIM4#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-8910304

RN8#,90,VZN85,9#

BLUE,TRIM8#

 1
55560-8910303

RN8#,90,VZN85,9#

GRAY,TRIM1#

 1
55560-89103B0

RN8#,90,VZN85,9#

MEDIUM GRAY,TRIM1#

 1
55560-8910306

RN8#,90,VZN85,9#

BROWN,TRIM4#

 1
55560-89103J0

RN8#,90,VZN85,9#

MEDIUM BLUE,TRIM8#

 1
55560-8910302

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#

RED,TRIM3#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-89104

RN12#,8#,90,VZN120,85,9#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

RN12#,8#,90,VZN120,85,9#

 2
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-89101

RN80..W..DLX;RN80..5F..CBR;RN80..EFI..CND;RN12#,85,90,VZN120,85,9#..4FC,5F

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-89101

RN120,8#,90,VZN120,85,9#

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-89101

RN120,8#,90,VZN120,85,9#

 1
Common parts
90119-06022
90151-40004
90167-50028
90168-50041
90183-05094
90468-04152
90468-05088
93560-55016
93567-14512
