RN85L-TRMDEK (1990)

Toyota 4-Runner Truck (Jpp)

Production Aug 1990 - Oct 1994
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

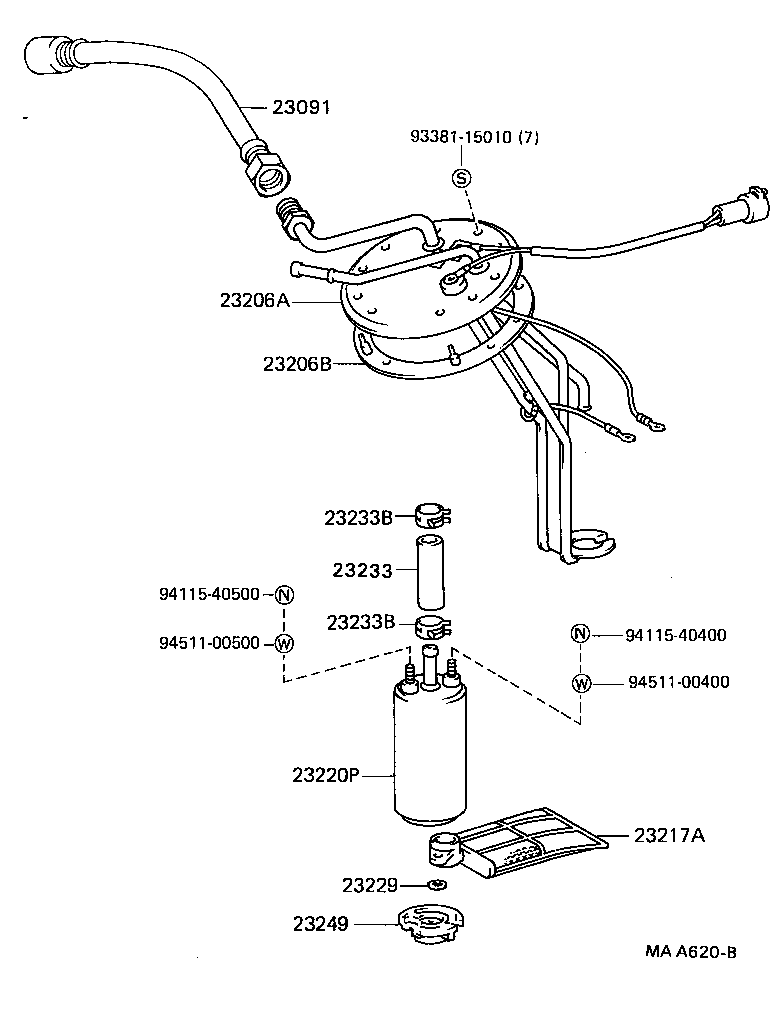

ILLUST NO. 2 OF 2(8808-9108)22RE..JPP

Click highlighted areas on diagram

diagram 23091 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9338115010 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-35050

22RE..RN80;22RE..RN85..W..CND

 1
23206A - BRACKET, FUEL PUMP
23206-35040

22RE..RN80;22RE..RN85..W..CND

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

22RE..RN12#,8#,90

 1
23217A - FILTER, FUEL PUMP
23217-35040

22RE..RN12#,8#,90

 1
23220P - PUMP ASSY, FUEL
23220-16084

22RE..RN12#,8#,90

AISAN

 1
23220-16190

22RE..RN12#,8#,90

NIPPONDENSO

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

22RE..RN12#,8#,90

 1
23233 - HOSE, FUEL PUMP
23239-16010

22RE..RN8#,90

 1
23239-63010

22RE..RN8#,90

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

22RE..RN8#,90

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

22RE..RN8#,90

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-43080

22RE..RN8#,90

 1
Common parts
93381-15010
94115-40400
94115-40500
94511-00400
94511-00500
