RN85L-TRMDEK (1990)

Toyota 4-Runner Truck (Jpp)

Production Aug 1990 - Oct 1994
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9208)22R#..JPP

Click highlighted areas on diagram

diagram 19100P 19500 19500 19519 19519 19901 19901A 19901B 19901C 19901D 19901E 19941 1994135020 1994135030 19942 19943 19943 19944 19946 19947 19949 19965 9011906033 9161160818 91611F0812 91611F0812 91611F0818 9165160618
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22R#..RN12#,8#,90

W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02190

22RE..RN12#,8#,90

 1
90919-02106

22R..RN8#,90

 1
19500 - COIL ASSY, IGNITION
90919-02190

22RE..RN12#,8#,90

 1
90919-02106

22R..RN8#,90

 1
19519 - COVER, IGNITION COIL
19519-28010

22R..RN8#,90..CND

 1
19519-28020

22RE..RN121,8#,90..CND

 1
19519 - COVER, IGNITION COIL
19519-28010

22R..RN8#,90..CND

 1
19519-28020

22RE..RN121,8#,90..CND

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21431

22RE..RN12#,8#,90

 1
90919-21450

22R..RN8#,90

 1
19901A - CORD, COIL RESISTIVE
90919-13293

22RE..RN12#,8#,90

 1
90919-13404

22RE..RN12#,8#,90

 1
90919-13329

22R..RN8#,90

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15243

22RE..RN12#,8#,90

 1
90919-12457

22R#..RN12#,8#,90

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12458

22R#..RN12#,8#,90

 1
90919-15244

22RE..RN12#,8#,90

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12459

22R#..RN12#,8#,90

 1
90919-15245

22RE..RN12#,8#,90

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12460

22R#..RN12#,8#,90

 1
90919-15246

22RE..RN12#,8#,90

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22R#..RN12#,8#,90

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22R#..RN12#,8#,90

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22RE..RN12#,8#,90

 1
19943-35010

22R..RN8#,90

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22RE..RN12#,8#,90

 1
19943-35010

22R..RN8#,90

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

22R..RN8#,90

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22R#..RN12#,8#,90

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22R#..RN12#,8#,90

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22R#..RN12#,8#,90

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03111

22RE..RN12#,8#,90

 1
Common parts
19941-35020
19941-35030
90119-06033
91611-60818
91611-F0812
91611-F0818
91651-60618

(9208- )22RE..JPP

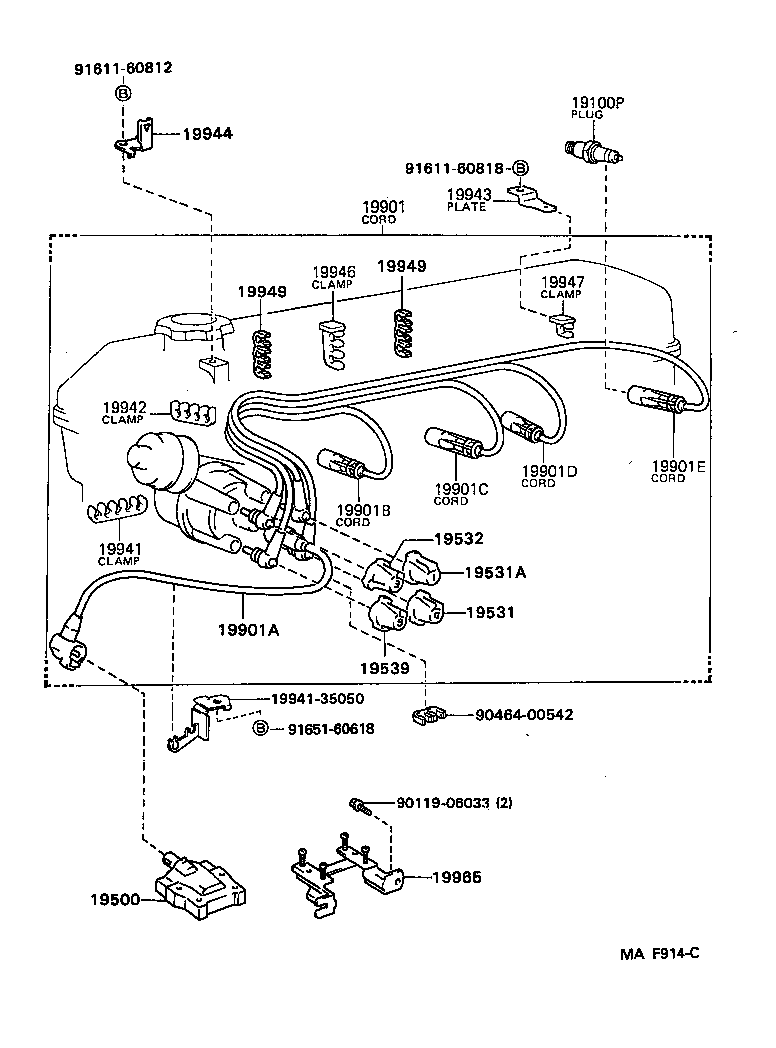

Click highlighted areas on diagram

diagram 19100P 19500 19531 19531A 19532 19539 19901 19901A 19901B 19901C 19901D 19901E 19941 1994135050 19942 19943 19944 19946 19947 19949 19949 19965 9011906033 9046400542 9161160812 9161160818 9165160618
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22R#..RN12#,8#,90

W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02190

22RE..RN12#,8#,90

 1
90919-02106

22R..RN8#,90

 1
19531A - HOLDER, RESISTIVE CODE, NO.3
19531-74010

22RE..RN8#,90

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21431

22RE..RN12#,8#,90

 1
90919-21450

22R..RN8#,90

 1
19901A - CORD, COIL RESISTIVE
90919-13293

22RE..RN12#,8#,90

 1
90919-13404

22RE..RN12#,8#,90

 1
90919-13329

22R..RN8#,90

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15243

22RE..RN12#,8#,90

 1
90919-12457

22R#..RN12#,8#,90

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12458

22R#..RN12#,8#,90

 1
90919-15244

22RE..RN12#,8#,90

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12459

22R#..RN12#,8#,90

 1
90919-15245

22RE..RN12#,8#,90

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12460

22R#..RN12#,8#,90

 1
90919-15246

22RE..RN12#,8#,90

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22R#..RN12#,8#,90

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22R#..RN12#,8#,90

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22RE..RN12#,8#,90

 1
19943-35010

22R..RN8#,90

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

22R..RN8#,90

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22R#..RN12#,8#,90

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22R#..RN12#,8#,90

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22R#..RN12#,8#,90

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22R#..RN12#,8#,90

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03111

22RE..RN12#,8#,90

 1
Common parts
19941-35050
90119-06033
90464-00542
91611-60812
91611-60818
91651-60618
