RN85L-TRMDEA (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 1 OF 3(8908- )JPP

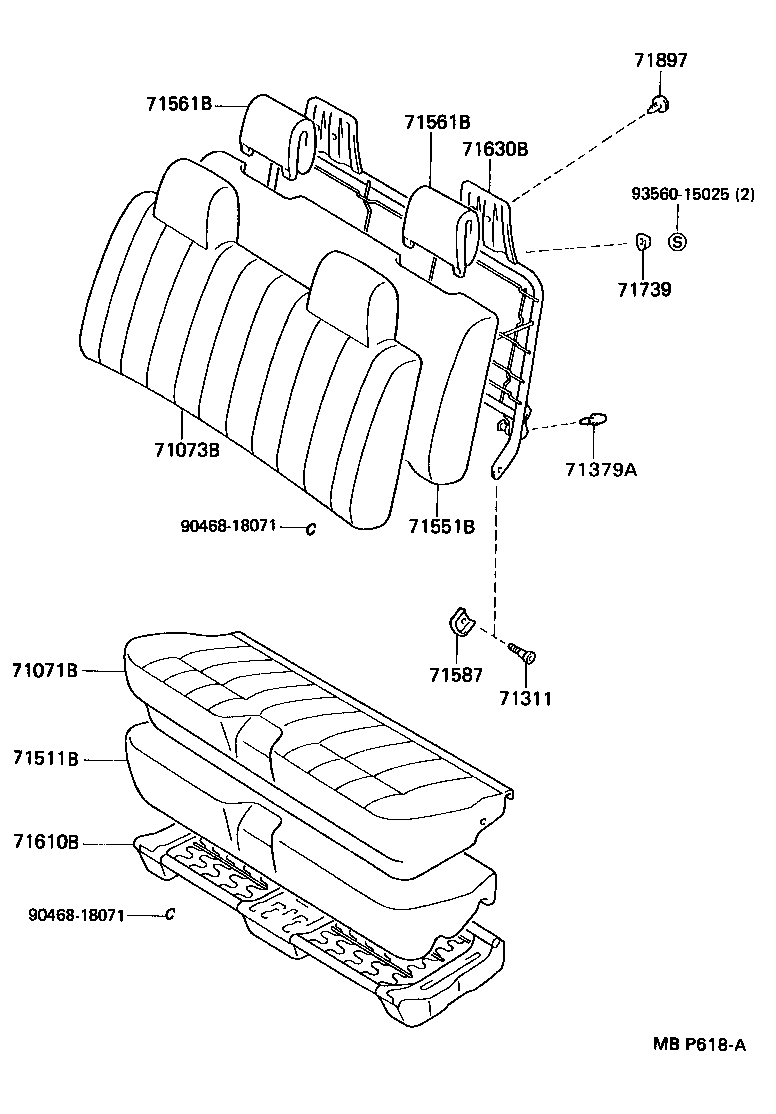

BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-8935506 |
RN8#,VZN85,95..5F..(DLX,STD) BROWN,TRIM4# |
1 | ||
| 71071-8935504 |
RN8#,VZN85,95..5F..(DLX,STD) BLUE,TRIM8# |
1 | ||
| 71071-8935502 |
RN8#,VZN85,95..5F..(DLX,STD) RED,TRIM3# |
1 | ||
| 71071-8935604 |
RN8#,VZN85..HLF..5F..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71071-8935606 |
RN8#,VZN85..HLF..5F..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71071-8935503 |
RN8#,VZN85,95..5F..(DLX,STD) GRAY,TRIM1# |
1 | ||
| 71071-8935603 |
RN8#,VZN85..HLF..5F..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 71071-8935602 |
RN8#,VZN85..HLF..5F..DLX W(FABRIC SEAT),RED,TRIM3# |
1 | ||
| 71071-8943402 |
RN80..W..DLX;RN85..5F..DLX;RN80,VZN85,95..5F..(G,R) RED,TRIM3# |
1 | ||
| 71071-8943502 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU W(FABRIC SEAT),RED,TRIM3# |
1 | ||
| 71071-8943404 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R) BLUE,TRIM8# |
1 | ||
| 71071-8943403 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R) GRAY,TRIM1# |
1 | ||
| 71071-8943406 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R) BROWN,TRIM4# |
1 | ||
| 71071-35190B0 |
RN80..CND;RN8#..W..DLX W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-8943503 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU W(FABRIC SEAT),GRAY,TRIM1# |
1 | ||
| 71071-35190J0 |
RN80..CND;RN8#..W..DLX W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-8943504 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU W(FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71071-8943506 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU W(FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71071-35610B0 |
RN8#,VZN85,95..5F GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35210J0 |
RN80..W..USA;RN85,VZN85,95..5F BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35610J0 |
RN80..W..USA;RN85,VZN85,95..5F BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35620J0 |
RN80..CND;RN8#..W..DLX W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35620B0 |
RN80..CND;RN8#..W..DLX W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35210B0 |
RN8#,VZN85,95..5F GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-8937504 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-8937703 |
RN8#,VZN85..HLF..(4HC,5F)..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.A51,A52 |
1 | ||
| 71073-8937502 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) RED,TRIM3#,PLANT NO.A51-A54 |
1 | ||
| 71073-8937706 |
RN8#,VZN85..HLF..(4HC,5F)..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),BROWN,TRIM4#,PLANT NO.A51,A52 |
1 | ||
| 71073-8937702 |
RN8#,VZN85..HLF..DLX W(FABRIC SEAT),RED,TRIM3#,PLANT NO.A51,A52 |
1 | ||
| 71073-8937503 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-8937506 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BROWN,TRIM4#,PLANT NO.A51-A54 |
1 | ||
| 71073-8937704 |
RN8#,VZN85..HLF..(4HC,5F)..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.A51,A52 |
1 | ||
| 71073-8943203 |
RN8#,VZN85..HLF..(4HC,5F)..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8943004 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8943006 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) BROWN,TRIM4#,PLANT NO.P11 |
1 | ||
| 71073-8943202 |
RN8#,VZN85..HLF..DLX W(FABRIC SEAT),RED,TRIM3#,PLANT NO.P11 |
1 | ||
| 71073-8943002 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) RED,TRIM3#,PLANT NO.P11 |
1 | ||
| 71073-8943204 |
RN8#,VZN85..HLF..(4HC,5F)..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8943003 |
RN8#,VZN85,95..(4HC,5F)..(DLX,STD) GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8943206 |
RN8#,VZN85..HLF..(4HC,5F)..(DLX,STD)..(CBU,IV3) W(FABRIC SEAT),BROWN,TRIM4#,PLANT NO.P11 |
1 | ||
| 71073-8944803 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8944702 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU RED,TRIM3#,PLANT NO.A51,A52 |
1 | ||
| 71073-8944804 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-8944706 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU BROWN,TRIM4#,PLANT NO.A51,A52 |
1 | ||
| 71073-8944704 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU BLUE,TRIM8#,PLANT NO.A51,A52 |
1 | ||
| 71073-8944703 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU GRAY,TRIM1#,PLANT NO.A51,A52 |
1 | ||
| 71073-35090J0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-35400B0 |
RN8#,VZN85,95 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-35300B0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-8944806 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU BROWN,TRIM4#,PLANT NO.P11 |
1 | ||
| 71073-8944802 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..CBU RED,TRIM3#,PLANT NO.P11 |
1 | ||
| 71073-35100J0 |
RN85,VZN95;RN80,VZN85..USA BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35300J0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35610B0 |
RN8#,VZN85,95 GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-35400J0 |
RN85,VZN95;RN80,VZN85..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-35600B0 |
RN8#,VZN85,95 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35630B0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35630J0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35620B0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-35620J0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-35610J0 |
RN85,VZN95;RN80,VZN85..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71073-35600J0 |
RN85,VZN95;RN80,VZN85..USA BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35630J0 |
RN8#..DLX..USA BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35630B0 |
RN8#..DLX..USA GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35090B0 |
RN8#..DLX;RN80..CND W(FABRIC SEAT),GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71073-35100B0 |
RN8#,VZN85,95 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-89105 |
RN8#,VZN85,95 |
2 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71511-89141 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R) PLANT NO.A51,A52 |
1 | ||
| 71511-89149 |
RN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R) PLANT NO.P11 |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71551-89144 |
RN8#,VZN85,95..4HC,5F PLANT NO.P11 |
1 | ||
| 71551-89128 |
RN8#,VZN85,95..4HC,5F PLANT NO.A51,A52 |
1 | ||
| 71551-89144 |
RN85..DLX;VZN85..4HC;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN95..4HC..(SR5,STD);RN80,VZN85..HLF..5F..(G,R)..CBU PLANT NO.P11 |
1 | ||
| 71551-89128 |
RN85..DLX;VZN85..4HC;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN95..4HC..(SR5,STD);RN80,VZN85..HLF..5F..(G,R)..CBU PLANT NO.A51,A52 |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-89116 |
RN8#,VZN85,95..4HC,5F PLANT NO.A51,A52 |
2 | ||
| 71561-89114 |
VZN85..4HC;RN8#..DLX,STD;VZN85..HLF..R..CBU;RN85,VZN95..4HC..(SR5,STD) PLANT NO.P11 |
2 | ||
| 71561-89114 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71561-89116 |
RN85..DLX;VZN85..4HC;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN95..4HC..(SR5,STD);RN80,VZN85..HLF..5F..(G,R)..CBU PLANT NO.A51,A52 |
2 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-89116 |
RN8#,VZN85,95..4HC,5F PLANT NO.A51,A52 |
2 | ||
| 71561-89114 |
VZN85..4HC;RN8#..DLX,STD;VZN85..HLF..R..CBU;RN85,VZN95..4HC..(SR5,STD) PLANT NO.P11 |
2 | ||
| 71561-89114 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71561-89116 |
RN85..DLX;VZN85..4HC;RN80..DLX..EFI;RN80..EFI..CND;RN85,VZN95..4HC..(SR5,STD);RN80,VZN85..HLF..5F..(G,R)..CBU PLANT NO.A51,A52 |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
RN8#,VZN85,95 |
2 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71610-89145 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85..4HC..SR5;RN85,VZN85,95..DLX,STD PLANT NO.P11 |
1 | ||
| 71610-89159 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85..4HC..SR5;RN85,VZN85,95..DLX,STD PLANT NO.A51-A54 |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71630-89155 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
1 | ||
| 71630-89155 |
VZN85..4HC;RN8#..DLX,STD;VZN85..HLF..R..CBU;RN85,VZN95..4HC..(SR5,STD) PLANT NO.A51-A54 |
1 | ||
| 71630-89146 |
VZN85..4HC;RN8#..DLX,STD;VZN85..HLF..R..CBU;RN85,VZN95..4HC..(SR5,STD) PLANT NO.P11 |
1 | ||
| 71630-89146 |
RN8#,VZN85,95 PLANT NO.P11 |
1 | ||
| 71630-89146 |
RN8#,VZN85,95 PLANT NO.P11 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89111 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89111 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89113 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.A51,A52 |
2 | ||
| 71739-89113 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89115 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71739-89113 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89111 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71897 - HOOK, SEAT COVER SIDE | ||||
| 71897-8910224 |
RN8#,VZN85,95 BLUE,TRIM8# |
4 | ||
| 71897-8910223 |
RN8#,VZN85,95 GRAY,TRIM1# |
4 | ||
| 71897-8910226 |
RN8#,VZN85,95 BROWN,TRIM4# |
4 | ||
| 71897-89102E0 |
RN8#,VZN85,95 LIGHT BROWN,TRIM4# |
4 | ||
| 71897-8910202 |
RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND RED,TRIM3# |
4 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||
ILLUST NO. 1 OF 3(8908- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

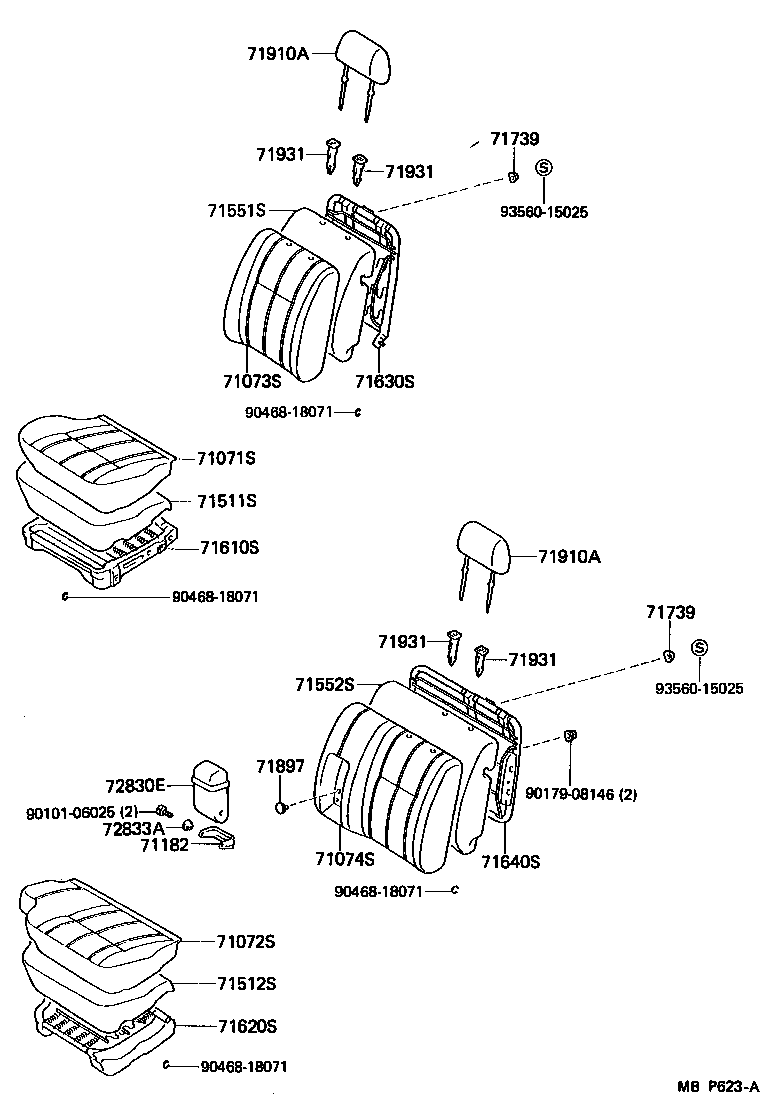

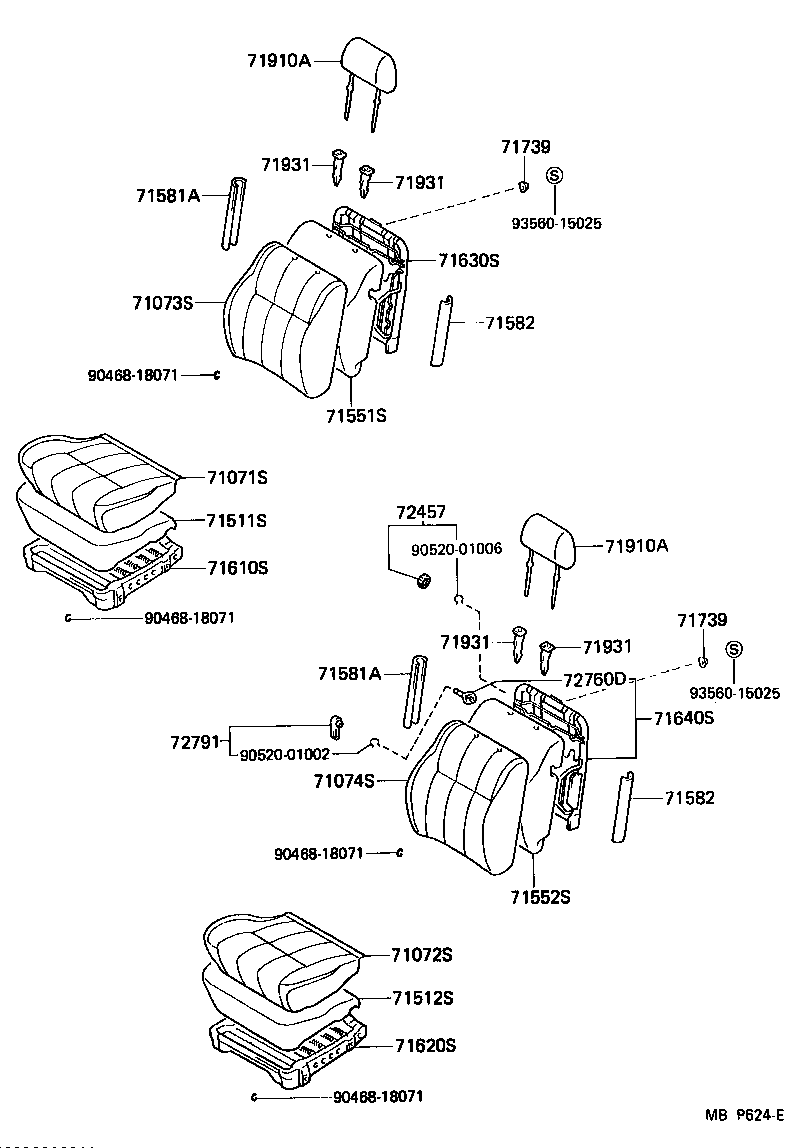

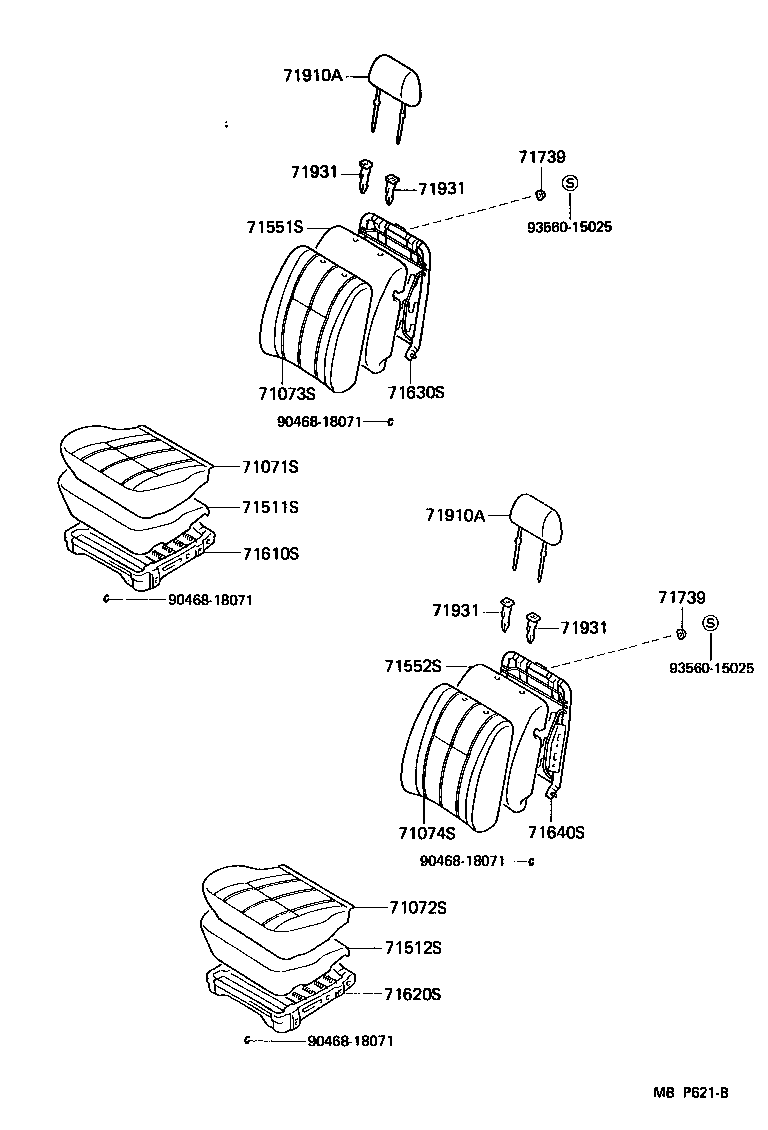

| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8935104 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71071-8935102 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71071-8935106 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71071-89351J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71071-8935103 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71071-35660J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71071-35680B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-8938703 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-89387J3 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35680J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35660B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8935102 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71071-8935106 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71071-8935104 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71071-8935103 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71071-89351J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71071-35660J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71071-8938703 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-89387J3 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35680J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35680B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35660B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8937306 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71073-8937302 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71073-8937304 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71073-8937303 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71073-35540B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373B1 |
RN8#..W;VZN85,95..IV6 MEDIUM GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35540J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35560B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35560J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-8916603 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71074-8916602 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71074-8916606 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71074-8916604 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71073-8937303 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1# |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71073-35540J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35540B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373B1 |
RN8#..W;VZN85,95..IV6 MEDIUM GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35560J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35560B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN90,VZN95;VZN90..DLX;VZN85..IV6;RN85,VZN85..HLF..5F..DLX;RN12#,80,VZN120..4F,4FC,5F |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN90,VZN95;VZN90..DLX;VZN85..IV6;RN85,VZN85..HLF..5F..DLX;RN12#,80,VZN120..4F,4FC,5F |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-89144 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-89144 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89163 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71630-89162 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-89122 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71640-89119 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89111 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89111 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89113 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.A51,A52 |
2 | ||
| 71739-89113 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89115 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71739-89113 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89111 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89111 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89111 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89113 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.A51,A52 |
2 | ||
| 71739-89113 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89115 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71739-89113 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89111 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914002 |
VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..5F..DLX;RN90,VZN9#..DLX,STD;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
2 | ||
| 71910-8914003 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
2 | ||
| 71910-8914004 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-8914003 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910-89140B1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89140J1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914002 |
VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..5F..DLX;RN90,VZN9#..DLX,STD;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
2 | ||
| 71910-8914003 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
2 | ||
| 71910-8914004 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-8914003 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910-89140B1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89140J1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||
ILLUST NO. 1 OF 3(8908- )JPP
60/40 SPLIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8935104 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71071-8935102 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71071-8935106 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71071-89351J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71071-8935103 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71071-35660J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71071-35680B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-8938703 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-89387J3 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35680J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35660B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8935102 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71071-8935106 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71071-8935104 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71071-8935103 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71071-89351J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71071-35660J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71071-8938703 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-89387J3 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35680J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35680B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35660B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8937306 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71073-8937302 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71073-8937304 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71073-8937303 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71073-35540B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373B1 |
RN8#..W;VZN85,95..IV6 MEDIUM GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35540J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35560B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35560J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-8916603 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71074-8916602 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71074-8916606 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71074-8916604 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71073-8937303 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1# |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71073-35540J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35540B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373B1 |
RN8#..W;VZN85,95..IV6 MEDIUM GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35560J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35560B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN90,VZN95;VZN90..DLX;VZN85..IV6;RN85,VZN85..HLF..5F..DLX;RN12#,80,VZN120..4F,4FC,5F |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN90,VZN95;VZN90..DLX;VZN85..IV6;RN85,VZN85..HLF..5F..DLX;RN12#,80,VZN120..4F,4FC,5F |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-89144 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-89144 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89163 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71630-89162 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-89122 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71640-89119 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89111 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89111 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89113 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.A51,A52 |
2 | ||
| 71739-89113 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89115 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71739-89113 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89111 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89111 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89111 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89113 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.A51,A52 |
2 | ||
| 71739-89113 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89115 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71739-89113 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89111 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71897 - HOOK, SEAT COVER SIDE | ||||
| 71897-8910224 |
RN8#,VZN85,95 BLUE,TRIM8# |
4 | ||
| 71897-8910223 |
RN8#,VZN85,95 GRAY,TRIM1# |
4 | ||
| 71897-8910226 |
RN8#,VZN85,95 BROWN,TRIM4# |
4 | ||
| 71897-89102E0 |
RN8#,VZN85,95 LIGHT BROWN,TRIM4# |
4 | ||
| 71897-8910202 |
RN85,VZN85,95;RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND RED,TRIM3# |
4 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914002 |
VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..5F..DLX;RN90,VZN9#..DLX,STD;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
2 | ||
| 71910-8914003 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
2 | ||
| 71910-8914004 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-8914003 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910-89140B1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89140J1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914002 |
VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..5F..DLX;RN90,VZN9#..DLX,STD;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
2 | ||
| 71910-8914003 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
2 | ||
| 71910-8914004 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-8914003 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910-89140B1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89140J1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90101-06025 | ||||
| 90179-08146 | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||
ILLUST NO. 1 OF 3(8908- )JPP
SPORTS SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-8935104 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71071-8935102 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71071-8935106 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71071-89351J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71071-8935103 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71071-35660J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71071-35680B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-8938703 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-89387J3 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35680J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35660B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-8935102 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71071-8935106 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71071-8935104 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71071-8935103 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71071-89351J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71071-35660J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71071-8938703 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71071-89387J3 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71071-35680J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51-A54 |
1 | ||
| 71071-35680B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51-A54 |
1 | ||
| 71071-35660B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-8937306 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71073-8937302 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71073-8937304 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71073-8937303 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71073-35540B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373B1 |
RN8#..W;VZN85,95..IV6 MEDIUM GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35540J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35560B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35560J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-8916603 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71074-8916602 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71074-8916606 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71074-8916604 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71073-8937303 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1# |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8# |
1 | ||
| 71073-35540J0 |
RN8#..W;VZN85,95..IV6 BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-89373J3 |
RN8#..W;VZN85,95..IV6 LIGHT BLUE,TRIM8#,PLANT NO.P11 |
1 | ||
| 71073-35540B0 |
RN8#..W;VZN85,95..IV6 GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71073-89373B1 |
RN8#..W;VZN85,95..IV6 MEDIUM GRAY,TRIM1#,PLANT NO.P11 |
1 | ||
| 71073-35560J0 |
RN8#..W..DLX..USA BLUE,TRIM8#,PLANT NO.A51,52 |
1 | ||
| 71073-35560B0 |
RN8#..W..DLX..USA GRAY,TRIM1#,PLANT NO.A51,52 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN90,VZN95;VZN90..DLX;VZN85..IV6;RN85,VZN85..HLF..5F..DLX;RN12#,80,VZN120..4F,4FC,5F |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-89136 |
RN90,VZN95;VZN90..DLX;VZN85..IV6;RN85,VZN85..HLF..5F..DLX;RN12#,80,VZN120..4F,4FC,5F |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-89132 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71551-89141 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-89144 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-89144 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-89163 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71630-89162 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-89122 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.P11 |
1 | ||
| 71640-89119 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) PLANT NO.A51-A54 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89111 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89111 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89113 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.A51,A52 |
2 | ||
| 71739-89113 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89115 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71739-89113 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89111 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-89111 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89111 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71739-89113 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) W(SEPARATE SEAT),PLANT NO.A51,A52 |
2 | ||
| 71739-89113 |
RN8#..W;VZN85,95..IV6 W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89115 |
RN8#,VZN85,95 PLANT NO.A51-A54 |
2 | ||
| 71739-89112 |
RN8#,VZN85,95 PLANT NO.P11 |
2 | ||
| 71739-89113 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.A51,52 |
2 | ||
| 71739-89111 |
RN8#..W;VZN95..CND W(SEPARATE SEAT),PLANT NO.P11 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914002 |
VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..5F..DLX;RN90,VZN9#..DLX,STD;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
2 | ||
| 71910-8914003 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
2 | ||
| 71910-8914004 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-8914003 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910-89140B1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89140J1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8914002 |
VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..5F..DLX;RN90,VZN9#..DLX,STD;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
2 | ||
| 71910-8914003 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 71910-8914004 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
2 | ||
| 71910-8914006 |
VZN85..IV6;VZN85..10T;RN90,VZN9#..DLX,STD;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
2 | ||
| 71910-8914004 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) BLUE,TRIM8# |
2 | ||
| 71910-8914003 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) GRAY,TRIM1# |
2 | ||
| 71910-89140B1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-89140J1 |
RN8#..W;RN90,VZN85,9#..HLF..(DLX,STD) MEDIUM BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-10060E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1001044 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-10010B1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1001032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W/O(LOCK),RED,TRIM3# |
2 | ||
| 71931-10010B1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),SLATE GRAY,TRIM1# |
2 | ||
| 71930-1006057 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010E1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-10010J1 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71930-1006032 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) W(LOCK),RED,TRIM3# |
2 | ||
| 71931-1001020 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10010J1 |
VZN95;RN90,VZN85,90..USA;RN8#,VZN120..4FC,5F W/O(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90520-01006 | ||||
| 93560-15025 | ||||
ILLUST NO. 2 OF 3(8808- )RN8#,90,VZN85,9#..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911006 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811-8911002 |
RN85..5F;VZN85..10T;RN80..W..DLX;VZN85,95..IV6;RN85..4HC..SR5;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71811-8911003 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71811-8911004 |
VZN85..10T;VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71811-89110E0 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911006 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811-8911002 |
RN85..5F;VZN85..10T;RN80..W..DLX;VZN85,95..IV6;RN85..4HC..SR5;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71811-8911003 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71811-8911004 |
VZN85..10T;VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71811-89110E0 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8910903 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71812-8910906 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812-8910904 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71812-8910902 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71812-89109E0 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8910903 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71812-8910906 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812-8910904 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71812-8910902 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71812-89109E0 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72010-89108 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72010-89108 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-89147 |
RN8#,VZN85,95 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-89147 |
RN8#,VZN85,95 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-89147 |
RN8#,VZN85,95 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-89147 |
RN8#,VZN85,95 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-89106 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72130-89107 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-89111 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72140-89107 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-89111 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72140-89107 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-89108 |
RN8#,VZN85,95 |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-89108 |
RN8#,VZN85,95 |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-89108 |
RN8#,VZN85,95 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72525-8910502 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72525-8910506 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72525-89105E0 |
RN85..5F;RN80..CBR;VZN85..IV6;VZN85..10T;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..DLX..EFI;RN8#..(4F,4HC)..(SR5,STD)..EFI BROWN,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72525-8910502 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72525-8910506 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72525-89105E0 |
RN85..5F;RN80..CBR;VZN85..IV6;VZN85..10T;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..DLX..EFI;RN8#..(4F,4HC)..(SR5,STD)..EFI BROWN,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-89101E0 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F BROWN,TRIM4# |
1 | ||
| 72526-8910102 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72526-8910104 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72526-8910106 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72526-8910103 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-89101E0 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F BROWN,TRIM4# |
1 | ||
| 72526-8910102 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72526-8910104 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72526-8910106 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72526-8910103 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-12070 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08442 | ||||
| 90119-10084 | ||||
| 90119-10381 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90179-08073 | ||||
| 90386-12053 | ||||
| 90506-18036 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||
ILLUST NO. 3 OF 3(8908- )JPP
JUMP SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08146 | ||||
| 91656-60614 | ||||
| 93560-54012 | ||||
ILLUST NO. 2 OF 3(8808- )RN8#,90,VZN85,9#..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911006 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811-8911002 |
RN85..5F;VZN85..10T;RN80..W..DLX;VZN85,95..IV6;RN85..4HC..SR5;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71811-8911003 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71811-8911004 |
VZN85..10T;VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71811-89110E0 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911006 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811-8911002 |
RN85..5F;VZN85..10T;RN80..W..DLX;VZN85,95..IV6;RN85..4HC..SR5;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71811-8911003 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71811-8911004 |
VZN85..10T;VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71811-89110E0 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911006 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71811-8911002 |
RN85..5F;VZN85..10T;RN80..W..DLX;VZN85,95..IV6;RN85..4HC..SR5;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71811-8911003 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71811-8911004 |
VZN85..10T;VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71811-89110E0 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8910903 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71812-8910906 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812-8910904 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71812-8910902 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71812-89109E0 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8910903 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71812-8910906 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812-8910904 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71812-8910902 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71812-89109E0 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8910903 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 71812-8910906 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 71812-8910904 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 71812-8910902 |
RN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 71812-89109E0 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72010-89108 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72010-89108 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-89109 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72010-89108 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-89109 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-89109 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-89109 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-89106 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72130-89107 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-89111 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72140-89107 |
VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89112 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89112 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89112 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89112 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72525-8910502 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72525-8910506 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72525-89105E0 |
RN85..5F;RN80..CBR;VZN85..IV6;VZN85..10T;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..DLX..EFI;RN8#..(4F,4HC)..(SR5,STD)..EFI BROWN,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72525-8910502 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72525-8910506 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72525-89105E0 |
RN85..5F;RN80..CBR;VZN85..IV6;VZN85..10T;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..DLX..EFI;RN8#..(4F,4HC)..(SR5,STD)..EFI BROWN,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910503 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72525-8910502 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72525-8910506 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72525-8910504 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72525-89105E0 |
RN85..5F;RN80..CBR;VZN85..IV6;VZN85..10T;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..DLX..EFI;RN8#..(4F,4HC)..(SR5,STD)..EFI BROWN,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-89101E0 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F BROWN,TRIM4# |
1 | ||
| 72526-8910102 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72526-8910104 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72526-8910106 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72526-8910103 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-89101E0 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F BROWN,TRIM4# |
1 | ||
| 72526-8910102 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72526-8910104 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72526-8910106 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72526-8910103 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-89101E0 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;VZN85..HLF..R..DLX;RN12#,8#,VZN120..4F,4FC,5F BROWN,TRIM4# |
1 | ||
| 72526-8910102 |
RN85..5F;VZN85..IV6;VZN85..10T;RN80..W..DLX;RN80..EFI..CND;RN85..4HC..SR5;RN12#,90,VZN120,9#;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3) RED,TRIM3# |
1 | ||
| 72526-8910104 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BLUE,TRIM8# |
1 | ||
| 72526-8910106 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) BROWN,TRIM4# |
1 | ||
| 72526-8910103 |
RN90,VZN9#;VZN85..IV6;VZN85..10T;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) GRAY,TRIM1# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-12070 |
VZN85..10T;VZN85,95..IV6;RN85..4HC..SR5;RN8#,VZN85..HLF..MTM..(CBU,IV3) |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-12070 |
VZN85,95..IV6;RN8#,VZN85..MTM..(DLX,STD)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08442 | ||||
| 90119-10084 | ||||
| 90119-10381 | ||||
| 90119-88335 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90179-08073 | ||||
| 90386-12053 | ||||
| 90507-18023 | ||||
| 90520-01006 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
