RN85L-TRLDSA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN8#,90,VZN85,9#..JPP

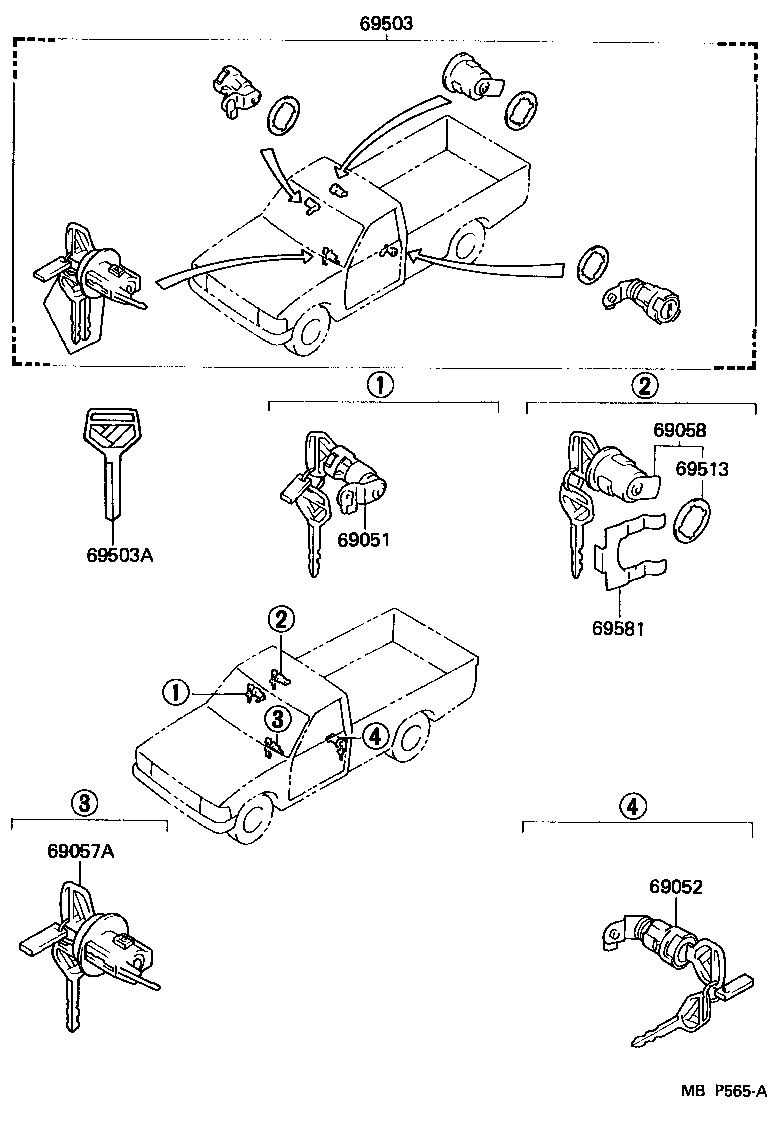

Click highlighted areas on diagram

diagram 69051 69052 69057A 69058 69503 69503A 69513 69581
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-35040

RN12#,8#,90,VZN120,85,9#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-35040

RN12#,8#,90,VZN120,85,9#

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-89118

RN12#,8#,90,VZN120,85,9#

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-89117

RN8#,90,VZN85,90..CBU,IV3

 1
69503 - CYLINDER SET, LOCK
69005-89198

RN8#,90,VZN85,90..CBU

 1
69503A - KEY, BLANK
90999-00132

RN12#,8#,90,VZN120,85,9#

MASTER KEY,W(*68)

 1
90999-00130

RN12#,8#,90,VZN120,85,9#

MASTER KEY

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-32010

RN8#,90,VZN85,90..CBU,IV3

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69511-32010

RN8#,90,VZN85,90..CBU,IV3

 1
