RN85L-TRLDSA (1988)
Toyota 4-Runner Truck (Jpp)

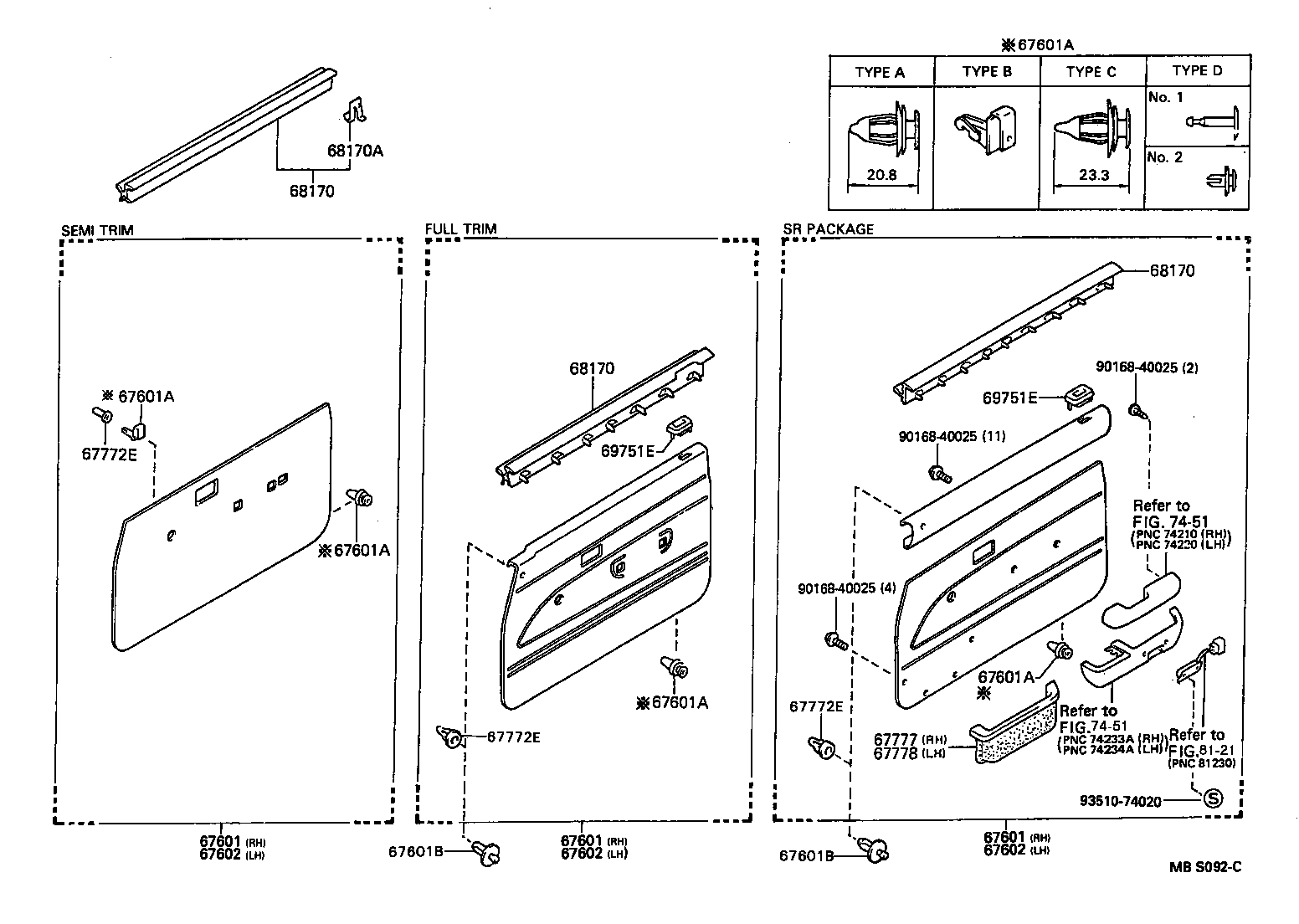

ILLUST NO. 2 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8925004 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
1 | ||
| 67610-8925003 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
1 | ||
| 67610-8925006 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
1 | ||
| 67610-8925204 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67610-8925203 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67610-8925002 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
1 | ||
| 67610-8925206 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67610-8925202 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),RED,TRIM3# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8925004 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
1 | ||
| 67610-8925003 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
1 | ||
| 67610-8925006 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
1 | ||
| 67610-8925204 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67610-8925203 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67610-8925002 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
1 | ||
| 67610-8925206 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67610-8925202 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),RED,TRIM3# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8925004 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
1 | ||
| 67610-8925003 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
1 | ||
| 67610-8925006 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
1 | ||
| 67610-8925204 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67610-8925203 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67610-8925002 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
1 | ||
| 67610-8925206 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67610-8925202 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),RED,TRIM3# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67771-30090 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-30090 |
RN85,90,VZN90..DLX;RN12#,80,VZN120,85,95 TYPE C |
6 | ||
| 67771-89109 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-89111 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67771-30090 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-30090 |
RN85,90,VZN90..DLX;RN12#,80,VZN120,85,95 TYPE C |
6 | ||
| 67771-89109 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-89111 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67771-30090 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-30090 |
RN85,90,VZN90..DLX;RN12#,80,VZN120,85,95 TYPE C |
6 | ||
| 67771-89109 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-89111 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67771-30090 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-30090 |
RN85,90,VZN90..DLX;RN12#,80,VZN120,85,95 TYPE C |
6 | ||
| 67771-89109 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-89111 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67771-30090 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-30090 |
RN85,90,VZN90..DLX;RN12#,80,VZN120,85,95 TYPE C |
6 | ||
| 67771-89109 |
RN8#,90,VZN85,9#..DLX,STD TYPE C |
6 | ||
| 67771-89111 |
RN8#,90,VZN85,90..DLX TYPE A |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0708504 |
RN8#,90,VZN85,90..DLX,SR5 BLUE,TRIM8# |
2 | ||
| 90467-0708506 |
RN8#,90,VZN85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 90467-0708502 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 RED,TRIM3# |
2 | ||
| 90467-0708503 |
RN8#,90,VZN85,90..DLX,SR5 GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0708504 |
RN8#,90,VZN85,90..DLX,SR5 BLUE,TRIM8# |
2 | ||
| 90467-0708506 |
RN8#,90,VZN85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 90467-0708502 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 RED,TRIM3# |
2 | ||
| 90467-0708503 |
RN8#,90,VZN85,90..DLX,SR5 GRAY,TRIM1# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8921603 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
1 | ||
| 67620-8921604 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
1 | ||
| 67620-8921606 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
1 | ||
| 67620-8921803 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67620-8921804 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67620-8921802 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),RED,TRIM3# |
1 | ||
| 67620-8921602 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
1 | ||
| 67620-8921806 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8921602 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
1 | ||
| 67620-8921603 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
1 | ||
| 67620-8921604 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
1 | ||
| 67620-8921606 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
1 | ||
| 67620-8921803 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67620-8921804 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67620-8921802 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),RED,TRIM3# |
1 | ||
| 67620-8921806 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8921603 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
1 | ||
| 67620-8921604 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
1 | ||
| 67620-8921606 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
1 | ||
| 67620-8921602 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
1 | ||
| 67620-8921803 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67620-8921804 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67620-8921802 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),RED,TRIM3# |
1 | ||
| 67620-8921806 |
RN8#,90,VZN85,90..DLX..USA W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-16020 |
RN8#,90,VZN85,90..DLX |
2 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-16020 |
RN8#,90,VZN85,90..DLX |
2 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-16020 |
RN8#,90,VZN85,90..DLX |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-89130 |
RN8#,90,VZN85,90..DLX RH |
1 | ||
| 68171-89131 |
RN8#,90,VZN85,90..DLX..USA W(FRONT DOOR VENTILATOR WINDOW),RH |
1 | ||
| 68172-89113 |
RN8#,90,VZN85,90..DLX LH |
1 | ||
| 68172-89114 |
RN8#,90,VZN85,90..DLX..USA W(FRONT DOOR VENTILATOR WINDOW),LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-89130 |
RN8#,90,VZN85,90..DLX RH |
1 | ||
| 68171-89131 |
RN8#,90,VZN85,90..DLX..USA W(FRONT DOOR VENTILATOR WINDOW),RH |
1 | ||
| 68172-89113 |
RN8#,90,VZN85,90..DLX LH |
1 | ||
| 68172-89114 |
RN8#,90,VZN85,90..DLX..USA W(FRONT DOOR VENTILATOR WINDOW),LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-89130 |
RN8#,90,VZN85,90..DLX RH |
1 | ||
| 68171-89131 |
RN8#,90,VZN85,90..DLX..USA W(FRONT DOOR VENTILATOR WINDOW),RH |
1 | ||
| 68172-89113 |
RN8#,90,VZN85,90..DLX LH |
1 | ||
| 68172-89114 |
RN8#,90,VZN85,90..DLX..USA W(FRONT DOOR VENTILATOR WINDOW),LH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006023 |
RN8#,90,VZN85,90..DLX,SR5 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-20060B0 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-1203012 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
2 | ||
| 69751-2006012 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 RED,TRIM3# |
2 | ||
| 69751-20060J0 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 MEDIUM BLUE,TRIM8# |
2 | ||
| 69751-1203024 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
2 | ||
| 69751-1203024 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 BLUE,TRIM8# |
2 | ||
| 69751-20060E0 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 69751-2006046 |
RN8#,90,VZN85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 69751-1203006 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
2 | ||
| 69751-2006010 |
RN8#,90,VZN85,90..DLX,SR5 BLUE,TRIM8# |
2 | ||
| 69751-1203013 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
2 | ||
| 69751-1203006 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 69751-1203013 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 GRAY,TRIM1# |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006023 |
RN8#,90,VZN85,90..DLX,SR5 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-20060B0 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-1203012 |
RN8#,90,VZN85,90..DLX RED,TRIM3# |
2 | ||
| 69751-2006012 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 RED,TRIM3# |
2 | ||
| 69751-20060J0 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 MEDIUM BLUE,TRIM8# |
2 | ||
| 69751-1203024 |
RN8#,90,VZN85,90..DLX BLUE,TRIM8# |
2 | ||
| 69751-1203024 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 BLUE,TRIM8# |
2 | ||
| 69751-20060E0 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 69751-2006046 |
RN8#,90,VZN85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 69751-1203006 |
RN8#,90,VZN85,90..DLX BROWN,TRIM4# |
2 | ||
| 69751-2006010 |
RN8#,90,VZN85,90..DLX,SR5 BLUE,TRIM8# |
2 | ||
| 69751-1203013 |
RN8#,90,VZN85,90..DLX GRAY,TRIM1# |
2 | ||
| 69751-1203006 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 BROWN,TRIM4# |
2 | ||
| 69751-1203013 |
RN12#,8#,90,VZN120,85,90..DLX,SR5 GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90168-40025 | ||||
| 93510-74020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8121 | ||||

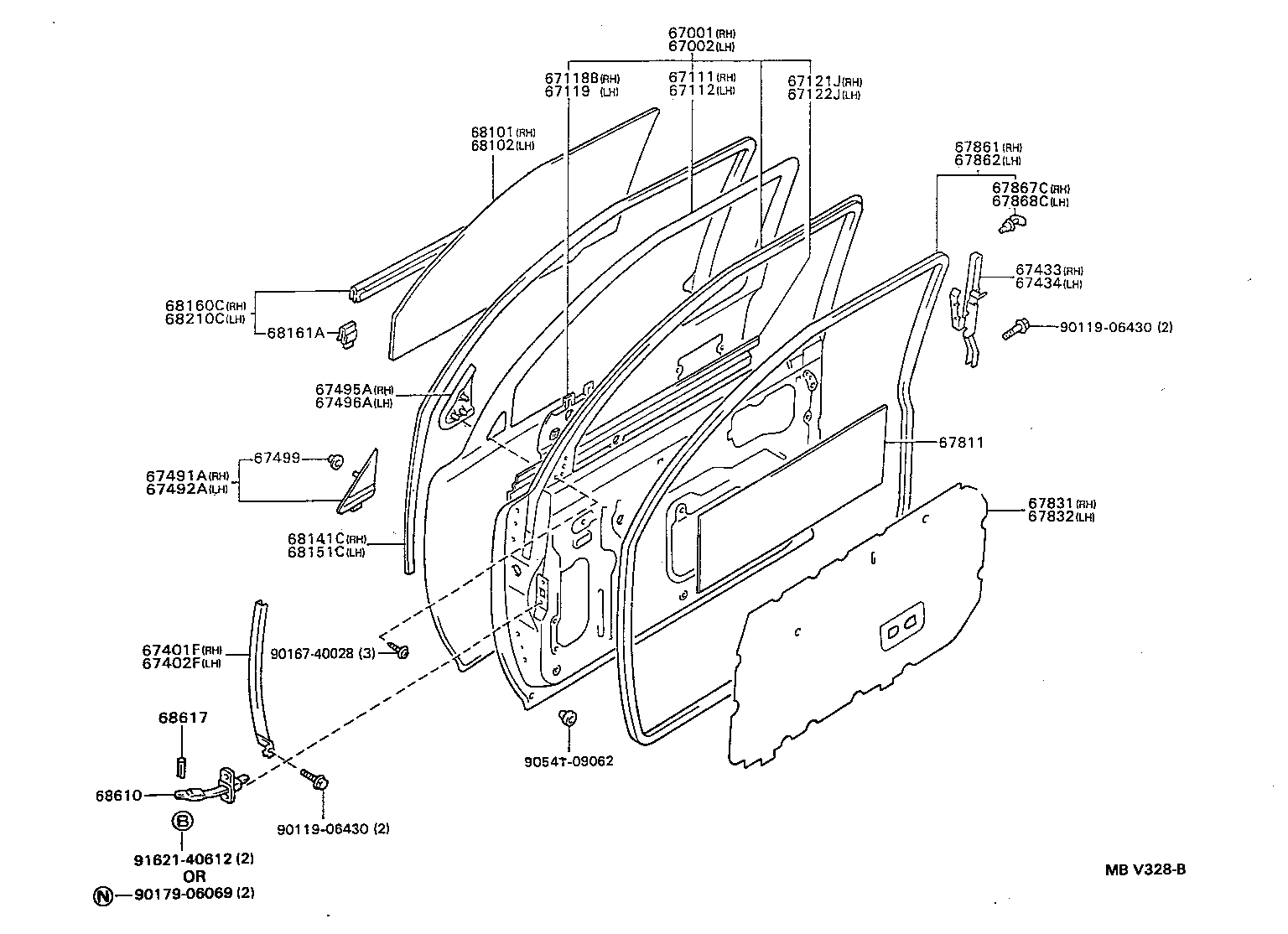

ILLUST NO. 1 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-89194 |
RN8#,90,VZN85,90..DLX,SR5 |
1 | ||
| 67001-89201 |
RN8#,90,VZN85,90..DLX..USA W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-89202 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-89193 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA |
1 | ||
| 67002-89200 |
RN85,90..DLX..USA;RN80,VZN85,90..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67002-89210 |
RN8#,90,VZN85,90..DLX..USA W(DOOR MIRROR) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-89138 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..CBU,IV3 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-89140 |
RN8#,90,VZN85,90..(4FC,4HC,5F)..(CBU,IV3) |
1 | ||
| 67118B - RETAINER, OUTER REAR VIEW MIRROR, RH | ||||
| 67118-89110 |
RN120,8#,90,VZN120,85,90..USA..(CBU,IV3) |
1 | ||
| 67119 - RETAINER, OUTER REAR VIEW MIRROR, LH | ||||
| 67119-89114 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67119-89113 |
VZN90..DLX..USA;RN8#,90,VZN85..USA..(CBU,IV3) |
1 | ||
| 67121J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, RH | ||||
| 67121-89101 |
RN8#,90,VZN85,9# |
1 | ||
| 67122J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, LH | ||||
| 67122-89101 |
RN8#,90,VZN85,9# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-89108 |
RN8#,90,VZN85,9# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-89108 |
RN8#,90,VZN85,9# |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-89103 |
RN8#,90,VZN85,9# |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-89103 |
RN8#,90,VZN85,9# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-89101 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-89101 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-89101 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67495-89102 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-89102 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA |
1 | ||
| 67496-89101 |
VZN90..DLX..USA;RN8#,90,VZN85..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-89101 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-89117 |
RN8#,90,VZN85,9# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-89105 |
RN8#,90,VZN85,9# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-89108 |
RN8#,90,VZN85,9# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-89107 |
RN8#,90,VZN85,9# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
RN8#,90,VZN85,9# |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
RN8#,90,VZN85,9# |
18 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-89120 |
RN80..5F..CBR;RN80..EFI..CND;RN85,90,VZN85,95;RN80,VZN90..DLX..EFI *TT,T=3.5,BLUE |
1 | ||
| 68111-89119 |
VZN90..DLX;RN8#,90,VZN85,95 *TEM,T=3.5 |
1 | ||
| 68111-89122 |
RN8#,90..(DLX,SR5)..USA;VZN85,9#..(DLX,STD)..USA *TT,T=3.5,BLUE,W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68111-89121 |
VZN90..DLX..USA;RN8#,90,VZN85,95..USA *TEM,T=3.5,W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-89120 |
VZN90..DLX..USA;RN8#,90,VZN85,95..USA *TEM,T=3.5,W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68112-89121 |
RN8#,90..(DLX,SR5)..USA;VZN85,9#..(DLX,STD)..USA *TT,T=3.5,BLUE,W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68112-89119 |
RN80..5F..CBR;RN80..EFI..CND;RN85,90,VZN85,95;RN80,VZN90..DLX..EFI *TT,T=3.5,BLUE |
1 | ||
| 68112-89118 |
VZN90..DLX;RN8#,90,VZN85,95 *TEM,T=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-89110 |
RN8#,90,VZN85,9#..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68141-89110 |
RN8#,90,VZN85,90..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68141-89109 |
RN8#,90,VZN85,9# |
1 | ||
| 68141-89109 |
RN8#,90,VZN85,90..DLX,SR5 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-89101 |
RN8#,90,VZN85,90..DLX,SR5 |
1 | ||
| 68151-89102 |
RN8#,90,VZN85,9#..USA W(FROMT DOOR VENTILATOR WINDOW) |
1 | ||
| 68151-89102 |
RN8#,90,VZN85,90..(DLX,SR5)..USA W(FROMT DOOR VENTILATOR WINDOW) |
1 | ||
| 68151-89101 |
RN8#,90,VZN85,9# |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-89118 |
RN85,90..DLX..USA;RN85,90..SR5..CBU;RN80,VZN85,9#..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68160-89118 |
RN8#,90,VZN85,90..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68160-89117 |
RN8#,90,VZN85,90..DLX,SR5 |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-89112 |
RN8#,90,VZN85,90..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW),VENT WINDOW-RH,LH |
2 | ||
| 68212-89101 |
RN8#,90,VZN85,90..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW),LH |
3 | ||
| 68211-89111 |
RN8#,90,VZN85,90..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW),RH |
3 | ||
| 68212-89101 |
RN8#,90,VZN85,90..DLX,SR5 LH |
4 | ||
| 68211-89111 |
RN8#,90,VZN85,90..DLX,SR5 RH |
4 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-89102 |
RN85,90..DLX..USA;RN85,90..SR5..CBU;RN80,VZN85,9#..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68210-89102 |
RN8#,90,VZN85,90..(DLX,SR5)..USA W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68210-89101 |
RN8#,90,VZN85,90..DLX,SR5 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-89103 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| Common parts | ||||
| 90119-06430 | ||||
| 90167-40028 | ||||
| 90179-06069 | ||||
| 90541-09062 | ||||
| 91621-40612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
