RN85L-TRLDSA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP

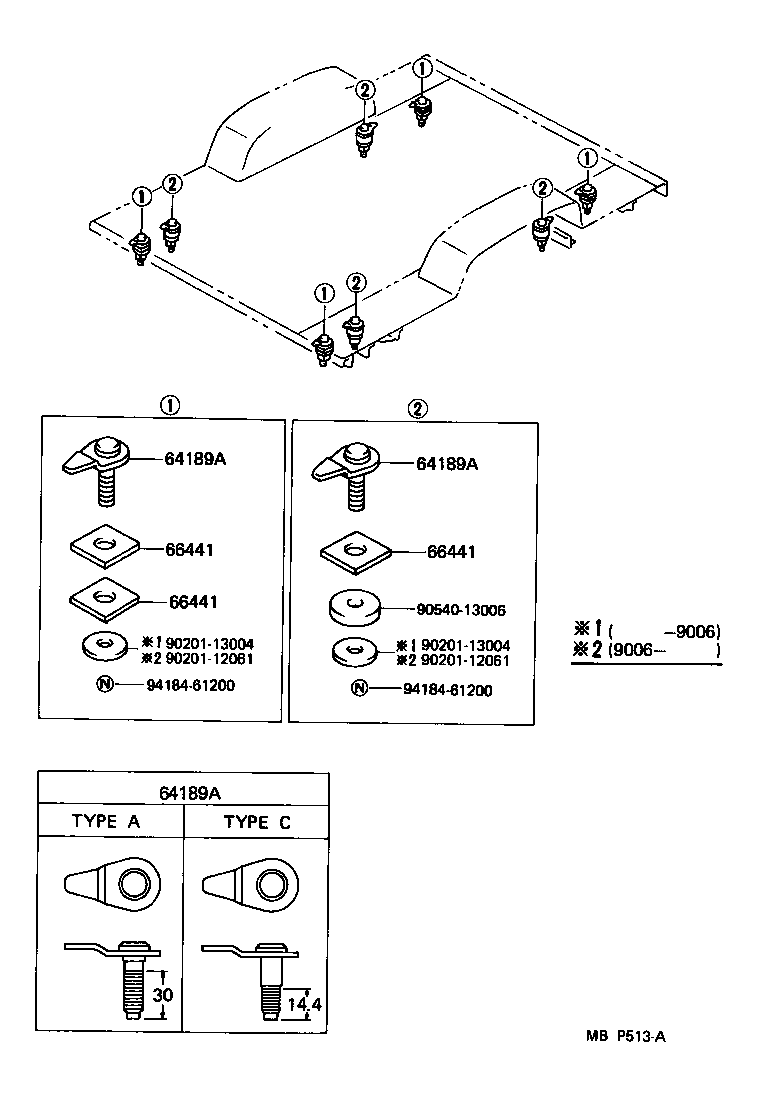

Click highlighted areas on diagram

diagram 64189A 64189A 64189A 66441 66441 66441 9020112061 9020112061 9020113004 9020113004 9054013006 9418461200 9418461200
Part # Description Qty Price
64189A - BOLT, REAR BODY MOUNTING
64189-89103

RN8#,90,VZN85,9#

TYPE A

 8
64189A - BOLT, REAR BODY MOUNTING
64189-89103

RN8#,90,VZN85,9#

TYPE A

 8
64189A - BOLT, REAR BODY MOUNTING
64189-89103

RN8#,90,VZN85,9#

TYPE A

 8
66441 - SHIM, MOUNTING, NO.1
90950-04019

RN8#,90,VZN85,9#

OD=17

 12
90950-04020

RN8#,90,VZN85,9#

OD=12

 12
66441 - SHIM, MOUNTING, NO.1
90950-04019

RN8#,90,VZN85,9#

OD=17

 12
90950-04020

RN8#,90,VZN85,9#

OD=12

 12
66441 - SHIM, MOUNTING, NO.1
90950-04019

RN8#,90,VZN85,9#

OD=17

 12
90950-04020

RN8#,90,VZN85,9#

OD=12

 12
Common parts
90201-12061
90201-13004
90540-13006
94184-61200
