RN80L-TRTRSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP

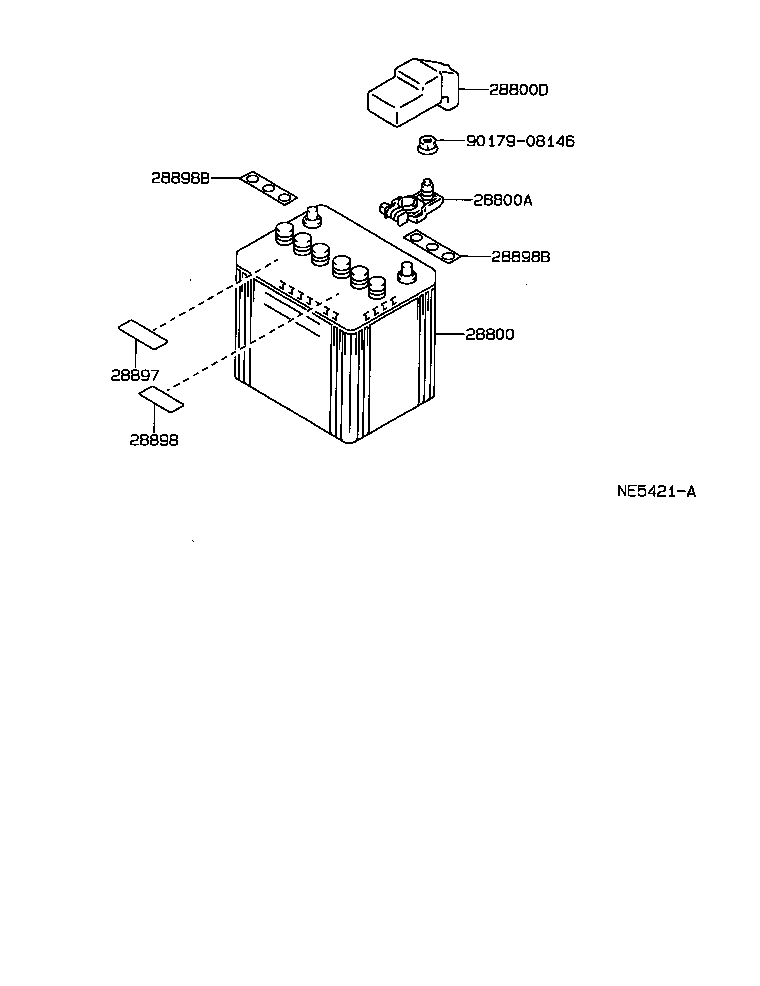

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28897 28898 28898B 28898B 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-15010

22R..RN8#,90..G..USA

55D23R

 1
28800-14030

22R..RN85,90..USA;22R..RN80..STD..USA

50D20R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05037

22R#,3VZE..RN12#,8#,90,VZN120,85,9#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

22R#,3VZE..RN12#,8#,90,VZN120,85,9#

 1
28898 - PLATE, BATTERY
28898-26010

22R#,3VZE..RN120,8#,90,VZN120,85,9#..USA

 1
Common parts
90179-08146
