RN80L-TRTRSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN12#,80,VZN120..JPP

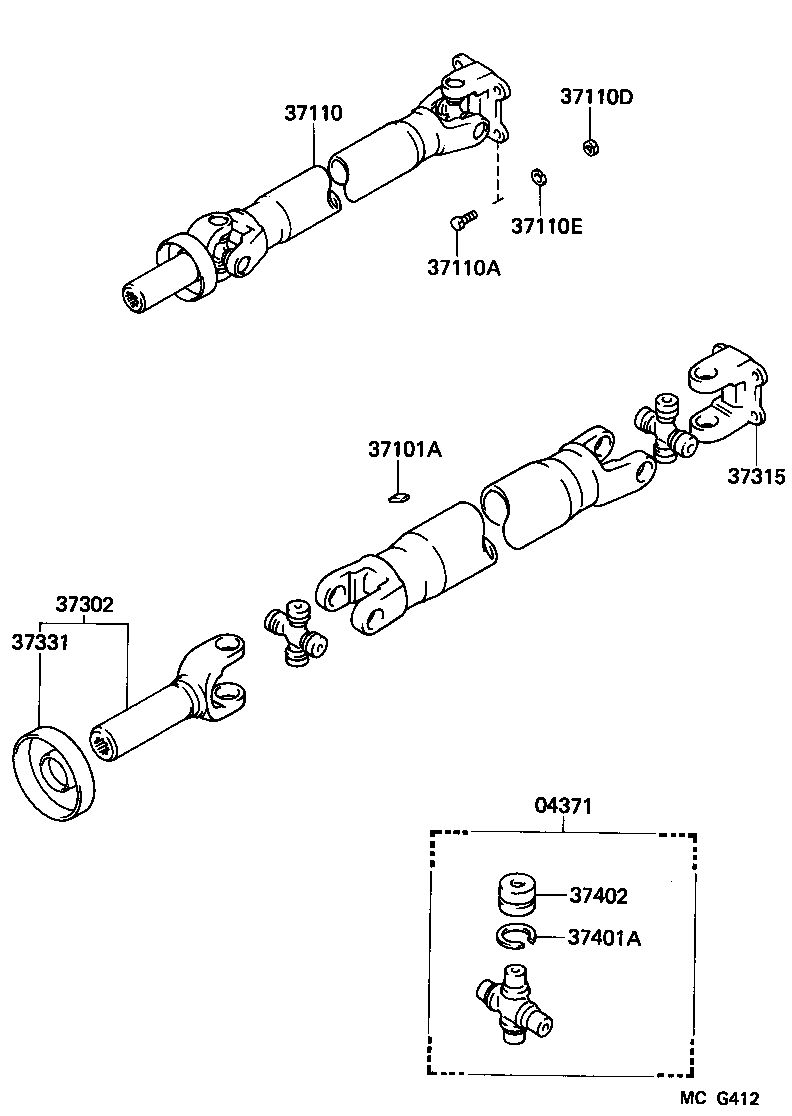

Click highlighted areas on diagram

diagram 04371 37101A 37110 37110A 37110D 37110E 37302 37315 37331 37401A 37402
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-30021

RN12#,80,VZN120

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01149

RN12#,8#,90,VZN120,85,9#

6G,L=12.4

 1
90937-01150

RN12#,8#,90,VZN120,85,9#

8G,L=16.6

 1
90937-01148

RN12#,8#,90,VZN120,85,9#

4G,T=2.0

 1
90937-01147

RN12#,8#,90,VZN120,85,9#

2G,T=2.0

 1
90937-01152

RN12#,8#,90,VZN120,85,9#

14G,L=29.0

 1
90937-01201

RN12#,8#,90,VZN120,85,9#

30G,T=4.5,L=27.4

 1
90937-01132

RN12#,8#,90,VZN120,85,9#

10G,L=20.7

 1
90937-01151

RN12#,8#,90,VZN120,85,9#

12G,L=24.9

 1
37110 - SHAFT ASSY, PROPELLER
37110-35400

RN80..STD..USA

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

RN12#,8#,90,VZN120,85,9#

*10-1.00PX27-13

 4
37110D - NUT (FOR PROPELLER SHAFT)
90179-10059

RN12#,8#,90,VZN120,85,9#

 4
37110E - WASHER (FOR PROPELLER SHAFT)
90204-10002

RN12#,8#,90,VZN120,85,9#

 4
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-35030

RN12#,8#,90

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35040

RN12#,80,VZN120

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

RN12#,8#,90

 1
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-26040

RN12#,80,VZN120

T=2.175,MARK 2

 4
90520-26045

RN12#,80,VZN120

T=2.425,MARK 7

 4
90520-26038

RN12#,80,VZN120

T=2.125,MARK 1

 4
90520-26043

RN12#,80,VZN120

T=2.325,MARK 5

 4
90520-26041

RN12#,80,VZN120

T=2.225,MARK 3

 4
90520-26042

RN12#,80,VZN120

T=2.275,MARK 4

 4
90520-26044

RN12#,80,VZN120

T=2.375,MARK 6

 4
90520-26046

RN12#,80,VZN120

T=2.475,MARK 8

 4
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-30011

RN12#,80,VZN120,95

 4
37402-30021

RN12#,80,VZN120,95

RED PAINTED

 4
