RN80L-TRTRSA3 (1988)
Toyota 4-Runner Truck (Jpp)
(8808-9008)RN80..JPP..STD..USA

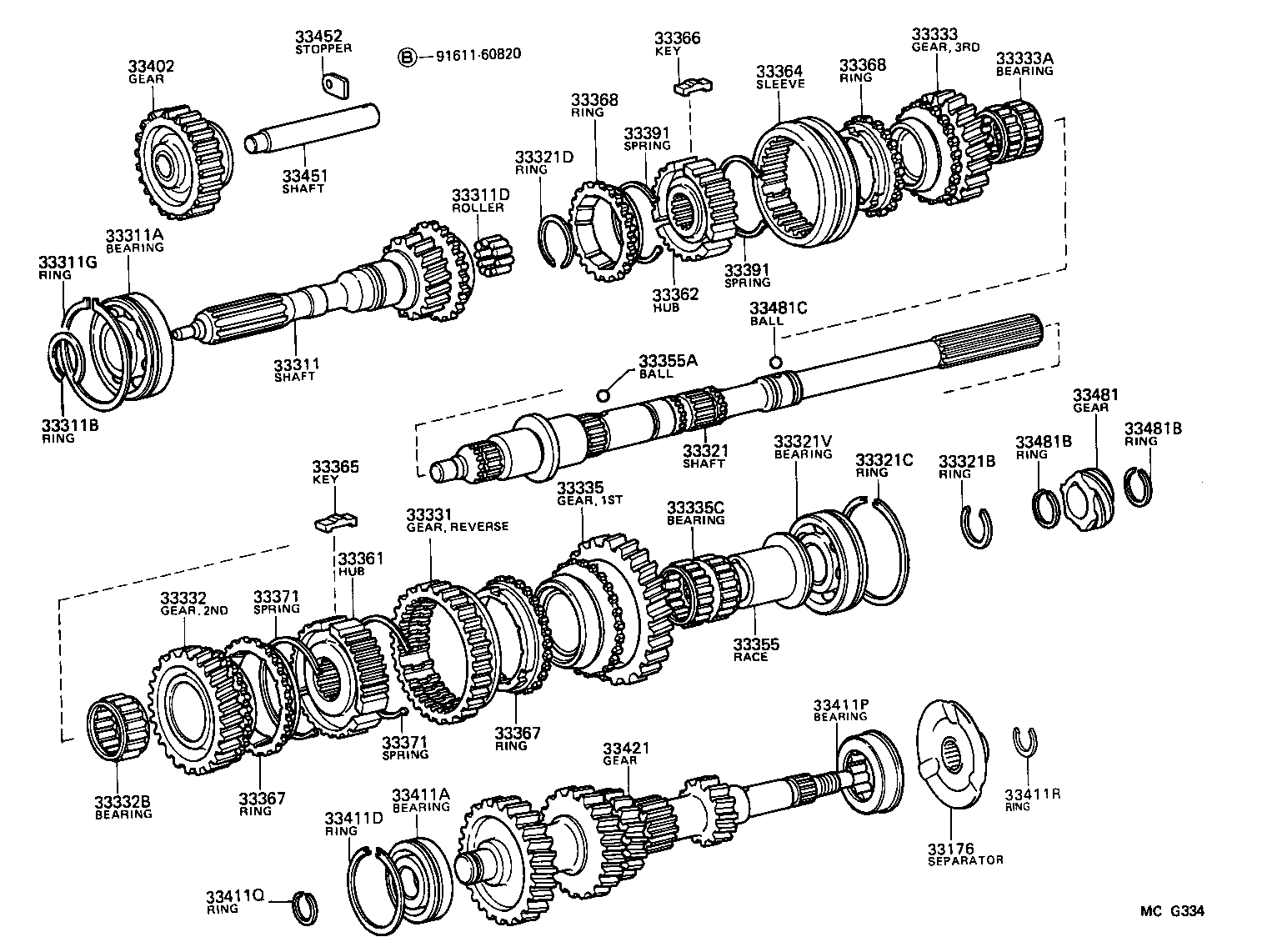

G40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33176 - SEPARATOR, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33176-35011 |
RN80..G..STD..USA |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-26030 |
RN80..G..STD..USA |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32024 |
RN8#,90..G |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30218 |
RN8#,90..G T=2.25,MARK 4 |
1 | ||
| 90520-30219 |
RN8#,90..G T=2.30,MARK 5 |
1 | ||
| 90520-30216 |
RN8#,90..G T=2.15,MARK 2 |
1 | ||
| 90520-30217 |
RN8#,90..G T=2.20,MARK 3 |
1 | ||
| 90520-30214 |
RN8#,90..G T=2.05,MARK 0 |
1 | ||
| 90520-30215 |
RN8#,90..G T=2.10,MARK 1 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
RN8#,90..G |
13 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
RN8#,90..G |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35092 |
RN8#,90..G |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25014 |
RN8#,90..G T=3.09-3.14,MARK H |
1 | ||
| 90520-25005 |
RN8#,90..G T=2.67-2.72,MARK A |
1 | ||
| 90520-25011 |
RN8#,90..G T=2.91-2.96,MARK E |
1 | ||
| 90520-25013 |
RN8#,90..G T=3.03-3.08,MARK G |
1 | ||
| 90520-25009 |
RN8#,90..G T=2.79-2.84,MARK C |
1 | ||
| 90520-25010 |
RN8#,90..G T=2.85-2.90,MARK D |
1 | ||
| 90520-25015 |
RN8#,90..G T=3.15-3.20,MARK J |
1 | ||
| 90520-25017 |
RN8#,90..G T=3.27-3.32,MARK L |
1 | ||
| 90520-25006 |
RN8#,90..G T=2.73-2.78,MARK B |
1 | ||
| 90520-25016 |
RN8#,90..G T=3.21-3.26,MARK K |
1 | ||
| 90520-25012 |
RN8#,90..G T=2.97-3.02,MARK F |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-71221 |
RN8#,90..G T=1.65,ID=71.1 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28013 |
RN8#,90..G T=2.05-2.10,MARK F-1 |
1 | ||
| 90520-28248 |
RN8#,90..G T=2.00-2.05,MARK F |
1 | ||
| 90520-28011 |
RN8#,90..G T=1.95-2.00,MARK E-1 |
1 | ||
| 90520-28246 |
RN8#,90..G T=1.90-1.95,MARK E |
1 | ||
| 90520-28012 |
RN121,8#,90..MTM T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28010 |
RN8#,90..G T=1.85-1.90,MARK D-1 |
1 | ||
| 90520-28245 |
RN121,8#,90..MTM T=1.80-1.85,MARK D |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-30059 |
RN8#,90..G |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28010 |
RN8#,90..G |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35011 |
RN80..G..STD..USA |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
RN8#,90..G |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28020 |
RN8#,90..G |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-35005 |
RN8#,90..G |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-26020 |
RN8#,90..G |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39011 |
RN8#,90..G |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-35020 |
RN8#,90..G |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
RN8#,90..G |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
RN8#,90..G |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35040 |
RN8#,90..G |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35030 |
RN8#,90..G |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
RN8#,90..G |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35040 |
RN8#,90..G |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RN8#,90..G |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RN8#,90..G |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
RN8#,90..G |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
RN8#,90..G |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
RN8#,90..G |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
RN8#,90..G |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
RN8#,90..G |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
RN8#,90..G |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28011 |
RN8#,90..G |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25025 |
RN8#,90..G |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
RN121,8#,90..MTM T=1.07,OD=55.6 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31004 |
RN8#,90..G |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23144 |
RN121,8#,90..MTM T=2.25-2.30 |
1 | ||
| 90520-23145 |
RN121,8#,90..MTM T=2.30-2.35 |
1 | ||
| 90520-23115 |
RN121,8#,90..MTM T=2.05-2.10 |
1 | ||
| 90520-23143 |
RN121,8#,90..MTM T=2.15-2.20 |
1 | ||
| 90520-23090 |
RN121,8#,90..MTM T=2.20-2.25 |
1 | ||
| 90520-23089 |
RN121,8#,90..MTM T=2.10-2.15 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-26120 |
RN80..G..STD..USA |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
RN8#,90..G |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36030 |
RN8#,90..G |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-35100 |
RN80..G..STD..USA |
1 | ||
| 33481-20090 |
RN80..G..STD..USA N=6,W(P195/75R14 TIRE) |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
RN8#,90..G T=1.50,OD=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
RN8#,90..G T=1.50,OD=31.3 |
2 | ||
| 33481C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
RN8#,90..G |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
(8808- )JPP..4F

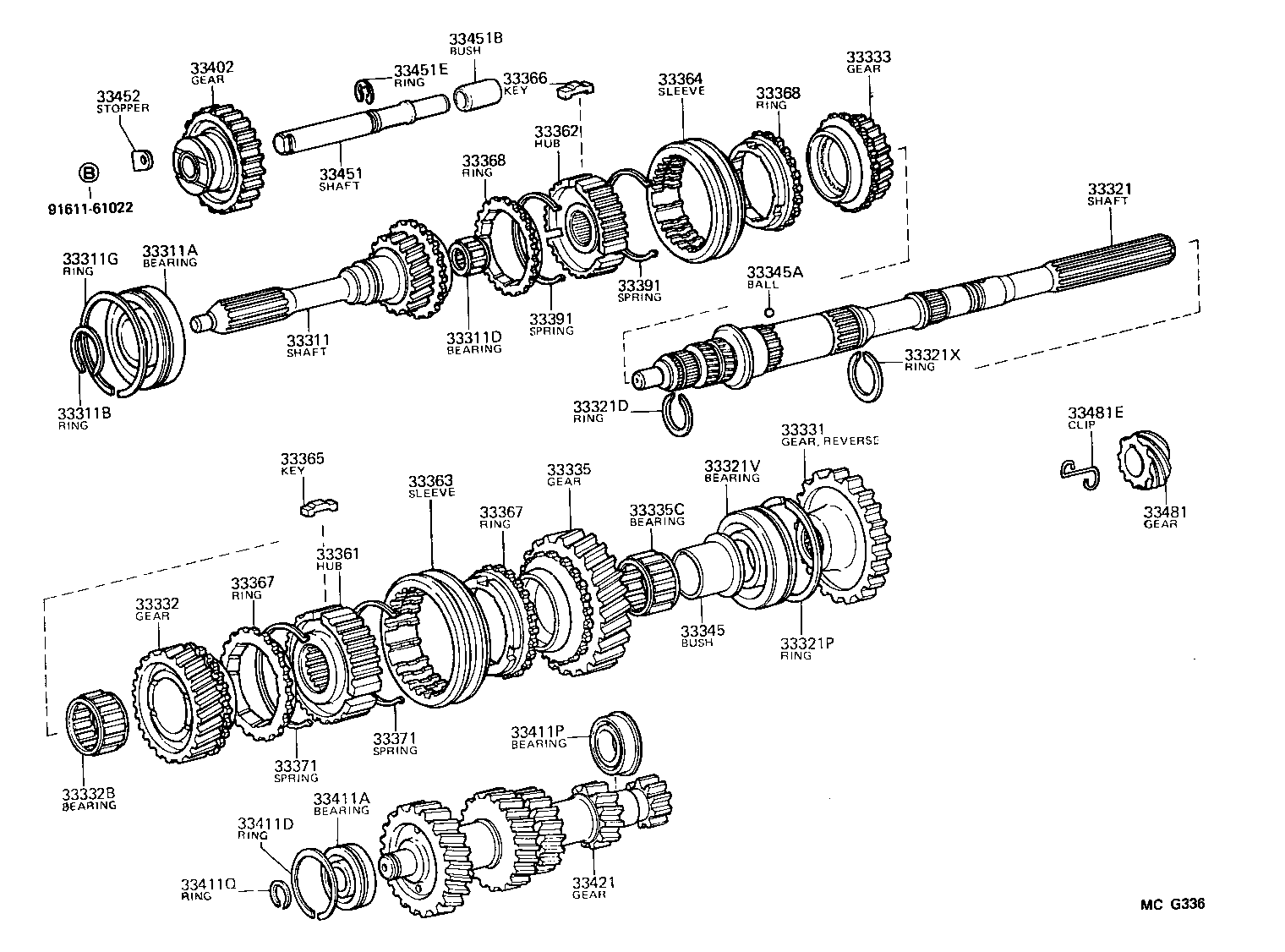

W46
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-26030 |
RN80..G..STD..USA |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32024 |
RN8#,90..G |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30218 |
RN8#,90..G T=2.25,MARK 4 |
1 | ||
| 90520-30219 |
RN8#,90..G T=2.30,MARK 5 |
1 | ||
| 90520-30216 |
RN8#,90..G T=2.15,MARK 2 |
1 | ||
| 90520-30217 |
RN8#,90..G T=2.20,MARK 3 |
1 | ||
| 90520-30214 |
RN8#,90..G T=2.05,MARK 0 |
1 | ||
| 90520-30215 |
RN8#,90..G T=2.10,MARK 1 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
RN8#,90..G |
13 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
RN8#,90..G |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35092 |
RN8#,90..G |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28013 |
RN8#,90..G T=2.05-2.10,MARK F-1 |
1 | ||
| 90520-28248 |
RN8#,90..G T=2.00-2.05,MARK F |
1 | ||
| 90520-28011 |
RN8#,90..G T=1.95-2.00,MARK E-1 |
1 | ||
| 90520-28246 |
RN8#,90..G T=1.90-1.95,MARK E |
1 | ||
| 90520-28012 |
RN121,8#,90..MTM T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28010 |
RN8#,90..G T=1.85-1.90,MARK D-1 |
1 | ||
| 90520-28245 |
RN121,8#,90..MTM T=1.80-1.85,MARK D |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-30059 |
RN8#,90..G |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28010 |
RN8#,90..G |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35011 |
RN80..G..STD..USA |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
RN8#,90..G |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28020 |
RN8#,90..G |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-26020 |
RN8#,90..G |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39011 |
RN8#,90..G |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
RN8#,90..G |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35040 |
RN8#,90..G |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35030 |
RN8#,90..G |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
RN8#,90..G |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35040 |
RN8#,90..G |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RN8#,90..G |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RN8#,90..G |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
RN8#,90..G |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
RN8#,90..G |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
RN8#,90..G |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
RN8#,90..G |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
RN8#,90..G |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
RN8#,90..G |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28011 |
RN8#,90..G |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25025 |
RN8#,90..G |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
RN121,8#,90..MTM T=1.07,OD=55.6 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31004 |
RN8#,90..G |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23144 |
RN121,8#,90..MTM T=2.25-2.30 |
1 | ||
| 90520-23145 |
RN121,8#,90..MTM T=2.30-2.35 |
1 | ||
| 90520-23115 |
RN121,8#,90..MTM T=2.05-2.10 |
1 | ||
| 90520-23143 |
RN121,8#,90..MTM T=2.15-2.20 |
1 | ||
| 90520-23090 |
RN121,8#,90..MTM T=2.20-2.25 |
1 | ||
| 90520-23089 |
RN121,8#,90..MTM T=2.10-2.15 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-26120 |
RN80..G..STD..USA |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
RN8#,90..G |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36030 |
RN8#,90..G |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-35100 |
RN80..G..STD..USA |
1 | ||
| 33481-20090 |
RN80..G..STD..USA N=6,W(P195/75R14 TIRE) |
1 | ||
| Common parts | ||||
| 91611-61022 | ||||
(8808- )JPP..MTM

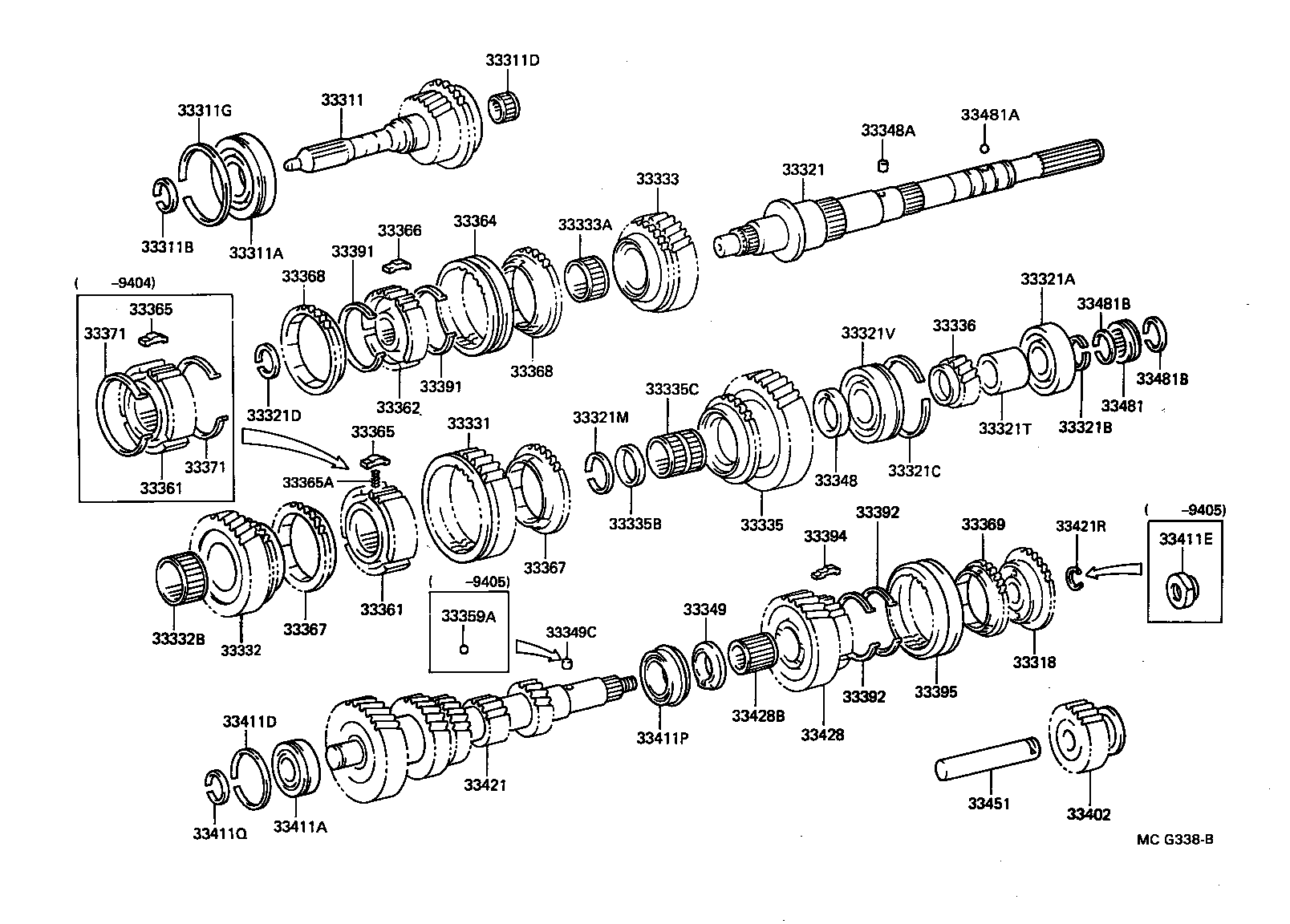

R150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-26030 |
RN80..G..STD..USA |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32024 |
RN8#,90..G |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30218 |
RN8#,90..G T=2.25,MARK 4 |
1 | ||
| 90520-30219 |
RN8#,90..G T=2.30,MARK 5 |
1 | ||
| 90520-30216 |
RN8#,90..G T=2.15,MARK 2 |
1 | ||
| 90520-30217 |
RN8#,90..G T=2.20,MARK 3 |
1 | ||
| 90520-30214 |
RN8#,90..G T=2.05,MARK 0 |
1 | ||
| 90520-30215 |
RN8#,90..G T=2.10,MARK 1 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06002 |
RN8#,90..G |
13 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76002 |
RN8#,90..G |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35092 |
RN8#,90..G |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25014 |
RN8#,90..G T=3.09-3.14,MARK H |
1 | ||
| 90520-25005 |
RN8#,90..G T=2.67-2.72,MARK A |
1 | ||
| 90520-25011 |
RN8#,90..G T=2.91-2.96,MARK E |
1 | ||
| 90520-25013 |
RN8#,90..G T=3.03-3.08,MARK G |
1 | ||
| 90520-25009 |
RN8#,90..G T=2.79-2.84,MARK C |
1 | ||
| 90520-25010 |
RN8#,90..G T=2.85-2.90,MARK D |
1 | ||
| 90520-25015 |
RN8#,90..G T=3.15-3.20,MARK J |
1 | ||
| 90520-25017 |
RN8#,90..G T=3.27-3.32,MARK L |
1 | ||
| 90520-25006 |
RN8#,90..G T=2.73-2.78,MARK B |
1 | ||
| 90520-25016 |
RN8#,90..G T=3.21-3.26,MARK K |
1 | ||
| 90520-25012 |
RN8#,90..G T=2.97-3.02,MARK F |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-71221 |
RN8#,90..G T=1.65,ID=71.1 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28013 |
RN8#,90..G T=2.05-2.10,MARK F-1 |
1 | ||
| 90520-28248 |
RN8#,90..G T=2.00-2.05,MARK F |
1 | ||
| 90520-28011 |
RN8#,90..G T=1.95-2.00,MARK E-1 |
1 | ||
| 90520-28246 |
RN8#,90..G T=1.90-1.95,MARK E |
1 | ||
| 90520-28012 |
RN121,8#,90..MTM T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28010 |
RN8#,90..G T=1.85-1.90,MARK D-1 |
1 | ||
| 90520-28245 |
RN121,8#,90..MTM T=1.80-1.85,MARK D |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-30059 |
RN8#,90..G |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-28010 |
RN8#,90..G |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35011 |
RN80..G..STD..USA |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
RN8#,90..G |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28020 |
RN8#,90..G |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-35005 |
RN8#,90..G |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-26020 |
RN8#,90..G |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39011 |
RN8#,90..G |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
RN8#,90..G |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35020 |
RN8#,90..G |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35040 |
RN8#,90..G |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35030 |
RN8#,90..G |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
RN8#,90..G |
3 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
RN8#,90..G |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35040 |
RN8#,90..G |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RN8#,90..G |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RN8#,90..G |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
RN8#,90..G |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
RN8#,90..G |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
RN8#,90..G |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
RN8#,90..G |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
RN8#,90..G |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
RN8#,90..G |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28011 |
RN8#,90..G |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25025 |
RN8#,90..G |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
RN121,8#,90..MTM T=1.07,OD=55.6 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31004 |
RN8#,90..G |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23144 |
RN121,8#,90..MTM T=2.25-2.30 |
1 | ||
| 90520-23145 |
RN121,8#,90..MTM T=2.30-2.35 |
1 | ||
| 90520-23115 |
RN121,8#,90..MTM T=2.05-2.10 |
1 | ||
| 90520-23143 |
RN121,8#,90..MTM T=2.15-2.20 |
1 | ||
| 90520-23090 |
RN121,8#,90..MTM T=2.20-2.25 |
1 | ||
| 90520-23089 |
RN121,8#,90..MTM T=2.10-2.15 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-26120 |
RN80..G..STD..USA |
1 | ||
| 33421R - RING, SHAFT SNAP(FOR COUNTER GEAR REAR) | ||||
| 90520-19008 |
RN8#,90..G T=2.85 |
1 | ||
| 90520-19011 |
RN8#,90..G T=3.00 |
1 | ||
| 90520-19013 |
RN8#,90..G T=3.10 |
1 | ||
| 90520-19009 |
RN8#,90..G T=2.90 |
1 | ||
| 90520-19014 |
RN8#,90..G T=3.15 |
1 | ||
| 90520-19012 |
RN8#,90..G T=3.05 |
1 | ||
| 90520-19010 |
RN8#,90..G T=2.95 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
RN8#,90..G |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-35100 |
RN80..G..STD..USA |
1 | ||
| 33481-20090 |
RN80..G..STD..USA N=6,W(P195/75R14 TIRE) |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
RN8#,90..G T=1.50,OD=31.3 |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
RN8#,90..G T=1.50,OD=31.3 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
