RN80L-TRSDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

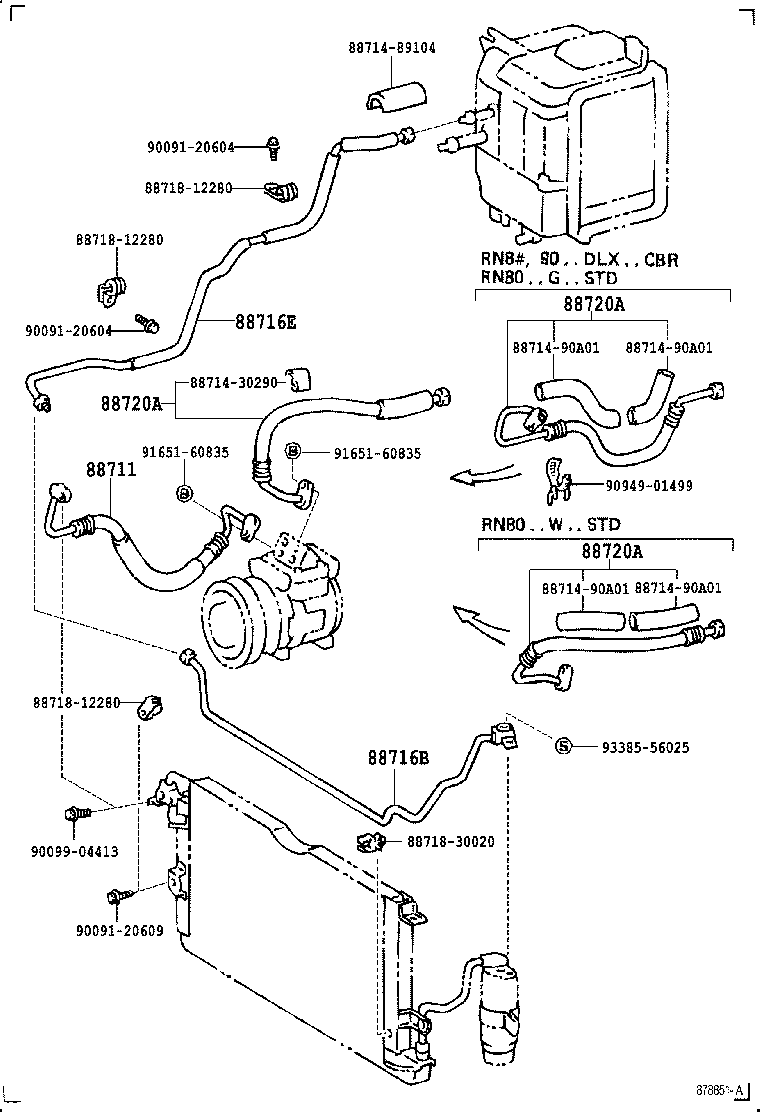

ILLUST NO. 2 OF 2(8808- )RN8#,90..JPP

Click highlighted areas on diagram

DEALER OPTION

diagram 88711 8871430290 8871489104 8871490A01 8871490A01 8871490A01 8871490A01 88716B 88716E 8871812280 8871812280 8871812280 8871830020 88720A 88720A 88720A 9009120604 9009120604 9009120609 9009904413 9094901499 9165160835 9165160835 9338556025
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89136

RN80..W;RN80..4HC;RN85,90..EFI

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89162

RN8#,90,VZN85,9#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89173

RN85,90..USA;RN80..G..USA;RN12#,80..EFI

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89122

RN8#,90..EFI..USA

SUCTION

 1
88720-89120

RN8#,90..EFI..USA

DISCHARGE

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89122

RN8#,90..EFI..USA

SUCTION

 1
88720-89120

RN8#,90..EFI..USA

DISCHARGE

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89122

RN8#,90..EFI..USA

SUCTION

 1
88720-89120

RN8#,90..EFI..USA

DISCHARGE

 1
Common parts
88714-30290
88714-89104
88714-90A01
88718-12280
88718-30020
90091-20604
90091-20609
90099-04413
90949-01499
91651-60835
93385-56025

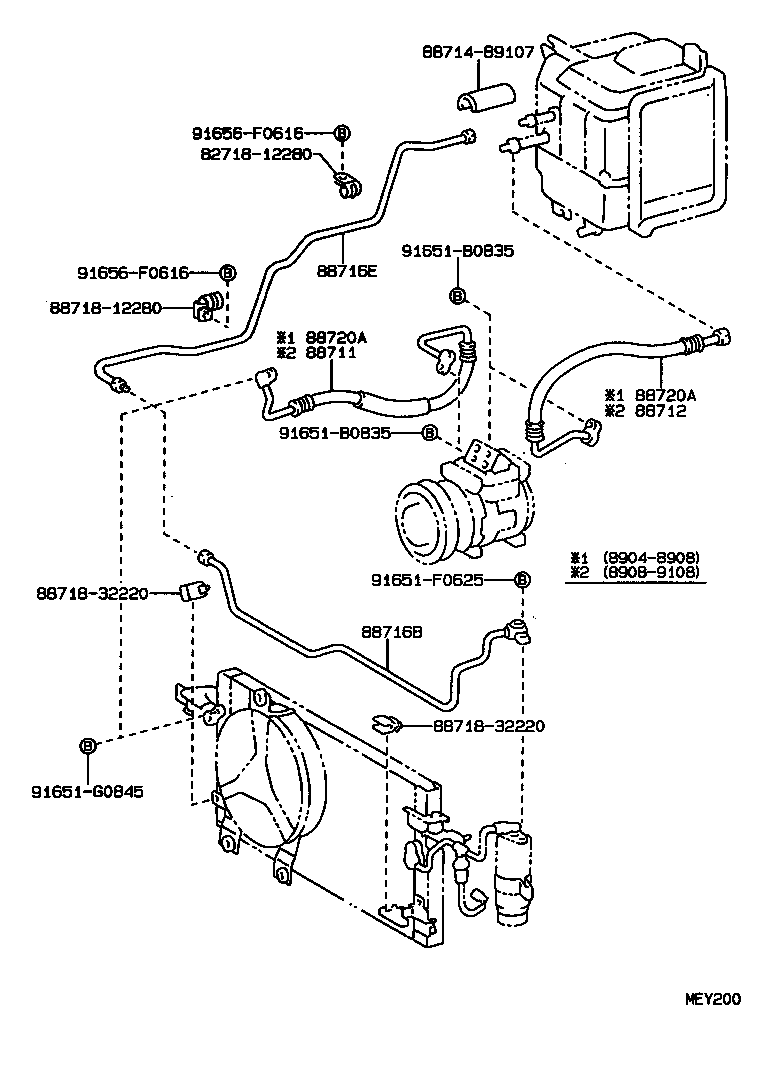

ILLUST NO. 2 OF 2(8808- )RN12#,80,VZN120..JPP..DLX,SR5..EFI

Click highlighted areas on diagram

diagram 8271812280 88711 88712 8871489107 88716B 88716E 8871812280 8871832220 8871832220 88720A 88720A 91651B0835 91651B0835 91651F0625 91651G0845 91656F0616 91656F0616
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89136

RN80..W;RN80..4HC;RN85,90..EFI

 1
88711-89136

RN80..W;RN80..4HC;RN85,90..EFI

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89138

RN80..W;RN80..4HC;RN12#,85,90..EFI

 1
88712-89138

RN80..W;RN80..4HC;RN12#,85,90..EFI

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89162

RN8#,90,VZN85,9#

 1
88716-89162

RN8#,90,VZN85,9#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89173

RN85,90..USA;RN80..G..USA;RN12#,80..EFI

 1
88716-89173

RN85,90..USA;RN80..G..USA;RN12#,80..EFI

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89122

RN8#,90..EFI..USA

SUCTION

 1
88720-89122

RN8#,90..EFI..USA

SUCTION

 1
88720-89120

RN8#,90..EFI..USA

DISCHARGE

 1
88720-89120

RN8#,90..EFI..USA

DISCHARGE

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-89122

RN8#,90..EFI..USA

SUCTION

 1
88720-89122

RN8#,90..EFI..USA

SUCTION

 1
88720-89120

RN8#,90..EFI..USA

DISCHARGE

 1
88720-89120

RN8#,90..EFI..USA

DISCHARGE

 1
Common parts
82718-12280
88714-89107
88718-12280
88718-32220
91651-B0835
91651-F0625
91651-G0845
91656-F0616

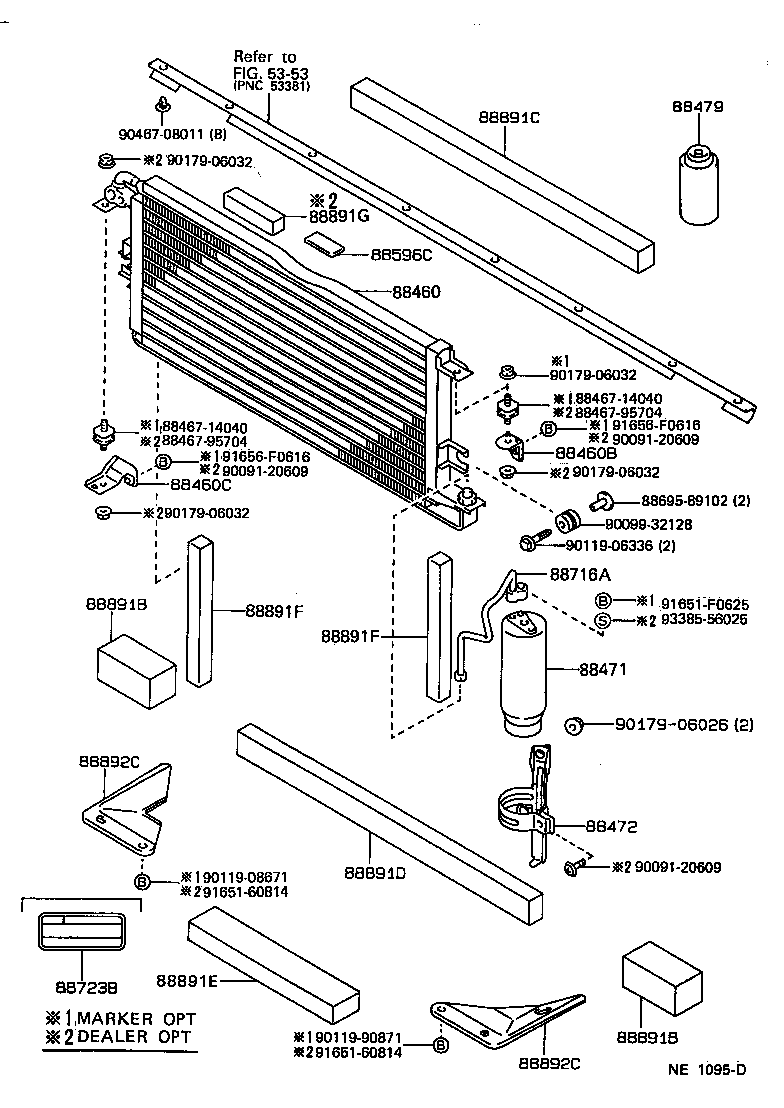

ILLUST NO. 1 OF 2(8808- )JPP

Click highlighted areas on diagram

diagram 5353 88460 88460B 88460C 8846714040 8846714040 8846795704 8846795704 88471 88472 88479 88596C 8869589102 88716A 88723B 88891B 88891B 88891C 88891D 88891E 88891F 88891F 88891G 88892C 88892C 9009120609 9009120609 9009120609 9009932128 9011906336 9011908671 9011990871 9017906026 9017906032 9017906032 9017906032 9017906032 9046708011 9165160814 9165160814 91651F0625 91656F0616 91656F0616 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-89115

RN8#,90,VZN85,9#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-89120

RN8#,90,VZN85,9#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-89121

RN8#,90,VZN85,9#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

RN12#,8#,90,VZN120,85,9#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

RN12#,8#,90,VZN120,85,9#

 1
88596C - PLATE, CAUTION, NO.2
88723-12010

RN120,8#,90,VZN120,85,9#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89163

RN8#,90,VZN85,9#

 1
88891B - PACKING B (FOR COOLER)
88578-89111

RN80..EFI;RN80..G..USA;RN85,90,VZN120,85,9#..USA

 2
88891B - PACKING B (FOR COOLER)
88578-89111

RN80..EFI;RN80..G..USA;RN85,90,VZN120,85,9#..USA

 2
88891C - PACKING C (FOR COOLER)
88578-89118

RN12#,8#,90

 1
88891D - PACKING D (FOR COOLER)
88578-89119

RN80..G..USA;RN80..DLX..EFI;RN120,85,90,VZN85,9#..USA

MAKER OPTION

 1
88578-89127

RN80..G..USA;RN80..DLX..EFI;RN85,90,VZN85,9#..USA

DEALER OPTION

 1
88891E - PACKING E (FOR COOLER)
88578-89112

RN8#,90,VZN85,9#

 1
88891F - PACKING F (FOR COOLER)
88578-89123

RN8#,90,VZN85,9#

RH

 1
88578-89122

RN8#,90,VZN85,9#

LH

 1
88891F - PACKING F (FOR COOLER)
88578-89123

RN8#,90,VZN85,9#

RH

 1
88578-89122

RN8#,90,VZN85,9#

LH

 1
88891G - PACKING G (FOR COOLER)
88578-89107

RN12#,8#,90,VZN85,9#

 1
88892C - PLATE, CONDENSER, NO.1
88892-89114

RN8#,90,VZN85,9#

RH

 1
88892-89115

RN8#,90,VZN85,9#

LH

 1
88892C - PLATE, CONDENSER, NO.1
88892-89114

RN8#,90,VZN85,9#

RH

 1
88892-89115

RN8#,90,VZN85,9#

LH

 1
Common parts
88467-14040
88467-95704
88695-89102
90091-20609
90099-32128
90119-06336
90119-08671
90119-90871
90179-06026
90179-06032
90467-08011
91651-60814
91651-F0625
91656-F0616
93385-56025
