RN80L-TRSDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

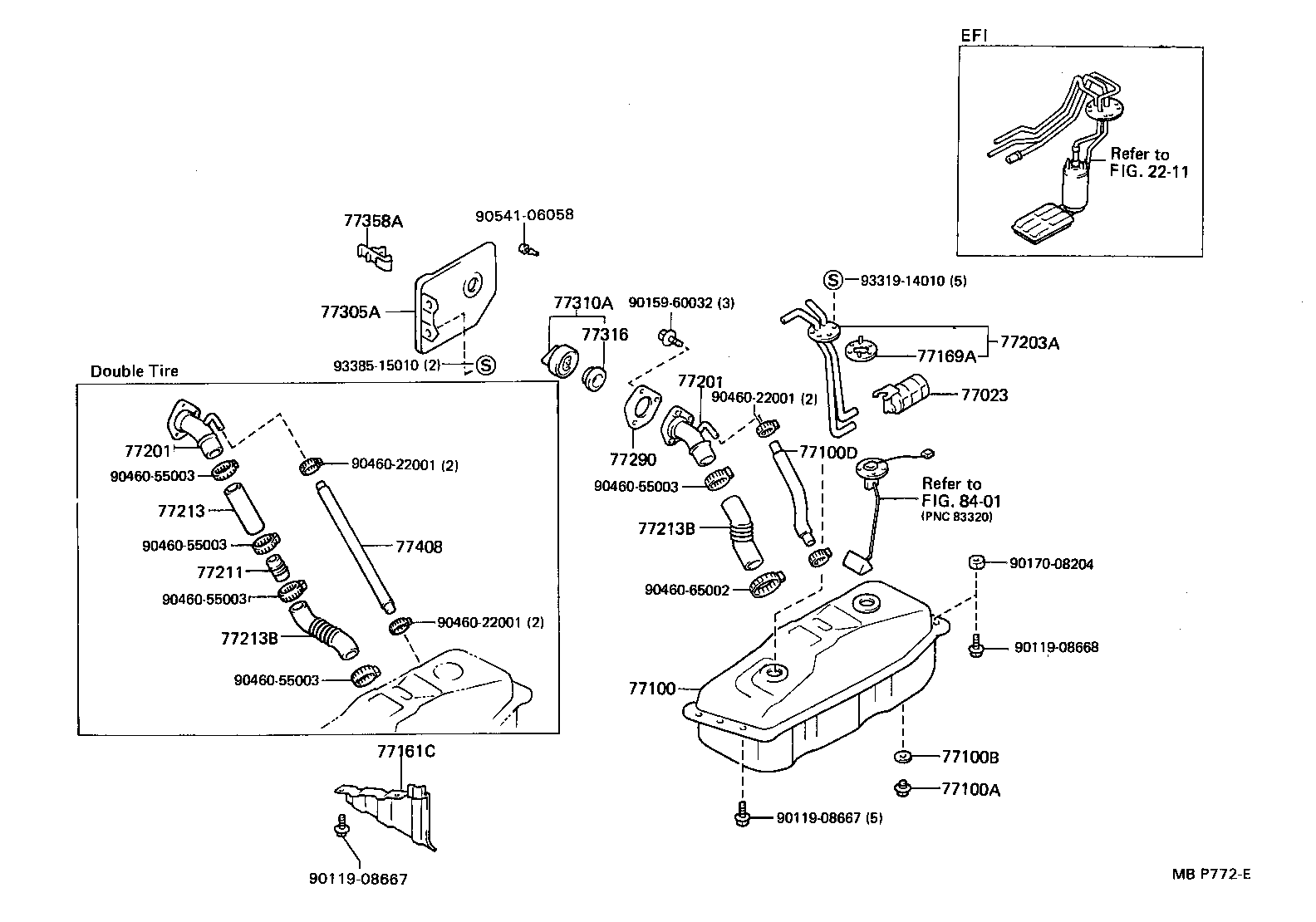

ILLUST NO. 1 OF 2(8808- )RN8#,90,VZN85,9#..JPP

Click highlighted areas on diagram

diagram 2211 77023 77100 77100A 77100B 77100D 77161C 77169A 77201 77201 77203A 77211 77213 77213B 77213B 77290 77305A 77310A 77316 77358A 77408 8401 9011908667 9011908667 9011908668 9015960032 9017008204 9046022001 9046022001 9046022001 9046055003 9046055003 9046055003 9046055003 9046055003 9046065002 9054106058 9331914010 9338515010
Part # Description Qty Price
77100 - TANK ASSY, FUEL
77001-35967

RN80..EFI

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RN12#,8#,90,VZN120,85,9#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RN8#,90,VZN85,9#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77408-35020

RN8#,90,VZN85,9#

L=340

 1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-35050

RN8#,90,VZN85,9#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35360

RN8#,90,VZN85,9#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35360

RN8#,90,VZN85,9#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35220

RN8#,90,VZN85,9#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35220

RN8#,90,VZN85,9#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-35030

RN8#,90,VZN85,9#

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-89108

RN8#,90,VZN85,90..CBU,IV3

 1
77310A - CAP ASSY, FUEL TANK
77310-35080

RN12#,8#,90,VZN120,85,9#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

RN12#,8#,90,VZN120,85,9#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-89101

RN8#,90,VZN85,90..IV3

 1
77358-24010

RN8#,90,VZN85,90..CBU,IV3

 1
Common parts
90119-08667
90119-08668
90159-60032
90170-08204
90460-22001
90460-55003
90460-65002
90541-06058
93319-14010
93385-15010
Linked diagrams
2211
8401

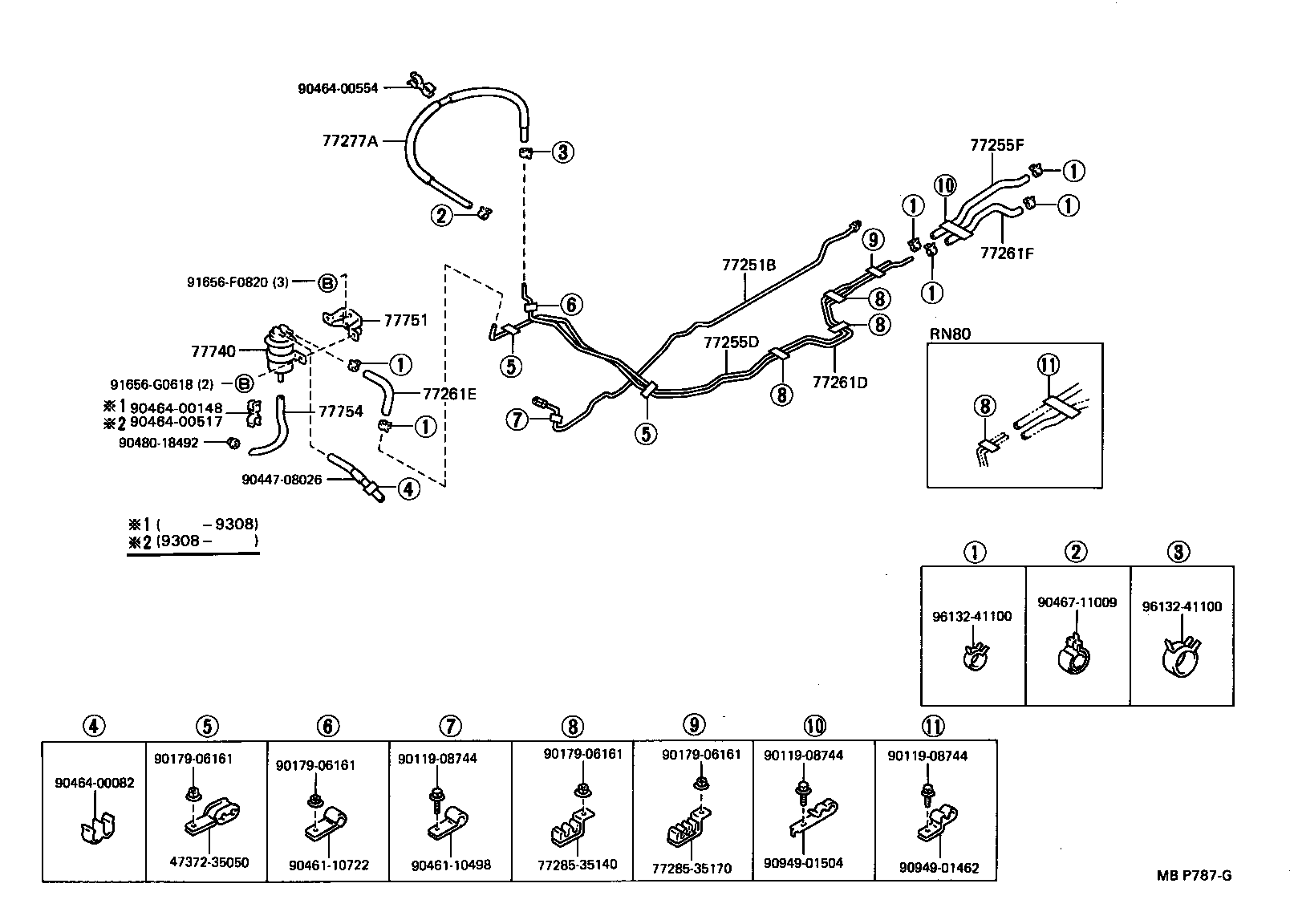

ILLUST NO. 2 OF 2(8808- )RN8#,90..JPP..EFI

Click highlighted areas on diagram

diagram 4737235050 77251B 77255D 77255F 77261D 77261E 77261F 77277A 7728535140 7728535170 77740 77751 77754 9011908744 9011908744 9011908744 9017906161 9017906161 9017906161 9017906161 9044708026 9046110498 9046110722 9046400082 9046400148 9046400517 9046400554 9046711009 9048018492 9094901462 9094901504 91656F0820 91656G0618 9613241100 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-35760

RN80..EFI

 1
77255D - TUBE, FUEL RETURN
77255-35550

RN80,VZN95..EFI

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
90445-12222

RN80

L=760

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35380

RN80,VZN95

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

RN12#,80..EFI;RN85,90..EFI..USA

*H,L=300

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35270

RN80

L=800

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35040

RN12#,8#,90..EFI

*H,L=600

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35240

RN8#,90,VZN85,90..EFI..(CBU,IV3)

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-35040

RN12#,8#,90,VZN120,85,9#..EFI

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35151

RN8#,90..EFI

L=530

 1
Common parts
47372-35050
77285-35140
77285-35170
90119-08744
90179-06161
90447-08026
90461-10498
90461-10722
90464-00082
90464-00148
90464-00517
90464-00554
90467-11009
90480-18492
90949-01462
90949-01504
91656-F0820
91656-G0618
96132-41100
