Toyota 4-runner truck (jpp) RN80 WIRING & CLAMP

RN80L-TRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995

Engine 22RE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

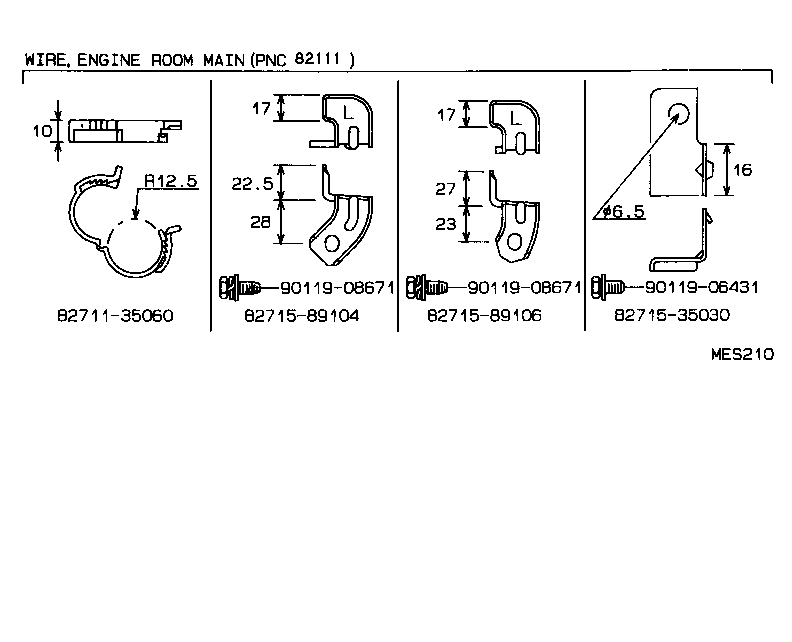

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE ROOM WIRE CLAMP

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-89149	RN121,8#,90..(4HC,5F)..EFI	08/1988 - 08/1989	1
82111-89149	RN8#,90..EFI..USA	08/1989 - 08/1990	1
82111-35300	RN8#,90..USA	08/1991 - 01/1995	1
82111-89227	RN8#,90..USA	08/1990 - 08/1991	1
Common parts
82711-35060
82715-35030
82715-89104
82715-89106
90119-06431
90119-08671

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-89196	RN8#,90..4HC	08/1988 - 08/1989	1
82121-89198	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1988 - 08/1989	1
82121-89281	RN8#,90..4HC	08/1990 - 08/1991	1
82121-89282	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1990 - 08/1991	1
82121-89264	RN8#,90..4HC	08/1989 - 08/1990	1
82121-89266	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1989 - 08/1990	1
82121-35130	RN8#,90..4HC	08/1991 - 08/1992	1
82121-35140	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1991 - 08/1992	1
82121-35131	RN8#,90..4HC	08/1992 - 08/1993	1
82121-35141	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1992 - 08/1993	1
82121-35132	RN8#,90..4HC	08/1993 - 01/1995	1
82121-35142	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1993 - 01/1995	1
Common parts
82710-87002
82711-89120
82711-89123
82715-30500
82715-35040
82715-35070
82715-89113
82715-89127
82715-89128
82715-89135
82715-89136
82715-89137
82715-95J26
82751-89104
84248-35010
87616-35010
91631-60616
91651-40610
91656-F0616
93381-16014

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

COWL WIRE CLAMP

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-89619	RN8#,90..4HC..DLX	08/1988 - 08/1989	1
82131-89A28	RN8#,90..4HC..DLX..USA	08/1989 - 08/1990	1
82131-89A62	RN8#,90..4HC..USA	08/1990 - 08/1991	1
82131-89A63	RN8#,90..4HC..USA W(*66)	08/1990 - 08/1991	1
82131-89A64	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1990 - 08/1991	1
82131-89A65	RN8#,90..4HC..USA W(66 & CRC)	08/1990 - 08/1991	1
82131-35770	RN8#,90..4HC..USA W(66 & CRC)	08/1991 - 08/1992	1
82131-35740	RN8#,90..4HC..USA	08/1991 - 08/1992	1
82131-35750	RN8#,90..4HC..USA W(*66)	08/1991 - 08/1992	1
82131-35760	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1991 - 08/1992	1
82131-35741	RN8#,90..4HC..USA	08/1992 - 08/1993	1
82131-35751	RN8#,90..4HC..USA W(*66)	08/1992 - 08/1993	1
82131-35761	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1992 - 08/1993	1
82131-35771	RN8#,90..4HC..USA W(66 & CRC)	08/1992 - 08/1993	1
82131-35752	RN8#,90..4HC..USA W(*66)	08/1993 - 01/1995	1
82131-35772	RN8#,90..4HC..USA W(66 & CRC)	08/1993 - 01/1995	1
82131-35742	RN8#,90..4HC..USA	08/1993 - 01/1995	1
82131-35762	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1993 - 01/1995	1
Common parts
82711-14110
82711-35210
82711-89146
82711-89166
82711-89194
82715-22070
82715-89113
82715-89130
90461-08309
91651-40814
91656-F0616

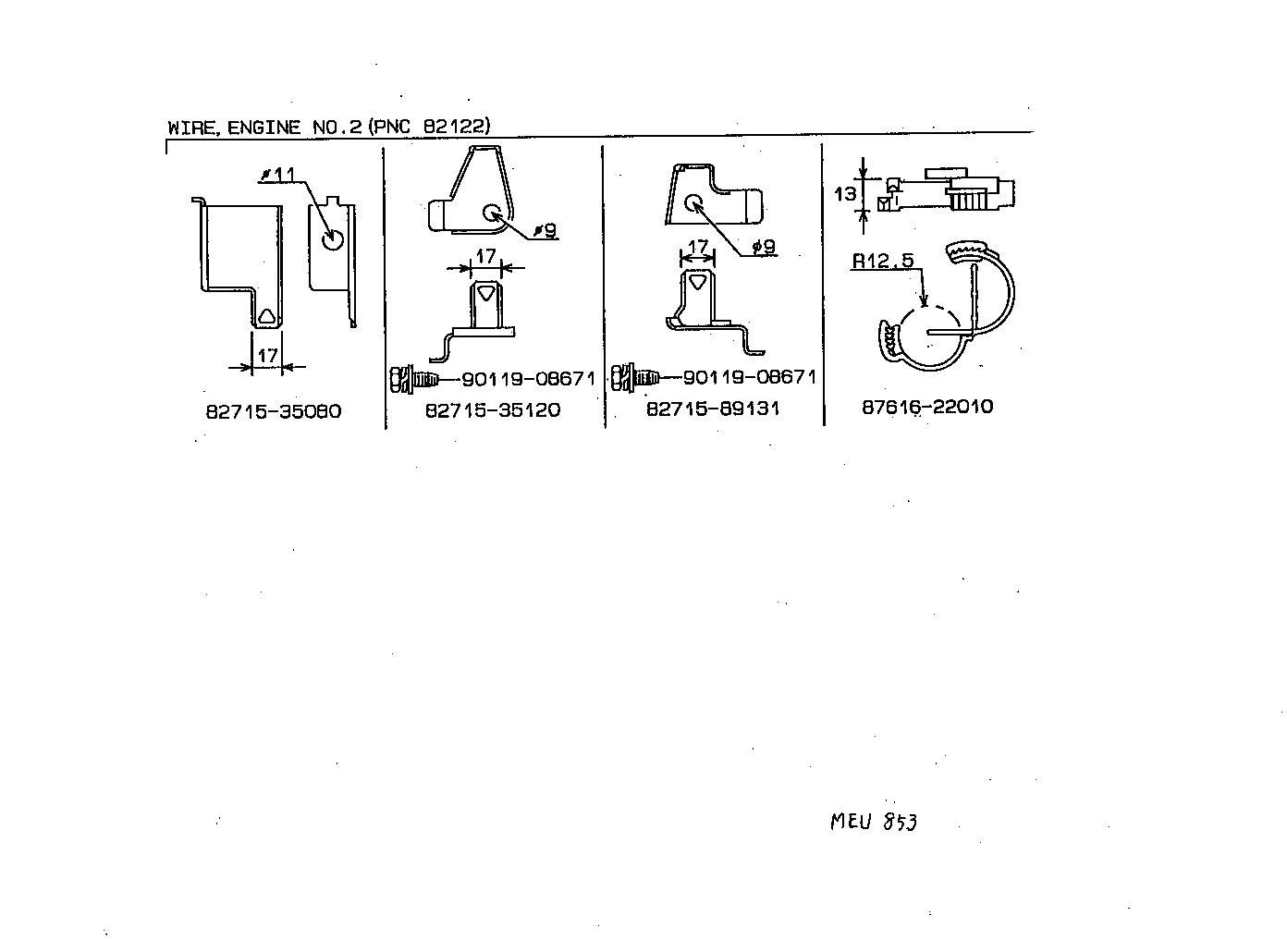

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE NO.2,NO.3 CLAMP

Part #	Description	Period	Qty
82122 - WIRE, ENGINE, NO.2
82122-89108	RN85,90;RN80..G;RN80..EFI	08/1988 - 08/1990	1
82122-89108	RN8#,90	08/1991 - 08/1993	1
82122-35280	RN8#,90	08/1993 - 01/1995	1
Common parts
82715-35080
82715-35120
82715-89131
87616-22010
90119-08671

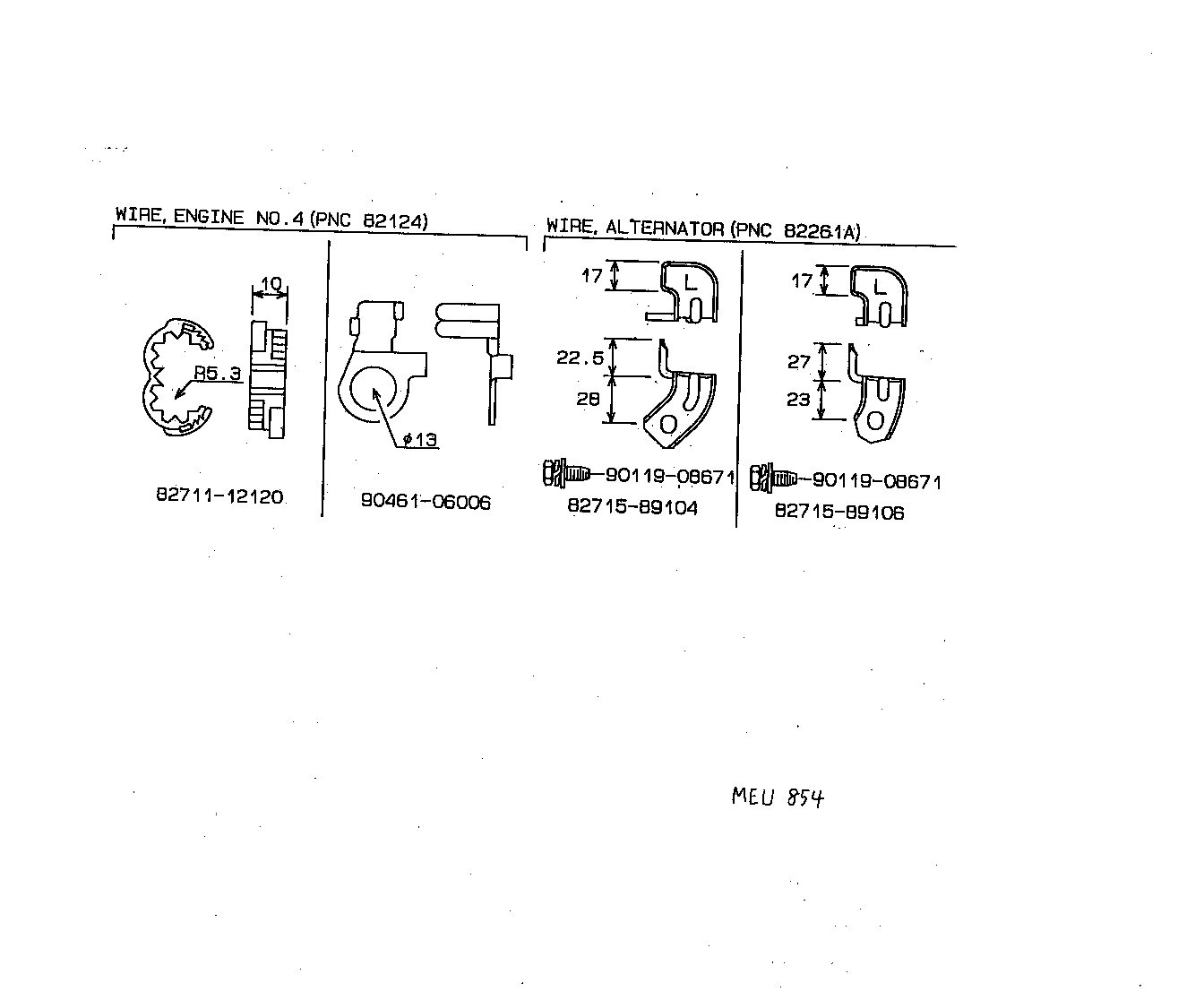

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE NO.4,WINCH,ALT. WIRE CLAMP

Part #	Description	Period	Qty
82124 - WIRE, ENGINE, NO.4
82124-89113	RN8#,90,VZN85,9#..(DLX,STD)..EFI	08/1988 - 08/1992	1
82261A - WIRE, ALTERNATOR
82261-89117	RN8#,90	08/1990 - 08/1991	1
82261-89102	RN8#,90	08/1988 - 08/1990	1
82261-35301	RN8#,90	08/1992 - 01/1995	1
82261-35300	RN8#,90	08/1991 - 08/1992	1
Common parts
82711-12120
82715-89104
82715-89106
90119-08671
90461-06006

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

FRAME,ROOF,BACK DOOR WIRE CLAMP

Part #	Description	Period	Qty
82164 - WIRE, FRAME
82164-89164	RN80..EFI	08/1988 - 08/1989	1
82164-89216	RN80..EFI	08/1989 - 08/1990	1
82164-89203	RN80..DLX W(*66)	08/1989 - 08/1990	1
82164-35040	RN80	08/1990 - 08/1991	1
82164-89203	RN80..DLX W(*66)	08/1990 - 08/1991	1
82164-35150	RN80	08/1991 - 01/1995	1
82164-35120	RN80 W(*66)	08/1991 - 01/1995	1
82171 - WIRE, ROOF, NO.1
82171-89117	RN8#,VZN85,95	08/1988 - 08/1991	1
82171-35010	RN8#,VZN85,95	08/1991 - 08/1993	1
82171-35200	RN8#	08/1993 - 01/1995	1
Common parts
82711-22300
82711-89104
82711-89108
82711-89183
82711-89189
82711-89206
82715-89131
90119-08671
90463-10337
90464-00165

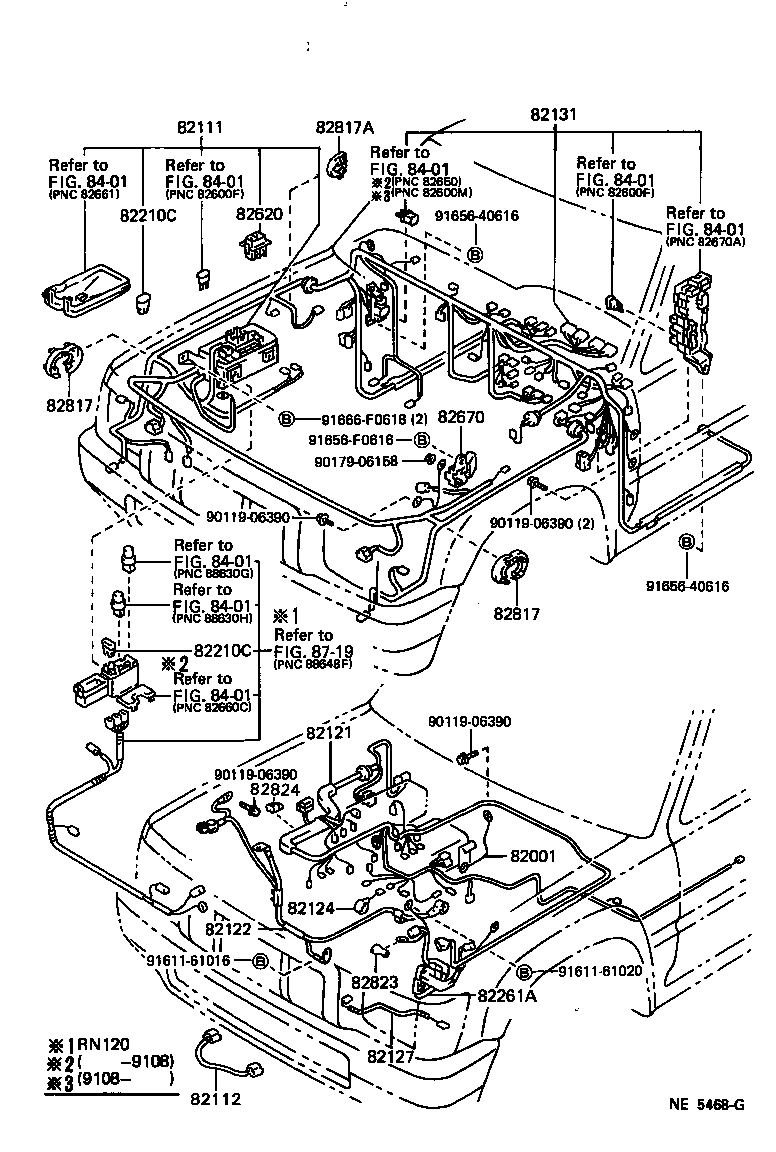

ILLUST NO. 1 OF 4(8808- )RN12#,8#,90..JPP..EFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07108	RN12#,8#,90	08/1988 - 08/1991	1
90980-07108	RN8#,90	08/1991 - 01/1995	1
82111 - WIRE, ENGINE ROOM MAIN
82111-89149	RN121,8#,90..(4HC,5F)..EFI	08/1988 - 08/1989	1
82111-89149	RN8#,90..EFI..USA	08/1989 - 08/1990	1
82111-35300	RN8#,90..USA	08/1991 - 01/1995	1
82111-89227	RN8#,90..USA	08/1990 - 08/1991	1
82121 - WIRE, ENGINE
82121-89196	RN8#,90..4HC	08/1988 - 08/1989	1
82121-89198	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1988 - 08/1989	1
82121-89281	RN8#,90..4HC	08/1990 - 08/1991	1
82121-89282	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1990 - 08/1991	1
82121-89264	RN8#,90..4HC	08/1989 - 08/1990	1
82121-89266	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1989 - 08/1990	1
82121-35130	RN8#,90..4HC	08/1991 - 08/1992	1
82121-35140	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1991 - 08/1992	1
82121-35131	RN8#,90..4HC	08/1992 - 08/1993	1
82121-35141	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1992 - 08/1993	1
82121-35132	RN8#,90..4HC	08/1993 - 01/1995	1
82121-35142	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1993 - 01/1995	1
82122 - WIRE, ENGINE, NO.2
82122-89108	RN85,90;RN80..G;RN80..EFI	08/1988 - 08/1990	1
82122-89108	RN8#,90	08/1991 - 08/1993	1
82122-35280	RN8#,90	08/1993 - 01/1995	1
82124 - WIRE, ENGINE, NO.4
82124-89113	RN8#,90,VZN85,9#..(DLX,STD)..EFI	08/1988 - 08/1992	1
82131 - WIRE, COWL
82131-89619	RN8#,90..4HC..DLX	08/1988 - 08/1989	1
82131-89A28	RN8#,90..4HC..DLX..USA	08/1989 - 08/1990	1
82131-89A62	RN8#,90..4HC..USA	08/1990 - 08/1991	1
82131-89A63	RN8#,90..4HC..USA W(*66)	08/1990 - 08/1991	1
82131-89A64	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1990 - 08/1991	1
82131-89A65	RN8#,90..4HC..USA W(66 & CRC)	08/1990 - 08/1991	1
82131-35770	RN8#,90..4HC..USA W(66 & CRC)	08/1991 - 08/1992	1
82131-35740	RN8#,90..4HC..USA	08/1991 - 08/1992	1
82131-35750	RN8#,90..4HC..USA W(*66)	08/1991 - 08/1992	1
82131-35760	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1991 - 08/1992	1
82131-35741	RN8#,90..4HC..USA	08/1992 - 08/1993	1
82131-35751	RN8#,90..4HC..USA W(*66)	08/1992 - 08/1993	1
82131-35761	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1992 - 08/1993	1
82131-35771	RN8#,90..4HC..USA W(66 & CRC)	08/1992 - 08/1993	1
82131-35752	RN8#,90..4HC..USA W(*66)	08/1993 - 01/1995	1
82131-35772	RN8#,90..4HC..USA W(66 & CRC)	08/1993 - 01/1995	1
82131-35742	RN8#,90..4HC..USA	08/1993 - 01/1995	1
82131-35762	RN8#,90..4HC..USA W(CRUISE CONTROL)	08/1993 - 01/1995	1
82210C - FUSIBLE LINK
90982-08203	RN8#,90..CND;RN85,90..EFI..USA;RN80,VZN85,9#..EFI 80A,TERM.:MALE,BLK	08/1988 - 12/1988	1
90982-08189	RN80..W..DLX;RN85,90..CND;RN80..5F..STD;RN85,90..EFI..USA;RN12#,VZN120,85,9#;RN80..(4F,4HC)..EFI 40A,TERM.:FEMALE,GRN	08/1988 - 11/1995	1
90982-08188	RN12#,8#,90,VZN120,85,9# 30A,TERM.:FEMALE,PNK	08/1988 - 11/1995	1
90982-08253	VZN120,90;RN8#,90..CND;RN85,90..EFI..USA;RN121,80,VZN85,95..(4F,4HC,5F)..EFI 80A,TERM.:MALE,BLK	12/1988 - 12/1989	1
82210C - FUSIBLE LINK
90982-08203	RN8#,90..CND;RN85,90..EFI..USA;RN80,VZN85,9#..EFI 80A,TERM.:MALE,BLK	08/1988 - 12/1988	1
90982-08189	RN80..W..DLX;RN85,90..CND;RN80..5F..STD;RN85,90..EFI..USA;RN12#,VZN120,85,9#;RN80..(4F,4HC)..EFI 40A,TERM.:FEMALE,GRN	08/1988 - 11/1995	1
90982-08188	RN12#,8#,90,VZN120,85,9# 30A,TERM.:FEMALE,PNK	08/1988 - 11/1995	1
90982-08253	VZN120,90;RN8#,90..CND;RN85,90..EFI..USA;RN121,80,VZN85,95..(4F,4HC,5F)..EFI 80A,TERM.:MALE,BLK	12/1988 - 12/1989	1
82261A - WIRE, ALTERNATOR
82261-89117	RN8#,90	08/1990 - 08/1991	1
82261-89102	RN8#,90	08/1988 - 08/1990	1
82261-35301	RN8#,90	08/1992 - 01/1995	1
82261-35300	RN8#,90	08/1991 - 08/1992	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-89101	VZN120,90;RN121,8#,90,VZN85,95..4HC,5F	08/1990 - 08/1991	1
82620-89101	RN12#,8#,90,VZN120,85,9#	08/1988 - 08/1990	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-89107	RN12#,8#,90	08/1988 - 02/1991	1
82670-89107	RN8#,90;RN12#..4FC	02/1991 - 01/1995	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-89123	RN8#,90,VZN90	08/1993 - 01/1995	2
82817-89123	RN12#,8#,90,VZN120,85,9#	08/1988 - 08/1993	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-89123	RN8#,90,VZN90	08/1993 - 01/1995	2
82817-89123	RN12#,8#,90,VZN120,85,9#	08/1988 - 08/1993	2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-89130	RN12#,8#,90,VZN120,85,9#	08/1988 - 11/1995	1
Common parts
90119-06390
90179-06158
91611-61016
91611-61020
91656-40616
91656-F0616
91666-F0618
Linked diagrams
8401
8719

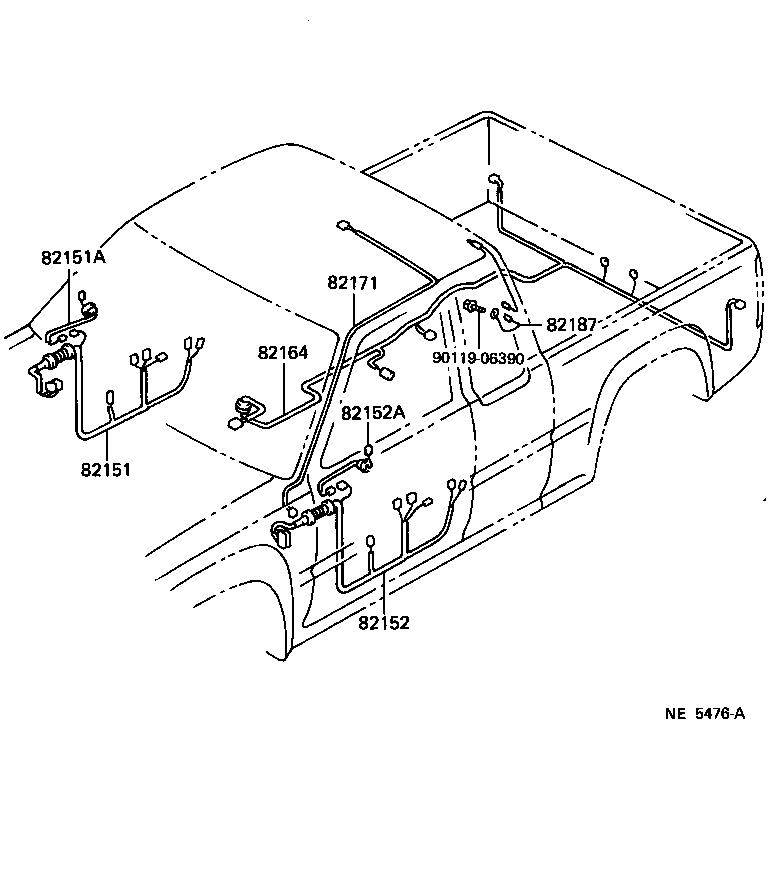

ILLUST NO. 2 OF 4(8808- )RN8#,90,VZN85,9#..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
82164 - WIRE, FRAME
82164-89164	RN80..EFI	08/1988 - 08/1989	1
82164-89216	RN80..EFI	08/1989 - 08/1990	1
82164-89203	RN80..DLX W(*66)	08/1989 - 08/1990	1
82164-35040	RN80	08/1990 - 08/1991	1
82164-89203	RN80..DLX W(*66)	08/1990 - 08/1991	1
82164-35150	RN80	08/1991 - 01/1995	1
82164-35120	RN80 W(*66)	08/1991 - 01/1995	1
82171 - WIRE, ROOF, NO.1
82171-89117	RN8#,VZN85,95	08/1988 - 08/1991	1
82171-35010	RN8#,VZN85,95	08/1991 - 08/1993	1
82171-35200	RN8#	08/1993 - 01/1995	1
Common parts
90119-06390

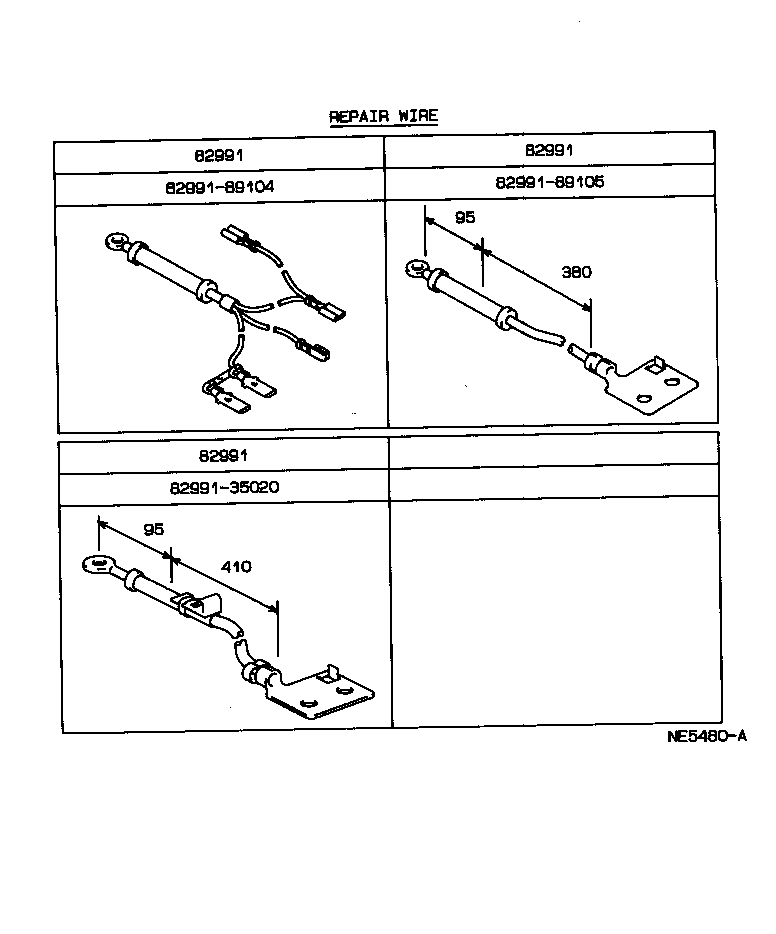

ILLUST NO. 3 OF 4(8808- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-89105	RN85,90..CND;RN80..5F..STD;RN85,90..EFI..USA;RN12#,VZN120,85,95;RN80,VZN90..(4F,4FC,4HC)..EFI;RN80,VZN90..5F..(DLX,SR5)..EFI..USA	08/1989 - 08/1991	1
82991-89105	RN80..W;RN80..4HC;RN8#,90..CND;RN85,90..EFI..USA;RN12#,VZN120,85,9#	08/1988 - 08/1989	1
82991-89105	RN8#,90,VZN120,85,9#	08/1991 - 09/1991	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-89105	RN85,90..CND;RN80..5F..STD;RN85,90..EFI..USA;RN12#,VZN120,85,95;RN80,VZN90..(4F,4FC,4HC)..EFI;RN80,VZN90..5F..(DLX,SR5)..EFI..USA	08/1989 - 08/1991	1
82991-89105	RN80..W;RN80..4HC;RN8#,90..CND;RN85,90..EFI..USA;RN12#,VZN120,85,9#	08/1988 - 08/1989	1
82991-89105	RN8#,90,VZN120,85,9#	08/1991 - 09/1991	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-89105	RN85,90..CND;RN80..5F..STD;RN85,90..EFI..USA;RN12#,VZN120,85,95;RN80,VZN90..(4F,4FC,4HC)..EFI;RN80,VZN90..5F..(DLX,SR5)..EFI..USA	08/1989 - 08/1991	1
82991-89105	RN80..W;RN80..4HC;RN8#,90..CND;RN85,90..EFI..USA;RN12#,VZN120,85,9#	08/1988 - 08/1989	1
82991-89105	RN8#,90,VZN120,85,9#	08/1991 - 09/1991	1
Common parts
82991-35020
82991-89104
82991-89105

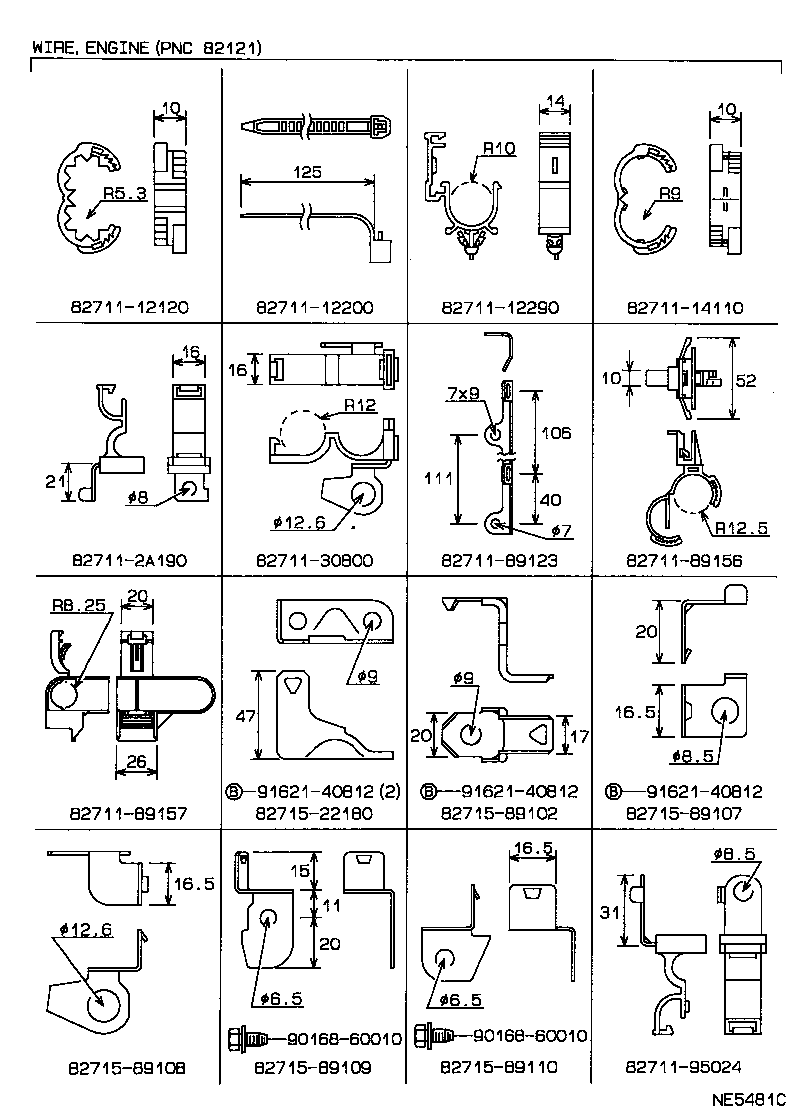

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-12120
82711-12200
82711-12290
82711-14110
82711-2A190
82711-30800
82711-89123
82711-89156
82711-89157
82711-95024
82715-22180
82715-89102
82715-89107
82715-89108
82715-89109
82715-89110
90168-60010
91621-40812

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-89196	RN8#,90..4HC	08/1988 - 08/1989	1
82121-89198	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1988 - 08/1989	1
82121-89281	RN8#,90..4HC	08/1990 - 08/1991	1
82121-89282	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1990 - 08/1991	1
82121-89264	RN8#,90..4HC	08/1989 - 08/1990	1
82121-89266	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1989 - 08/1990	1
82121-35130	RN8#,90..4HC	08/1991 - 08/1992	1
82121-35140	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1991 - 08/1992	1
82121-35131	RN8#,90..4HC	08/1992 - 08/1993	1
82121-35141	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1992 - 08/1993	1
82121-35132	RN8#,90..4HC	08/1993 - 01/1995	1
82121-35142	RN8#,90..4HC..USA CALIFORNIA SPEC	08/1993 - 01/1995	1
Common parts
82711-35060
82715-89111
82715-89112
82715-89114
82715-89116
82715-89118
82715-89119
82715-89120
82715-89126
82715-95010
87616-22010
90168-60010
90461-06152
90461-08365
90462-08008
90464-00176
91611-60812
91621-F0812
91651-41016
91651-F0814
91656-F0616

ILLUST NO. 4 OF 4(8808- )JPP

Click highlighted areas on diagram

ENGINE WIRE NO.2 CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-14110
82711-89162
82711-89197
82715-89101
82715-89103
82715-89104
82715-89105
82715-89106
82715-89108
82715-89110
82715-89115
82715-89118
82715-89119
82751-89104
90119-08671
90168-60010
90464-00503
91656-F0616

RN80L-TRSDEA (1988)

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 1 OF 4(8808- )RN12#,8#,90..JPP..EFI

ILLUST NO. 2 OF 4(8808- )RN8#,90,VZN85,9#..JPP

ILLUST NO. 3 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

ILLUST NO. 4 OF 4(8808- )JPP

Part Price Details
