RN80L-TRMRSK (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Aug 1990
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9008)JPP..G

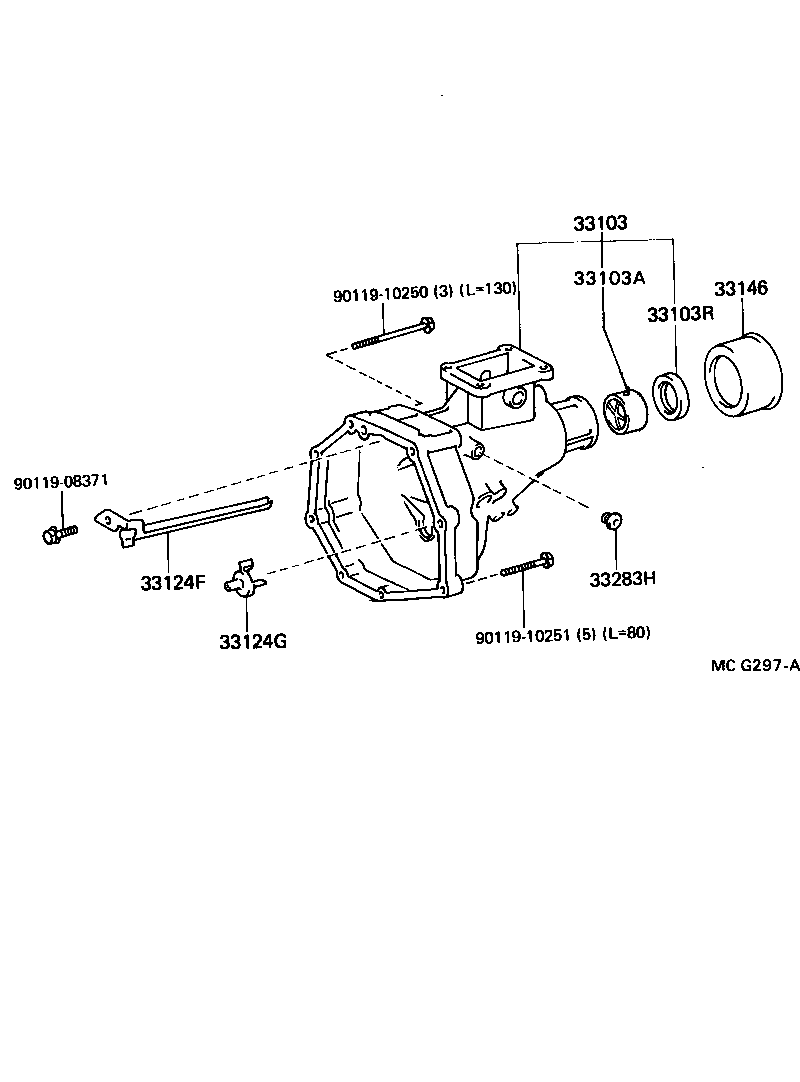

Click highlighted areas on diagram
G40,57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-35141 |
RN8#,90..G |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73120 |
RN8#,90..G |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38032 |
RN8#,90..G |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33124-35010 |
RN8#,90..G |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
RN8#,90..5F..CBR |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
RN121,8#,90,VZN85,9#..MTM |
1 | ||
| 33283H - PLUG, W/HEAD STRAIGHT SCREW | ||||
| 90341-12008 |
RN8#,90..G |
1 | ||
| Common parts | ||||
| 90119-08371 | ||||
| 90119-10250 | ||||
| 90119-10251 | ||||
(8808- )JPP..R
Click highlighted areas on diagram
R150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-35141 |
RN8#,90..G |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38032 |
RN8#,90..G |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
RN8#,90..5F..CBR |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
RN8#,90..5F..CBR |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
RN121,8#,90,VZN85,9#..MTM |
1 | ||
| Common parts | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91612-60816 | ||||
