RN80L-TRMREA (1990)

Toyota 4-Runner Truck (Jpp)

Production Aug 1990 - Jan 1995
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9405)JPP..5F

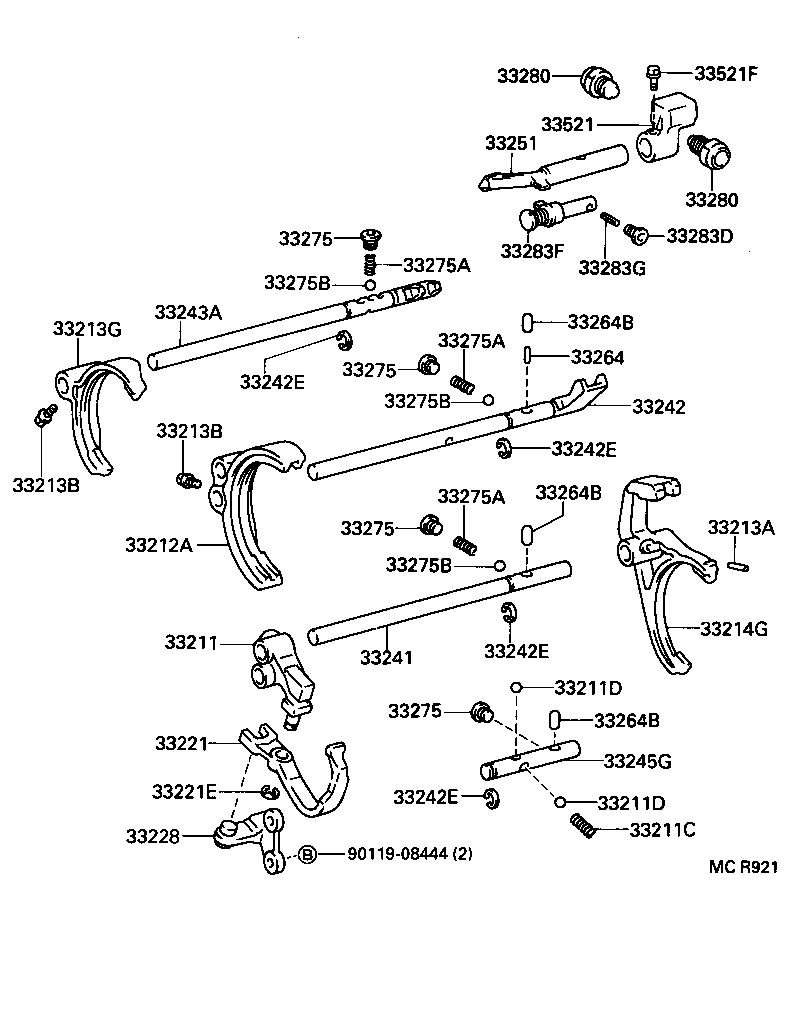

Click highlighted areas on diagram

R150

diagram 33211 33212A 33213A 33213A 33213B 33213B 33213B 33213G 33214G 33221 33221E 33225 33228 33231 33241 33242 33242E 33242E 33243A 33244B 33245G 33246C 33251 33264 33264 33264 33264 33264B 33264B 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33276 33276A 33276B 33280 33280 33283D 33283F 33283G 33521 33521F 9161160820
Part # Description Qty Price
33212A - FORK, GEAR SHIFT, NO.1
33212-30050

RN8#,90..W

 1
33212-22020

RN121,8#,90..W

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
90254-05016

RN8#,90..W

 1
90254-05016

RN8#,90,VZN90..5F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
90254-05016

RN8#,90..W

 1
90254-05016

RN8#,90,VZN90..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-30060

RN8#,90..W

 1
33213-22030

RN121,8#,90..W

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-30060

RN8#,90..W

 1
33214-22030

RN121,8#,90..5F..EFI

 1
33230-30011

RN8#,90..W

 1
33230-30010

RN8#,90..W

 1
33221 - ARM, REVERSE SHIFT
33221-22020

RN8#,90..W

 1
33221-22011

RN121,8#,90..W

 1
33225 - SHOE, SHIFT ARM
33225-22011

RN121,8#,90..W

 1
33225-22020

RN8#,90..W

 1
33231 - HEAD, REVERSE SHIFT
33231-22040

RN8#,90..W

 1
33231-22011

RN121,8#,90..5F..EFI

 1
33231-22021

RN80..W..STD

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-22021

RN8#,90..W

 1
33244-30050

RN8#,90..W

 1
33241-22010

RN80..W..STD

 1
33244-22020

RN121,8#,90..5F..EFI

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-30070

RN8#,90..W

 1
33242-30080

RN8#,90..W

 1
33242-22020

RN121,8#,90..W

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-30120

RN8#,90..W

 1
33240-22022

RN8#,90..W

 1
33240-30020

RN8#,90..W

 1
33243-30130

RN8#,90..W

 1
33240-22020

RN121,8#,90..W

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
90520-12003

RN8#,90..W

 2
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-22010

RN121,8#,90..5F..EFI

 1
33245-22011

RN8#,90..W

 1
33251 - LEVER, SHIFT & SELECT
33251-22051

RN121,8#,90..W

 1
33251-22050

RN121,8#,90..5F..EFI

 1
33251-30100

RN8#,90..W

 1
33251-30090

RN8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264-22010

RN8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264-22010

RN8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264-22010

RN8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264-22010

RN8#,90..W

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

RN121,8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12008

RN8#,90,VZN85,9#..G,R

 1
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-13004

RN121,8#,90..W

 2
90501-14123

RN121,8#,90..W

L=20.2

 2
90501-14123

RN8#,90..W

 2
90501-14123

RN8#,90..W

L=20.2

 2
90501-10061

RN8#,90,VZN85,9#..G,R

 1
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

RN121,8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN121,8#,90..W

 2
90360-10003

RN8#,90..W

 2
90360-10003

RN8#,90,VZN85,9#..5F..(G,R)

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065

RN121,8#,90..5F..EFI

 1
33283F - PIN, REVERSE RESTRICT
33280-22010

RN8#,90..W

 1
33280-30061

RN8#,90..W

 1
33280-22010

RN121,8#,90..5F..EFI

 1
33280-30060

RN8#,90..W

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

RN8#,90,VZN85,9#..5F..(G,R)

 1
90254-05016

RN121,8#,90..5F..EFI

 1
90254-05016

RN8#,90..W

 1
33521 - HOUSING, SHIFT LEVER
33502-35260

RN8#,90..W

 1
33521-35170

RN80..W..STD

 1
33521-35221

RN8#,90..W

 1
33521-35180

RN121,8#,90..5F..EFI

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

RN80..STD..USA;RN121,8#,90,VZN85,9#..5F..EFI

 1
90105-08079

RN8#,90,VZN85,9#..5F

 1
Common parts
91611-60820

(8808-9110)JPP..5F

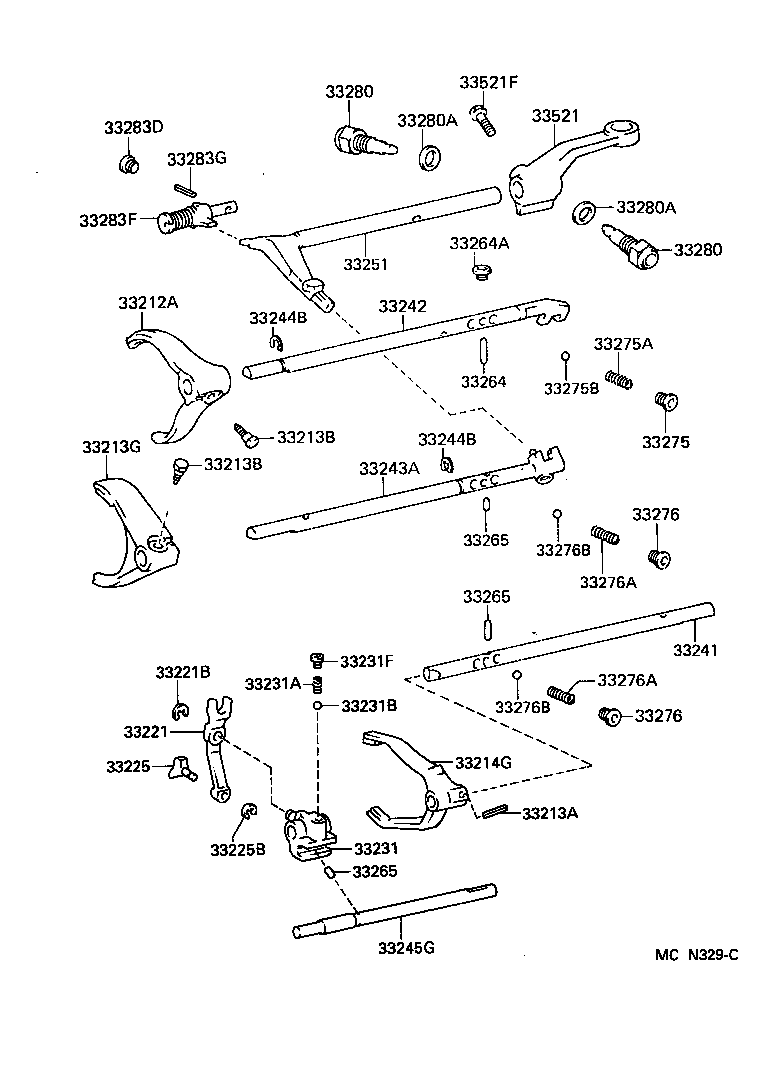

Click highlighted areas on diagram

W55

diagram 33212A 33213A 33213B 33213B 33213C 33213C 33213G 33214G 33221 33221B 33225 33225B 33231 33241 33242 33243A 33244B 33244B 33245G 33251 33264 33264A 33265 33265 33265 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33280 33280 33280A 33280A 33283D 33283F 33283G 33521 33521F
Part # Description Qty Price
33212A - FORK, GEAR SHIFT, NO.1
33212-30050

RN8#,90..W

 1
33212-22020

RN121,8#,90..W

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
90254-05016

RN8#,90..W

 1
90254-05016

RN8#,90,VZN90..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213C - WASHER, LOCK(FOR SHIFT FORK SET)
90215-09002

RN121,8#,90..W

 2
33213C - WASHER, LOCK(FOR SHIFT FORK SET)
90215-09002

RN121,8#,90..W

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-30060

RN8#,90..W

 1
33213-22030

RN121,8#,90..W

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-30060

RN8#,90..W

 1
33214-22030

RN121,8#,90..5F..EFI

 1
33230-30011

RN8#,90..W

 1
33230-30010

RN8#,90..W

 1
33221 - ARM, REVERSE SHIFT
33221-22020

RN8#,90..W

 1
33221-22011

RN121,8#,90..W

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-00800

RN121,8#,90..W

 1
96160-01000

RN121,8#,90..MTM

 1
33225 - SHOE, SHIFT ARM
33225-22011

RN121,8#,90..W

 1
33225-22020

RN8#,90..W

 1
33225B - RING, E(FOR SHIFT ARM SHOE)
96160-00600

RN121,8#,90..W

 1
33231 - HEAD, REVERSE SHIFT
33231-22040

RN8#,90..W

 1
33231-22011

RN121,8#,90..5F..EFI

 1
33231-22021

RN80..W..STD

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-22021

RN8#,90..W

 1
33244-30050

RN8#,90..W

 1
33241-22010

RN80..W..STD

 1
33244-22020

RN121,8#,90..5F..EFI

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-30070

RN8#,90..W

 1
33242-30080

RN8#,90..W

 1
33242-22020

RN121,8#,90..W

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-30120

RN8#,90..W

 1
33240-22022

RN8#,90..W

 1
33240-30020

RN8#,90..W

 1
33243-30130

RN8#,90..W

 1
33240-22020

RN121,8#,90..W

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
90520-12003

RN8#,90..W

 2
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
90520-12003

RN8#,90..W

 2
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-22010

RN121,8#,90..5F..EFI

 1
33245-22011

RN8#,90..W

 1
33251 - LEVER, SHIFT & SELECT
33251-22051

RN121,8#,90..W

 1
33251-22050

RN121,8#,90..5F..EFI

 1
33251-30100

RN8#,90..W

 1
33251-30090

RN8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264-22010

RN8#,90..W

 1
33264A - PLUG, INTER LOCK HOLE
90341-10065

RN121,8#,90..W

L=7.5,OD=15

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

RN8#,90..W

L=11.2,OD=4

 1
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33266-22010

RN8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
90250-06007

RN8#,90..W

L=8.6,OD=6

 1
90250-06007

RN121,8#,90..5F..EFI

L=8.6,OD=6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

RN8#,90..W

L=11.2,OD=4

 1
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33266-22010

RN8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
90250-06007

RN8#,90..W

L=8.6,OD=6

 1
90250-06007

RN121,8#,90..5F..EFI

L=8.6,OD=6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

RN8#,90..W

L=11.2,OD=4

 1
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33266-22010

RN8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
90250-06007

RN8#,90..W

L=8.6,OD=6

 1
90250-06007

RN121,8#,90..5F..EFI

L=8.6,OD=6

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

RN121,8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12008

RN8#,90,VZN85,9#..G,R

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

RN121,8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12008

RN8#,90,VZN85,9#..G,R

 1
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-13004

RN121,8#,90..W

 2
90501-14123

RN121,8#,90..W

L=20.2

 2
90501-14123

RN8#,90..W

 2
90501-14123

RN8#,90..W

L=20.2

 2
90501-10061

RN8#,90,VZN85,9#..G,R

 1
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-13004

RN121,8#,90..W

 2
90501-14123

RN121,8#,90..W

L=20.2

 2
90501-14123

RN8#,90..W

 2
90501-14123

RN8#,90..W

L=20.2

 2
90501-10061

RN8#,90,VZN85,9#..G,R

 1
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

RN121,8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN121,8#,90..W

 2
90360-10003

RN8#,90..W

 2
90360-10003

RN8#,90,VZN85,9#..5F..(G,R)

 1
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

RN121,8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN121,8#,90..W

 2
90360-10003

RN8#,90..W

 2
90360-10003

RN8#,90,VZN85,9#..5F..(G,R)

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33280A - GASKET, REVERSE RESTRICT PIN
90341-10065

RN121,8#,90..5F..EFI

 1
90430-18008

RN8#,90..W

 2
90430-18008

RN121,8#,90..W

 2
33280A - GASKET, REVERSE RESTRICT PIN
90341-10065

RN121,8#,90..5F..EFI

 1
90430-18008

RN8#,90..W

 2
90430-18008

RN121,8#,90..W

 2
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065

RN121,8#,90..5F..EFI

 1
33283F - PIN, REVERSE RESTRICT
33280-22010

RN8#,90..W

 1
33280-30061

RN8#,90..W

 1
33280-22010

RN121,8#,90..5F..EFI

 1
33280-30060

RN8#,90..W

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

RN8#,90,VZN85,9#..5F..(G,R)

 1
90254-05016

RN121,8#,90..5F..EFI

 1
90254-05016

RN8#,90..W

 1
33521 - HOUSING, SHIFT LEVER
33502-35260

RN8#,90..W

 1
33521-35170

RN80..W..STD

 1
33521-35221

RN8#,90..W

 1
33521-35180

RN121,8#,90..5F..EFI

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

RN80..STD..USA;RN121,8#,90,VZN85,9#..5F..EFI

 1
90105-08079

RN8#,90,VZN85,9#..5F

 1

(9110- )JPP..5F

Click highlighted areas on diagram

W55

diagram 33212A 33213A 33213B 33213B 33213G 33214G 33221 33221B 33225 33225B 33231 33231A 33231B 33231F 33241 33242 33243A 33244B 33244B 33245G 33251 33264 33264A 33265 33265 33265 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33280 33280 33280A 33280A 33283D 33283F 33283G 33521 33521F
Part # Description Qty Price
33212A - FORK, GEAR SHIFT, NO.1
33212-30050

RN8#,90..W

 1
33212-22020

RN121,8#,90..W

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
90254-05016

RN8#,90..W

 1
90254-05016

RN8#,90,VZN90..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-30060

RN8#,90..W

 1
33213-22030

RN121,8#,90..W

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-30060

RN8#,90..W

 1
33214-22030

RN121,8#,90..5F..EFI

 1
33230-30011

RN8#,90..W

 1
33230-30010

RN8#,90..W

 1
33221 - ARM, REVERSE SHIFT
33221-22020

RN8#,90..W

 1
33221-22011

RN121,8#,90..W

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-00800

RN121,8#,90..W

 1
96160-01000

RN121,8#,90..MTM

 1
33225 - SHOE, SHIFT ARM
33225-22011

RN121,8#,90..W

 1
33225-22020

RN8#,90..W

 1
33225B - RING, E(FOR SHIFT ARM SHOE)
96160-00600

RN121,8#,90..W

 1
33231 - HEAD, REVERSE SHIFT
33231-22040

RN8#,90..W

 1
33231-22011

RN121,8#,90..5F..EFI

 1
33231-22021

RN80..W..STD

 1
33231A - SPRING, REVERSE SHIFT RESTRICT
90501-10052

RN8#,90..W

 1
33231B - BALL, REVERSE SHIFT RESTRICT
90360-08009

RN8#,90..W

 1
33231F - PLUG(FOR REVERSE SHIFT HEAD)
90341-10065

RN8#,90..W

 1
90341-10016

RN8#,90..W

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-22021

RN8#,90..W

 1
33244-30050

RN8#,90..W

 1
33241-22010

RN80..W..STD

 1
33244-22020

RN121,8#,90..5F..EFI

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-30070

RN8#,90..W

 1
33242-30080

RN8#,90..W

 1
33242-22020

RN121,8#,90..W

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-30120

RN8#,90..W

 1
33240-22022

RN8#,90..W

 1
33240-30020

RN8#,90..W

 1
33243-30130

RN8#,90..W

 1
33240-22020

RN121,8#,90..W

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
90520-12003

RN8#,90..W

 2
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
90520-12003

RN8#,90..W

 2
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-22010

RN121,8#,90..5F..EFI

 1
33245-22011

RN8#,90..W

 1
33251 - LEVER, SHIFT & SELECT
33251-22051

RN121,8#,90..W

 1
33251-22050

RN121,8#,90..5F..EFI

 1
33251-30100

RN8#,90..W

 1
33251-30090

RN8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264-22010

RN8#,90..W

 1
33264A - PLUG, INTER LOCK HOLE
90341-10065

RN121,8#,90..W

L=7.5,OD=15

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

RN8#,90..W

L=11.2,OD=4

 1
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33266-22010

RN8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
90250-06007

RN8#,90..W

L=8.6,OD=6

 1
90250-06007

RN121,8#,90..5F..EFI

L=8.6,OD=6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

RN8#,90..W

L=11.2,OD=4

 1
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33266-22010

RN8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
90250-06007

RN8#,90..W

L=8.6,OD=6

 1
90250-06007

RN121,8#,90..5F..EFI

L=8.6,OD=6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

RN8#,90..W

L=11.2,OD=4

 1
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33266-22010

RN8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
90250-06007

RN8#,90..W

L=8.6,OD=6

 1
90250-06007

RN121,8#,90..5F..EFI

L=8.6,OD=6

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

RN121,8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12008

RN8#,90,VZN85,9#..G,R

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

RN121,8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12005

RN8#,90..W

 2
90341-12008

RN8#,90,VZN85,9#..G,R

 1
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-13004

RN121,8#,90..W

 2
90501-14123

RN121,8#,90..W

L=20.2

 2
90501-14123

RN8#,90..W

 2
90501-14123

RN8#,90..W

L=20.2

 2
90501-10061

RN8#,90,VZN85,9#..G,R

 1
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-13004

RN121,8#,90..W

 2
90501-14123

RN121,8#,90..W

L=20.2

 2
90501-14123

RN8#,90..W

 2
90501-14123

RN8#,90..W

L=20.2

 2
90501-10061

RN8#,90,VZN85,9#..G,R

 1
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

RN121,8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN121,8#,90..W

 2
90360-10003

RN8#,90..W

 2
90360-10003

RN8#,90,VZN85,9#..5F..(G,R)

 1
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

RN121,8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN8#,90..W

OD=9.52,STEEL

 2
90360-10003

RN121,8#,90..W

 2
90360-10003

RN8#,90..W

 2
90360-10003

RN8#,90,VZN85,9#..5F..(G,R)

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33280A - GASKET, REVERSE RESTRICT PIN
90341-10065

RN121,8#,90..5F..EFI

 1
90430-18008

RN8#,90..W

 2
90430-18008

RN121,8#,90..W

 2
33280A - GASKET, REVERSE RESTRICT PIN
90341-10065

RN121,8#,90..5F..EFI

 1
90430-18008

RN8#,90..W

 2
90430-18008

RN121,8#,90..W

 2
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065

RN121,8#,90..5F..EFI

 1
33283F - PIN, REVERSE RESTRICT
33280-22010

RN8#,90..W

 1
33280-30061

RN8#,90..W

 1
33280-22010

RN121,8#,90..5F..EFI

 1
33280-30060

RN8#,90..W

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

RN8#,90,VZN85,9#..5F..(G,R)

 1
90254-05016

RN121,8#,90..5F..EFI

 1
90254-05016

RN8#,90..W

 1
33521 - HOUSING, SHIFT LEVER
33502-35260

RN8#,90..W

 1
33521-35170

RN80..W..STD

 1
33521-35221

RN8#,90..W

 1
33521-35180

RN121,8#,90..5F..EFI

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

RN80..STD..USA;RN121,8#,90,VZN85,9#..5F..EFI

 1
90105-08079

RN8#,90,VZN85,9#..5F

 1

(9405- )JPP..5F

Click highlighted areas on diagram

R150

diagram 33211 33211C 33211D 33211D 33212A 33213A 33213B 33213B 33213G 33214G 33221 33221E 33228 33241 33242 33242E 33242E 33242E 33242E 33243A 33245G 33251 33264 33264B 33264B 33264B 33275 33275 33275 33275 33275A 33275A 33275A 33275B 33275B 33275B 33280 33280 33283D 33283F 33283G 33521 33521F 9011908444
Part # Description Qty Price
33212A - FORK, GEAR SHIFT, NO.1
33212-30050

RN8#,90..W

 1
33212-22020

RN121,8#,90..W

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
90254-05016

RN8#,90..W

 1
90254-05016

RN8#,90,VZN90..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

RN8#,90..W

 2
90113-06005

RN121,8#,90..W

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-30060

RN8#,90..W

 1
33213-22030

RN121,8#,90..W

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-30060

RN8#,90..W

 1
33214-22030

RN121,8#,90..5F..EFI

 1
33230-30011

RN8#,90..W

 1
33230-30010

RN8#,90..W

 1
33221 - ARM, REVERSE SHIFT
33221-22020

RN8#,90..W

 1
33221-22011

RN121,8#,90..W

 1
33241 - SHAFT, REVERSE SHIFT FORK
33244-22021

RN8#,90..W

 1
33244-30050

RN8#,90..W

 1
33241-22010

RN80..W..STD

 1
33244-22020

RN121,8#,90..5F..EFI

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-30070

RN8#,90..W

 1
33242-30080

RN8#,90..W

 1
33242-22020

RN121,8#,90..W

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-30120

RN8#,90..W

 1
33240-22022

RN8#,90..W

 1
33240-30020

RN8#,90..W

 1
33243-30130

RN8#,90..W

 1
33240-22020

RN121,8#,90..W

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-22010

RN121,8#,90..5F..EFI

 1
33245-22011

RN8#,90..W

 1
33251 - LEVER, SHIFT & SELECT
33251-22051

RN121,8#,90..W

 1
33251-22050

RN121,8#,90..5F..EFI

 1
33251-30100

RN8#,90..W

 1
33251-30090

RN8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264-22010

RN8#,90..W

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
90341-12014

RN8#,90..W

OD=17

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
90501-14123

RN8#,90..W

L=20.2

 1
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
33280-30040

RN8#,90..W

RH

 1
33280-30050

RN8#,90..W

LH

 1
90341-18009

RN80..W..STD

LH

 1
33280-30050

RN8#,90,VZN90..5F

LH

 1
33280-22030

RN121,8#,90..5F..EFI

LH

 1
33280-30040

RN8#,90,VZN90..5F

RH

 1
33280-30041

RN80,90..W

RH

 1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065

RN121,8#,90..5F..EFI

 1
33283F - PIN, REVERSE RESTRICT
33280-22010

RN8#,90..W

 1
33280-30061

RN8#,90..W

 1
33280-22010

RN121,8#,90..5F..EFI

 1
33280-30060

RN8#,90..W

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

RN8#,90,VZN85,9#..5F..(G,R)

 1
90254-05016

RN121,8#,90..5F..EFI

 1
90254-05016

RN8#,90..W

 1
33521 - HOUSING, SHIFT LEVER
33521-35170

RN80..W..STD

 1
33502-35260

RN8#,90..W

 1
33521-35221

RN8#,90..W

 1
33521-35180

RN121,8#,90..5F..EFI

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

RN80..STD..USA;RN121,8#,90,VZN85,9#..5F..EFI

 1
90105-08079

RN8#,90,VZN85,9#..5F

 1
Common parts
90119-08444
