RN80L-TRMDEA (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 2 OF 2(8808- )RN8#,90..JPP
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89136 |
RN80..W;RN80..4HC;RN85,90..EFI |
1 | ||
| 88711-35110 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88711-89155 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88711-35110 |
RN8#,90 |
1 | ||
| 88711-35270 |
RN8#,90 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35240 |
RN8#,90,VZN90 |
1 | ||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89173 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88716-89173 |
RN85,90..USA;RN80..G..USA;RN12#,80..EFI |
1 | ||
| 88716-89181 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88716-89181 |
RN8#,90,VZN85,9# |
1 | ||
| 88716-35250 |
RN8#,90,VZN90 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| Common parts | ||||
| 88714-30290 | ||||
| 88714-89104 | ||||
| 88714-90A01 | ||||
| 88718-12280 | ||||
| 88718-30020 | ||||
| 90091-20604 | ||||
| 90091-20609 | ||||
| 90099-04413 | ||||
| 90949-01499 | ||||
| 91651-60835 | ||||
| 93385-56025 | ||||

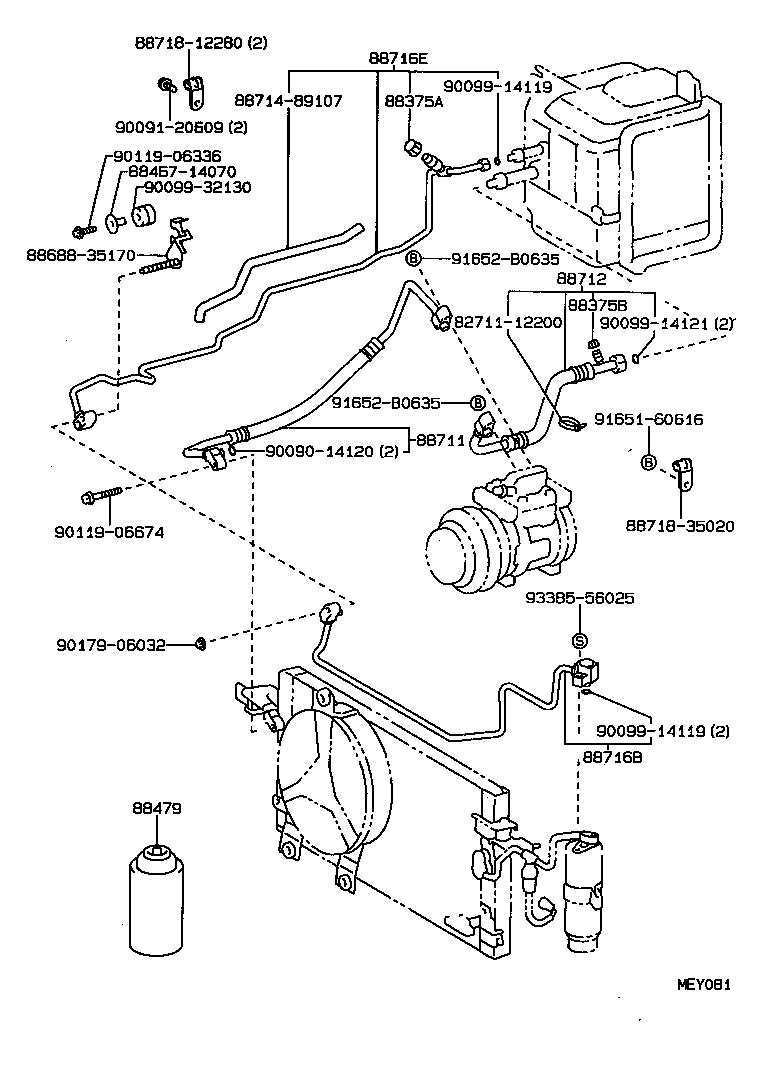

ILLUST NO. 2 OF 2(9308- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RN8#,90,VZN120,90 |
1 | ||
| 88375-30280 |
RN80,90,VZN90 |
3 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89136 |
RN80..W;RN80..4HC;RN85,90..EFI |
1 | ||
| 88711-35110 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88711-89155 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88711-35110 |
RN8#,90 |
1 | ||
| 88711-35270 |
RN8#,90 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35090 |
RN8#,90..USA |
1 | ||
| 88712-89138 |
RN80..W;RN80..4HC;RN12#,85,90..EFI |
1 | ||
| 88712-35200 |
RN8#,90 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35240 |
RN8#,90,VZN90 |
1 | ||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89173 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88716-89173 |
RN85,90..USA;RN80..G..USA;RN12#,80..EFI |
1 | ||
| 88716-89181 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88716-89181 |
RN8#,90,VZN85,9# |
1 | ||
| 88716-35250 |
RN8#,90,VZN90 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-14070 | ||||
| 88688-35170 | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-35020 | ||||
| 90090-14120 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 91651-60616 | ||||
| 91652-B0635 | ||||
| 93385-56025 | ||||

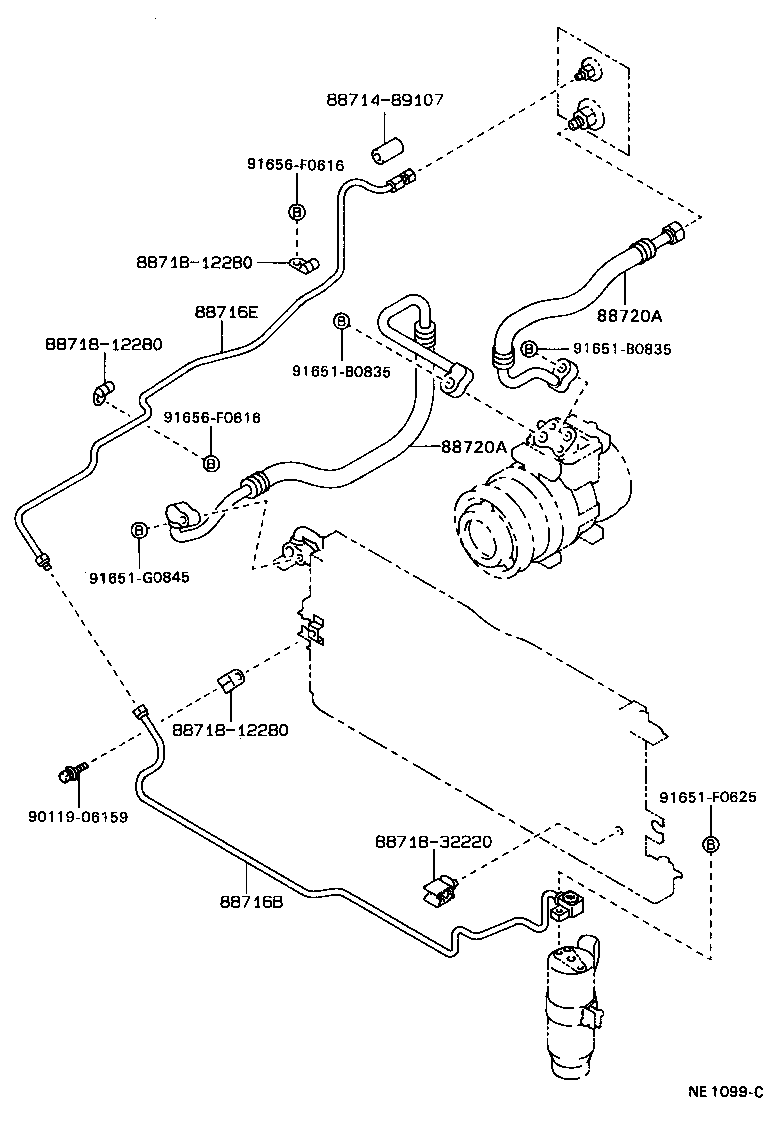

ILLUST NO. 2 OF 2(8808- )RN12#,80,VZN120..JPP..DLX,SR5..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89136 |
RN80..W;RN80..4HC;RN85,90..EFI |
1 | ||
| 88711-89136 |
RN80..W;RN80..4HC;RN85,90..EFI |
1 | ||
| 88711-35110 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88711-35110 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88711-89155 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88711-89155 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88711-35110 |
RN8#,90 |
1 | ||
| 88711-35110 |
RN8#,90 |
1 | ||
| 88711-35270 |
RN8#,90 |
1 | ||
| 88711-35270 |
RN8#,90 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-35090 |
RN8#,90..USA |
1 | ||
| 88712-35090 |
RN8#,90..USA |
1 | ||
| 88712-89138 |
RN80..W;RN80..4HC;RN12#,85,90..EFI |
1 | ||
| 88712-89138 |
RN80..W;RN80..4HC;RN12#,85,90..EFI |
1 | ||
| 88712-35200 |
RN8#,90 |
1 | ||
| 88712-35200 |
RN8#,90 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35240 |
RN8#,90,VZN90 |
1 | ||
| 88716-35240 |
RN8#,90,VZN90 |
1 | ||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89173 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88716-89173 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88716-89173 |
RN85,90..USA;RN80..G..USA;RN12#,80..EFI |
1 | ||
| 88716-89173 |
RN85,90..USA;RN80..G..USA;RN12#,80..EFI |
1 | ||
| 88716-89181 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88716-89181 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88716-89181 |
RN8#,90,VZN85,9# |
1 | ||
| 88716-89181 |
RN8#,90,VZN85,9# |
1 | ||
| 88716-35250 |
RN8#,90,VZN90 |
1 | ||
| 88716-35250 |
RN8#,90,VZN90 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| Common parts | ||||
| 82718-12280 | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
ILLUST NO. 1 OF 2(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89115 |
RN8#,90,VZN85,9# |
1 | ||
| 88460-89115 |
RN8#,90,VZN85,90 |
1 | ||
| 88460-35150 |
RN80,90,VZN90 |
1 | ||
| 88460-35130 |
RN8#,90,VZN90 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-89120 |
RN8#,90,VZN85,9# |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-89121 |
RN8#,90,VZN85,9# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
RN8#,90,VZN90 |
1 | ||
| 88471-16040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 88471-16040 |
RN8#,90,VZN90..USA DEALER OPTION |
1 | ||
| 88471-50010 |
RN8#,90,VZN90..USA MAKER OPTION |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 88472-89110 |
RN8#,90,VZN85,9# |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
RN120,8#,90,VZN120,85,9# |
1 | ||
| 88723-20020 |
RN8#,90,VZN85,90..USA..CBU |
1 | ||
| 88723-12010 |
RN80..CBR;RN85,90..5F;RN85,90..4HC..USA;RN80,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-35230 |
RN8#,90,VZN90 |
1 | ||
| 88716-89163 |
RN8#,90,VZN85,9# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-35060 |
RN8#,90 FRENCH |
1 | ||
| 88723-35050 |
RN8#,90,VZN90..USA |
1 | ||
| 88723-20020 |
RN8#,90,VZN85,9#..EFI |
1 | ||
| 88723-35060 |
RN8#,90,VZN90 FRENCH |
1 | ||
| 88723-35050 |
RN8#,90,VZN90 ENGLISH |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN80..EFI;RN80..G..USA;RN85,90,VZN120,85,9#..USA |
2 | ||
| 88578-89111 |
RN120,8#,90,VZN120,85,90..USA..CBU W(AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA DEALER OPTION |
2 | ||
| 88578-89111 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA W(AIR CONDITIONER) |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN80..EFI;RN80..G..USA;RN85,90,VZN120,85,9#..USA |
2 | ||
| 88578-89111 |
RN120,8#,90,VZN120,85,90..USA..CBU W(AIR CONDITIONER) |
2 | ||
| 88578-89103 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA DEALER OPTION |
2 | ||
| 88578-89111 |
RN120,8#,90,VZN120,85,9#..(4FC,4HC,5F)..EFI..USA W(AIR CONDITIONER) |
2 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89118 |
RN8#,90 |
1 | ||
| 88578-89118 |
RN12#,8#,90 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89119 |
RN80..G..USA;RN80..DLX..EFI;RN120,85,90,VZN85,9#..USA MAKER OPTION |
1 | ||
| 88578-89119 |
RN120,8#,90,VZN85,90..USA..CBU MAKER OPTION |
1 | ||
| 88578-89127 |
RN80..G..USA;RN80..DLX..EFI;RN85,90,VZN85,9#..USA DEALER OPTION |
1 | ||
| 88578-89119 |
RN8#,90,VZN85,90..USA..CBU MAKER OPTION |
1 | ||
| 88578-89127 |
RN8#,90,VZN85,90..USA..CBU DEALER OPTION |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN8#,90,VZN85,9# |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89123 |
RN80,90,VZN90 RH |
1 | ||
| 88578-89123 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88578-89122 |
RN8#,90,VZN85,9# LH |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89123 |
RN80,90,VZN90 RH |
1 | ||
| 88578-89123 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88578-89122 |
RN8#,90,VZN85,9# LH |
1 | ||
| 88891G - PACKING G (FOR COOLER) | ||||
| 88578-89107 |
RN12#,8#,90,VZN85,9# |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89114 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88892-89114 |
RN8#,90,VZN85,90 RH |
1 | ||
| 88892-89114 |
RN8#,90,VZN85,90..USA..CBU MAKER OPTION,LH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,9# LH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,90..USA..CBU MAKER OPTION,RH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,90..USA..CBU DEALER OPTION,LH |
1 | ||
| 88892-89114 |
RN8#,90,VZN85,90..USA..CBU DEALER OPTION,RH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89114 |
RN8#,90,VZN85,9# RH |
1 | ||
| 88892-89114 |
RN8#,90,VZN85,90 RH |
1 | ||
| 88892-89114 |
RN8#,90,VZN85,90..USA..CBU MAKER OPTION,LH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,9# LH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,90..USA..CBU MAKER OPTION,RH |
1 | ||
| 88892-89115 |
RN8#,90,VZN85,90..USA..CBU DEALER OPTION,LH |
1 | ||
| 88892-89114 |
RN8#,90,VZN85,90..USA..CBU DEALER OPTION,RH |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-95704 | ||||
| 88695-89102 | ||||
| 90091-20609 | ||||
| 90099-32128 | ||||
| 90119-06336 | ||||
| 90119-08671 | ||||
| 90119-90871 | ||||
| 90179-06026 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 91651-60814 | ||||
| 91651-F0625 | ||||
| 91656-F0616 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||
ILLUST NO. 2 OF 2(9109- )JPP
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-35240 |
RN8#,90,VZN90 |
1 | ||
| 88716-89162 |
RN8#,90,VZN85,9# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89173 |
RN8#,90..(4HC,5F)..EFI..USA MAKER OPTION |
1 | ||
| 88716-89173 |
RN85,90..USA;RN80..G..USA;RN12#,80..EFI |
1 | ||
| 88716-89181 |
RN8#,90..(4HC,5F)..EFI..USA DEALER OPTION |
1 | ||
| 88716-89181 |
RN8#,90,VZN120,85,9# |
1 | ||
| 88716-89181 |
RN8#,90,VZN85,9# |
1 | ||
| 88716-35250 |
RN8#,90,VZN90 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89122 |
RN8#,90..EFI..USA SUCTION |
1 | ||
| 88720-89120 |
RN8#,90..EFI..USA DISCHARGE |
1 | ||
| 88720-35230 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN8#,90..USA |
1 | ||
| 88720-35090 |
RN120,8#,90..JPP..USA |
1 | ||
| Common parts | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 90119-06159 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
