RN80L-TRLDSA3 (1988)
Toyota 4-Runner Truck (Jpp)

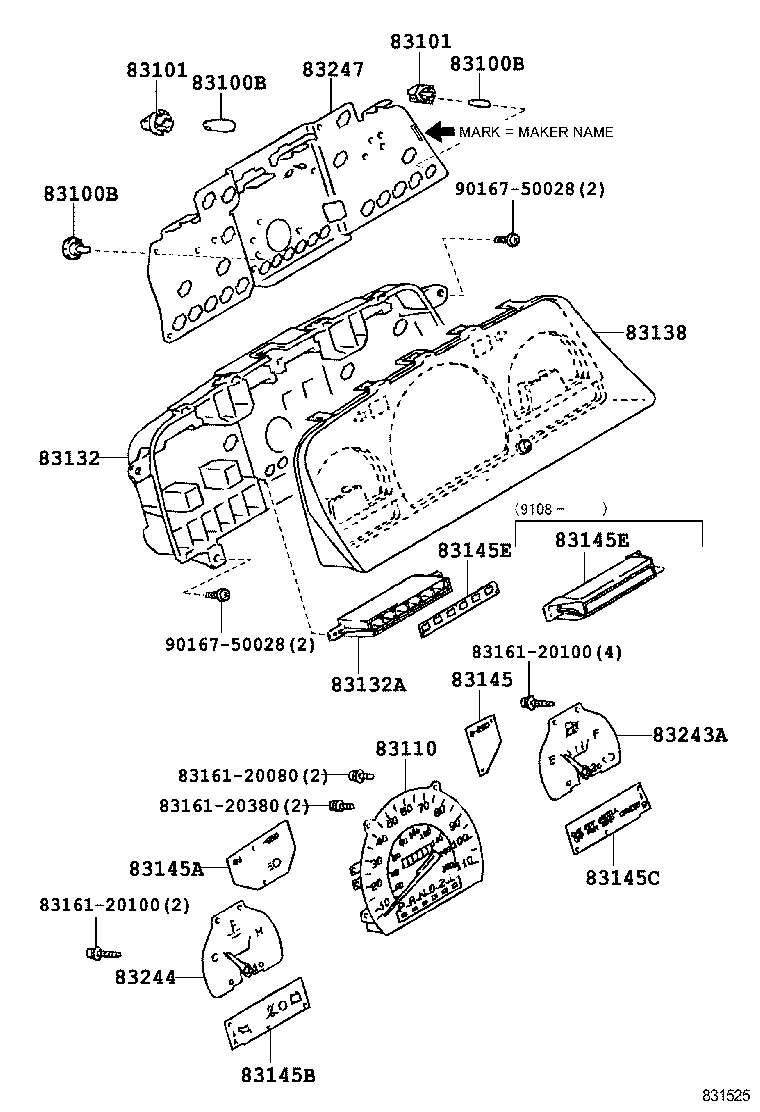

ILLUST NO. 1 OF 3(8808- )JPP..DLX,STD
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN8#,90..DLX..CBR..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..DLX..CBR..USA 12V 3.4W,W(TRIP METER) |
11 | ||
| 90981-11018 |
RN8#,90..5F..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN80..4HC;RN8#,90..CND;RN85,90..DLX..EFI..USA;RN80,VZN85,9#..(R,W)..(DLX,STD) 12V 3.4W |
11 | ||
| 90981-11018 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..G..USA 12V 3.4W |
9 | ||
| 99132-12034 |
RN8#,90,VZN85,90..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN8#,90..DLX..CBR..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..DLX..CBR..USA 12V 3.4W,W(TRIP METER) |
11 | ||
| 90981-11018 |
RN8#,90..5F..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN80..4HC;RN8#,90..CND;RN85,90..DLX..EFI..USA;RN80,VZN85,9#..(R,W)..(DLX,STD) 12V 3.4W |
11 | ||
| 90981-11018 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..G..USA 12V 3.4W |
9 | ||
| 99132-12034 |
RN8#,90,VZN85,90..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN8#,90..DLX..CBR..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..DLX..CBR..USA 12V 3.4W,W(TRIP METER) |
11 | ||
| 90981-11018 |
RN8#,90..5F..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN80..4HC;RN8#,90..CND;RN85,90..DLX..EFI..USA;RN80,VZN85,9#..(R,W)..(DLX,STD) 12V 3.4W |
11 | ||
| 90981-11018 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..G..USA 12V 3.4W |
9 | ||
| 99132-12034 |
RN8#,90,VZN85,90..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN8#,90..DLX..CBR..USA 12V 1.4W BULB |
1 | ||
| 83101-14040 |
RN8#,90..5F..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83101-20040 |
RN8#,90..DLX..CBR..USA 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,9#..(R,W)..(DLX,STD)..USA 12V 3.4W BULB |
11 | ||
| 83101-14040 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.4W BULB |
1 | ||
| 83101-20040 |
RN8#,90..G..USA 12V 3.4W BULB |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN8#,90..DLX..CBR..USA 12V 1.4W BULB |
1 | ||
| 83101-14040 |
RN8#,90..5F..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83101-20040 |
RN8#,90..DLX..CBR..USA 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,9#..(R,W)..(DLX,STD)..USA 12V 3.4W BULB |
11 | ||
| 83101-14040 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.4W BULB |
1 | ||
| 83101-20040 |
RN8#,90..G..USA 12V 3.4W BULB |
9 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89299 |
RN8#,90..5F..DLX..USA W(TRIP METER) |
1 | ||
| 83110-89318 |
RN8#,90..5F..DLX..USA W(TRIP METER & TACHOMETER) |
1 | ||
| 83110-89298 |
RN8#,90..MTM..(DLX,STD)..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89502 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83132-89504 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89520 |
VZN95;VZN85..USA;VZN85..4HC..CND;RN8#,90,VZN90..4HC..DLX;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA |
1 | ||
| 83138-89508 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83138-89518 |
RN8#,90..G;RN8#,90,VZN85,90..5F..(DLX,STD)..EFI..CND |
1 | ||
| 83138-89522 |
RN80..5F..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA W(TRIP METER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89504 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83145-89546 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89502 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89506 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83145-89548 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89550 |
RN8#,90..5F..DLX..USA W(TRIP METER & TACHOMETER) |
1 | ||
| 83145-89508 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA |
1 | ||
| 83145-89510 |
RN8#,90,VZN85,9#..5F..(DLX,STD)..USA W(TRIP METER) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89504 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83243-89506 |
RN8#,90..G..USA |
1 | ||
| 83243-89508 |
RN8#,90..DLX..CBR..USA W(TRIP METER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89508 |
RN8#,90..DLX..CBR..USA W(TRIP METER) |
1 | ||
| 83244-89506 |
RN8#,90..G..USA;RN8#,90,VZN85,9#..4HC..(DLX,STD) |
1 | ||
| 83244-89504 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89534 |
RN8#,90,VZN85,9#..MTM..(DLX,STD) |
1 | ||
| 83247-89512 |
RN8#,90..5F..DLX W(TRIP METER & TACHOMETER),NO.1 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 90167-50028 | ||||

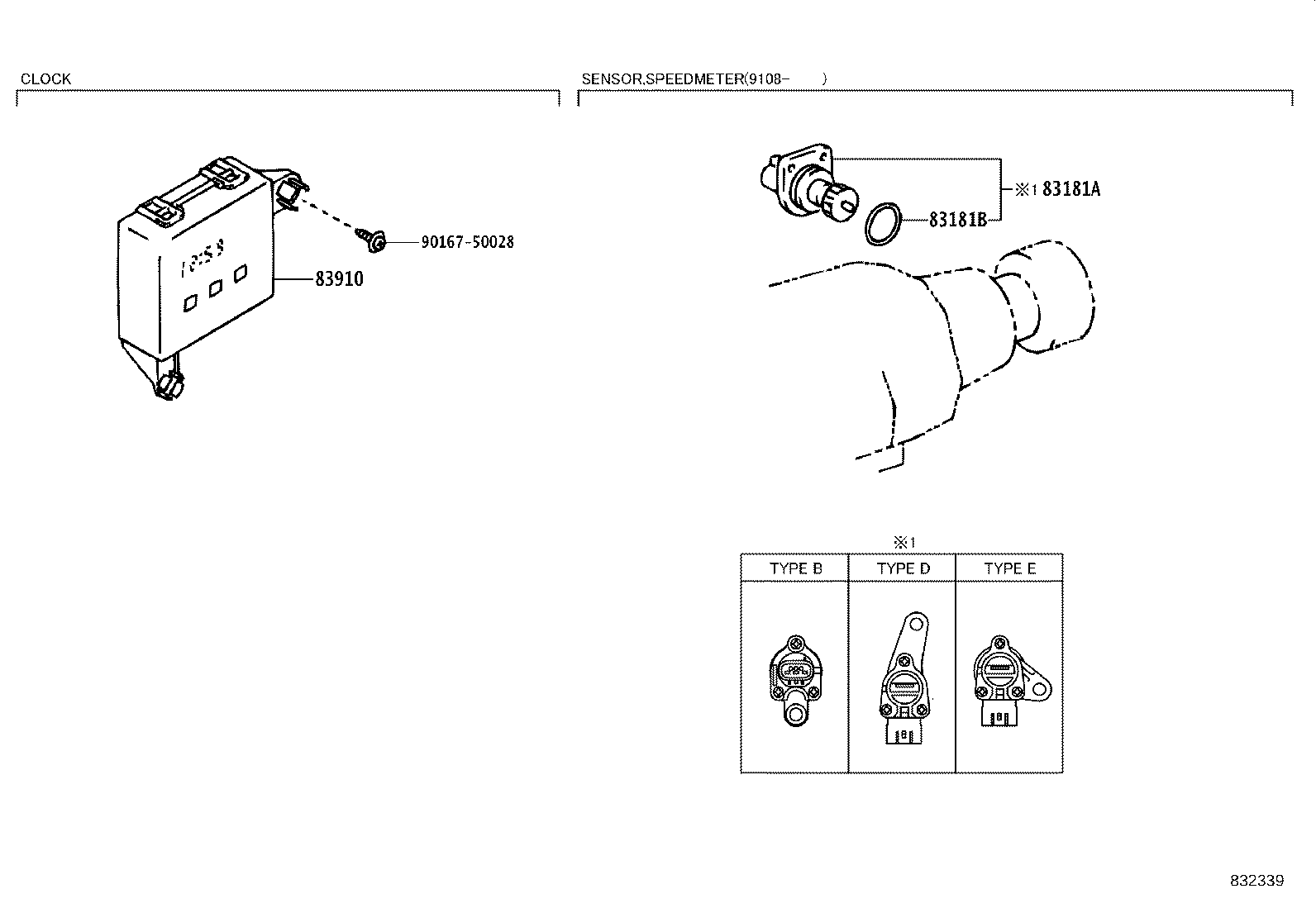

ILLUST NO. 3 OF 3(8808- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-89107 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| Common parts | ||||
| 90167-50028 | ||||

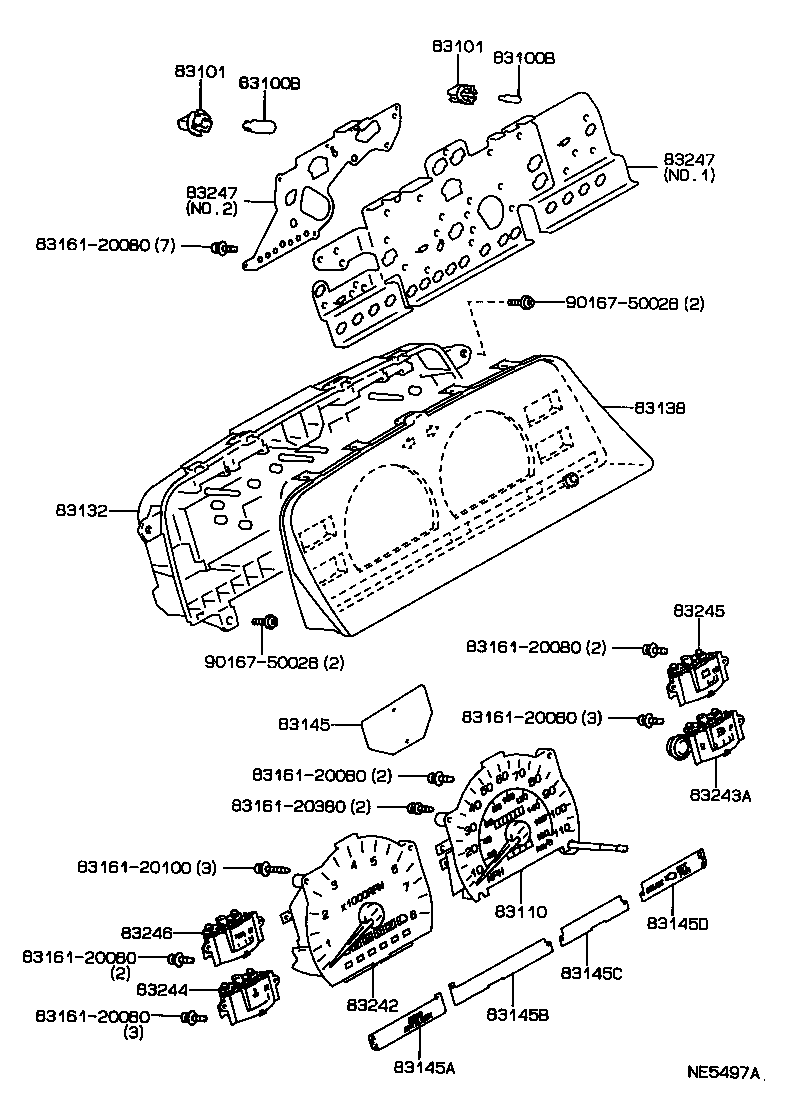

ILLUST NO. 1 OF 3(8808- )JPP..4HC..SR5 ; (8808- )JPP..4FC,5F..DLX,SR5
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN8#,90..DLX..CBR..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..DLX..CBR..USA 12V 3.4W,W(TRIP METER) |
11 | ||
| 90981-11018 |
RN8#,90..5F..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN80..4HC;RN8#,90..CND;RN85,90..DLX..EFI..USA;RN80,VZN85,9#..(R,W)..(DLX,STD) 12V 3.4W |
11 | ||
| 90981-11018 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..G..USA 12V 3.4W |
9 | ||
| 99132-12034 |
RN8#,90,VZN85,90..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RN8#,90..DLX..CBR..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..DLX..CBR..USA 12V 3.4W,W(TRIP METER) |
11 | ||
| 90981-11018 |
RN8#,90..5F..DLX 12V 1.2W W/O SOCKET,W(TRIP METER & TACHOMETER) |
11 | ||
| 99132-12034 |
RN80..4HC;RN8#,90..CND;RN85,90..DLX..EFI..USA;RN80,VZN85,9#..(R,W)..(DLX,STD) 12V 3.4W |
11 | ||
| 90981-11018 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
RN8#,90..G..USA 12V 3.4W |
9 | ||
| 99132-12034 |
RN8#,90,VZN85,90..5F..DLX 12V 3.4W,W(TRIP METER & TACHOMETER) |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN8#,90..DLX..CBR..USA 12V 1.4W BULB |
1 | ||
| 83101-14040 |
RN8#,90..5F..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83101-20040 |
RN8#,90..DLX..CBR..USA 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,9#..(R,W)..(DLX,STD)..USA 12V 3.4W BULB |
11 | ||
| 83101-14040 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.4W BULB |
1 | ||
| 83101-20040 |
RN8#,90..G..USA 12V 3.4W BULB |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN8#,90..DLX..CBR..USA 12V 1.4W BULB |
1 | ||
| 83101-14040 |
RN8#,90..5F..DLX W(TRIP METER & TACHOMETER),12V 1.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER),12V 3.4W BULB |
6 | ||
| 83101-20040 |
RN8#,90..DLX..CBR..USA 12V 3.4W BULB |
11 | ||
| 83101-20040 |
RN8#,90,VZN85,9#..(R,W)..(DLX,STD)..USA 12V 3.4W BULB |
11 | ||
| 83101-14040 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA 12V 1.4W BULB |
1 | ||
| 83101-20040 |
RN8#,90..G..USA 12V 3.4W BULB |
9 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89299 |
RN8#,90..5F..DLX..USA W(TRIP METER) |
1 | ||
| 83110-89318 |
RN8#,90..5F..DLX..USA W(TRIP METER & TACHOMETER) |
1 | ||
| 83110-89298 |
RN8#,90..MTM..(DLX,STD)..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89502 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83132-89504 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89520 |
VZN95;VZN85..USA;VZN85..4HC..CND;RN8#,90,VZN90..4HC..DLX;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA |
1 | ||
| 83138-89508 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83138-89518 |
RN8#,90..G;RN8#,90,VZN85,90..5F..(DLX,STD)..EFI..CND |
1 | ||
| 83138-89522 |
RN80..5F..DLX;RN85,90,VZN85,9#..5F..(DLX,STD)..USA W(TRIP METER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89504 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83145-89546 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89502 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89506 |
RN8#,90,VZN85,9#..DLX,STD |
1 | ||
| 83145-89548 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89550 |
RN8#,90..5F..DLX..USA W(TRIP METER & TACHOMETER) |
1 | ||
| 83145-89508 |
VZN95;VZN85..USA;VZN90..4HC;VZN85..4HC..CND;RN8#,90,VZN90..(R,W)..(DLX,STD)..USA |
1 | ||
| 83145-89510 |
RN8#,90,VZN85,9#..5F..(DLX,STD)..USA W(TRIP METER) |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89552 |
RN85,90..4HC..SR5;RN12#,8#,90,VZN120,85,90..(4FC,5F)..(DLX,SR5) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-89506 |
RN120,8#,90..(4FC,5F)..USA |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89504 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83243-89506 |
RN8#,90..G..USA |
1 | ||
| 83243-89508 |
RN8#,90..DLX..CBR..USA W(TRIP METER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89508 |
RN8#,90..DLX..CBR..USA W(TRIP METER) |
1 | ||
| 83244-89506 |
RN8#,90..G..USA;RN8#,90,VZN85,9#..4HC..(DLX,STD) |
1 | ||
| 83244-89504 |
RN8#,90,VZN85,90..5F..DLX W(TRIP METER & TACHOMETER) |
1 | ||
| 83245 - GAUGE SUB-ASSY, VOLT | ||||
| 83245-89502 |
RN85,90..4HC..SR5;RN12#,8#,90,VZN120,85,90..(4FC,5F)..(DLX,SR5) |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-89502 |
RN85,90..4HC..SR5;RN12#,8#,90,VZN120,85,90..(4FC,5F)..(DLX,SR5) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89534 |
RN8#,90,VZN85,9#..MTM..(DLX,STD) |
1 | ||
| 83247-89512 |
RN8#,90..5F..DLX W(TRIP METER & TACHOMETER),NO.1 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89534 |
RN8#,90,VZN85,9#..MTM..(DLX,STD) |
1 | ||
| 83247-89512 |
RN8#,90..5F..DLX W(TRIP METER & TACHOMETER),NO.1 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 90167-50028 | ||||
ILLUST NO. 2 OF 3(8808-9108)RN12#,8#,90..JPP ; (9408- )RN90..JPP

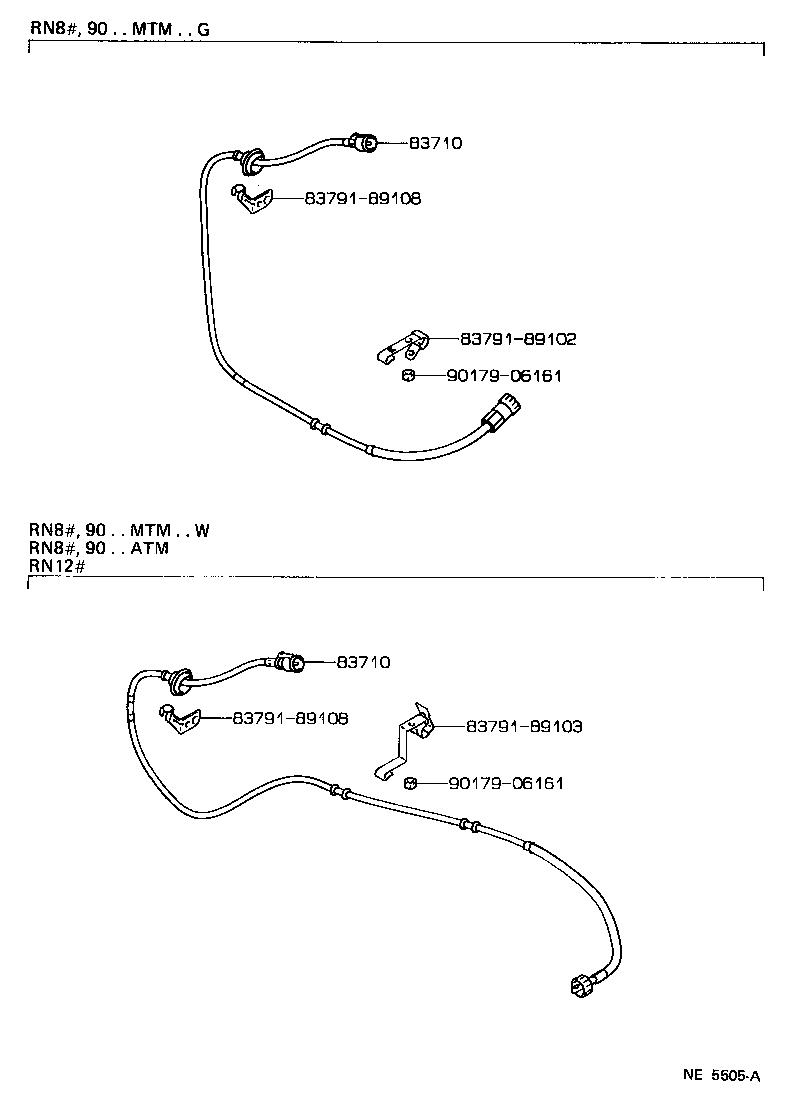

SPEEDOMETER DRIVE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89179 |
RN8#,90..G |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89179 |
RN8#,90..G |
1 | ||
| Common parts | ||||
| 83791-89102 | ||||
| 83791-89103 | ||||
| 83791-89108 | ||||
| 90179-06161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
