RN80L-TRLDSA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9502)JPP

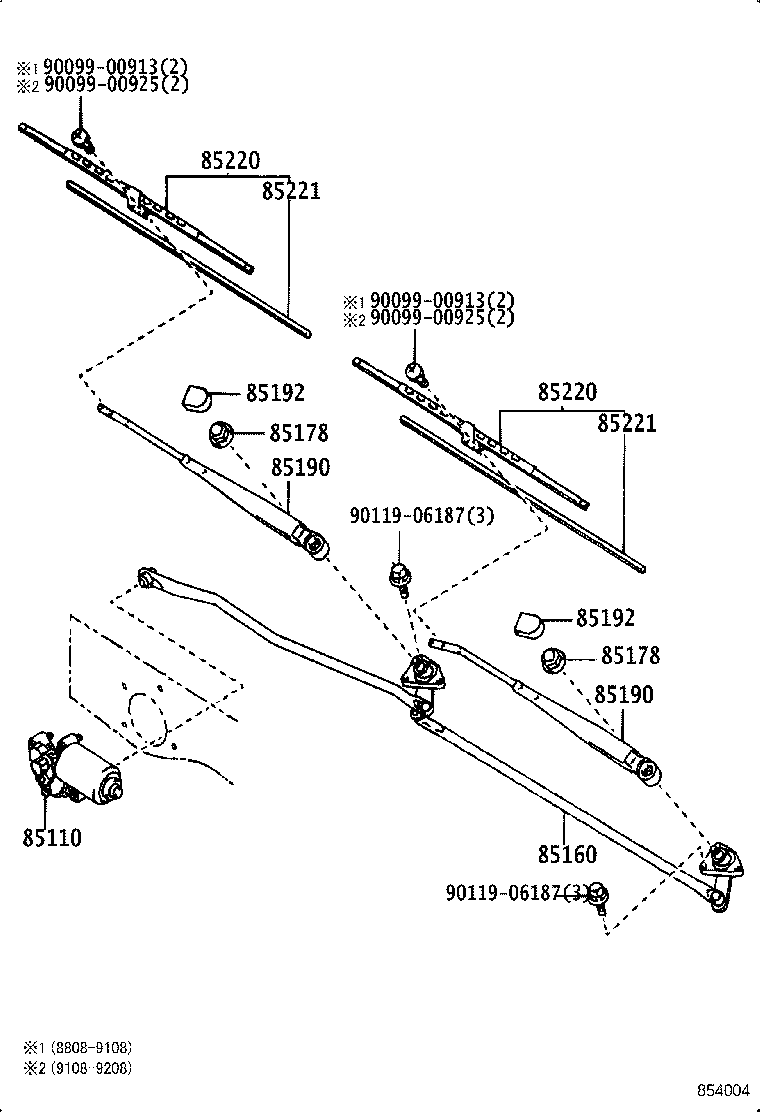

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9009900925 9009900925 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-89143

RN120,8#,90,VZN120,85,9#..USA

 1
85110-89144

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-89128

RN80..G..USA;RN80..(4HC,5F)..EFI..USA;RN120,85,90,VZN120,85,9#..USA

COLD SPEC (USA)

 1
85160-89127

RN120,8#,90,VZN120,85,9#..USA

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

RN12#,8#,90,VZN120,85,9#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

RN12#,8#,90,VZN120,85,9#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89137

RN12#,8#,90,VZN120,85,9#

LH

 1
85210-89106

RN12#,8#,90,VZN120,85,9#

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89137

RN12#,8#,90,VZN120,85,9#

LH

 1
85210-89106

RN12#,8#,90,VZN120,85,9#

RH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

RN12#,8#,90,VZN120,85,9#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

RN12#,8#,90,VZN120,85,9#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12660

RN12#,8#,90,VZN120,85,9#

LH

 1
85220-12670

RN12#,8#,90,VZN120,85,9#

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12660

RN12#,8#,90,VZN120,85,9#

LH

 1
85220-12670

RN12#,8#,90,VZN120,85,9#

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-89106

RN12#,8#,90,VZN120,85,9#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-89106

RN12#,8#,90,VZN120,85,9#

 2
Common parts
90099-00913
90099-00925
90119-06187
