RN80L-TRKRSA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP..4F

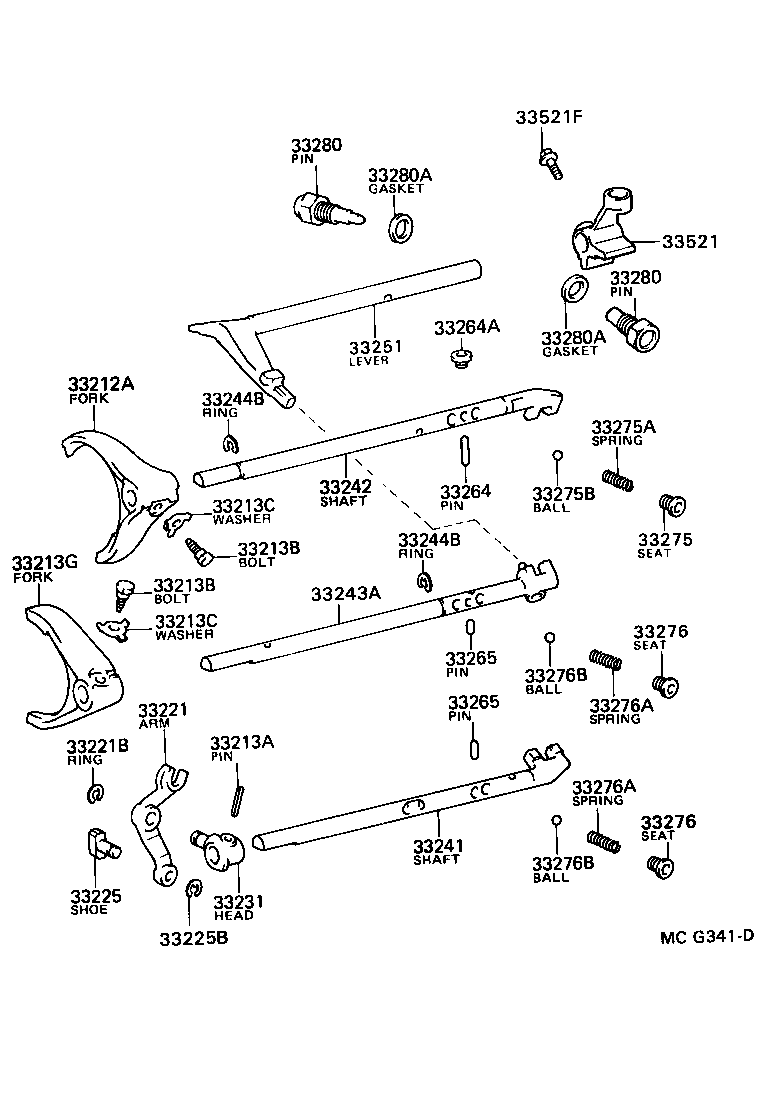

Click highlighted areas on diagram

W46

diagram 33212A 33213A 33213B 33213B 33213C 33213C 33213G 33221 33221B 33225 33225B 33231 33241 33242 33243A 33244B 33244B 33251 33264 33264A 33265 33265 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33280 33280 33280A 33280A 33521 33521F
Part # Description Qty Price
33212A - FORK, GEAR SHIFT, NO.1
33212-22020

RN121,8#,90..W

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
33213B - BOLT(FOR SHIFT FORK SET)
90113-06005

RN121,8#,90..W

 2
33213B - BOLT(FOR SHIFT FORK SET)
90113-06005

RN121,8#,90..W

 2
33213C - WASHER, LOCK(FOR SHIFT FORK SET)
90215-09002

RN121,8#,90..W

 2
33213C - WASHER, LOCK(FOR SHIFT FORK SET)
90215-09002

RN121,8#,90..W

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-22030

RN121,8#,90..W

 1
33221 - ARM, REVERSE SHIFT
33221-22011

RN121,8#,90..W

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-01000

RN121,8#,90..MTM

 1
33225 - SHOE, SHIFT ARM
33225-22011

RN121,8#,90..W

 1
33225B - RING, E(FOR SHIFT ARM SHOE)
96160-00600

RN121,8#,90..W

 1
33231 - HEAD, REVERSE SHIFT
33231-22021

RN80..W..STD

 1
33241 - SHAFT, REVERSE SHIFT FORK
33241-22010

RN80..W..STD

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-22020

RN121,8#,90..W

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33240-22020

RN121,8#,90..W

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
33251 - LEVER, SHIFT & SELECT
33251-22051

RN80..4F..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264A - PLUG, INTER LOCK HOLE
90341-10065

RN121,8#,90..W

L=7.5,OD=15

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

RN8#,90..W

 2
90341-12008

RN8#,90,VZN85,9#..G,R

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12005

RN8#,90..W

 2
90341-12008

RN8#,90,VZN85,9#..G,R

 1
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-13004

RN121,8#,90..W

 2
90501-10061

RN8#,90,VZN85,9#..G,R

 1
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-13004

RN121,8#,90..W

 2
90501-10061

RN8#,90,VZN85,9#..G,R

 1
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

RN121,8#,90..W

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

RN121,8#,90..W

 2
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
90341-18009

RN80..W..STD

LH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
90341-18009

RN80..W..STD

LH

 1
33280A - GASKET, REVERSE RESTRICT PIN
90430-18008

RN121,8#,90..W

 2
33280A - GASKET, REVERSE RESTRICT PIN
90430-18008

RN121,8#,90..W

 2
33521 - HOUSING, SHIFT LEVER
33521-35170

RN80..W..STD

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

RN80..STD..USA;RN121,8#,90,VZN85,9#..5F..EFI

 1

(8808-9008)RN80..JPP..STD..USA

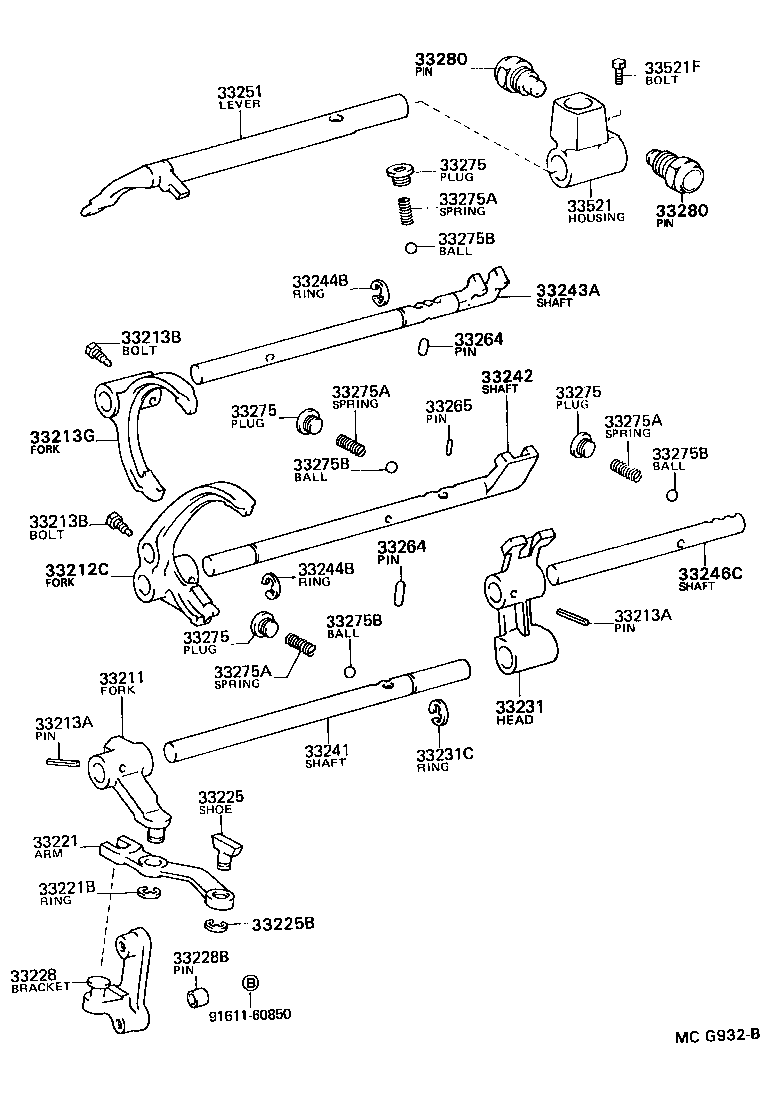

Click highlighted areas on diagram

G40

diagram 33211 33212C 33213A 33213A 33213B 33213B 33213G 33221 33221B 33225 33225B 33228 33228B 33231 33231C 33241 33242 33243A 33244B 33244B 33246C 33251 33264 33264 33265 33275 33275 33275 33275 33275A 33275A 33275A 33275A 33275B 33275B 33275B 33275B 33280 33280 33521 33521F 9161160850
Part # Description Qty Price
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

RN121,8#,90..W

 1
33213B - BOLT(FOR SHIFT FORK SET)
90113-06005

RN121,8#,90..W

 2
33213B - BOLT(FOR SHIFT FORK SET)
90113-06005

RN121,8#,90..W

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-22030

RN121,8#,90..W

 1
33221 - ARM, REVERSE SHIFT
33221-22011

RN121,8#,90..W

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-01000

RN121,8#,90..MTM

 1
33225 - SHOE, SHIFT ARM
33225-22011

RN121,8#,90..W

 1
33225B - RING, E(FOR SHIFT ARM SHOE)
96160-00600

RN121,8#,90..W

 1
33231 - HEAD, REVERSE SHIFT
33231-22021

RN80..W..STD

 1
33241 - SHAFT, REVERSE SHIFT FORK
33241-22010

RN80..W..STD

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-22020

RN121,8#,90..W

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33240-22020

RN121,8#,90..W

 1
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

RN121,8#,90..MTM

 2
33251 - LEVER, SHIFT & SELECT
33251-22051

RN80..4F..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
33264-22010

RN121,8#,90..W

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
33266-22010

RN121,8#,90..W

L=13.6,OD=6

 1
33265-22010

RN121,8#,90..W

L=11.2,OD=4

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12014

RN121,8#,90..W

OD=17

 1
90341-12008

RN8#,90,VZN85,9#..G,R

OD=18

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-13004

RN121,8#,90..W

L=20.65

 1
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33275B - BALL, SHAFT DETENT
90360-10003

RN121,8#,90..W

 1
90360-10003

RN8#,90,VZN85,9#..G,R

 4
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
90341-18009

RN80..W..STD

LH

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-22020

RN121,8#,90..W

RH

 1
90341-18009

RN80..W..STD

LH

 1
33521 - HOUSING, SHIFT LEVER
33521-35170

RN80..W..STD

 1
33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING)
90105-08079

RN80..STD..USA;RN121,8#,90,VZN85,9#..5F..EFI

 1
Common parts
91611-60850
