RN80L-TRKRSA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP

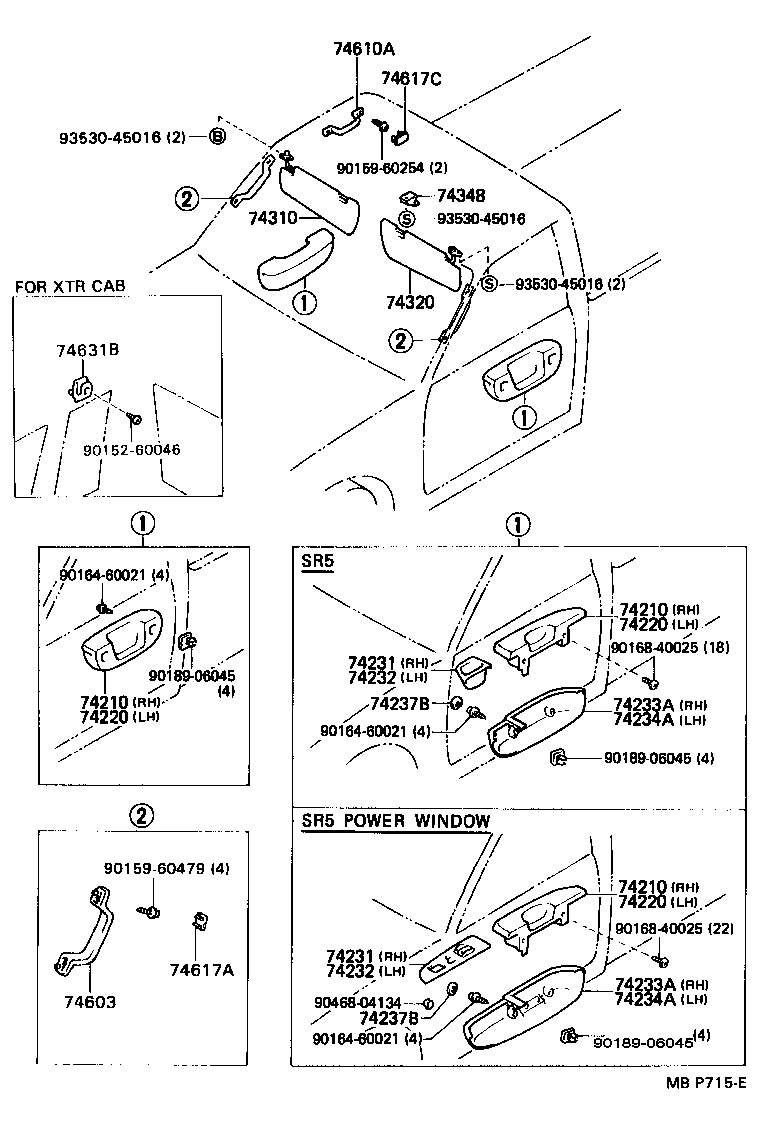

Click highlighted areas on diagram

diagram 74210 74210 74210 74220 74220 74220 74231 74231 74232 74232 74233A 74233A 74234A 74234A 74237B 74237B 74310 74320 74348 74603 74610A 74617A 74617C 74631B 9015260046 9015960254 9015960479 9016460021 9016460021 9016460021 9016840025 9016840025 9018906045 9018906045 9018906045 9046804134 9353045016 9353045016 9353045016
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-8910504

RN80,VZN85,95..STD

BLUE,TRIM8#

 1
74210-8910503

RN80,VZN85,95..STD

GRAY,TRIM1#

 1
74210-8910506

RN80,VZN85,95..STD

BROWN,TRIM4#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-8910504

RN80,VZN85,95..STD

BLUE,TRIM8#

 1
74210-8910503

RN80,VZN85,95..STD

GRAY,TRIM1#

 1
74210-8910506

RN80,VZN85,95..STD

BROWN,TRIM4#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-8910504

RN80,VZN85,95..STD

BLUE,TRIM8#

 1
74210-8910503

RN80,VZN85,95..STD

GRAY,TRIM1#

 1
74210-8910506

RN80,VZN85,95..STD

BROWN,TRIM4#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910504

RN80,VZN85,95..STD

BLUE,TRIM8#

 1
74210-8910506

RN80,VZN85,95..STD

BROWN,TRIM4#

 1
74210-8910503

RN80,VZN85,95..STD

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910504

RN80,VZN85,95..STD

BLUE,TRIM8#

 1
74210-8910506

RN80,VZN85,95..STD

BROWN,TRIM4#

 1
74210-8910503

RN80,VZN85,95..STD

GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910504

RN80,VZN85,95..STD

BLUE,TRIM8#

 1
74210-8910506

RN80,VZN85,95..STD

BROWN,TRIM4#

 1
74210-8910503

RN80,VZN85,95..STD

GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-8913303

VZN90..DLX;RN12#,8#,90,VZN85,95

GRAY,TRIM1#

 1
74310-8913304

VZN90..DLX;RN12#,8#,90,VZN85,95

BLUE,TRIM8#

 1
74310-8913306

VZN90..DLX;RN12#,8#,90,VZN85,95

BROWN,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-8912406

RN8#,90,VZN85,9#..DLX,STD

BROWN,TRIM4#

 1
74320-8912404

RN8#,90,VZN85,9#..DLX,STD

BLUE,TRIM8#

 1
74320-8912403

RN8#,90,VZN85,9#..DLX,STD

GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-1401043

RN8#,90,VZN85,9#

GRAY,TRIM1#

 2
74348-1401024

RN8#,90,VZN85,9#

BLUE,TRIM8#

 2
74348-1401006

RN8#,90,VZN85,9#

BROWN,TRIM4#

 2
Common parts
90152-60046
90159-60254
90159-60479
90164-60021
90168-40025
90189-06045
90468-04134
93530-45016
