RN131L-RKMSEK (1989)
Toyota 4-Runner Truck (Jpp)

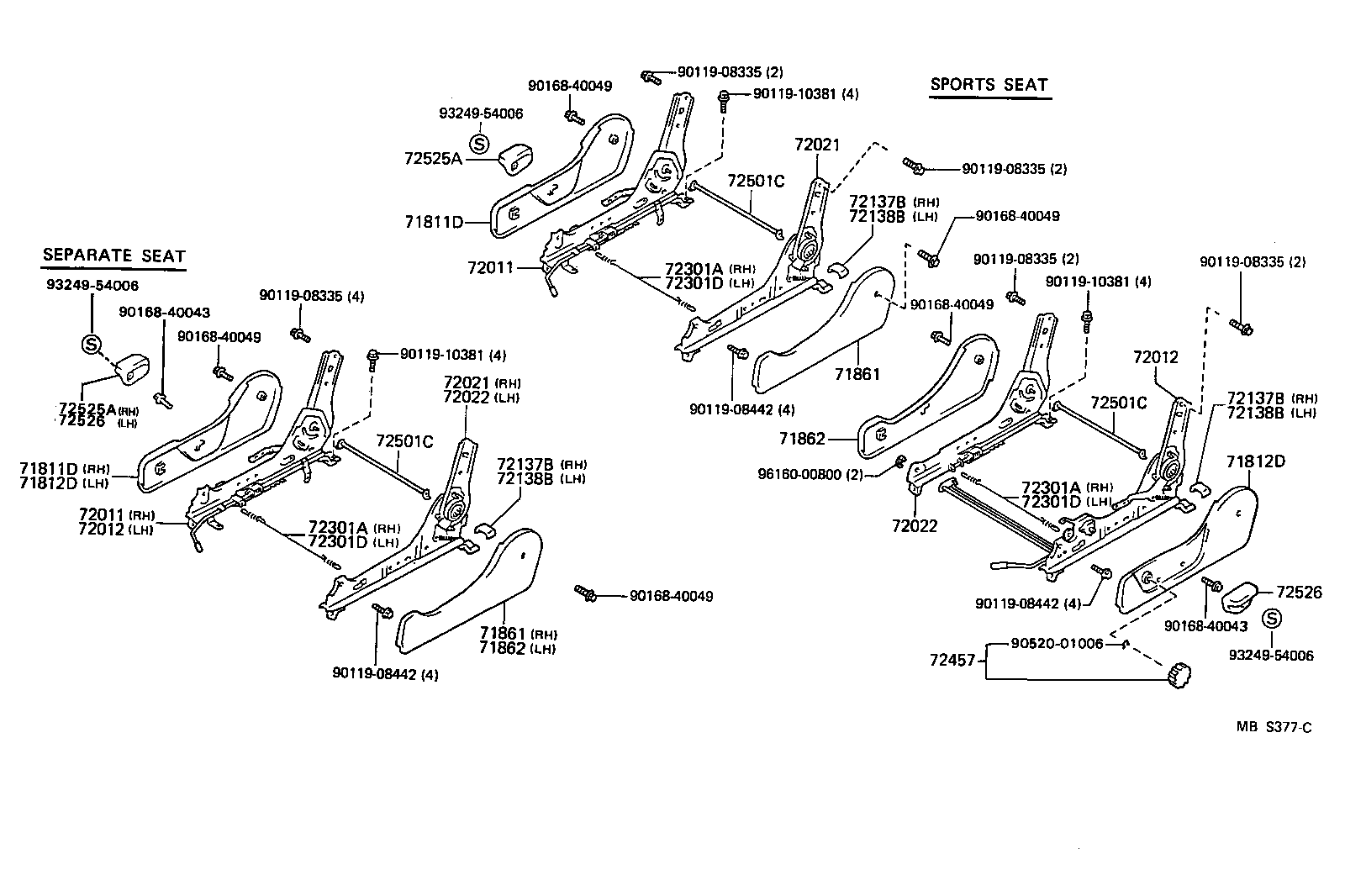

ILLUST NO. 2 OF 3(8904- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911106 |
RN110,13#,VZN110,13#..4D,T1 BROWN,TRIM4# |
1 | ||
| 71811-8911102 |
RN110,13#,VZN110,13#..4D,T1 RED,TRIM3# |
1 | ||
| 71811-8911104 |
RN110,13#,VZN110,13#..4D,T1 BLUE,TRIM8# |
1 | ||
| 71811-8911103 |
RN110,13#,VZN110,13#..4D,T1 GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8911106 |
RN110,13#,VZN110,13#..4D,T1 BROWN,TRIM4# |
1 | ||
| 71811-8911102 |
RN110,13#,VZN110,13#..4D,T1 RED,TRIM3# |
1 | ||
| 71811-8911104 |
RN110,13#,VZN110,13#..4D,T1 BLUE,TRIM8# |
1 | ||
| 71811-8911103 |
RN110,13#,VZN110,13#..4D,T1 GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8911306 |
VZN110..DLX;RN110,13#,VZN13# BROWN,TRIM4# |
1 | ||
| 71812-8911202 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 71812-8911302 |
VZN110..DLX;RN110,13#,VZN13# RED,TRIM3# |
1 | ||
| 71812-8911304 |
RN110,13#;VZN13#..2D;VZN110..DLX BLUE,TRIM8# |
1 | ||
| 71812-8911203 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71812-8911206 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 71812-8911204 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 71812-8911303 |
VZN110..DLX;RN110,13#,VZN13# GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8911306 |
VZN110..DLX;RN110,13#,VZN13# BROWN,TRIM4# |
1 | ||
| 71812-8911202 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 71812-8911302 |
VZN110..DLX;RN110,13#,VZN13# RED,TRIM3# |
1 | ||
| 71812-8911304 |
RN110,13#;VZN13#..2D;VZN110..DLX BLUE,TRIM8# |
1 | ||
| 71812-8911203 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71812-8911206 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 71812-8911204 |
RN101,13#,VZN100,13#..(4D,T1)..SR5 W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 71812-8911303 |
VZN110..DLX;RN110,13#,VZN13# GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-8910102 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 RED,TRIM3# |
1 | ||
| 71861-8910104 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 BLUE,TRIM8# |
1 | ||
| 71861-8910103 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 GRAY,TRIM1# |
1 | ||
| 71861-8910106 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 BROWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-8910102 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 RED,TRIM3# |
1 | ||
| 71861-8910104 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 BLUE,TRIM8# |
1 | ||
| 71861-8910103 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 GRAY,TRIM1# |
1 | ||
| 71861-8910106 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-8910206 |
VZN110..DLX;RN110,13#,VZN13# BROWN,TRIM4# |
1 | ||
| 71862-8910202 |
VZN110..DLX;RN110,13#,VZN13# RED,TRIM3# |
1 | ||
| 71862-8910203 |
VZN110..DLX;RN110,13#,VZN13# GRAY,TRIM1# |
1 | ||
| 71862-8910204 |
VZN110..DLX;RN110,13#,VZN13# BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-8910206 |
VZN110..DLX;RN110,13#,VZN13# BROWN,TRIM4# |
1 | ||
| 71862-8910202 |
VZN110..DLX;RN110,13#,VZN13# RED,TRIM3# |
1 | ||
| 71862-8910203 |
VZN110..DLX;RN110,13#,VZN13# GRAY,TRIM1# |
1 | ||
| 71862-8910204 |
VZN110..DLX;RN110,13#,VZN13# BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910304 |
RN110,13#,VZN110,13#..4D,T1 BLUE,TRIM8# |
2 | ||
| 72137-8910302 |
RN110,13#,VZN110,13#..4D,T1 RED,TRIM3# |
2 | ||
| 72137-8910306 |
RN110,13#,VZN110,13#..4D,T1 BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN110,13#,VZN110,13#..4D,T1 GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910304 |
RN110,13#,VZN110,13#..4D,T1 BLUE,TRIM8# |
2 | ||
| 72137-8910302 |
RN110,13#,VZN110,13#..4D,T1 RED,TRIM3# |
2 | ||
| 72137-8910306 |
RN110,13#,VZN110,13#..4D,T1 BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN110,13#,VZN110,13#..4D,T1 GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-8910304 |
RN110,13#,VZN110,13#..4D,T1 BLUE,TRIM8# |
2 | ||
| 72137-8910302 |
RN110,13#,VZN110,13#..4D,T1 RED,TRIM3# |
2 | ||
| 72137-8910306 |
RN110,13#,VZN110,13#..4D,T1 BROWN,TRIM4# |
2 | ||
| 72137-8910303 |
RN110,13#,VZN110,13#..4D,T1 GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910303 |
RN110,13#,VZN110,13# GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN110,13#,VZN110,13# BLUE,TRIM8# |
2 | ||
| 72137-8910302 |
RN110,13#,VZN110,13# RED,TRIM3# |
2 | ||
| 72137-8910306 |
RN110,13#,VZN110,13# BROWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910303 |
RN110,13#,VZN110,13# GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN110,13#,VZN110,13# BLUE,TRIM8# |
2 | ||
| 72137-8910302 |
RN110,13#,VZN110,13# RED,TRIM3# |
2 | ||
| 72137-8910306 |
RN110,13#,VZN110,13# BROWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-8910303 |
RN110,13#,VZN110,13# GRAY,TRIM1# |
2 | ||
| 72137-8910304 |
RN110,13#,VZN110,13# BLUE,TRIM8# |
2 | ||
| 72137-8910302 |
RN110,13#,VZN110,13# RED,TRIM3# |
2 | ||
| 72137-8910306 |
RN110,13#,VZN110,13# BROWN,TRIM4# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89113 |
RN110,13#,VZN110,13# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89113 |
RN110,13#,VZN110,13# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-89113 |
RN110,13#,VZN110,13# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89113 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89113 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-89113 |
RN110,VZN110;RN101,13#,VZN100,13#..SR5 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-8910202 |
RN101,110,13#,VZN100,110,13#..SR5 RED,TRIM3# |
2 | ||
| 72457-1403052 |
RN101,110,13#,VZN100,110,13#..SR5 RED,TRIM3# |
2 | ||
| 72457-1403010 |
RN101,110,13#,VZN100,110,13#..SR5 MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-1403030 |
RN101,110,13#,VZN100,110,13#..SR5 BLUE,TRIM8# |
2 | ||
| 72457-1403056 |
RN101,110,13#,VZN100,110,13#..SR5 BROWN,TRIM4# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-89103 |
VZN110..DLX;RN110,13#,VZN13# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-89103 |
VZN110..DLX;RN110,13#,VZN13# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-89103 |
VZN110..DLX;RN110,13#,VZN13# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910502 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8910502 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910102 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8910102 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08442 | ||||
| 90119-10381 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01006 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||

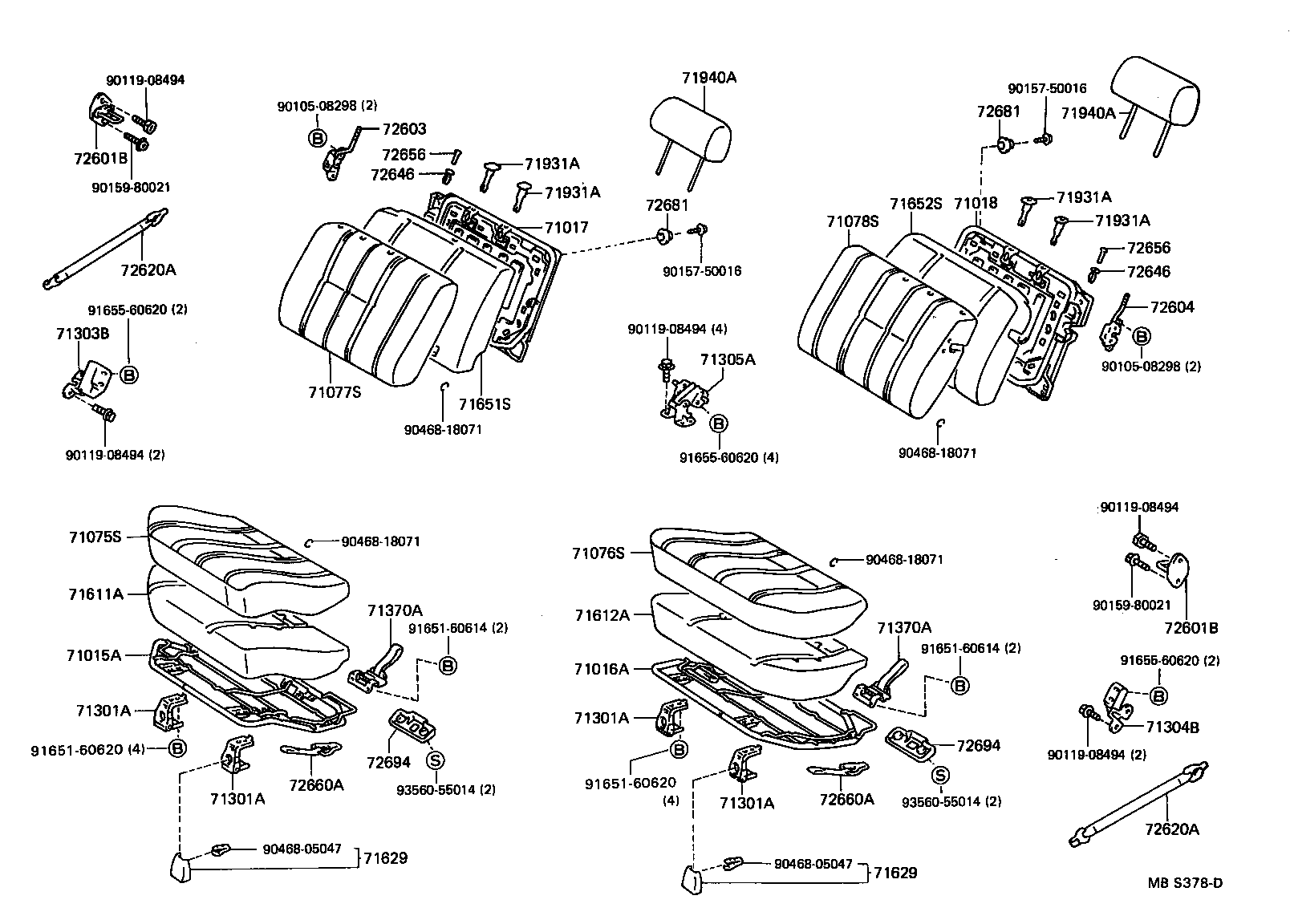

ILLUST NO. 3 OF 3(8904- )RN13#,VZN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-8917602 |
RN13#,VZN13#..4D W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 71075-8917603 |
RN13#,VZN13#..4D W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71075-8917503 |
RN13#,VZN13# GRAY,TRIM1# |
1 | ||
| 71075-8917506 |
RN13#,VZN13# BROWN,TRIM4# |
1 | ||
| 71075-8917502 |
RN13#,VZN13# RED,TRIM3# |
1 | ||
| 71075-8917504 |
RN13#,VZN13# BLUE,TRIM8# |
1 | ||
| 71075-8917604 |
RN13#,VZN13#..4D W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 71075-8917606 |
RN13#,VZN13#..4D W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-8913104 |
RN13#,VZN13# BLUE,TRIM8# |
1 | ||
| 71076-8913103 |
RN13#,VZN13# GRAY,TRIM1# |
1 | ||
| 71076-8913202 |
RN13#,VZN13#..4D W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 71076-8913203 |
RN13#,VZN13#..4D W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71076-8913102 |
RN13#,VZN13# RED,TRIM3# |
1 | ||
| 71076-8913206 |
RN13#,VZN13#..4D W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 71076-8913106 |
RN13#,VZN13# BROWN,TRIM4# |
1 | ||
| 71076-8913204 |
RN13#,VZN13#..4D W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-8917602 |
RN131,VZN131 RED,TRIM3# |
1 | ||
| 71077-8917603 |
RN131,VZN131 GRAY,TRIM1# |
1 | ||
| 71077-8917606 |
RN131,VZN131 BROWN,TRIM4# |
1 | ||
| 71077-8917604 |
RN131,VZN131 BLUE,TRIM8# |
1 | ||
| 71077-8917902 |
RN131,VZN131..4D W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 71077-8917906 |
RN131,VZN131..4D W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 71077-8917904 |
RN131,VZN131..4D W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 71077-8917903 |
RN131,VZN131..4D W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-8913806 |
RN13#,VZN13# BROWN,TRIM4# |
1 | ||
| 71078-8913804 |
RN13#,VZN13# BLUE,TRIM8# |
1 | ||
| 71078-8913803 |
RN13#,VZN13# GRAY,TRIM1# |
1 | ||
| 71078-8914004 |
RN13#,VZN13#..4D W(SPORT SEAT),BLUE,TRIM8# |
1 | ||
| 71078-8914002 |
RN13#,VZN13#..4D W(SPORT SEAT),RED,TRIM3# |
1 | ||
| 71078-8914006 |
RN13#,VZN13#..4D W(SPORT SEAT),BROWN,TRIM4# |
1 | ||
| 71078-8913802 |
RN13#,VZN13# RED,TRIM3# |
1 | ||
| 71078-8914003 |
RN13#,VZN13#..4D W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-8911702 |
RN13#,VZN13# RED,TRIM3# |
2 | ||
| 71940-8911703 |
RN13#,VZN13# GRAY,TRIM1# |
2 | ||
| 71940-8911706 |
RN13#,VZN13# BROWN,TRIM4# |
2 | ||
| 71940-8911902 |
RN13#,VZN13#..4D W(SPORT SEAT),RED,TRIM3# |
2 | ||
| 71940-8911903 |
RN13#,VZN13#..4D W(SPORT SEAT),GRAY,TRIM1# |
2 | ||
| 71940-8911704 |
RN13#,VZN13# BLUE,TRIM8# |
2 | ||
| 71940-8911904 |
RN13#,VZN13#..4D W(SPORT SEAT),BLUE,TRIM8# |
2 | ||
| 71940-8911906 |
RN13#,VZN13#..4D W(SPORT SEAT),BROWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-8911702 |
RN13#,VZN13# RED,TRIM3# |
2 | ||
| 71940-8911703 |
RN13#,VZN13# GRAY,TRIM1# |
2 | ||
| 71940-8911706 |
RN13#,VZN13# BROWN,TRIM4# |
2 | ||
| 71940-8911902 |
RN13#,VZN13#..4D W(SPORT SEAT),RED,TRIM3# |
2 | ||
| 71940-8911903 |
RN13#,VZN13#..4D W(SPORT SEAT),GRAY,TRIM1# |
2 | ||
| 71940-8911704 |
RN13#,VZN13# BLUE,TRIM8# |
2 | ||
| 71940-8911904 |
RN13#,VZN13#..4D W(SPORT SEAT),BLUE,TRIM8# |
2 | ||
| 71940-8911906 |
RN13#,VZN13#..4D W(SPORT SEAT),BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90105-08298 | ||||
| 90119-08494 | ||||
| 90157-50016 | ||||
| 90159-80021 | ||||
| 90468-05047 | ||||
| 90468-18071 | ||||
| 91651-60614 | ||||
| 91651-60620 | ||||
| 91655-60620 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
