RN131L-RKMSEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9511)

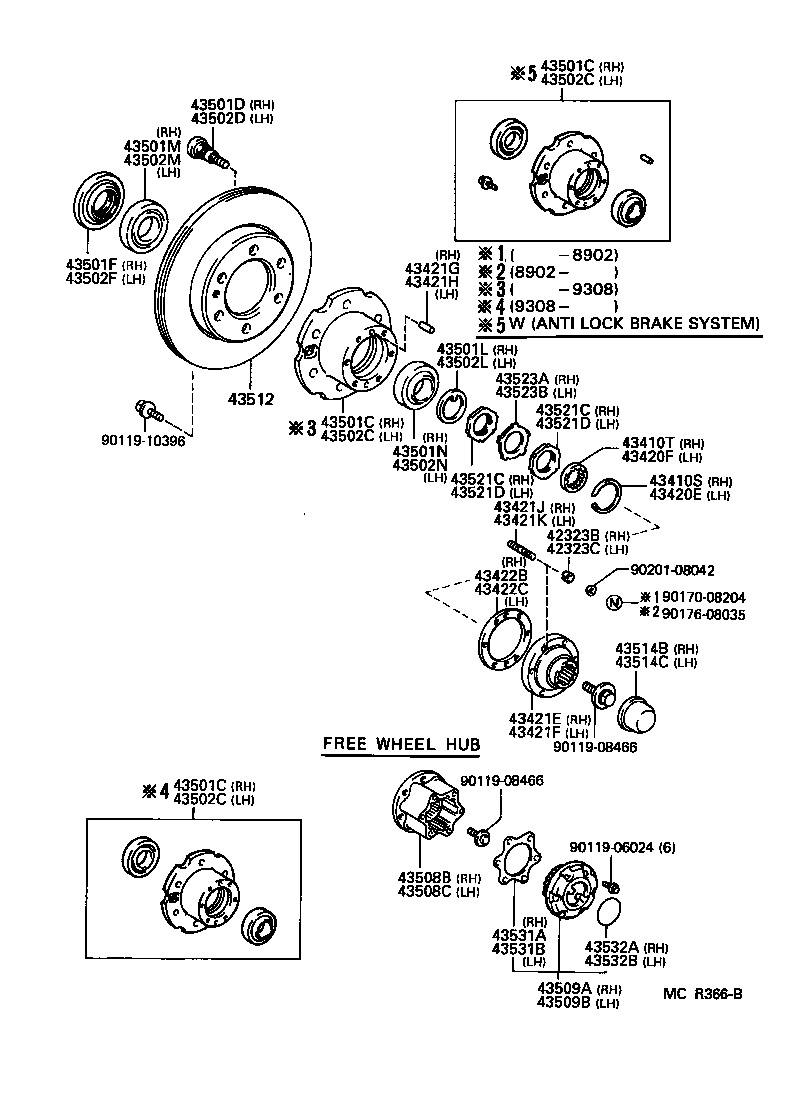

Click highlighted areas on diagram

diagram 42323B 42323C 43410S 43410T 43420E 43420F 43421E 43421F 43421G 43421H 43421J 43421K 43422B 43422C 43501C 43501C 43501C 43501D 43501F 43501L 43501M 43501N 43502C 43502C 43502C 43502D 43502F 43502L 43502M 43502N 43508B 43508C 43509A 43509B 43512 43514B 43514C 43521C 43521C 43521D 43521D 43523A 43523B 43531A 43531B 43532A 43532B 9011906024 9011908466 9011908466 9011910396 9017008204 9017608035 9020108042
Part # Description Qty Price
42323B - WASHER, CONE (FOR FRONT AXLE SHAFT RH)
42323-60010

RN10#,110,13#,VZN10#,110,13#

 6
42323C - WASHER, CONE (FOR FRONT AXLE SHAFT LH)
42323-60010

RN10#,110,13#,VZN10#,110,13#

 6
43410S - RING, SNAP (FOR FRONT DRIVE SHAFT RH)
90520-27023

RN10#,110,13#,VZN10#,110,13#

T=1.5

 1
43410T - SPACER (FOR FRONT DRIVE SHAFT RH)
90560-27005

RN10#,110,13#,VZN10#,110,13#

T=2.0

 1
90560-27011

RN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#

T=2.25,T=2.25

 1
90560-27010

RN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#

T=1.8,T=1.8

 1
43420E - RING, SNAP (FOR FRONT DRIVE SHAFT LH)
90520-27023

RN10#,110,13#,VZN10#,110,13#

T=1.5

 1
43420F - SPACER (FOR FRONT DRIVE SHAFT LH)
90560-27010

RN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#

T=1.8,T=1.8

 1
90560-27011

RN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#

T=2.25,T=2.25

 1
90560-27005

RN10#,110,13#,VZN10#,110,13#

T=2.0

 1
43421E - FLANGE, FRONT AXLE OUTER SHAFT, RH
43421-35010

RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5

 1
43421F - FLANGE, FRONT AXLE OUTER SHAFT, LH
43421-35010

RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5

 1
43421G - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
90250-07057

RN10#,110,13#,VZN10#,110,13#

 2
43421H - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
90250-07057

RN10#,110,13#,VZN10#,110,13#

 2
43421J - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
90116-08325

RN10#,110,13#,VZN10#,110,13#

 6
43421K - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
90116-08325

RN10#,110,13#,VZN10#,110,13#

 6
43422B - GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH
43422-60020

RN10#,110,13#,VZN10#,110,13#

 1
43422C - GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH
43422-60020

RN10#,110,13#,VZN10#,110,13#

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43511-35905

RN10#,110,13#,VZN10#,110,13#

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43511-35905

RN10#,110,13#,VZN10#,110,13#

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43511-35905

RN10#,110,13#,VZN10#,110,13#

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

RN10#,110,13#,VZN10#,110,13#

 6
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-66001

RN10#,110,13#,VZN10#,110,13#

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-42030

RN10#,110,13#,VZN10#,110,13#

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90368-49084

RN10#,110,13#,VZN10#,110,13#

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90368-45087

RN10#,110,13#,VZN10#,110,13#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43511-35905

RN10#,110,13#,VZN10#,110,13#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43511-35905

RN10#,110,13#,VZN10#,110,13#

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43511-35905

RN10#,110,13#,VZN10#,110,13#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

RN10#,110,13#,VZN10#,110,13#

 6
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-66001

RN10#,110,13#,VZN10#,110,13#

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-42030

RN10#,110,13#,VZN10#,110,13#

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90368-49084

RN10#,110,13#,VZN10#,110,13#

KOYO

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90368-45087

RN10#,110,13#,VZN10#,110,13#

KOYO

 1
43508B - BODY SUB-ASSY, FREE WHEEL HUB, RH
43508-35010

RN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX

 1
43508C - BODY SUB-ASSY, FREE WHEEL HUB, LH
43508-35010

RN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX

 1
43509A - COVER SUB-ASSY, FREE WHEEL HUB, RH
43509-35030

RN101,110,13#..W

 1
43509B - COVER SUB-ASSY, FREE WHEEL HUB, LH
43509-35030

RN101,110,13#..W

 1
43512 - DISC, FRONT
43512-35190

RN10#,110,13#,VZN10#,110,13#

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43423-35010

RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43423-35010

RN101,110,13#..G;VZN100,110,13#..SR5;RN110,13#..4FC..SR5

 1
43521C - NUT, FRONT WHEEL ADJUSTING, RH
43521-60011

RN10#,110,13#,VZN10#,110,13#

 2
43521C - NUT, FRONT WHEEL ADJUSTING, RH
43521-60011

RN10#,110,13#,VZN10#,110,13#

 2
43521D - NUT, FRONT WHEEL ADJUSTING, LH
43521-60011

RN10#,110,13#,VZN10#,110,13#

 2
43521D - NUT, FRONT WHEEL ADJUSTING, LH
43521-60011

RN10#,110,13#,VZN10#,110,13#

 2
43523A - WASHER, FRONT WHEEL ADJUSTING LOCK, RH
90215-42025

RN10#,110,13#,VZN10#,110,13#

 1
43523B - WASHER, FRONT WHEEL ADJUSTING LOCK, LH
90215-42025

RN10#,110,13#,VZN10#,110,13#

 1
43531A - GASKET, FREE WHEEL HUB, RH
43531-60010

RN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX

 1
43531B - GASKET, FREE WHEEL HUB, LH
43531-60010

RN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX

 1
43532A - RING, FREE WHEEL HUB, RH
43532-60010

RN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX

 1
43532B - RING, FREE WHEEL HUB, LH
43532-60010

RN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX

 1
Common parts
90119-06024
90119-08466
90119-10396
90170-08204
90176-08035
90201-08042
