RN131L-RJPSEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN13#,VZN13#

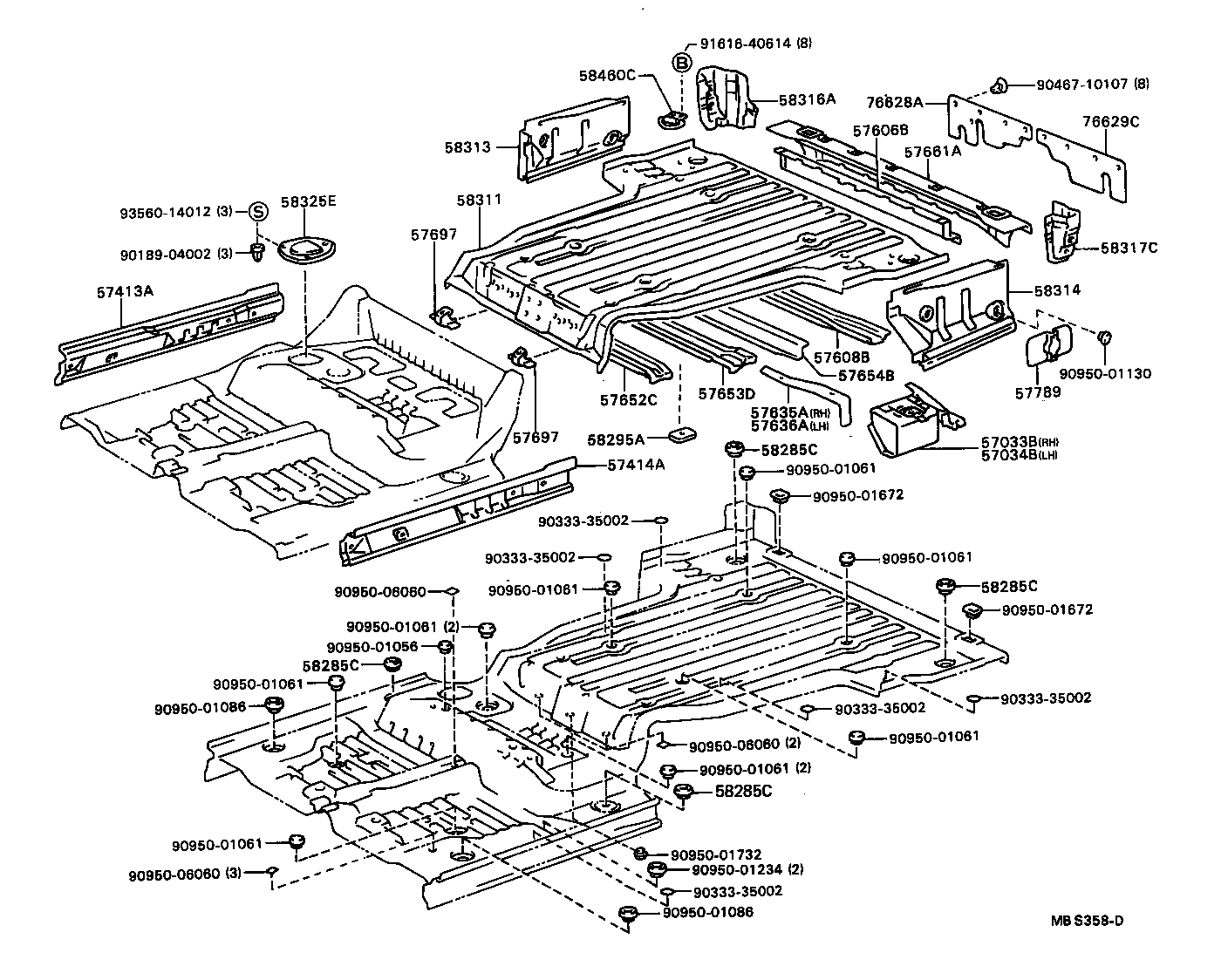

Click highlighted areas on diagram

diagram 57033B 57034B 57413A 57414A 57606B 57608B 57635A 57636A 57652C 57653D 57654B 57661A 57697 57697 57789 58285C 58285C 58285C 58285C 58295A 58311 58313 58314 58316A 58317C 58325E 58460C 76628A 76629C 9018904002 9033335002 9033335002 9033335002 9033335002 9033335002 9046710107 9095001056 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001086 9095001086 9095001130 9095001234 9095001672 9095001672 9095001732 9095006060 9095006060 9095006060 9161640614 9356014012
Part # Description Qty Price
58285C - COVER, REAR FLOOR HOLE
58285-89101

RN13#,VZN13#

 4
58285C - COVER, REAR FLOOR HOLE
58285-89101

RN13#,VZN13#

 4
58285C - COVER, REAR FLOOR HOLE
58285-89101

RN13#,VZN13#

 4
58285C - COVER, REAR FLOOR HOLE
58285-89101

RN13#,VZN13#

 4
76628A - MUDGUARD, REAR BODY, REAR
76628-89103

RN13#,VZN13#

 1
76629C - MUDGUARD, REAR BODY, REAR LH
76629-89101

RN13#,VZN13#

 1
Common parts
90189-04002
90333-35002
90467-10107
90950-01056
90950-01061
90950-01086
90950-01130
90950-01234
90950-01672
90950-01732
90950-06060
91616-40614
93560-14012
