RN131L-RJMSEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

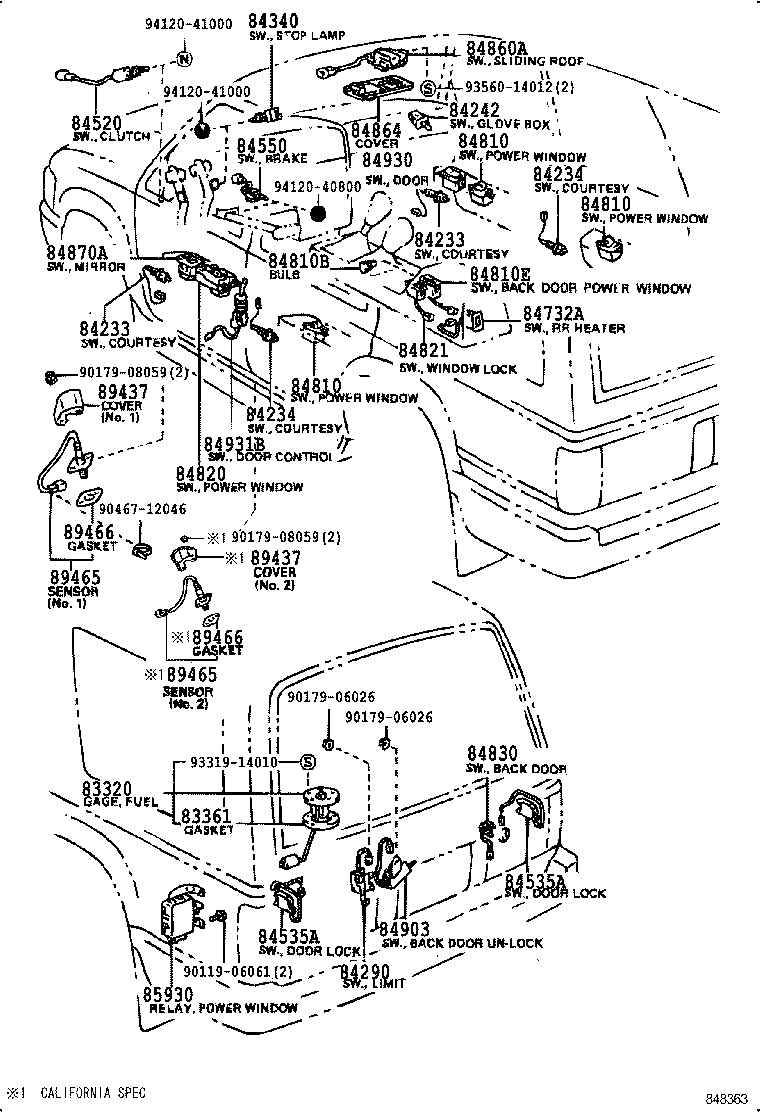

ILLUST NO. 4 OF 4(8904- )RN13#,VZN13#

Click highlighted areas on diagram

diagram 83320 83361 84233 84233 84234 84234 84242 84290 84340 84520 84535A 84535A 84550 84732A 84810 84810 84810 84810B 84810E 84820 84821 84830 84860A 84864 84870A 84903 84930 84931B 85930 89437 89437 89465 89465 89466 89466 9011906061 9017906026 9017906026 9017908059 9017908059 9046712046 9331914010 9356014012 9412040800 9412041000 9412041000
Part # Description Qty Price
83361 - GASKET, FUEL SENDER GAGE
83361-20030

RN10#,110,13#,VZN10#,110,13#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120

RN10#,110,13#,VZN10#,110,13#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120

RN10#,110,13#,VZN10#,110,13#

 2
84242 - SWITCH, GLOVE BOX LAMP
84242-20030

RN101,110,13#,VZN100,110,13#..SR5

ILLUMINATION PACKAGE

 1
84340 - SWITCH ASSY, STOP LAMP
84340-30030

RN10#,110,13#,VZN10#,110,13#

 1
84340-30050

RN101,110,13#,VZN100,110,13#..SR5

W(CRUISE CONTROL)

 1
84520 - SWITCH ASSY, CLUTCH START
84520-35010

RN10#,110,13#,VZN10#,110,13#..5F

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-35010

RN10#,110,13#,VZN10#,110,13#

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070

RN101,110,13#,VZN100,110,13#..(2D,T1)..SR5

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070

RN101,110,13#,VZN100,110,13#..(2D,T1)..SR5

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070

RN101,110,13#,VZN100,110,13#..(2D,T1)..SR5

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-89105

RN101,110,13#,VZN100,110,13#..(2D,T1)..SR5

 1
84864 - COVER, SLIDE ROOF MOTOR SWITCH
84864-8910102

RN13#,VZN13#

RED,TRIM3#

 1
84864-8910103

RN13#,VZN13#

GRAY,TRIM1#

 1
84864-8910106

RN13#,VZN13#

BROWN,TRIM4#

 1
84864-8910104

RN13#,VZN13#

BLUE,TRIM8#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-89101

RN101,110,13#,VZN100,110,13#..SR5

 1
84930 - SWITCH ASSY, DOOR CONTROL
84930-32040

RN101,110,13#,VZN100,110,13#..SR5

 1
84931B - SWITCH, DOOR CONTROL
84931-89101

RN101,110,13#,VZN100,110,13#..SR5

LH

 1
84931-89102

RN101,110,13#,VZN100,110,13#..SR5

RH

 1
85930 - RELAY ASSY, POWER WINDOW
85930-89103

RN13#,VZN13#

W(REAR WIPER)

 1
85930-89102

RN13#,VZN13#

 1
89437 - COVER, SENSOR
89437-35030

RN13#,VZN13#

NO.2

 1
89437 - COVER, SENSOR
89437-35030

RN13#,VZN13#

NO.2

 1
89465 - SENSOR, OXYGEN
89465-39335

RN13#

NO.1

 1
89465 - SENSOR, OXYGEN
89465-39335

RN13#

NO.1

 1
Common parts
90119-06061
90179-06026
90179-08059
90467-12046
93319-14010
93560-14012
94120-40800
94120-41000
