RN131L-RJLSEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1993
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN13#,VZN13#

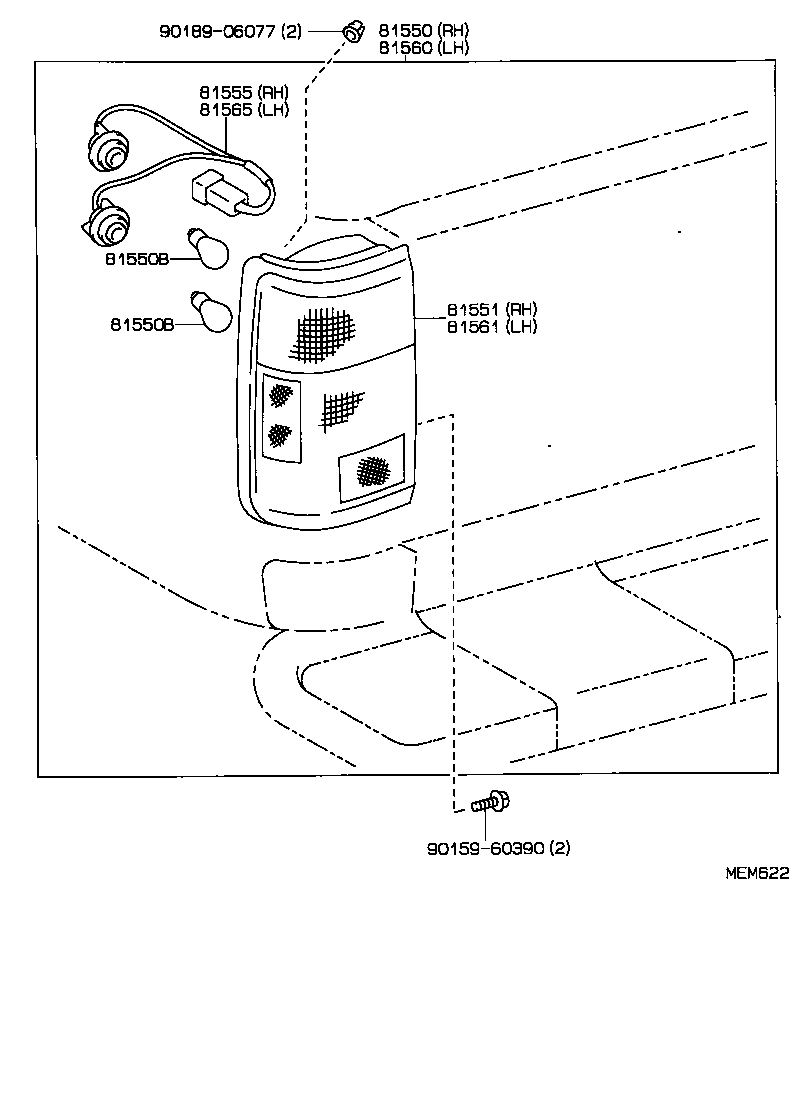

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81555 81560 81561 81565 9015960390 9018906077
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-89168

RN13#,VZN13#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

RN10#,110,13#,VZN10#,110,13#

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

RN10#,110,13#,VZN10#,110,13#

12V 27/8W

 2
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-89168

RN13#,VZN13#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89168

RN13#,VZN13#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-89168

RN13#,VZN13#

 1
Common parts
90159-60390
90189-06077
