RN130L-GKMSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1992
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )RN13#,VZN13#

Click highlighted areas on diagram

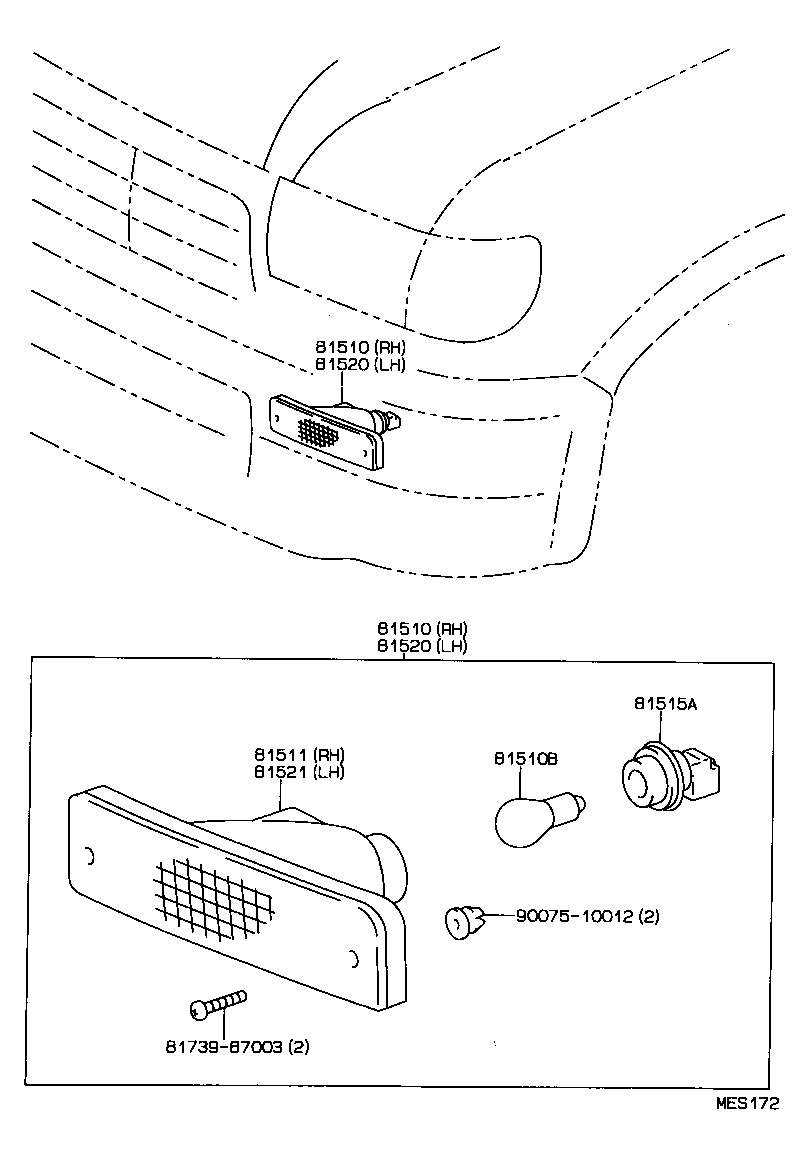

diagram 81510 81510 81510B 81511 81515A 81520 81520 81521 8173987003 9007510012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-89134

RN10#,110,13#,VZN10#,110,13#

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-89134

RN10#,110,13#,VZN10#,110,13#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

RN10#,110,13#,VZN10#,110,13#

12V 27W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-89133

RN10#,110,13#,VZN10#,110,13#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-89134

RN10#,110,13#,VZN10#,110,13#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-89134

RN10#,110,13#,VZN10#,110,13#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-89133

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
81739-87003
90075-10012

(8808-9108) ; (9108- )RN10#,110,VZN10#,110

Click highlighted areas on diagram

diagram 81510 81510B 81511 81512 81520 81521 81522 8173987003 9007510008
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-89134

RN10#,110,13#,VZN10#,110,13#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270

RN10#,110,13#,VZN10#,110,13#

12V 27W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-89133

RN10#,110,13#,VZN10#,110,13#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-89133

RN10#,110,13#,VZN10#,110,13#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-89134

RN10#,110,13#,VZN10#,110,13#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-89133

RN10#,110,13#,VZN10#,110,13#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-89133

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
81739-87003
90075-10008
