RN130L-GKMSEA (1989)
Toyota 4-Runner Truck (Jpp)
Production
Apr 1989
-
Aug 1992
Engine
22RE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

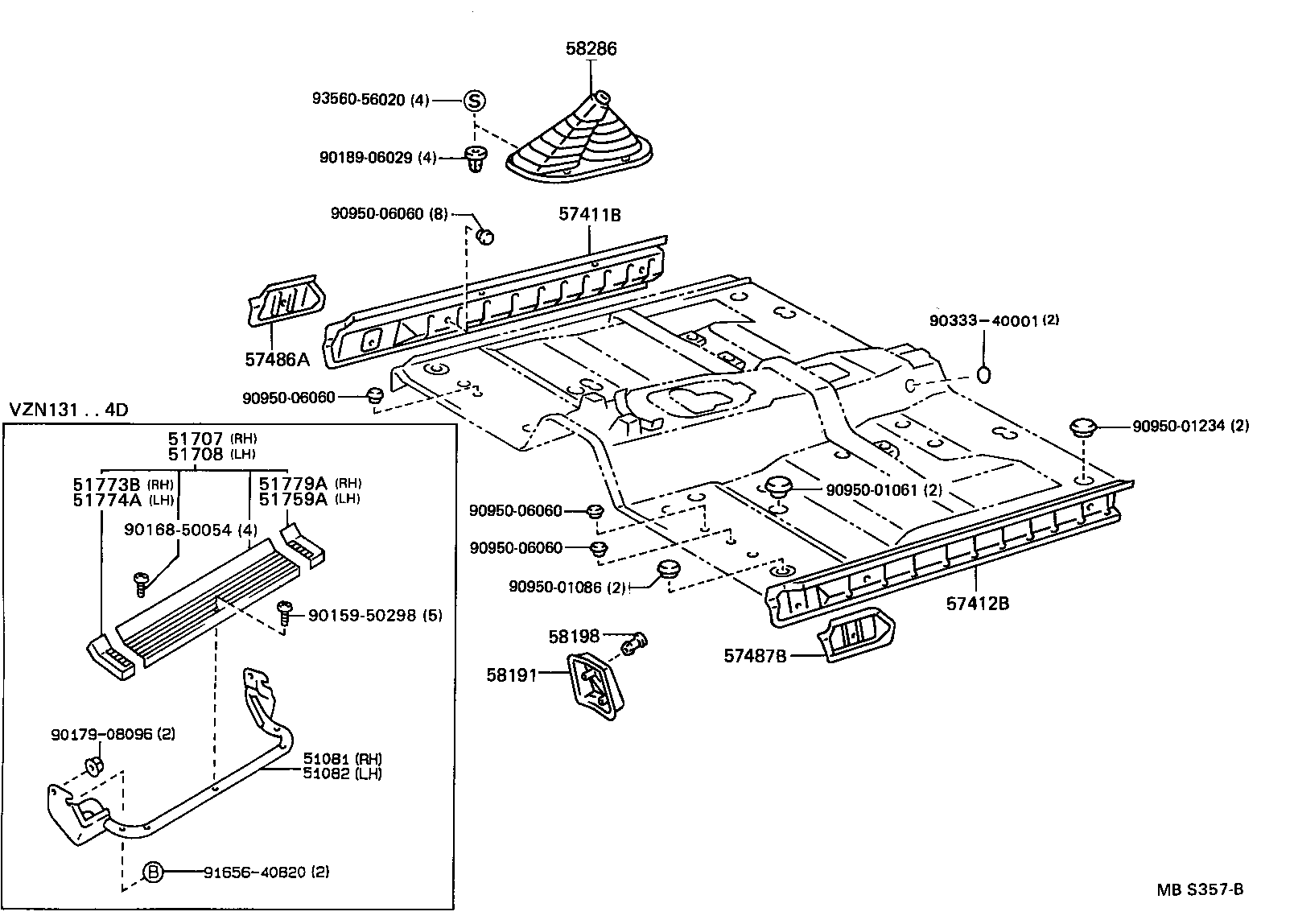

ILLUST NO. 1 OF 2(8904- )RN13#,VZN13#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57411B - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-89104 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 57412B - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-89106 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-89104 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-89102 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-89101 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-89101 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-89116 |
RN101,110,13#,VZN13#..(G,R)..SR5 |
1 | ||
| 58280-89119 |
RN101,110,13#..W..SR5 |
1 | ||
| Common parts | ||||
| 90159-50298 | ||||
| 90168-50054 | ||||
| 90179-08096 | ||||
| 90189-06029 | ||||
| 90333-40001 | ||||
| 90950-01061 | ||||
| 90950-01086 | ||||
| 90950-01234 | ||||
| 90950-06060 | ||||
| 91656-40820 | ||||
| 93560-56020 | ||||
ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-89105 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
