RN130L-GKLSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Nov 1995
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )

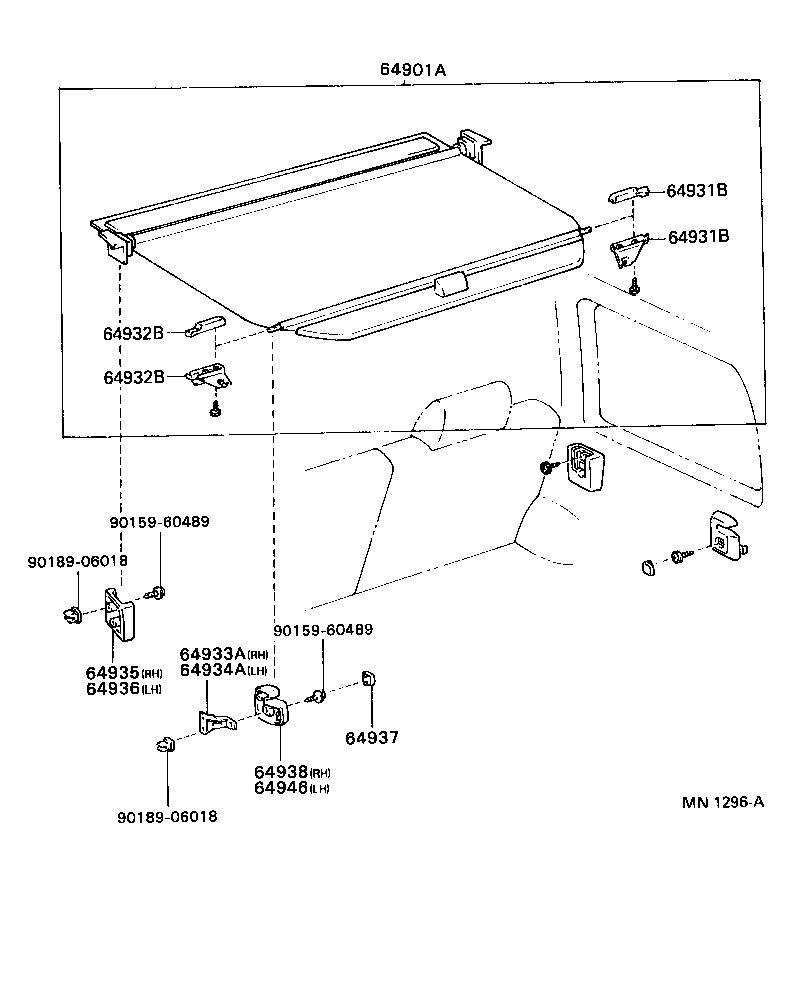

Click highlighted areas on diagram

diagram 64901A 64931B 64931B 64932B 64932B 64933A 64934A 64935 64936 64937 64938 64946 9015960489 9015960489 9018906018 9018906018
Part # Description Qty Price
64901A - RETRACTOR SUB-ASSY, TONNEAU COVER
64901-35020J1

RN13#,VZN13#..4D

BLUE,TRIM8#

 1
64901-35020E1

RN13#,VZN13#..4D

TAN,TRIM4#

 1
64901-35020B1

RN13#,VZN13#..4D

GRAY,TRIM1#

 1
64901-35020E3

RN13#,VZN13#

OAK,TRIM4#

 1
64931B - HANGER, TONNEAU COVER, RH
64951-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,LOWER

 1
64931-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,UPPER

 1
64951-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,LOWER

 1
64951-35010E1

RN13#,VZN13#

OAK,TRIM4#,LOWER

 1
64951-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#,LOWER

 1
64931-35010E1

RN13#,VZN13#

OAK,TRIM4#,UPPER

 1
64931-35010E0

RN13#,VZN13#..4D

OAK,TRIM4#,UPPER

 1
64931-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,UPPER

 1
64931B - HANGER, TONNEAU COVER, RH
64951-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,LOWER

 1
64931-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,UPPER

 1
64951-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,LOWER

 1
64951-35010E1

RN13#,VZN13#

OAK,TRIM4#,LOWER

 1
64951-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#,LOWER

 1
64931-35010E1

RN13#,VZN13#

OAK,TRIM4#,UPPER

 1
64931-35010E0

RN13#,VZN13#..4D

OAK,TRIM4#,UPPER

 1
64931-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,UPPER

 1
64932B - HANGER, TONNEAU COVER, LH
64932-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,UPPER

 1
64952-35010E0

RN13#,VZN13#..4D

OAK,TRIM4#,LOWER

 1
64952-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,LOWER

 1
64932-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,UPPER

 1
64932-35010E1

RN13#,VZN13#

OAK,TRIM4#,UPPER

 1
64932-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#,UPPER

 1
64952-35010E1

RN13#,VZN13#

OAK,TRIM4#,LOWER

 1
64952-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,LOWER

 1
64932B - HANGER, TONNEAU COVER, LH
64932-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,UPPER

 1
64952-35010E0

RN13#,VZN13#..4D

OAK,TRIM4#,LOWER

 1
64952-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#,LOWER

 1
64932-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,UPPER

 1
64932-35010E1

RN13#,VZN13#

OAK,TRIM4#,UPPER

 1
64932-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#,UPPER

 1
64952-35010E1

RN13#,VZN13#

OAK,TRIM4#,LOWER

 1
64952-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#,LOWER

 1
64933A - BRACKET, TONNEAU COVER HOLDER, RH
64933-35020

RN13#,VZN13#..4D

 1
64934A - BRACKET, TONNEAU COVER HOLDER, LH
64934-35020

RN13#,VZN13#..4D

 1
64935 - HOLDER, TONNEAU COVER, RH
64935-35010E1

RN13#,VZN13#

OAK,TRIM4#

 1
64935-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#

 1
64935-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#

 1
64935-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#

 1
64936 - HOLDER, TONNEAU COVER, LH
64936-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#

 1
64936-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#

 1
64936-35010E1

RN13#,VZN13#

OAK,TRIM4#

 1
64936-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#

 1
64937 - CAP, TONNEAU COVER HOLDER, NO.1
64937-35020J0

RN13#,VZN13#..4D

BLUE,TRIM8#

 2
64937-35020B0

RN13#,VZN13#..4D

GRAY,TRIM1#

 2
64937-35020E1

RN13#,VZN13#

OAK,TRIM4#

 2
64937-35020E0

RN13#,VZN13#..4D

TAN,TRIM4#

 2
64938 - HOOK, TONNEAU COVER, A
64938-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#

 1
64938-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#

 1
64938-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#

 1
64938-35010E1

RN13#,VZN13#

OAK,TRIM4#

 1
64946 - HOOK, TONNEAU COVER, B
64946-35010E1

RN13#,VZN13#

OAK,TRIM4#

 1
64946-35010E0

RN13#,VZN13#..4D

TAN,TRIM4#

 1
64946-35010J0

RN13#,VZN13#..4D

BLUE,TRIM8#

 1
64946-35010B0

RN13#,VZN13#..4D

GRAY,TRIM1#

 1
Common parts
90159-60489
90189-06018
