RN130L-GJMSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9108)RN13#,VZN13#

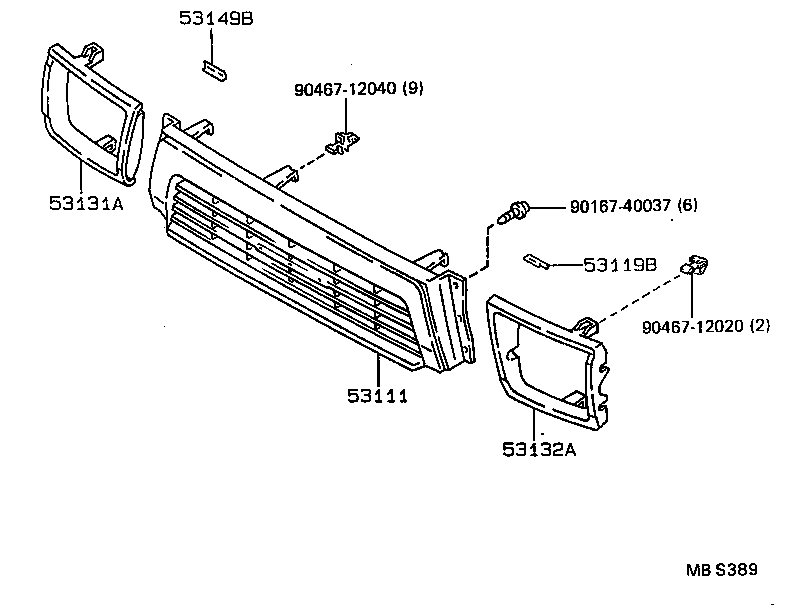

Click highlighted areas on diagram

diagram 53111 53119B 53131A 53132A 53149B 9016740037 9046712020 9046712040
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-89143

RN13#,VZN13#

NO PAINT REQ.

 1
53111-89144

RN13#,VZN13#

PLATED

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-89105

RN10#,110,13#,VZN10#,110,13#

 1
53131A - DOOR, HEADLAMP, RH
53131-89126

RN13#,VZN13#

CHROME PLATED PACKAGE

 1
53131-89119

RN101,110,13#,VZN100,110,13#..SR5

 1
53132A - DOOR, HEADLAMP, LH
53132-89125

RN13#,VZN13#

CHROME PLATED PACKAGE

 1
53132-89118

RN101,110,13#,VZN100,110,13#..SR5

 1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90167-40037
90467-12020
90467-12040
