RN130L-GJMSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN13#,VZN13#

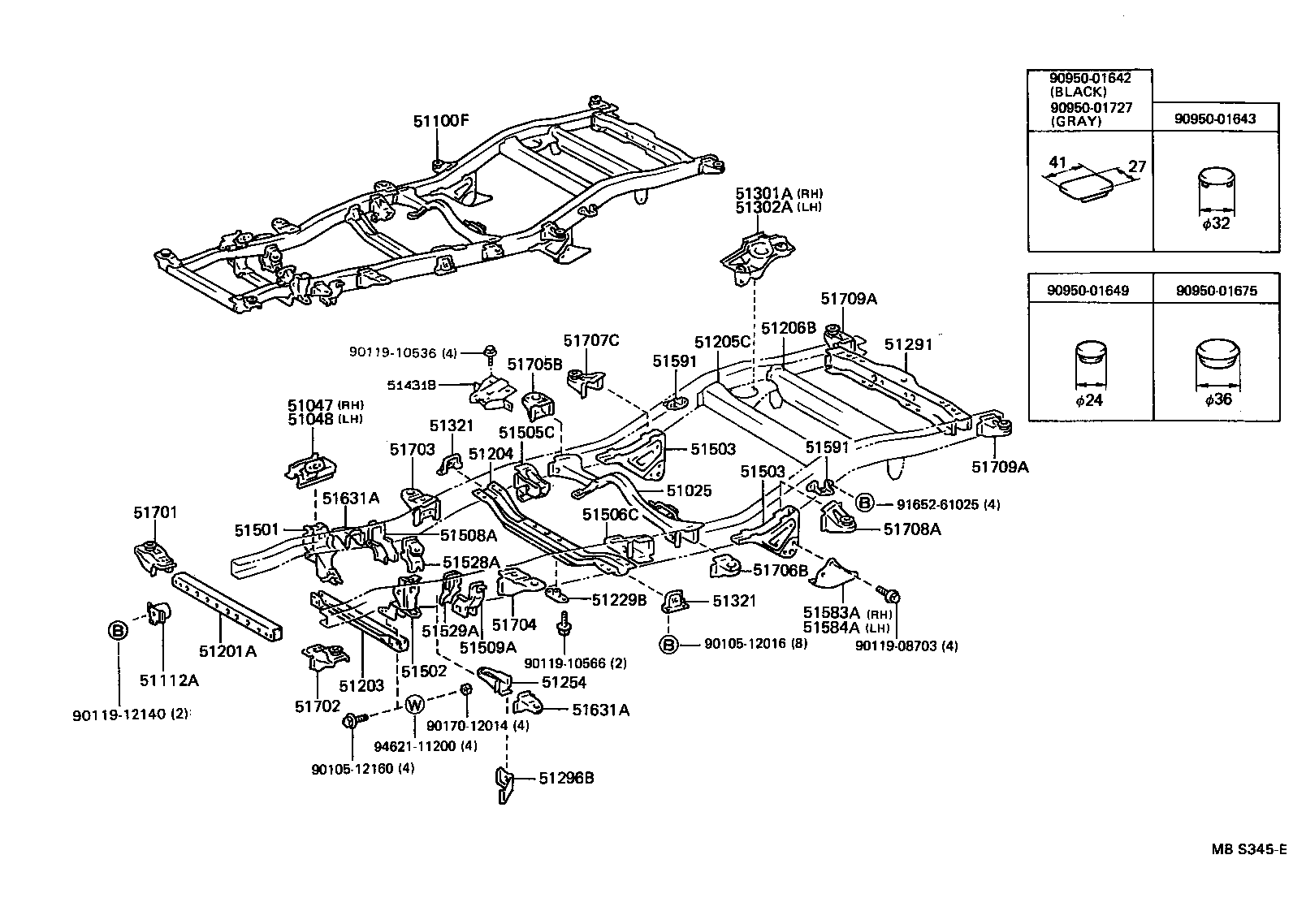

Click highlighted areas on diagram

diagram 51025 51047 51048 51100F 51112A 51201A 51203 51204 51205C 51206B 51229B 51254 51291 51296B 51301A 51302A 51321 51321 51431B 51501 51502 51503 51503 51505C 51506C 51508A 51509A 51528A 51529A 51583A 51584A 51591 51591 51631A 51631A 51701 51702 51703 51704 51705B 51706B 51707C 51708A 51709A 51709A 9010512016 9010512160 9011908703 9011910536 9011910566 9011912140 9017012014 9095001642 9095001643 9095001649 9095001675 9095001727 9165261025 9462111200
Part # Description Qty Price
51047 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH
51047-35030

VZN10#,110,13#

 1
51047-35070

RN10#,110,13#

 1
51048 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH
51048-35070

RN10#,110,13#

 1
51048-35030

VZN10#,110,13#

 1
51100F - FRAME SUB-ASSY
51002-3D120

RN13#..5F

 1
51002-3D750

RN13#..5F

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-35180

RN10#,110,13#,VZN10#,110,13#

 1
51201-35200

RN10#,110,13#,VZN10#,110,13#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51203-35270

RN10#,110,13#,VZN10#,110,13#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51202-35190

VZN10#,110,13#..R

 1
51202-35240

RN10#,110,13#..5F

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35200

RN13#,VZN13#

 1
51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC
51229-35020

RN10#,13#

 1
51254 - BRACKET, DIFFERENTIAL SUPPORT, LH
51254-35010

RN10#,110,13#,VZN10#,110,13#

 1
51296B - REINFORCEMENT, DIFFERENTIAL BRACKET, LH
51296-35010

RN10#,110,13#,VZN10#,110,13#

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35090

RN13#,VZN13#

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35090

RN13#,VZN13#

 2
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35030

RN10#,110,13#,VZN10#,110,13#

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35030

RN10#,110,13#,VZN10#,110,13#

 1
51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH
51505-35080

RN101,13#,VZN100,13#

 1
51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH
51506-35020

RN10#,110,13#,VZN10#,110,13#

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-35900

RN10#,110,13#,VZN10#,110,13#

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51509-35900

RN10#,110,13#,VZN10#,110,13#

 1
51528A - REINFORCEMENT, LOWER ARM BRACKET, RH
51528-35900

RN10#,110,13#,VZN10#,110,13#

 1
51529A - REINFORCEMENT, LOWER ARM BRACKET, LH
51529-35900

RN10#,110,13#,VZN10#,110,13#

 1
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-35040

RN13#,VZN13#

 2
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-35040

RN13#,VZN13#

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35130

RN10#,110,13#,VZN10#,110,13#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35110

RN10#,110,13#,VZN10#,110,13#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35080

RN10#,110,13#,VZN10#,110,13#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35100

RN10#,110,13#,VZN10#,110,13#

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-35100

RN10#,110,13#,VZN10#,110,13#

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51706-35020

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90105-12016
90105-12160
90119-08703
90119-10536
90119-10566
90119-12140
90170-12014
90950-01642
90950-01643
90950-01649
90950-01675
90950-01727
91652-61025
94621-11200
