RN130L-GJLSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)

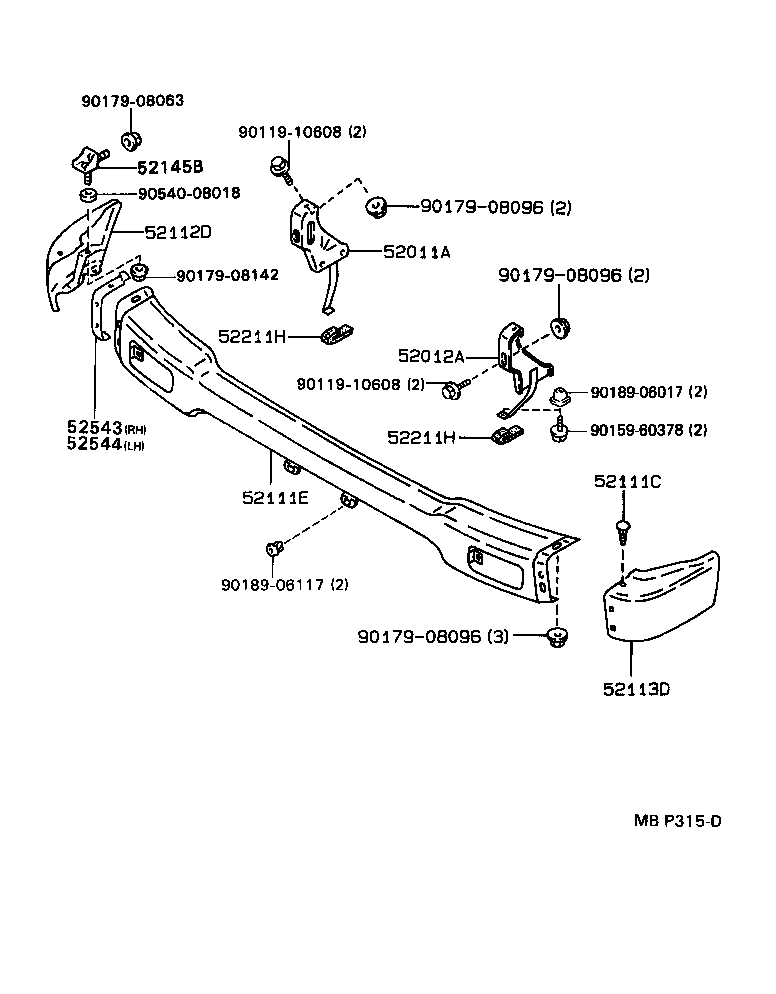

Click highlighted areas on diagram

diagram 52011A 52012A 52111C 52111E 52112D 52113D 52145B 52211H 52211H 52543 52544 9011910608 9011910608 9015960378 9017908063 9017908096 9017908096 9017908096 9017908142 9018906017 9018906117 9054008018
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-89117

RN13#,VZN13#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-89117

RN13#,VZN13#

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08069

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE

 6
90112-0807206

RN13#,VZN13#

O.GOLD.M,29L

 6
90112-0807203

RN13#,VZN13#

SILVER.M,27L

 6
90112-08070

RN10#,110,13#,VZN10#,110,13#

 6
90112-0807213

RN13#,VZN13#

D.GRAY.M,28L

 6
52111E - BAR, FRONT BUMPER
52101-89113

RN10#,110,13#,VZN10#,110,13#

NO PAINT REQ.

 1
52101-8911703

RN13#,VZN13#

SILVER.M,27L

 1
52101-8911706

RN13#,VZN13#

O.GOLD.M,29L

 1
52101-8911713

RN13#,VZN13#

D.GRAY.M,28L

 1
52101-89114

RN10#,110,13#,VZN10#,110,13#

PLATED

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-8911606

RN13#,VZN13#

O.GOLD.M,29L

 1
52102-89114

RN13#,VZN13#

NO PAINT REQ.

 1
52102-8911603

RN13#,VZN13#

SILVER.M,27L

 1
52102-89115

RN13#,VZN13#

PLATED

 1
52102-8911613

RN13#,VZN13#

D.GRAY.M,28L

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-8911606

RN13#,VZN13#

O.GOLD.M,29L

 1
52103-89115

RN13#,VZN13#

PLATED

 1
52103-89114

RN13#,VZN13#

NO PAINT REQ.

 1
52103-8911603

RN13#,VZN13#

SILVER.M,27L

 1
52103-8911613

RN13#,VZN13#

D.GRAY.M,28L

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

RN10#,110,13#,VZN10#,110,13#

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

RN10#,110,13#,VZN10#,110,13#

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

RN10#,110,13#,VZN10#,110,13#

 2
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-89101

RN10#,110,13#,VZN10#,110,13#

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-89101

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90119-10608
90159-60378
90179-08063
90179-08096
90179-08142
90189-06017
90189-06117
90540-08018
